5.9 GHz to 23.6 GHz, Wideband, Microwave Upconverter Features: Wideband RF output frequency range: 5.9 GHz to 23.6 GHz Two upconversion modes Direct conversion from baseband I/Q to RF Single sideband upconversion from real IF LO input frequency range: 5.4 GHz to 14 GHz LO doubler for up to 28 GHz Matched 100 Ω balanced RF output, LO input, and IF input High impedance baseband inputs Sideband suppression and carrier feedthrough optimization Variable attenuator and power detector for Tx power control Programmable via 4-wire SPI interface 32-lead, 5 mm × 5 mm LFCSP microwave packaging

Narrow-Band and Wideband RF Transceiver Features: Highly integrated transceiver with single-channel transmitter and dual-channel receivers Frequency range of 30 MHz to 6000 MHz Transmitter and receiver bandwidth from 12 kHz to 40 MHz Two fully integrated, fractional-N, RF synthesizers LVDS and CMOS synchronous serial data interface options Low power monitor and sleep modes Multichip synchronization capabilities Fast frequency hopping Dynamic profile switching for dynamic data rates and sample rates Fully programmable via a 4-wire SPI 12 mm × 12 mm, 196-ball CSP_BGA

Dual Narrow/Wideband RF Transceiver Features: 2 2 highly integrated transceiver Frequency range of 30 MHz to 6000 MHz Transmitter and receiver bandwidth from 12 kHz to 40 MHz Two fully integrated, fractional-N, RF synthesizers LVDS and CMOS synchronous serial data interface options Low power monitor and sleep modes Multichip synchronization capabilities Fast frequency hopping Dynamic profile switching for dynamic data rates and sample rates Fully programmable via a 4-wire SPI 12 mm 12 mm, 196-ball CSP_BGA

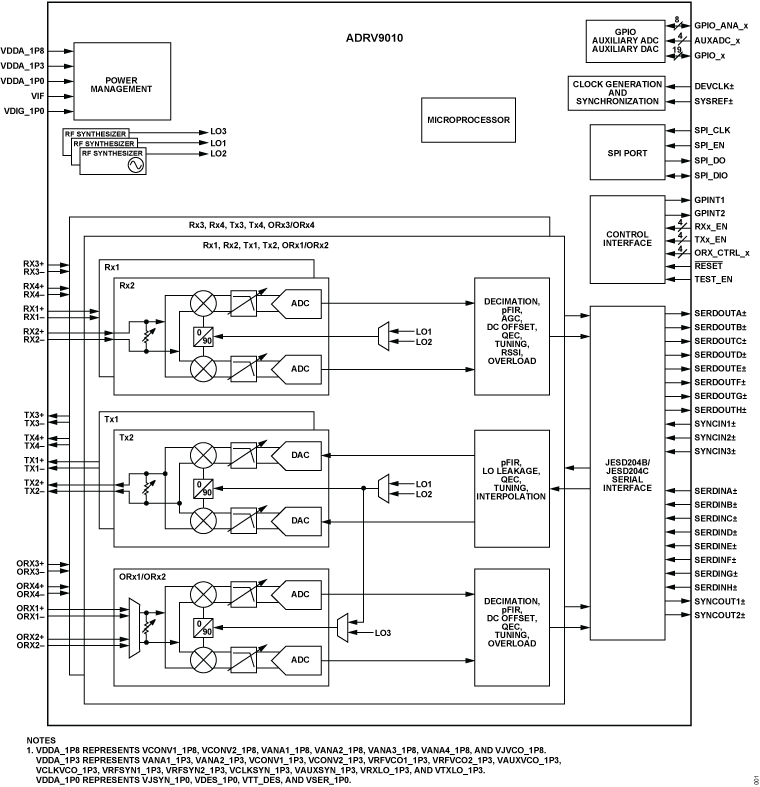

Integrated, Quad RF Transceiver with Observation Path Features: 4 differential transmitters 4 differential receivers 2 observation receivers with 2 inputs each Center frequency 650 MHz to 3800 MHz (ADRV9010BBCZ) 650 MHz to 6000 MHz (ADRV9010BBCZ-A) Maximum receiver bandwidth: 200 MHz Maximum transmitter bandwidth: 200 MHz Maximum transmitter synthesis bandwidth: 450 MHz Maximum observation receiver bandwidth: 450 MHz Fully integrated independent fractional-N radio frequency synthesizers Fully integrated clock synthesizer Multichip phase synchronization for all local oscillators and baseband clocks JESD204B/JESD204C digital interface

Integrated, Quad RF Transceiver with Observation Path Features: 4 differential transmitters 4 differential receivers 2 observation receivers with 2 inputs each Center frequency: 75 MHz to 6000 MHz Maximum receiver bandwidth: 200 MHz Maximum transmitter large signal bandwidth: 200 MHz Maximum transmitter synthesis bandwidth: 450 MHz Maximum observation receiver bandwidth: 450 MHz Fully integrated independent fractional-N radio frequency synthesizers Fully integrated clock synthesizer Multichip phase synchronization for all local oscillators and baseband clocks Support for TDD and FDD applications 24.33 Gbps JESD204B/JESD204C digital interface

Integrated, Quad RF Transceiver with Observation Path Features: 4 differential transmitters 4 differential receivers 2 observation receivers with 2 inputs each Center frequency: 75 MHz to 6000 MHz Maximum receiver bandwidth: 200 MHz Maximum transmitter large signal bandwidth: 200 MHz Maximum transmitter synthesis bandwidth: 450 MHz Maximum observation receiver bandwidth: 450 MHz Fully integrated independent fractional-N radio frequency synthesizers Fully integrated clock synthesizer Multichip phase synchronization for all local oscillators and baseband clocks Support for TDD and FDD applications 24.33 Gbps JESD204B/JESD204C digital interface

Integrated, Quad RF Transceiver with Observation Path Features: 4 Differential transmitters 4 Differential receivers 2 observation receivers with 2 inputs each Center frequency: 75 MHz to 6000 MHz Fully integrated DPD adaptation engine for power amplifier linearization Crest factor reduction engine Maximum receiver bandwidth: 200 MHzMaximum transmitter large signal bandwidth: 200 MHz Maximum transmitter synthesis bandwidth: 450 MHz Maximum observation receiver bandwidth: 450 MHz Fully integrated independent fractional-N radio frequency synthesizers Fully integrated clock synthesizer Multichip phase synchronization for all local oscillators and baseband clocks Support for TDD and FDD applications 24.33 Gbps JESD204B/JESD204C digital interface

Integrated, Quad RF Transceiver with Observation Path Features: 4 Differential transmitters 4 Differential receivers 2 observation receivers with 2 inputs each Center frequency: 75 MHz to 6000 MHz Fully integrated DPD adaptation engine for power amplifier linearization Crest factor reduction engine Maximum receiver bandwidth: 200 MHzMaximum transmitter large signal bandwidth: 200 MHz Maximum transmitter synthesis bandwidth: 450 MHz Maximum observation receiver bandwidth: 450 MHz Fully integrated independent fractional-N radio frequency synthesizers Fully integrated clock synthesizer Multichip phase synchronization for all local oscillators and baseband clocks Support for TDD and FDD applications 24.33 Gbps JESD204B/JESD204C digital interface

MxFE Quad, 16-Bit, 12 GSPS RF DAC and Dual, 12-Bit, 6 GSPS RF ADC Features:Flexible reconfigurable common platform design 4 DACs and 2 ADCs (4D2A) and 2D2A options Supports single, dual, and quad band Datapaths and DSP blocks are fully bypassableDAC to ADC sample rate ratios of 1, 2, 3, and 4 On-chip PLL with multichip synchronization External RFCLK input option for off-chip PLL Maximum DAC sample rate up to 12 GSPS Maximum data rate up to 12 GSPS using JESD204C Useable analog bandwidth to 8 GHz Maximum ADC sample rate up to 6 GSPS Maximum data rate up to 6 GSPS using JESD204C Useable analog bandwidth to 8 GHz ADC ac performance at 6 GSPS, input at 2.7 GHz, 1 dBFS Full-scale input voltage: 1.475 V p-p Noise density: 147.5 dBFS/Hz Noise figure: 25.3 dB HD2: 72 dBFS HD3: 68 dBFS Worst other (excluding HD2 and HD3): 78 dBFS DAC ac performance at 12 GSPS, output at 2.6 GHz Full-scale output current range: 6.43 mA to 37.75 mA Two-tone IMD3 (6 dBFS per tone): 72 dBc NSD, single-tone: 160 dBc/Hz SFDR, single-tone: 75 dBc Versatile digital features Selectable interpolation and decimation filters Configurable DDC and DUC 8 fine complex DUCs and 4 coarse complex DUCs 8 fine complex DDCs and 4 coarse complex DDCs 48-bit NCO per DUC or DDC Option to bypass fine and coarse DUC/DDC Programmable 192-tap PFIR filter for receive equalization Supports 4 different profile settings loaded via GPIO Programable delay per data path Receive AGC support Fast detect with low latency for fast AGC control Signal monitor for slow AGC control Dedicated AGC support pins Transmit DPD support Fine DUC channel gain control and delay adjust Coarse DDC delay adjust for DPD observation path Auxiliary features Fast frequency hopping Direct digital synthesis (DDS) Low latency loopback modes (receive datapath data can be routed to the transmit datapaths) ADC clock driver with selectable divide ratios Power amplifier downstream protection circuitry On-chip temperature monitoring unit Flexible GPIO pins TDD power savings option SERDES JESD204B/JESD204C interface, 16 lanes up to 24.75 Gbps 8 lanes JESD204B/C transmitter (JT×) and 8 lanes JESD204B/C receiver (JR×) JESD204B compliance with the maximum 15.5 Gbps JESD204C compliance with the maximum 24.75 Gbps Supports real or complex digital data (8-, 12-, 16-, or 24-bit) 15 mm × 15 mm, 324-ball BGA with 0.8 mm pitch

16-Channel, 125 MHz Bandwidth, JESD204B Analog-to-Digital Converter Features: 1.0 V and 1.8 V supply operation 125 MHz usable analog input bandwidth Sample rate up to 2 GSPS Noise spectral density in 100 MHz bandwidth = 145 dBFS/Hz, 2.0 GSPS encode SNR = 66 dBFS in 100 MHz bandwidth, 2.0 GSPS encode SNR = 82 dBFS in 15.625 MHz bandwidth, 2.0 GSPS encode SFDR = 60 dBc in 100 MHz bandwidth, 2.0 GSPS encode SFDR = 80 dBc in 15.625 MHz bandwidth, 2.0 GSPS encode Large signal dither 90 mW total power per channel at 2.0 GSPS (default settings), 35 mW power per channel (min) Flexible input range: 0.5 V p-p to 2 V p-p differential 90 dB channel crosstalk, 2.0 GSPS encode Digital processor CIC decimation filter Programmable DDC Data gating JESD204B subclass 1 encoded outputs Supports up to 16Gbps/lane Flexible sample data processing Flexible JESD204B lane configurations Serial port control

300 MHz, 32 16 Buffered Analog Crosspoint Switch Features: Large, 32 × 16, nonblocking switch array G = +1 (ADV3202) or G = +2 (ADV3203) operation 32 × 32 pin compatible version available (ADV3200)/ADV3201) Single +5 V, dual ±2.5 V, or dual ±3.3 V supply (G = +2) Serial programming of switch array 2:1 OSD insertion mux per output Input sync-tip clamp High impedance output disable allows connection of multiple devices with minimal output bus load Excellent video performance  60 MHz 0.1 dB gain flatness  0.1% differential gain error (RL = 150 )  0.1° differential phase error (RL = 150 ) Excellent ac performance  Bandwidth: >300 MHz  Slew rate: > 400 V/µs See data sheet for additional Features

300 MHz, 32 16 Buffered Analog Crosspoint Switch Features: Large, 32 × 16, nonblocking switch array G = +1 (ADV3202) or G = +2 (ADV3203) operation 32 × 32 pin compatible version available (ADV3200/ADV3201) Single +5 V, dual ±2.5 V, or dual ±3.3 V supply (G = +2) Serial programming of switch array 2:1 OSD insertion mux per output Input sync-tip clamp High impedance output disable allows connection of multiple devices with minimal output bus load Excellent video performance  60 MHz 0.1 dB gain flatness  0.1% differential gain error (RL = 150 )  0.1° differential phase error (RL = 150 ) Excellent ac performance  Bandwidth: >300 MHz  Slew rate: > 400 V/µs See data sheet for additional Features

10-Bit, 4 Oversampling SDTV Video Decoder Features: Automotive versions qualified per AEC-Q100, Grade 1 Worldwide NTSC/PAL/SECAM color demodulation support One 10-bit ADC, 4× oversampling for CVBS, 2× oversampling for Y/C mode, and 2× oversampling for YPrPb (per channel) 3 video input channels with on-chip antialiasing filter CVBS (composite), Y/C (S-video), and YPrPb (component) video input support 5-line adaptive comb filters and CTI/DNR video enhancement Adaptive Digital Line Length Tracking (ADLLT), signal processing, and enhanced FIFO management give mini-TBC functionality See data sheet for additional features

10-Bit, 4 Oversampled SDTV Video Decoder with Deinterlacer Features: Worldwide NTSC/PAL/SECAM color demodulation support One 10-bit analog-to-digital converter (ADC), 4× oversampling per channel for CVBS, Y/C, and YPrPb modes Analog video input channels with on-chip antialiasing filter ADV7280: up to 4 input channels ADV7280-M: up to 8 input channels Video input support for CVBS (composite), Y/C (S-Video), and YPrPb (component) NTSC/PAL/SECAM autodetection Up to 1.47 V common-mode input range solution Excellent common-mode noise rejection capabilities 5-line adaptive 2D comb filter and CTI/DNR video enhancement Adaptive Digital Line Length Tracking (ADLLT), signal processing, and enhanced FIFO management provide mini-time base correction (TBC) functionality See data sheet for additional features

Multiformat Video Encoder with Six, 11-Bit, 297 MHz DACs Features: 1.8V/3.3V interface support 74.25 MHz 20-/30-bit high definition input support 6, 11-bit, 297 MHz video DACs NTSC M, PAL B/D/G/H/I/M/N, PAL 60 support NTSC and PAL square pixel operation (24.54 MHz/29.5 MHz) Multiformat video input support Multiformat video output support Simultaneous SD and ED/HD operation Programmable features Copy generation management system (CGMS) Closed captioning and wide screen signaling (WSS) Integrated subcarrier locking to external video source Qualified for automotive applications

Car Camera Bus Receiver with MIPI CSI-2 Video Output Features: C2B receiver capable of receiving video data, and bidirectional control data over a differential pair or single-ended cable HD output video interface over MIPI CSI-2 transmitter CSI-2 2-lane transmitter, or 1-lane transmitter running at up to 1 Gbps per lane HD video formats supported up to 2 megapixels at 30 Hz or 1 megapixel at 60 Hz Bidirectional control channel embedded in the C2B link for control and status data between C2B receiver and C2B transmitter Enables remote configuration of the C2B transmitter On-chip high resolution, high speed ADC, buffer and anti-aliasing filter blocks for video and control channel path Transmission of frame count data from ISP to enable the backend ECU or HU to detect stuck or skipped frames Bidirectional GPIOs Video test pattern generator for easy system testing Cable equalizer capable of compensating for cable and connector insertion loss, equivalent to 30 m twisted pair cable On-chip echo cancellation scheme to prevent visual impact caused by impedance mismatch between cables and connectors Protection from and diagnosis of high voltages encountered during short-to-battery fault condition Tested to industry standards for automotive EMC, EMI, and ESD robustnessGeneral 2-wire serial interface (I2C compatible) for configuration of the C2B receiver and for communication with a remote C2B transmitter and image signal processors Connected I2C master must support clock stretching to support remote I2C communication over the C2B link −40°C to +105°C temperature grade 48-lead LFCSP package Qualified for automotive applications

Integrated Video Decoder and Dual-Mode HDMI/MHL Receiver Features: Analog Input Worldwide NTSC/PAL/SECAM color demodulation support with autodetection 8 analog video input channels with on-chip antialiasing filter Mobile High-Definition Link (MHL) capable receiver High-bandwidth Digital Content Protection (HDCP) authentication and decryption support 75 MHz maximum pixel clock frequency, allowing HDTV formats up to 720p/1080i at 60 Hz High-Definition Multimedia Interface (HDMI) capable receiver HDCP authentication and decryption support 162 MHz maximum pixel clock frequency, allowing HDTV formats up to 1080p and display resolutions up to UXGA (1600 × 1200 at 60 Hz) Serial digital audio output interface I2S-compatible, left justified, and right justified audio output modes 8-channel TDM output mode available 2 Mobile Industry Processor Interface (MIPI) Camera Serial Interface 2 (CSI-2) transmitters 4-lane transmitter for HDMI/MHL/SDP/digital input port sources 1-lane transmitter for standard definition processor (SDP) sources 8-bit digital input/output port General 2-wire serial MPU interface (I2C compatible) −40°C to +85°C temperature grade Qualified for automotive applications See data sheet for additional features

Low Power HDMI/DVI Transmitter with Consumer Electronic Control (CEC) Features:GENERAL Low power HDMI v1.4a /DVI transmitter ideal for portable applications CEC controller and expanded message buffer (3 messages) reduces system overhead HDMI v.1.4a features 3D Video Extended Colorimetry Compatible with DVI v.1.0 Optional embedded HDCP keys to support HDCP 1.3 Video/audio inputs accept logic levels from 1.8 V to 3.3 VDIGITAL AUDIO Supports standard S/PDIF for stereo LPCM or compressed audio up to 192 kHz 2-channel uncompressed LPCM I2S audio up to 192 kHzDIGITAL VIDEO 150 MHz operation supports all video and graphics resolutions from 480i to 1080p Programmable two-way color space converter Supports ITU656-based embedded syncs Automatic input video format timing detection (CEA-861E)SPECIAL FEATURES FOR EASY SYSTEM DESIGN On-chip MPU with I2C master to perform EDID reading and HDCP operations; reports HDMI events through interrupts and registers 5 V tolerant I2C and HPD I/Os, no extra device needed No audio master clock needed for supporting S/PDIF and I2S Compatible with ADV9394 HDMI companion chip +5 V generator for Hot Plug detect in portable applications

HDMI Transceiver Features: 4-input, 1-output HDMI transceiver High-Bandwidth Digital Content Protection (HDCP 1.4) HDCP repeater support 225 MHz HDMI Rx and Tx support 36/30/24-bit Deep Color Supports DVI RGB graphics up to1600 × 1200 at 60 Hz HDMI® 1.4 support Audio Return Channel (ARC) 3D TV support Content Type Bits CEC 1.4-compatible (CEC_CPD and CEC_HPD)

HDMI Transceiver with Xpressview Fast Switching Technology Features: 4-input, 1-output HDMI transceiver HDMI® 1.4 support Audio Return Channel (ARC) 3D TV support Content Type Bits CEC 1.4-compatible (CEC_CPD and CEC_HPD) Character- and icon-based on-screen display (OSD) Xpressview fast switching on all HDMI ports High-Bandwidth Digital Content Protection (HDCP 1.4) HDCP repeater support 225 MHz HDMI Rx and Tx support 36-/30-/24-bit Deep Color Supports DVI RGB graphics up to1600 × 1200 at 60 Hz
