The MAX987/MAX988/MAX991/MAX992/MAX995/MAX996 single/dual/quad micropower comparatorsfeature low-voltage operation and rail-to-rail inputs andoutputs. Their operating voltage ranges from +2.5V to+5.5V, making them ideal for both 3V and 5V systems.These comparators also operate with ±1.25V to ±2.75Vdual supplies. They consume only 48µA per comparatorwhile achieving a 120ns propagation delay.Input bias current is typically 1.0pA, and input offset voltageis typically 0.5mV. Internal hysteresis ensures cleanoutput switching, even with slow-moving input signals.The output stage's unique design limits supply-currentsurges while switching, virtually eliminating the supplyglitches typical of many other comparators. TheMAX987/MAX991/MAX995 have a push-pull outputstage that sinks as well as sources current. Large internaloutput drivers allow rail-to-rail output swing withloads up to 8mA. The MAX988/MAX992/MAX996 havean open-drain output stage that can be pulled beyondVCC to 6V (max) above VEE. These open-drain versionsare ideal for level translators and bipolar to single-endedconverters.The single MAX987/MAX988 are available in tiny 5-pinSC70 packages, while the dual MAX991/MAX992 areavailable in ultra-small µMAX® package.ApplicationsDigital-Line ReceiversGround/Supply SensingIR ReceiversLevel TranslatorsMobile CommunicationsPortable Battery-Powered SystemsThreshold DetectorsWindow ComparatorsZero-Crossing Detectors

The MAX987/MAX988/MAX991/MAX992/MAX995/MAX996 single/dual/quad micropower comparatorsfeature low-voltage operation and rail-to-rail inputs andoutputs. Their operating voltage ranges from +2.5V to+5.5V, making them ideal for both 3V and 5V systems.These comparators also operate with ±1.25V to ±2.75Vdual supplies. They consume only 48µA per comparatorwhile achieving a 120ns propagation delay.Input bias current is typically 1.0pA, and input offset voltageis typically 0.5mV. Internal hysteresis ensures cleanoutput switching, even with slow-moving input signals.The output stage's unique design limits supply-currentsurges while switching, virtually eliminating the supplyglitches typical of many other comparators. TheMAX987/MAX991/MAX995 have a push-pull outputstage that sinks as well as sources current. Large internaloutput drivers allow rail-to-rail output swing withloads up to 8mA. The MAX988/MAX992/MAX996 havean open-drain output stage that can be pulled beyondVCC to 6V (max) above VEE. These open-drain versionsare ideal for level translators and bipolar to single-endedconverters.The single MAX987/MAX988 are available in tiny 5-pinSC70 packages, while the dual MAX991/MAX992 areavailable in ultra-small µMAX® package.ApplicationsDigital-Line ReceiversGround/Supply SensingIR ReceiversLevel TranslatorsMobile CommunicationsPortable Battery-Powered SystemsThreshold DetectorsWindow ComparatorsZero-Crossing Detectors

The MAX987/MAX988/MAX991/MAX992/MAX995/MAX996 single/dual/quad micropower comparatorsfeature low-voltage operation and rail-to-rail inputs andoutputs. Their operating voltage ranges from +2.5V to+5.5V, making them ideal for both 3V and 5V systems.These comparators also operate with ±1.25V to ±2.75Vdual supplies. They consume only 48µA per comparatorwhile achieving a 120ns propagation delay.Input bias current is typically 1.0pA, and input offset voltageis typically 0.5mV. Internal hysteresis ensures cleanoutput switching, even with slow-moving input signals.The output stage's unique design limits supply-currentsurges while switching, virtually eliminating the supplyglitches typical of many other comparators. TheMAX987/MAX991/MAX995 have a push-pull outputstage that sinks as well as sources current. Large internaloutput drivers allow rail-to-rail output swing withloads up to 8mA. The MAX988/MAX992/MAX996 havean open-drain output stage that can be pulled beyondVCC to 6V (max) above VEE. These open-drain versionsare ideal for level translators and bipolar to single-endedconverters.The single MAX987/MAX988 are available in tiny 5-pinSC70 packages, while the dual MAX991/MAX992 areavailable in ultra-small µMAX® package.ApplicationsDigital-Line ReceiversGround/Supply SensingIR ReceiversLevel TranslatorsMobile CommunicationsPortable Battery-Powered SystemsThreshold DetectorsWindow ComparatorsZero-Crossing Detectors

The MAX961–MAX964/MAX997/MAX999 are low-power, ultra-high-speed comparators with internal hysteresis. These devices are optimized for single +3V or +5V operation. The input common-mode range extends 100mV Beyond-the-Rails™, and the outputs can sink or source 4mA to within 0.52V of GND and VCC. Propagation delay is 4.5ns (5mV overdrive), while supply current is 5mA per comparator.The MAX961/MAX963/MAX964 and MAX997 have a shutdown mode in which they consume only 270µA supply current per comparator. The MAX961/MAX963 provide complementary outputs and a latch-enable feature. Latch enable allows the user to hold a valid comparator output. The MAX999 is available in a tiny SOT23-5 package. The single MAX961/MAX997 and dual MAX962 are available in space-saving 8-pin µMAX® packages.ApplicationsGPS ReceiversHigh-Speed Sampling CircuitsLine ReceiversPortable Battery-Powered SystemsSingle 3V/5V SystemsThreshold Detectors/DiscriminatorsZero-Crossing Detectors

The MAX976/MAX978/MAX998 dual/quad/single, high-speed, low-power comparators are optimized for +3V/+5V single-supply applications. They achieve a 20ns propagation delay while consuming only 225µA supply current per comparator. The MAX998 features a low-power shutdown mode that places the output in a high-impedance state and reduces supply current to 1nA.The MAX976/MAX978/MAX998 inputs have a common-mode voltage range that extends 200mV below ground. Their outputs are capable of rail-to-rail operation withoutexternal pullup circuitry, making these devices ideal for interface with CMOS/TTL logic. All inputs and outputs can tolerate a continuous short-circuit fault condition to either rail. The comparators' internal hysteresis ensures clean output switching, even with slow-moving input signals.For space-critical applications, the single MAX998 is available in a 6-pin SOT23 package, the dual MAX976 is available in an 8-pin µMAX® package, and the quad MAX978 is available in a 16-pin QSOP package.Applications3V SystemsBattery-Powered ApplicationsDigital-Line ReceiversIR ReceiversThreshold Detectors/Discriminators

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.ApplicationsDigital Signal ProcessingElectro-Mechanical SystemsHigh-Accuracy Process ControlHigh-Speed Data Acquisition

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.ApplicationsDigital Signal ProcessingElectro-Mechanical SystemsHigh-Accuracy Process ControlHigh-Speed Data Acquisition

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.ApplicationsDigital Signal ProcessingElectro-Mechanical SystemsHigh-Accuracy Process ControlHigh-Speed Data Acquisition

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.ApplicationsDigital Signal ProcessingElectro-Mechanical SystemsHigh-Accuracy Process ControlHigh-Speed Data Acquisition

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.ApplicationsDigital Signal ProcessingElectro-Mechanical SystemsHigh-Accuracy Process ControlHigh-Speed Data Acquisition

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.ApplicationsDigital Signal ProcessingElectro-Mechanical SystemsHigh-Accuracy Process ControlHigh-Speed Data Acquisition

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.ApplicationsDigital Signal ProcessingElectro-Mechanical SystemsHigh-Accuracy Process ControlHigh-Speed Data Acquisition

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.ApplicationsDigital Signal ProcessingElectro-Mechanical SystemsHigh-Accuracy Process ControlHigh-Speed Data Acquisition

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.ApplicationsDigital Signal ProcessingElectro-Mechanical SystemsHigh-Accuracy Process ControlHigh-Speed Data Acquisition

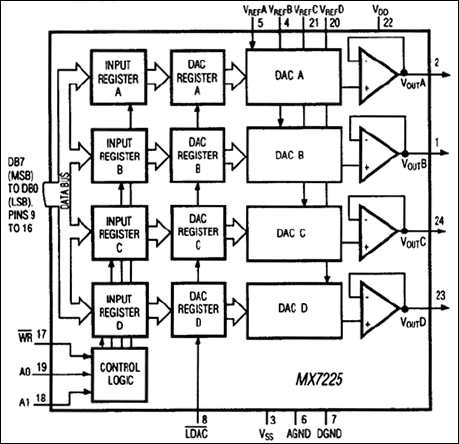

Maxim's MX7225 and MX7226 each contain four 8-bit voltage-output digital-to-analog converters (DACs). They include output buffer amplifiers and input logic for simple microprocessor and TTL/CMOS interfaces. 8-bit performance is achieved over the full operating temperature range without external trimming.The MX7225 contains double-buffered logic inputs that allow all analog outputs to be simultaneously updated using one control signal. There are also four separate reference inputs so that the range of each DAC can be independently set. The MX7226 has separate inputs registers for each of its four DACS. Data is transferred into an input register from a common 8-bit TTL/CMOS-compatible input port. Address inputs A0 and A1 determines which DAC is loaded when WR goes low. All DACs share a common reference input. For -7225 and -7226 designs utilizing a 5V supply, see the MAX505 and MAX506 data sheet.ApplicationsArbitrary Function GeneratorsAutomatic Test EquipmentDigital Offset/Gain AdjustmentIndustrial Process ControlMicroprocessor-Controlled CalibrationMinimum Component Count Analog Systems

The ADAQ4380-4 is a quad channel, 16-bit precision data acquisition (DAQ) μModule® system that reduces the development cycle of a precision measurement system by transferring the signal chain design challenges of component selection, optimization, and layout from the designer to the device.Using System-in-Package (SIP) technology, the ADAQ4380-4 reduces end system component count by combining multiple common signal processing and conditioning blocks into a single device. The ADAQ4380-4 is consisting of: A quad channel high resolution 16-bit, 4 MSPS simultaneous sampling SAR ADC Low noise, fully differential ADC drivers A precision 3.3V voltage reference Low noise buffer amplifiers A low noise, low dropout linear regulator, and Critical Passive components required to achieve optimum signal chain performanceUsing Analog Devices, Inc. iPassives® technology, the ADAQ4380-4 incorporates critical passive components with superior matching and drift characteristics to minimize temperature dependent error sources and offer the best performance from each individual blocks.ADAQ4380-4 has an on-chip oversampling blocks to improve the dynamic range and reduce noise at lower bandwidths. This block can boost up to two bits of added resolution.The ADAQ4380-4 is designed with a configurable ADC Driver stage, providing user selectable gain or attenuation settings. The ADAQ4380-4 can be operated in either fully differential or single-ended- to-differential input configurations.Housed in an 8mm x 8mm. 0.8 mm pitch, 81-ball BGA, the ADAQ4380-4 μModule® enables compact design without sacrificing performance and simplifies end system bill of materials management.The serial peripheral interface (SPI)-compatible, serial user interface is compatible with 1.8 V, 2.5 V, and 3.3 V logic controls. ADAQ4380-4 is specified to operate from −40°C to +105°C.APPLICATIONS Lab Grade Battery Test System Motor Control Current Sense Motor Control Position Feedback Sonar Power Quality Monitoring Data Acquisition System Erbium-Doped Fiber Amplifier (EDFA) applications I and Q Demodulation Table 1. μMODULE® Data Acquisition Solutions Type 250 - 500 kSPS 1 - 2 MSPS 4 MSPS 16-Bit ADAQ7988 ADAQ7980, ADAQ4001 ADAQ4380-4 (Quad Channel) 18-Bit   ADAQ4003

The LTC3888/LTC3888-1/LTC3888-2 is a PMBus-compliant dual loop DC/DC synchronous step-down switching regulator controller with eight expandable phases supporting a wide range of master/slave configurations. The controller uses constant frequency current mode architecture to provide excellent transient response and output regulation. Each PWM master is capable of producing output voltages from 0.3V to 3.45V with multiple phase configurations using DrMOS devices that provide an output current monitor.PMBus configuration and monitoring is supported by LTpowerPlay™ software. Programmable loop compensation and built-in load step emulation facilitate setting bandwidth based on input voltage and output load capacitance. PMBus commands allow read back of input voltage, output voltage and current, and operating status. Operating parameters can be set via PMBus command or stored in internal EEPROM for use at power up. Switching frequency, phase configuration, output voltage (LTC3888/LTC3888-2), output current limit (LTC3888-1) and device address can also be set using external programming resistors.APPLICATIONS High Current Distributed Power Systems Servers, Network and Storage Equipment

The DG202/DG212 are normally open, quad single-polesingle-throw (SPST) analog switches. TheseCMOS switches can be continuously operated withpower supplies ranging from ±4.5V to ±18V. Maximguarantees that these switches will not latch up if thepower supplies are disconnected with input signals stillconnected.The DG202/DG212 are similar to the DG201/DG211except for inverted control inputs. All devices haveguaranteed break-before-make switching, as well asessentially constant on-resistance over the analogsignal range. All switches conduct current in eitherdirection and add no offset to the output signal.Compared to the original manufacturer's products,Maxim's DG202/DG212 consume very little power,making them better suited for portable applications.Maxim has also eliminated the need for the third logicpower supply (VL) that is required for the operation ofthe original manufacturer's DG212 without sacrificingcompatibility.ApplicationsAnalog MultiplexersAutomatic Test EquipmentCommunication SystemsPBX, PABXProgrammable Gain AmplifiersSample/Holds

The DG202/DG212 are normally open, quad single-polesingle-throw (SPST) analog switches. TheseCMOS switches can be continuously operated withpower supplies ranging from ±4.5V to ±18V. Maximguarantees that these switches will not latch up if thepower supplies are disconnected with input signals stillconnected.The DG202/DG212 are similar to the DG201/DG211except for inverted control inputs. All devices haveguaranteed break-before-make switching, as well asessentially constant on-resistance over the analogsignal range. All switches conduct current in eitherdirection and add no offset to the output signal.Compared to the original manufacturer's products,Maxim's DG202/DG212 consume very little power,making them better suited for portable applications.Maxim has also eliminated the need for the third logicpower supply (VL) that is required for the operation ofthe original manufacturer's DG212 without sacrificingcompatibility.ApplicationsAnalog MultiplexersAutomatic Test EquipmentCommunication SystemsPBX, PABXProgrammable Gain AmplifiersSample/Holds

Maxim's DG300–DG303 and DG300A–DG303A CMOS dual and quad analog switches combine low power operation with fast switching times and superior DC and AC switch characteristics. On-resistance is less than 50Ω and is essentially constant over the analog signal range. Device specifications are ideal for battery-powered circuitry.These switches are available in a variety of formats as outlined in the Pin Configurations section in the full data sheet. The switch control logic inputs are fully TTL and CMOS compatible. Also featured are "break-before-make" switching and low charge injection.Maxim's DG300–DG303 and DG300A–DG303A families are electrically compatible and pin compatible with the original manufacturer's devices. All devices operate with power supplies ranging from ±5V to ±18V. Single-supply operation is implemented by connecting V- to GND.ApplicationsLow-Power Sample/HoldsPortable InstrumentationPower-Supply SwitchingProcess Control and TelemetryProgrammable Gain AmplifiersSPDT and DPDT Functions
