Chopper (Zero-Drift) Amplifier 2 Circuit Rail-to-Rail 8-MSOP

RF Switch ICs 2W SPDT T/R Switch SMT DC - 4GHz

Operational Amplifiers - Op Amps 4x Prec R2R In & Out Op Amps

Metering Systems on a Chip - SoC 3-Phase Energy Meter I/C

Switching Voltage Regulators 8A & 10A Hi Eff Sw Regs

Switching Voltage Regulators 5V- Inverting DC/DC Converter

Digital Potentiometer ICs Digital Sextet Potentiometer

Switching Voltage Regulators 50mA, Frequency-Selectable, Switched-Capacitor Voltage Converters

Switch IC Development Tools Eval Kit MAX4806 (Dual, Unipolar/Bipolar, High-Voltage Digital Pulsers)

Active Filters BPF Tunable 4 - 8 GHz

RS-232 Interface IC Sftwr-Sel Multiprotocol Tran

Operational Amplifiers - Op Amps 4x Over-The-Top uP R2R In & Out Op Amps

Power Management IC Development Tools Eval Kit DS2715 (Dual Temperature-Controlled Resistors with TwoMonitors. Fiber Optic Monitor and Control Eval Kit)

Supervisory Circuits Watchdog Supervisor with MR. IC.

8-bit Microcontrollers - MCU FS70AB008BZB - Repl for AMD Am188ES

RF Detector RMS pow Detector, DC to 5.8GHz

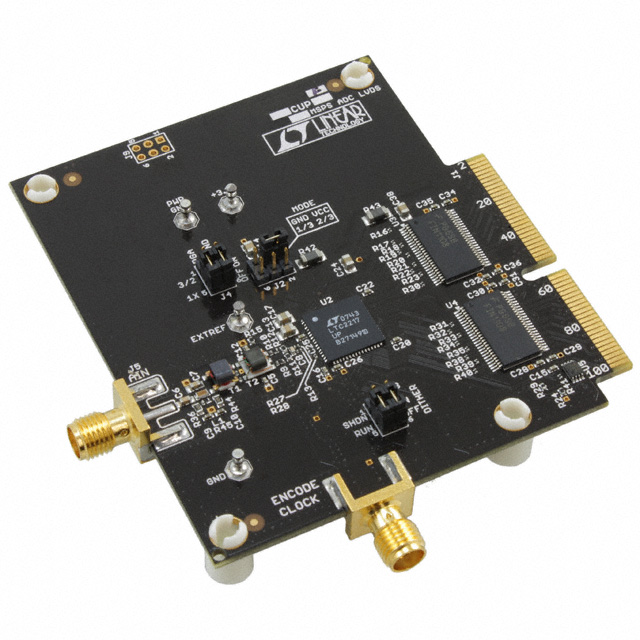

Data Conversion IC Development Tools LTC2217IUP LVDS OUT, 105Msps, 16-Bit ADC 70MHz < Ain < 140MHz, (req. DC890 & LVDS_XFMR)

RF Amplifier GaAs HEMT WBand lo Noise amp, 18-40 GHz

RF Switch ICs SP4T Positive Control Swt , DC - 8 GHz

The MAX5902/MAX5903 are hot-swap controllers thatallow a circuit card to be safely hot plugged into a livebackplane without causing a glitch on the power-supplyrail. These devices operate from +9V to +72V andprovide the simplest hot-swap solution by eliminating allexternal components except the external p-channelMOSFET.The MAX5902/MAX5903 limit the inrush current to theload and provide a circuit-breaker function for overcurrentprotection. During startup the circuit-breaker function isdisabled and the MAX5902/MAX5903 limit the inrush currentby gradually turning on the external MOSFET. Oncethe external MOSFET is fully enhanced, the circuit-breakerfunction is enabled and the MAX5902/MAX5903 provideovercurrent protection by monitoring the voltagedrop across the external MOSFET's on-resistance.The MAX5902/MAX5903 include an undervoltage lockout(UVLO) function, ON/active-low OFF control input, and apower-good status output, active-low PGOOD (MAX5902) orPGOOD (MAX5903). A built-in thermal shutdown featureis also included to protect the external MOSFET incase of overheating.The MAX5902/MAX5903 offer latched or autoretry faultmanagement and are available with 300mV, 400mV or500mV circuit-breaker thresholds. Both the MAX5902 andMAX5903 are available in small SOT23 and TDFN packages,and are specified for the extended -40°C to +85°Ctemperature range. For specific ordering information, seethe Selector Guide at the end of the data sheet.ApplicationsBase-Station Line CardsIndustrial SystemsNetwork Hubs, Switches, RoutersNetwork Hubs, Switches, RoutersRAIDServers
