Manufacturer

Displaying 1 - 12 of 12

Parts from 96Boards

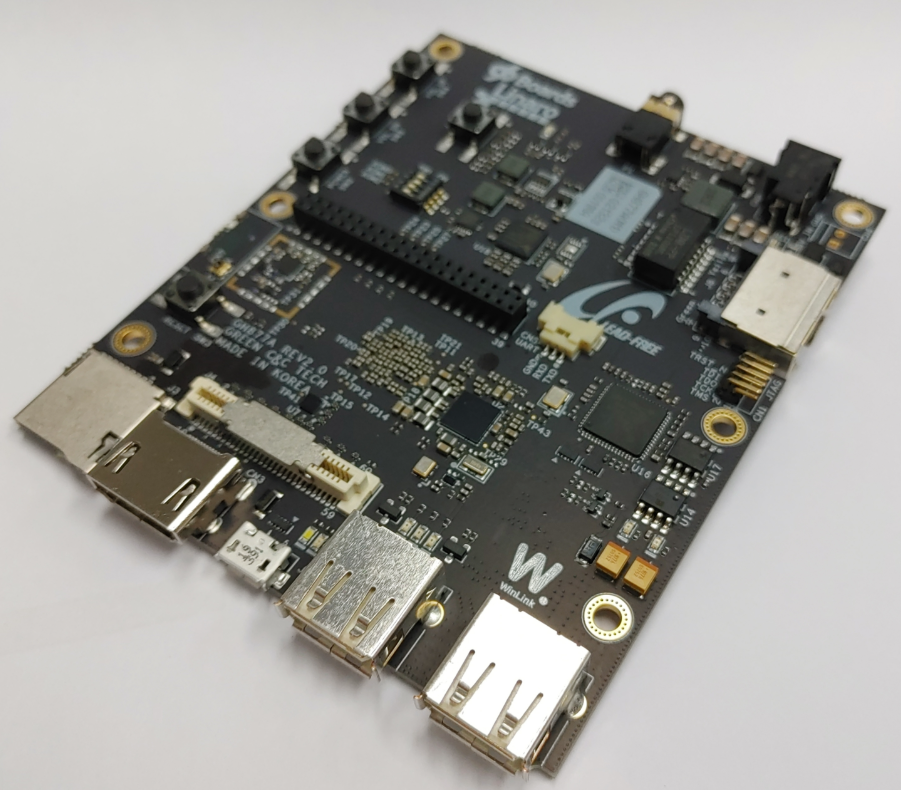

E850-96 Board

Part Number : E850-96 Board

96Boards
WinLink E850-96 Board is a 96Boards CE HW Specification V2.0 Development Board based on Samsung Exynos 850 Mobile processor, developed by WinLink. Exynos 850 is manufactured on 8nm low-power FinFET process design, high performance optimized Little Cortex-A55 Octa micro-processor for smart phone and tablet applications and also for embedded gadgets. The Exynos 850 enables high-quality display resolutions, support for up to FHD+ (2520x1080) resolution, sharp video on their devices. The Exynos 850 processer also contains the HEVC (High Efficiency Video Coding) codec, which enables FHD(1920X1080) 60fps encoding and decoding simultaneously. Exynos 850 provides the Mali-G52 GPU with wide range of APIs such as OpenGL ES1.1/2.0/3.2, OpenCL 2.0 Full Profile and Vulkan 1.0/1.1. Video processing supports FHD+(1080x2520) resolution. WinLink E850-96 Board is 100mm x 85mm in size, 96 Boards CE(Consumer Edition) Extended version including NPU.

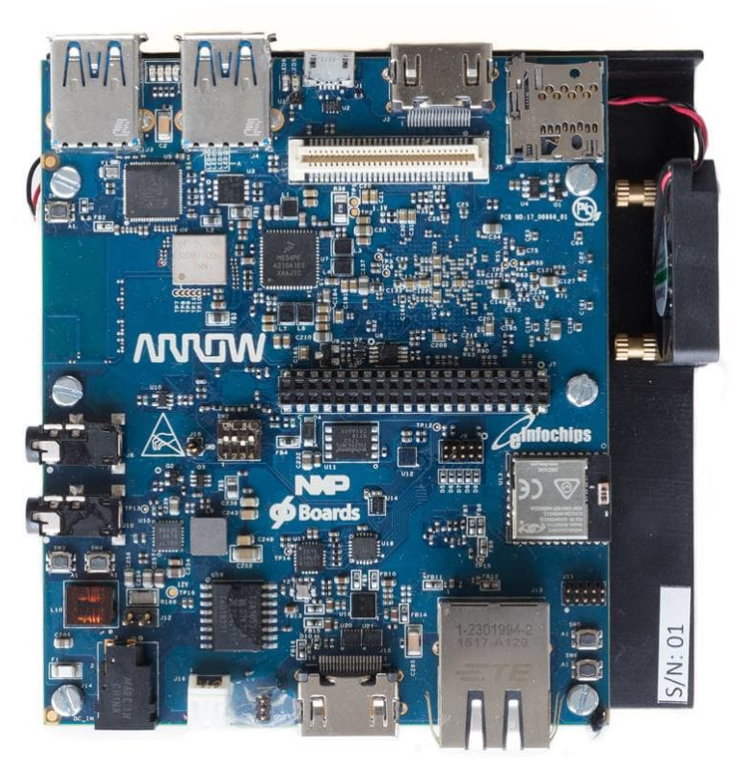

Thor96

Part Number : Thor96

96Boards
The Thor96 Board is a single-board computer powered by the NXP i.MX 8M SoC, incorporating a quad-core 64-bit Arm-A53, dedicated GPU and VPU, 4K support, Wi-Fi, Bluetooth wireless technology and a wide range of I/O. The iMX 8M SoC is a feature-rich system containing a quad-core, 64-bit Arm A53 processor, Vulkan GPU with four shader cores and VPU capable of decoding 4K video at 60 fps. These features alone make the Thor96 board highly capable in a wide range of applications involving video and high processor requirements, including robotics, local AI systems, monitoring and drones.

Mediatek X20

Part Number : Mediatek X20

96Boards
The Mediatek X20 Development Board is a 96Boards compliant community board based on the MediaTek X20 series of SoCs. X20 is a highly integrated application processor that includes Dual-core ARM Cortex-A72 processors operating at up to 2.3GHz, Quad-core ARM Cortex-A53 processors operating at up to 1.95GHz, Quad-core ARM Cortex-A53 processors operating at up to 1.4GHz and a Mali T880 GPU operating at up to 800MHz . In addition, an extensive set of interfaces and connectivity peripherals are included to interface to cameras, touch-screen displays and MMC/SD cards. It also fully supports wireless communication, including WLAN, Bluetooth and GPS.

Chameleon96

Part Number : Chameleon96

96Boards
The Chameleon96 board, based on Intel Cyclone V SoC FPGA, is a member of 96Boards community and complies with Consumer Edition board specifications. The Chameleon96 meets all 96Boards mandatory specifications (excluding MIPI DSI Interface) and most optional specifications. The Chameleon96 features Dual ARM Cortex-A9 processors and a set of peripherals allow direct interfacing and connecting to MMC/SD card, HDMI out, USB, WLAN and BLE. Two expansion connectors provide additional interfaces to cameras, USB, UARTs, I2C, SPI and GPIOs. The use of the FPGA fabric for the video processing allows development of custom IPU/GPU/VPU solutions on this platform.

HiKey 960

Part Number : HiKey 960

96Boards
The HiKey 960 development platform is based around the Huawei Kirin 960 octa-core ARM big.LITTLE processor with four ARM Cortex-A73 and four Cortex-A53 cores with 3GB of LPDDR4 SDRAM memory, 32GB of UFS 2.0 flash storage, and the latest generation Mali G71 MP8 graphics processor. Initial software support for the board is provided in the AOSP source tree based on the Android Common Kernel using the Linux 4.4 kernel release. Linaro and Huawei are also working on the Linux 4.9 based Android Common kernel and maintaining support for the Kirin 960 SoC in the mainline kernel.org tree, allowing for the availability of multiple Linux distributions for this board in the future.

Bubblegum-96

Part Number : Bubblegum-96

96Boards
The Bubblegum-96 board was first shown in mid 2015 at trade shows in Asia. Since then,  Actions has been working with Linaro to finalize the software support and ensure the best possible performance. The board is based on the Actions s900 SoC and delivers high-quality graphics, Wi-Fi, and Bluetooth connectivity, all packed into a board the size of a credit card. This board is expected to deliver top of the line performance and superior gaming. In addition to standard 96Boards features, the board will offer integrated HDMI with Ultra 4K output, Full HD video capture (1080P@60fps H.264) and ARM TrustZone security support.

Qualcomm Robotics RB5 Development Kit

Part Number : Qualcomm Robotics RB5 Development Kit

96Boards
The Qualcomm Robotics RB5 Development kit contains a robotics-focused development board and compliant with the 96Boards open hardware specification which supports a broad range of mezzanine-board expansions for rapid prototyping.

HiKey

Part Number : HiKey

96Boards
The HiKey board was the first board to be certified 96Boards Consumer Edition compatible,  1GB and 2GB variants are available from LeMaker. The board is based around the HiSilicon Kirin 620  SoC and also delivers high performance 3D graphics support, Wi-Fi, and Bluetooth connectivity, all packed into a board the size of a credit card.

HiKey970

Part Number : HiKey970

96Boards
HiKey970 is one of the world‘s first edge AI development platforms with a dedicated Neural-network Processing Unit (NPU). HiKey970 provides frequently used artificial intelligence function APIsmodel management APIs and basic operator computing APIs, to make developers can focus on developing new AI applications instead of focusing on performance tuning. With HiKey970’s dedicated AI processor and rich set of imaging and I/Os, HiKey970 enables developers to build highly integrated flexible products for AI-based intelligent cameras in smart cities. With powerful NPU and HiAI SDK on HiKey970 makes it easy for developers to transform video into valuable insights. With HiKey970’s excellent AI capabilities and ROS, HiKey970 enables developers to build a robot which can perception, planning, decision autonomously. Even the robots can fight with each other automatically by deep reinforcement learning based decision making. With powerful NPU on HiKey970 makes a robot to demonstrate a certain level of intelligence. Features: Huawei HiAI SDK Up to 25X Performance 50X Power Efficiency Dedicated Neural-network Processing Unit (NPU) Heterogeneous Resource Management

Poplar

Part Number : Poplar

96Boards
Poplar is the first development board compliant with the 96Boards Enterprise Edition TV Platform specification. Developed by HiSilicon, the board features the Hi3798C V200 with an integrated quad-core 64-bit ARM Cortex A53 processor and high performance Mali T720 GPU, making it capable of running any commercial set-top solution based on Linux or Android. Its high performance specification also supports a premium user experience with up to H.265 HEVC decoding of 4K video at 60 frames per second.

Nitrogen

Part Number : Nitrogen

96Boards
The BLE Nitrogen is joint efforts by 96Boards and Seeed, aims to provide economic and compact BLE solutions for IoT projects. 96Boards is produced by Linaro, a nonprofit oganization cofunded by famous companies including ARM, IBM、Samsung、ST-Ericsson and TI. It is the first open specification to define a platform for the delivery of compatible low-cost, small footprint 32-bit and 64-bit Cortex-A boards from the range of ARM SoC vendors. By standardizing expansion buses for peripheral I/O, display and cameras, it allows the hardware ecosystem to develop a range of compatible add-on products that will work on any 96Boards product over the lifetime of the platform. BLE Nitrogen is the kind of boards that uses software platform from 96Boards while the hardware from Seeed, it also uses the Nordic bluetooth solution. With the widely used open specification and strong manufacturing background from 96Boards and Seeed, BLE Nitrogen must be one of the best BLE solutions for IoT project.

Carbon

Part Number : Carbon

96Boards
Carbon is the first board to be certified 96Boards IoT Edition compatible. The Carbon packs a Cortex-M4 chip, 512KB onboard flash, built in Bluetooth, and a 30-pin low speed expansion header capable of up to 3.3V digital and analog GPIO. Carbon currently runs Zephyr, which is a small, scalable, real-time OS for use on resource-constrained systems.

Displaying 1 - 12 of 12
