DC2803A
Analog Devices Inc.The LTC6560 is a low-noise, transimpedance amplifier (TIA) with 220MHz bandwidth. The LTC6560?s low noise, high transimpedance and low power dissipation are ideal for LIDAR receivers using avalanche photodiodes (APDs). The LTC6560 features 74k? transimpedance gain and 30?A linear input current range. Using an input circuit with a total input capacitance of 2pF, the input current noise density is 4.8pA/?Hz at 200MHz. With lower capacitance, noise and bandwidth improve further. The LTC6560 operates from a single 5V supply and consumes only 90mW. Utilizing the LTC6560?s output MUX, multiple LTC6560 devices can be combined to a single output. The LTC6560?s fast overload recovery and fast output MUXing make it well suited for LIDAR receivers with multiple APDs. Its single-ended output can swing 2VP-P on a 100? load. Its low impedance op amp style output has been designed to drive back-terminated 50? cables.The LTC6560 is packaged in a compact 3mm ? 3mm 16-pin leadless QFN package with an exposed pad for thermal management and low inductance.Applications LIDAR Receiver Industrial Imaging
Evaluation Module for Dual; 200mA Output; Low Noise; High PSRR; Low-Dropout Regulator
Texas InstrumentsEvaluation Module for Dual; 200mA Output; Low Noise; High PSRR; Low-Dropout Regulator
I2C Controlled 3A Single Cell USB NVDC-1 Charger with Adjustable Voltage USB OTG Evaluation Module
Texas InstrumentsI2C Controlled 3A Single Cell USB NVDC-1 Charger with Adjustable Voltage USB OTG Evaluation Module
TI-PMLK Buck Experiment Board using TPS54160 & LM3475
Texas InstrumentsTI-PMLK Buck Experiment Board using TPS54160 & LM3475
CC3220SF LaunchPad™ development kit for Wi-Fi® SimpleLink™ wireless MCU
Texas InstrumentsCC3220SF LaunchPad™ development kit for Wi-Fi® SimpleLink™ wireless MCU
100V Push-Pull Current Mode PWM Controller
Texas Instruments100V Push-Pull Current Mode PWM Controller

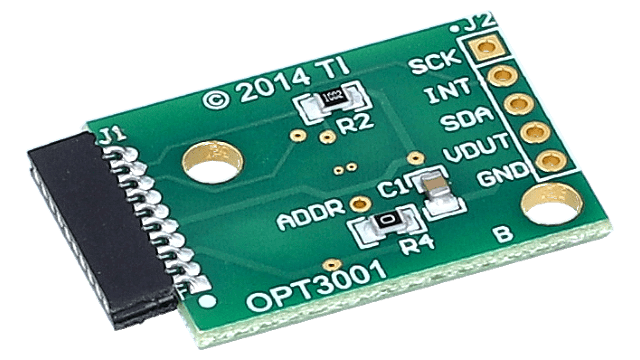

OPT3001 digital ambient light sensor (ALS) with high-precision human-eye response evaluation module
