Schottky Diodes & Rectifiers SIC SCHOTTKY DIODE 600V, 2A

N-Channel 1200 V 100A (Tc) 469W (Tc) Through Hole TO-247-3

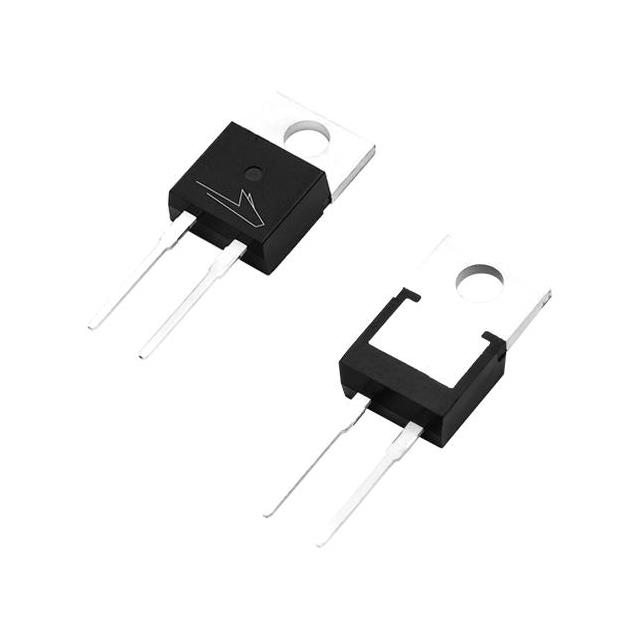

Diode 650 V 19A Through Hole TO-220-2 Isolated Tab

SIC MOSFET N-CH 900V 63A TO-247; Transistor Polarity:N Channel; Continuous Drain Current Id:63A; Drain Source Voltage Vds:900V; On Resistance Rds(on):0.03ohm; Rds(on) Test Voltage Vgs:15V; Threshold Voltage Vgs:2.4V; Power Dissipation Pd:149W; Transistor Case Style:TO-247; No. of Pins:4Pins; Operating Temperature Max:150°C; Product Range:C3M Series; Automotive Qualification Standard:-; SVHC:No SVHC (15-Jan-2018)

DIODE SCHOTTKY 600V 4A TO220-2; Product Range:Z-Rec 600V Series; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:600V; Continuous Forward Current If:7.5A; Total Capacitive Charge Qc:8.5nC; Diode Case Style:TO-220; No. of Pins:2 Pin; Junction Temperature Tj Max:175°C; Packaging:Each; Automotive Qualification Standard:-; Current Ifsm:31.9A; Diode Type:SiC Schottky; Forward Current If(AV):4A; Forward Surge Current Ifsm Max:31.9A; Forward Voltage VF Max:1.7V; No. of Pins:2Pins; Operating Temperature Max:175°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +175°C; Semiconductor Technology:SiC; Termination Type:Through Hole

DIODE SCHOTTKY 600V 8A TO263-2; Product Range:-; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:600V; Continuous Forward Current If:11A; Total Capacitive Charge Qc:21nC; Diode Case Style:TO-263; No. of Pins:2 Pin; Junction Temperature Tj Max:175°C; Packaging:Each; Automotive Qualification Standard:-; Current Ifsm:80A; Diode Type:SiC Schottky; Forward Current If(AV):8A; Forward Surge Current Ifsm Max:80A; Forward Voltage VF Max:1.8V; MSL:MSL 1 - Unlimited; No. of Pins:2Pins; Operating Temperature Max:175°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +175°C; Termination Type:Surface Mount Device

Schottky Diodes & Rectifiers SIC SCHOTTKY DIODE 600V, 10A

MODULE 1200V 50A SIC 6PACK; Transistor Polarity:N Channel; Continuous Drain Current Id:87A; Drain Source Voltage Vds:1.2kV; On Resistance Rds(on):0.025ohm; Rds(on) Test Voltage Vgs:20V; Threshold Voltage Vgs:2.3V; Power Dissipation Pd:337W; Operating Temperature Max:150°C; Product Range:-; No. of Pins:20Pins; Operating Temperature Min:-40°C; Transistor Case Style:Module

SIC SCHOT DIODE 600V 1.7A SIC QFN; Product Range:Z-Rec 600V Series; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:600V; Continuous Forward Current If:7A; Total Capacitive Charge Qc:4.4nC; Diode Case Style:QFN; No. of Pins:3 Pin; Junction Temperature Tj Max:160°C; Packaging:Each; Automotive Qualification Standard:-; Diode Type:SiC Schottky; Forward Current If(AV):1.7A; Forward Surge Current Ifsm Max:15A; Forward Voltage VF Max:1.7V; MSL:MSL 1 - Unlimited; No. of Pins:3Pins; Operating Temperature Max:160°C; Operating Temperature Min:-55°C; Semiconductor Technology:SiC

DIODE SCHOTTKY 1200V 2A SIC TO-220-2; Product Range:Z-Rec 1200V Series; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:1.2kV; Continuous Forward Current If:10A; Total Capacitive Charge Qc:11nC; Diode Case Style:TO-220; No. of Pins:2 Pin; Junction Temperature Tj Max:175°C; Packaging:Each; Automotive Qualification Standard:-; Diode Type:SiC Schottky; Forward Current If(AV):5.9A; Forward Surge Current Ifsm Max:19A; Forward Voltage VF Max:1.8V; No. of Pins:2Pins; Operating Temperature Max:175°C; Operating Temperature Min:-55°C; Semiconductor Technology:SiC

DIODE SCHOTTKY 1200V 10A SIC 2TO252; Product Range:Z-Rec 1200V Series; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:1.2kV; Continuous Forward Current If:33A; Total Capacitive Charge Qc:52nC; Diode Case Style:TO-252; No. of Pins:3 Pin; Junction Temperature Tj Max:175°C; Packaging:Each; Automotive Qualification Standard:-; Diode Type:SiC Schottky; Forward Current If(AV):16A; Forward Surge Current Ifsm Max:71A; Forward Voltage VF Max:1.8V; MSL:MSL 1 - Unlimited; No. of Pins:3Pins; Operating Temperature Max:175°C; Operating Temperature Min:-55°C; Semiconductor Technology:SiC

DIODE SIC SCHOTTKY 1200V 53.5A 2TO220; Product Range:-; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:1.2kV; Continuous Forward Current If:53.5A; Total Capacitive Charge Qc:99nC; Diode Case Style:TO-220; No. of Pins:2 Pin; Junction Temperature Tj Max:175°C; Packaging:Each; Automotive Qualification Standard:-; Diode Type:SiC Schottky; Forward Current If(AV):27A; Forward Surge Current Ifsm Max:130A; Forward Voltage VF Max:1.8V; No. of Pins:2Pins; Operating Temperature Max:175°C; Operating Temperature Min:-55°C; Semiconductor Technology:SiC

MOSFET SIC N CH 1200V 24A TO247; Transistor Polarity:N Channel; Continuous Drain Current Id:24A; Drain Source Voltage Vds:1.2kV; On Resistance Rds(on):0.16ohm; Rds(on) Test Voltage Vgs:20V; Threshold Voltage Vgs:2.5V; Power Dissipation Pd:152W; Transistor Case Style:TO-247; No. of Pins:3Pins; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +125°C

DIODE SCHOTTKY 1200V 2X5A SIC TO247; Product Range:Z-Rec 1200V Series; Diode Configuration:Dual Common Cathode; Repetitive Reverse Voltage Vrrm Max:1.2kV; Continuous Forward Current If:38A; Total Capacitive Charge Qc:54nC; Diode Case Style:TO-247; No. of Pins:3 Pin; Junction Temperature Tj Max:175°C; Packaging:Each; Automotive Qualification Standard:-; Diode Type:SiC Schottky; Forward Current If(AV):18A; Forward Surge Current Ifsm Max:46A; Forward Voltage VF Max:1.8V; No. of Pins:3Pins; Operating Temperature Max:175°C; Operating Temperature Min:-55°C; Semiconductor Technology:SiC

DIODE SCHOTTKY 650V 8A SIC TO220; Product Range:Z-Rec 650V Series; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:650V; Continuous Forward Current If:15.2A; Total Capacitive Charge Qc:21nC; Diode Case Style:TO-220; No. of Pins:2 Pin; Junction Temperature Tj Max:175°C; Packaging:Each; Automotive Qualification Standard:-; Diode Type:SiC Schottky; Forward Current If(AV):8A; Forward Surge Current Ifsm Max:69A; Forward Voltage VF Max:1.8V; No. of Pins:2Pins; Operating Temperature Max:175°C; Operating Temperature Min:-55°C; Semiconductor Technology:SiC

MOSFET SIC N CH 1200V 33A TO247; Transistor Polarity:N Channel; Continuous Drain Current Id:33A; Drain Source Voltage Vds:1.2kV; On Resistance Rds(on):80mohm; Rds(on) Test Voltage Vgs:20V; Threshold Voltage Vgs:2.5V; Power Dissipation Pd:150W; Transistor Case Style:TO-247; No. of Pins:3Pins; Operating Temperature Max:125°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; Current Id Max:33A; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +125°C; Voltage Vgs Max:25V

DIODE SCHOTTKY 6A 650V TO-220; Product Range:Z-Rec 650V Series; Diode Configuration:Single; Repetitive Reverse Voltage Vrrm Max:650V; Continuous Forward Current If:9A; Total Capacitive Charge Qc:15nC; Diode Case Style:TO-220; No. of Pins:2 Pin; Junction Temperature Tj Max:175°C; Packaging:Each; Automotive Qualification Standard:-; Diode Type:SiC Schottky; Forward Current If(AV):6A; Forward Surge Current Ifsm Max:70A; Forward Voltage VF Max:1.8V; No. of Pins:2Pins; Operating Temperature Max:175°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +175°C; Semiconductor Technology:SiC

EVAL BRD C2M0080120D 1.2KV SIC MOSFET; Silicon Manufacturer:-; Silicon Core Number:C2M0080120D; Kit Application Type:Power Management; Application Sub Type:SiC MOSFET; Kit Contents:Eval Board C2M0080120D; Product Range:-; SVHC:No SVHC (17-Dec-2015)

MOSFET N-CH 1.2KV 19A TO-247; Transistor Polarity:N Channel; Continuous Drain Current Id:19A; Drain Source Voltage Vds:1.2kV; On Resistance Rds(on):0.16ohm; Rds(on) Test Voltage Vgs:20V; Threshold Voltage Vgs:2.6V; Power Dissipation Pd:125W; Transistor Case Style:TO-247; No. of Pins:3Pins; Operating Temperature Max:150°C; Product Range:C2M Series; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (17-Dec-2015)
