MSP-EXP430FR2433

Texas Instruments

Description

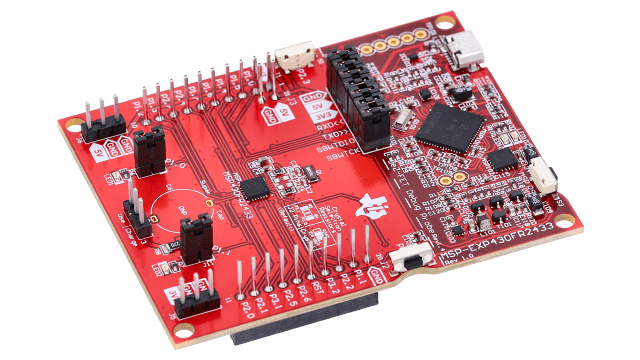

The MSP-EXP430FR2433 LaunchPad Development Kit is an easy-to-use evaluation module (EVM) based on the MSP430FR2433 Value Line Sensing microcontroller (MCU). It contains everything needed to start developing on the ultra-low-power MSP430FR2x Value Line Sensing MCU platform, including on-board debug probe for programming, debugging and energy measurements. The board includes 2 buttons and 2 LEDs for creating a simple user interface. It also supports using a supercapacitor (needs to be purchased and installed by the user) that acts like a rechargeable battery, enabling standalone applications without an external power supply.

The 16MHz MSP430FR2433 device features 15.5KB of embedded FRAM (Ferroelectric Random Access Memory), a non-volatile memory known for its ultra-low power, high endurance, and high speed write access. Combined with the 4 KB of on-chip SRAM, users have access to 15.5KB of memory to split between their program and data as required. For example, a data logging application may require a large data memory with a relatively small program memory, so the memory may be allocated as required between program and data memory.

Features:

  • ULP FRAM technology based MSP430FR2433 16-bit MCU
  • EnergyTrace Technology available for ultra-low-power debugging
  • 20-pin LaunchPad kit standard leveraging the BoosterPack ecosystem
  • On-board eZ-FET debug probe
  • 2 buttons and 2 LEDs for user interaction

What's included:

  • 1 x MSP-EXP430FR2433 LaunchPad Development Kit
  • 1 x Micro USB Cable
  • 1 x Quick Start Guide


Type: Evaluation Modules & Boards

Part number: MSP-EXP430FR2433

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-47527-ND 157 $10.37 Buy
Texas Instruments MSP-EXP430FR2433 1519 $9.99 Buy
Texas Instruments MSP-EXP430FR2433 1519 $9.99 Buy
Mouser Electronics 595-MSP-EXP430FR2433 960 $11.41 Buy
Arrow North American Components MSP-EXP430FR2433 0 $10.19 Buy
AVNET Europe MSP-EXP430FR2433 * $16.84 Buy
Verical Marketplace MSP-EXP430FR2433 146 $11.66 Buy
Farnell MSP-EXP430FR2433 13 * $12.78 Buy
AVNET Asia Pacific MSP-EXP430FR2433 $87.91 Buy
element14 APAC MSP-EXP430FR2433 1 * $14.71 Buy
Newark MSP-EXP430FR2433 89 $11.73 Buy
AVNET Express MSP-EXP430FR2433 $10.34 Buy

Technical Documents

Parts

Part Number Name Companion Part
MSP430F5528 MSP430F5528 Buy Datasheet
MSP430FR2433IYQWT MSP430FR2433IYQWT Buy Datasheet
MSP430G2452 MSP430G2452 Buy Datasheet
TLV70036DSET TLV70036DSET Buy Datasheet
TPD4E004 TPD4E004 Buy Datasheet
TS5A21366 TS5A21366 Buy Datasheet
MSP430FR2422IRHLR MSP430FR2422IRHLR Buy Datasheet
