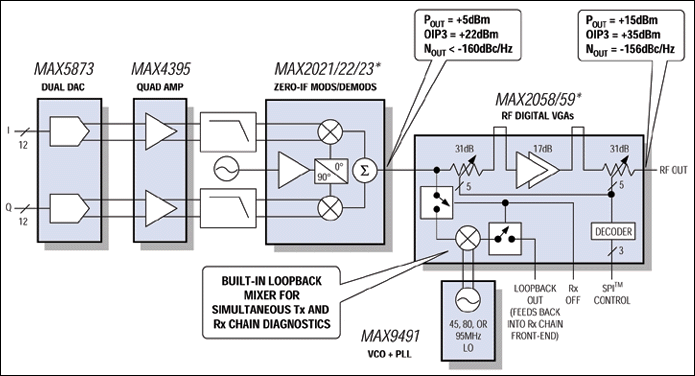

The MAX2058 high-linearity digital-variable-gain amplifier (DVGA) is designed to provide 62dB of total gain range and typical output IP3 and output P1dB levels of +32.3dBm and +19dBm, respectively. The device is ideal for a variety of applications, including RFID handheld and portal readers, as well as single and multicarrier 700MHz to 1200MHz GSM/EDGE, cdma2000®, WCDMA, and iDEN® base stations. The MAX2058 yields a high level of component integration, which includes two 5-bit, 31dB digital attenuators, a two-stage driver amplifier, a loopback mixer, and a serial interface to control the attenuators.The MAX2058 is pin compatible with the MAX2059 1800MHz to 2200MHz DVGA, facilitating an easy design-in for applications where a common PC board layout is used for both frequency bands.The MAX2058 is available in a 40-pin thin QFN package with an exposed paddle. Electrical performance is guaranteed over a -40°C to +85°C temperature range.ApplicationsAutomatic Test EquipmentBroadband SystemsCellular cdmaOne™, cdma2000, and Integrated Digital Enhanced Network (iDEN) Base-Station Transmitters and Power AmplifiersDigital and Spread-Spectrum Communication SystemsGSM 850/GSM 900 2G and 2.5G EDGE Base-Station Transmitters and Power AmplifiersMicrowave Terrestrial LinksReceiver Gain ControlRFID Handheld and Portal ReadersTransmitter Gain ControlWCDMA 850MHz and Other 3G Base-Station Transmitters and Power Amplifiers

The MAX3421E USB peripheral/host controller contains the digital logic and analog circuitry necessary to implement a full-speed USB peripheral or a full-/low-speed host compliant to USB specification rev 2.0. A built-in transceiver features ±15kV ESD protection and programmable USB connect and disconnect. An internal serial interface engine (SIE) handles low-level USB protocol details such as error checking and bus retries. The MAX3421E operates using a register set accessed by an SPI interface that operates up to 26MHz. Any SPI master (microprocessor, ASIC, DSP, etc.) can add USB peripheral or host functionality using the simple 3- or 4-wire SPI interface.The MAX3421E makes the vast collection of USB peripherals available to any microprocessor, ASIC, or DSP when it operates as a USB host. For point-to-point solutions, for example, a USB keyboard or mouse interfaced to an embedded system, the firmware that operates the MAX3421E can be simple since only a targeted device is supported.Internal level translators allow the SPI interface to run at a system voltage between 1.4V and 3.6V. USB-timed operations are done inside the MAX3421E with interrupts provided at completion so an SPI master does not need timers to meet USB timing requirements. The MAX3421E includes eight general-purpose inputs and outputs so any microprocessor that uses I/O pins to implement the SPI interface can reclaim the I/O pins and gain additional ones.The MAX3421E operates over the extended -40°C to +85°C temperature range and is available in a 32-pin TQFP package (5mm x 5mm) and a 32-pin TQFN package (5mm x 5mm). FAQs: MAX3421EApplicationsCamerasCustom USB DevicesDesktop RoutersEmbedded SystemsInstrumentationMedical DevicesMicroprocessors and DSPsMP3 PlayersPDAsPLCsSet-Top Boxes

The MAX3643 burst-mode laser driver provides bias and modulation current drive for PON burst-mode ONT applications. It is specifically designed for use with a low-cost external controller for the APC (and if desired, AMC) loop. A high-speed differential burst-enable input enables the driver to switch the laser from a dark (output off) condition to full on condition in less than 2ns.When BEN is inactive, typical modulation and bias currents are 5µA each.Laser modulation current can be set from 10mA to 85mA and bias current can be set from 1mA to 70mA using the MODSET and BIASSET inputs. A sample-and-hold circuit is provided to capture the monitor diode output during short PON bursts, if needed, and the BEN high-speed signal is mirrored on an LVCMOS output to be used by the controller operating the APC/AMC loop.The MAX3643 burst-mode laser driver is packaged in a 4mm x 4mm, 24-pin thin QFN package. It operates from -40°C to +85°C.Applications1.25Gbps IEEE EPON ONT ModulesA/B/G/XGPON ONT Modules Up to 2.5Gbps

The MAX4740/MAX4740H low on-resistance (0.61Ω typ) analog switches operate from a single 1.6V to 5.5V supply. The MAX4740/MAX4740H are quad, single-pole, double-throw (SPDT) switches and are configured to route audio signals. The MAX4740/MAX4740H are pin-to-pin compatible parts with the ST Microelectronics quad SPDT STG3699 analog switch.The MAX4740 is a quad SPDT switch and the MAX4740H is a quad SPDT switch that can be placed in a high-impedance mode. Switching logic is controlled by 2 control bits (CB1 and CB2). The MAX4740/MAX4740H also feature a low on-resistance match (0.06Ω) and low power-supply current (0.3µA), which increases battery life.The MAX4740/MAX4740H are available in a tiny 3mm x 3mm, 16-pin TQFN-EP, and 2.5mm x 2.5mm, 16-pin ultra-thin QFN packages.ApplicationsCellular PhonesNotebook ComputersPDAs and Other Handheld Devices

The MAX4740/MAX4740H low on-resistance (0.61Ω typ) analog switches operate from a single 1.6V to 5.5V supply. The MAX4740/MAX4740H are quad, single-pole, double-throw (SPDT) switches and are configured to route audio signals. The MAX4740/MAX4740H are pin-to-pin compatible parts with the ST Microelectronics quad SPDT STG3699 analog switch.The MAX4740 is a quad SPDT switch and the MAX4740H is a quad SPDT switch that can be placed in a high-impedance mode. Switching logic is controlled by 2 control bits (CB1 and CB2). The MAX4740/MAX4740H also feature a low on-resistance match (0.06Ω) and low power-supply current (0.3µA), which increases battery life.The MAX4740/MAX4740H are available in a tiny 3mm x 3mm, 16-pin TQFN-EP, and 2.5mm x 2.5mm, 16-pin ultra-thin QFN packages.ApplicationsCellular PhonesNotebook ComputersPDAs and Other Handheld Devices

The MAX4740/MAX4740H low on-resistance (0.61Ω typ) analog switches operate from a single 1.6V to 5.5V supply. The MAX4740/MAX4740H are quad, single-pole, double-throw (SPDT) switches and are configured to route audio signals. The MAX4740/MAX4740H are pin-to-pin compatible parts with the ST Microelectronics quad SPDT STG3699 analog switch.The MAX4740 is a quad SPDT switch and the MAX4740H is a quad SPDT switch that can be placed in a high-impedance mode. Switching logic is controlled by 2 control bits (CB1 and CB2). The MAX4740/MAX4740H also feature a low on-resistance match (0.06Ω) and low power-supply current (0.3µA), which increases battery life.The MAX4740/MAX4740H are available in a tiny 3mm x 3mm, 16-pin TQFN-EP, and 2.5mm x 2.5mm, 16-pin ultra-thin QFN packages.ApplicationsCellular PhonesNotebook ComputersPDAs and Other Handheld Devices

The MAX4744/MAX4744H/MAX4745/MAX4745H/MAX4746H dual SPDT (single-pole/double-throw) audioswitches feature negative signal capability that allowssignals as low as VCC - 5.5V to pass through withoutdistortion. These analog switches have a low on-resistanceand low supply current, and operate from a single+1.8V to +5.5V supply.The MAX4744/MAX4744H have internal shunt resistorsthat automatically discharge the capacitance at the normallyopen (NO) and normally closed (NC) terminalswhen they are not connected. The MAX4746H featuresinternal shunt resistors on NC_ terminals. This reducesclick-and-pop sounds that occur when switching audiosignals between precharged points. A break-before-makefeature further reduces popping. The MAX4744/MAX4745 control the switches with two control bits CB1 and CB2. The MAX4744H/MAX4745H/MAX4746H haveone control bit to switch both switches and an enableinput active-low EN to put the switches in a high-impedance mode.The MAX4744H/MAX4745H/MAX4746H also have aninternal protection network against voltages applied toCOM_ when VCC = 0V.These devices are available in a space-saving 10-pinµDFN (2mm x 2mm) package and operate over the-40°C to +85°C extended temperature range.ApplicationsCellular PhonesMP3 PlayersNotebook ComputersPDAs and Other Handheld DevicesPower RoutingSpeaker Switching

The MAX4744/MAX4744H/MAX4745/MAX4745H/MAX4746H dual SPDT (single-pole/double-throw) audioswitches feature negative signal capability that allowssignals as low as VCC - 5.5V to pass through withoutdistortion. These analog switches have a low on-resistanceand low supply current, and operate from a single+1.8V to +5.5V supply.The MAX4744/MAX4744H have internal shunt resistorsthat automatically discharge the capacitance at the normallyopen (NO) and normally closed (NC) terminalswhen they are not connected. The MAX4746H featuresinternal shunt resistors on NC_ terminals. This reducesclick-and-pop sounds that occur when switching audiosignals between precharged points. A break-before-makefeature further reduces popping. The MAX4744/MAX4745 control the switches with two control bits CB1 and CB2. The MAX4744H/MAX4745H/MAX4746H haveone control bit to switch both switches and an enableinput active-low EN to put the switches in a high-impedance mode.The MAX4744H/MAX4745H/MAX4746H also have aninternal protection network against voltages applied toCOM_ when VCC = 0V.These devices are available in a space-saving 10-pinµDFN (2mm x 2mm) package and operate over the-40°C to +85°C extended temperature range.ApplicationsCellular PhonesMP3 PlayersNotebook ComputersPDAs and Other Handheld DevicesPower RoutingSpeaker Switching

The MAX4800/MAX4801/MAX4802 provide high-voltage switching on eight channels for ultrasonic imaging and printer applications. The devices utilize BCDMOS process technology to provide eight high-voltage low-charge-injection SPST switches, controlled by a digital interface. Data is clocked into an internal 8-bit shift register and retained by a programmable latch with enable and clear inputs. A power-on reset function ensures that all switches are open on power-up.The MAX4800/MAX4801/MAX4802 operate with a wide range of high-voltage supplies including: VPP/VNN = +100V/-100V, +185V/-15V, and +40V/-160V. The digital interface operates from a separate VDD supply from +2.7V to +13.2V. Digital inputs DIN, CLK, active-low LE, and CLR are +13.2V tolerant, independent of the VDD supply voltage. The MAX4802 provides integrated 35kΩ bleed resistors on each switch terminal to discharge capacitive loads.The MAX4800 and MAX4802 are drop-in replacements for the Supertex HV20220 and HV232. The devices are available in the 48-pin TQFP, 26-bump CSBGA, and 28-pin PLCC packages. The MAX4801 is a drop-in replacement for the Supertex HV20320 and is available in the 28-pin PLCC package. All devices are specified for the commercial 0°C to +70°C temperature range.ApplicationsPrintersUltrasound Imaging

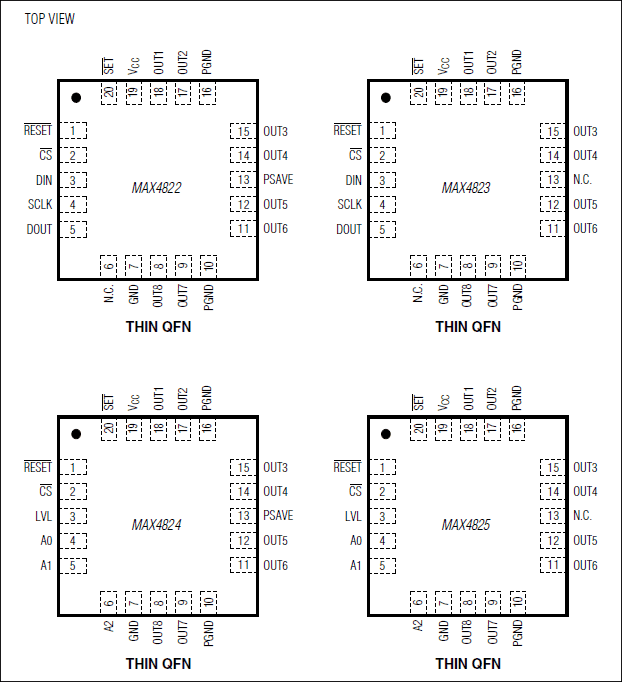

The MAX4822–MAX4825 8-channel relay drivers offer built-in kickback protection and drive +3V/+5V nonlatching or dual-coil-latching relays. Each independent open-drain output features a 2.7Ω (typ) on-resistance and is guaranteed to sink 70mA (min) of load current. These devices consume less than 300µA (max) quiescent current and have 1µA output off-leakage current. A Zener-kickback-protection circuit significantly reduces recovery time in applications where switching speed is critical.The MAX4822/MAX4824 feature a unique power-save mode where the relay current, after activation, can be reduced to a level just above the relay hold-current threshold. This mode keeps the relay activated while significantly reducing the power consumption.The MAX4822/MAX4823 feature a 10MHz SPI™-/QSPI™-MICROWIRE™-compatible serial interface. Input data is shifted into a shift register and latched to the outputs when active-low CS transitions from low to high. Each data bit in the shift register corresponds to a specific output, allowing independent control of all outputs.The MAX4824/MAX4825 feature a 4-bit parallel-input interface. The first 3 bits (A0, A1, A2) determine the output address, and the fourth bit (LVL) determines whether the selected output is switched on or off. Data is latched to the outputs when active-low CS transitions from low to high.The MAX4822–MAX4825 feature separate set and reset functions, allowing turn-on or turn-off of all outputs simultaneously with a single control line. Built-in hysteresis (Schmidt trigger) on all digital inputs allows these devices to be used with slow-rising and falling signals, such as those from optocouplers or RC power-up initialization circuits. The MAX4822–MAX4825 are available in space-saving 4mm x 4mm, 20-pin thin QFN packages. They are specified over the -40°C to +85°C extended temperature range.ApplicationsATE EquipmentDSL Redundancy Protection (ADSL/VDSL/HDSL)Industrial EquipmentT1/E1 Redundancy ProtectionT3/E3 Redundancy ProtectionTest Equipment (Oscilloscopes, Spectrum Analyzers)

The MAX4838A/MAX4840A/MAX4842A are overvoltage protection ICs that protect low-voltage systems against voltages of up to +28V. If the input voltage exceeds the overvoltage trip level, the MAX4838A/MAX4840A/MAX4842A turn off the low-cost external n-channel FET(s) to prevent damage to the protected components. An internal charge pump eliminates the need for external capacitors and drives the FET gate for a simple, robust solution.The MAX4838A has a 7.4V overvoltage threshold, and the MAX4840A has a 5.8V overvoltage threshold. The MAX4842A has a 4.7V overvoltage threshold. The MAX4838A/MAX4840A have an undervoltage lockout (UVLO) threshold of 3.25V while the MAX4842A has a UVLO of 2.5V. In addition to the single FET configuration, the devices can be configured with back-to-back external FETs to prevent currents from being back-driven into the adapter.On power-up, the device waits for 50ms before driving GATE high. Active-low FLAG is held low for an additional 50ms after GATE goes high before deasserting. The MAX4838A/MAX4840A/MAX4842A have an open-drain active-low FLAG output. Active-low FLAG output asserts immediately to an overvoltage fault.Additional features include a ±15kV (HBM) ESD-protected input (when bypassed with a 1µF capacitor) and a shutdown pin (active-low EN) to turn off the device.All devices are offered in a small 6-pin SC70 package and 6-pin 1.5mm x 1.0mm µDFN packages and are specified over the extended temperature range of -40°C to +85°C.ApplicationsCell PhonesDigital Still CamerasMP3 PlayersPDAs and Palmtop Devices

The MAX4885 integrates high-bandwidth analog switches and level translating buffers to implement a complete 1:2 or 2:1 multiplexer for VGA signals. The device provides switching for RGB, display data channel (DDC), and horizontal and vertical synchronization (HSYNC, VSYNC) signals. A low-noise charge pump with internal capacitors provides a boosted gate-drive voltage to improve performance of the RGB switches. In the 1:2 multiplexer mode, HSYNC/VSYNC inputs feature level-shifting buffers to support low voltage CMOS or standard TTL-compatible graphics controllers. In the 2:1 multiplexer mode, the output buffers for the HSYNC/VSYNC inputs are disabled, allowing bidirectional signaling. In both modes, DDC signals are voltage-clamped to an external voltage to provide level translation and protection. The MAX4885 features a 5µA shutdown mode and is ESD protected to ±8kV human body model (HBM) on externally routed pins.The MAX4885 is specified over the extended (-40°C to +85°C) temperature range, and is available in the 32-pin, 5mm x 5mm TQFN package.ApplicationsNotebook ComputersServers

The MAX4896 8-channel relay and load driver is designed for medium voltage applications up to 50V. This device is offered in a 20-pin, 5mm x 5mm TQFN package, resulting in substantial board space savings.The MAX4896 8-channel relay driver offers built-in inductive kickback protection, drive for latching/nonlatching or dual-coil relays, and open-load and short-circuit fault detection.The MAX4896 also protects against overcurrent conditions. Each independent open-drain output features a 3Ω (typ) on-resistance, and is guaranteed to sink 200mA of load current (VS ≥ 4.5V).A built-in overvoltage protection clamp handles kick-back-voltage transients, which are common when driving inductive loads. Thermal-shutdown circuitry shuts off all outputs (OUT_) when the junction temperature exceeds +160°C. The MAX4896 employs a reset input that allows the user to turn off all outputs simultaneously with a single control line.The MAX4896 includes a 10MHz SPI™-/QSPI™-/MICROWIRE™-compatible serial interface. The serial interface is compatible with TTL-/CMOS-logic voltage levels and operates with a single +2.7V to +5.5V supply. In addition, the SPI output data can be used for diagnostics purposes including open-load and short-circuit fault detection.The MAX4896 is offered in the extended (-40°C to +85°C) and (-40°C to +125°C) operating temperature ranges.ApplicationsATE SystemsIndustrial EquipmentPower-Grid Monitoring and Protection EquipmentWhite Goods

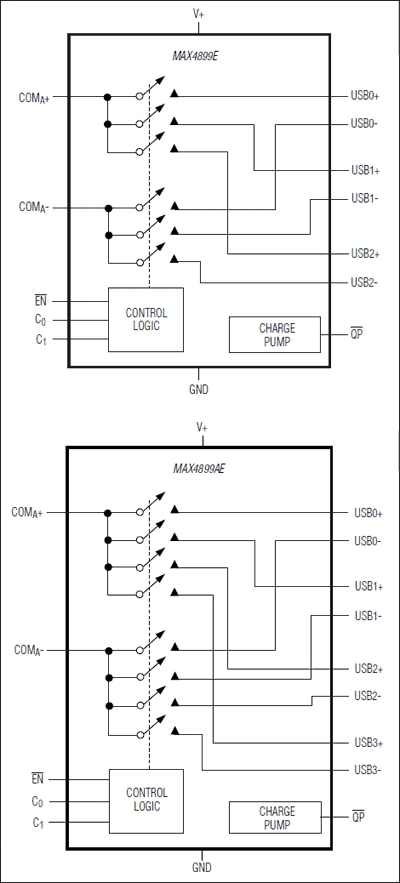

The MAX4899E/MAX4899AE analog multiplexers combine the low on-capacitance (CON) and low on-resistance (RON) necessary for high-performance switching applications. These devices are designed for USB 2.0 high-speed applications at 480Mbps. The MAX4899E/MAX4899AE also handle all the requirements for USB low- and full-speed signaling.The MAX4899E is a dual 3:1 multiplexer whereas the MAX4899AE is a dual 4:1 multiplexer. The MAX4899E/MAX4899AE feature two digital inputs, C0 and C1, to control the analog signal path. Typical applications include switching a USB connector between USB and other operations such as serial communications, audio, and video.An enable input (active-low EN) is provided to disable all channels and place the device into a high-impedance (off) state, as well as reducing power consumption.The MAX4899E/MAX4899AE operate from a 2.7V to 3.6V power-supply voltage and are protected against +5.5V shorts to COMA- and COMA+. In addition, COMA+ and COMA- are normally connected to outside circuitry and feature ±15kV ESD protection. The MAX4899E/MAX4899AE are available in a 3mm x 3mm, 16-pin TQFN package and operate over the -40°C to +85°C temperature range.ApplicationsCell PhonesCombination ProductsDigital Still CamerasDigital Video CamerasKVMMPEG-4 PlayersPDAsPortable GPS Navigation Systems

The MAX4906/MAX4906F/MAX4907/MAX4907F analogswitches combine the low on-capacitance (CON) andlow on-resistance (RON) necessary for high-performanceswitching applications. These devices aredesigned for USB 2.0 high-speed applications at480Mbps. These switches will also handle all therequirements for USB low- and full-speed signaling.The MAX4906/MAX4906F feature two single-pole/double-throw (SPDT) switches, and the MAX4907/MAX4907F feature two single-pole/single-throw switches(SPST). The MAX4907/MAX4907F have a low 7Ω (max)on-resistance and 7pF (max) on-capacitance. Thesedevices are fully specified to operate from a single+3.0V to +3.6V power supply and are protected againsta +5.5V short to COM1 and COM2. This feature makesthem fully compliant with the USB 2.0 specification of+5.5V fault protection. These devices feature a lowthreshold voltage and a +1.4V VIH, permitting them tobe used with low-voltage logic. The MAX4906/MAX4906F/MAX4907/MAX4907F operate at 300µA (max) quiescent current and feature a shutdown inputto reduce the quiescent current to less than 2µA (max).The MAX4906/MAX4906F/MAX4907/MAX4907F are availablein space-saving, 2mm x 2mm µDFN packages andoperate over a -40°C to +85°C temperature range.ApplicationsBus SwitchesCell PhonesDigital Still CamerasEthernet SwitchingGPSNotebook ComputersPDAsRelay ReplacementsT3/E3 Switches for Redundancy ProtectionUSB SwitchingVideo Switching

The MAX4906/MAX4906F/MAX4907/MAX4907F analogswitches combine the low on-capacitance (CON) andlow on-resistance (RON) necessary for high-performanceswitching applications. These devices aredesigned for USB 2.0 high-speed applications at480Mbps. These switches will also handle all therequirements for USB low- and full-speed signaling.The MAX4906/MAX4906F feature two single-pole/double-throw (SPDT) switches, and the MAX4907/MAX4907F feature two single-pole/single-throw switches(SPST). The MAX4907/MAX4907F have a low 7Ω (max)on-resistance and 7pF (max) on-capacitance. Thesedevices are fully specified to operate from a single+3.0V to +3.6V power supply and are protected againsta +5.5V short to COM1 and COM2. This feature makesthem fully compliant with the USB 2.0 specification of+5.5V fault protection. These devices feature a lowthreshold voltage and a +1.4V VIH, permitting them tobe used with low-voltage logic. The MAX4906/MAX4906F/MAX4907/MAX4907F operate at 300µA (max) quiescent current and feature a shutdown inputto reduce the quiescent current to less than 2µA (max).The MAX4906/MAX4906F/MAX4907/MAX4907F are availablein space-saving, 2mm x 2mm µDFN packages andoperate over a -40°C to +85°C temperature range.ApplicationsBus SwitchesCell PhonesDigital Still CamerasEthernet SwitchingGPSNotebook ComputersPDAsRelay ReplacementsT3/E3 Switches for Redundancy ProtectionUSB SwitchingVideo Switching

The MAX4914B/MAX4915A/B/MAX4917A/B family of switches feature internal current limiting to prevent damage to host devices due to faulty load conditions. These analog switches have a low 0.2Ω on-resistance and operate from a 2.3V to 5.5V input voltage range. They are available with guaranteed 100mA, 200mA, and 300mA current limits, making them ideal for SDIO and other load switching applications.When the switch is on and a load is connected to the port, a guaranteed blanking time of 14ms ensures that the transient voltages settle down. If after this blanking time the load current is greater than the current limit, the MAX4914B/MAX4915B/MAX4917B latchoff versions enter a latchoff state where the switch is turned off and active-low FLAG is issued to the microprocessor. The switch can be turned on again by cycling the power or the ON pin.The MAX4915A/MAX4917A have an autoretry feature where the switch turns off after the blanking time and then continuously checks to see if the overload condition is present. The switch turns on and remains on after the overload condition disappears and active-low FLAG deasserts.The MAX4914B is available in the tiny 6-pin µDFN (2mm x 2mm) package, while the MAX4915A/B and MAX4917A/B are available in both 6-pin µDFN(2mm x 2mm) and space-saving 5-pin SOT23 packages. These devices operate over the -40°C to +85°C extended temperature range.ApplicationsCell PhonesGPS SystemsHandheld DevicesNotebook ComputersPDAs and Palmtop DevicesSDIOUSB Ports

The MAX5087 high-voltage linear regulator operates from an input voltage of 6.5V to 45V and delivers up to 400mA of output current. The device consumes only 70µA of quiescent current with no load and 11µA in shutdown. The device includes a SET input, that when connected to ground, selects a preset output voltage of 3.3V (MAX5087A) or 5.0V (MAX5087B). Alternatively, the output voltage can be adjusted from 2.5V to 11V by simply connecting SET to the regulator's output through a resistive divider network. The MAX5087 also provides an open-drain, active-low microprocessor (µP) reset output that asserts when the regulator output drops below the preset output voltage threshold. An external capacitor programs the reset timeout period. Other features include an enable input, thermal shutdown, and short-circuit protection.The MAX5087 operates over the automotive temperature range of -40°C to +125°C and is available in a 16-pin TQFN thermally enhanced package.ApplicationsHome Security/SafetyIndustrialNetworking

The MAX5094A/B/C/D/MAX5095A/B/C BiCMOS, high-performance, current-mode PWM controllers have all the features required for wide input-voltage range isolated/nonisolated power supplies. These controllers are used for low- and high-power universal input voltage and telecom power supplies.The MAX5094/MAX5095 contain a fast comparator with only 60ns typical delay from current sense to the output for overcurrent protection. The MAX5094 has an integrated error amplifier with the output at COMP. Softstart is achieved by controlling the COMP voltage rise using external components.The oscillator frequency is adjustable from 20kHz to 1MHz with an external resistor and capacitor. The timing capacitor discharge current is trimmed allowing for programmable dead time and maximum duty cycle for a given frequency. The available saw-toothed waveform at RTCT can be used for slope compensation when needed.The MAX5095A/MAX5095B include a bidirectional synchronization circuit allowing for multiple controllers to run at the same frequency to avoid beat frequencies. Synchronization is accomplished by simply connecting the SYNC of all devices together. When synchronizing with other devices, the MAX5095A/MAX5095B with the highest frequency synchronizes the other devices. Alternatively, the MAX5095A/MAX5095B can be synchronized to an external clock with an open-drain output stage running at a higher frequency.The MAX5095C provides a clock output pulse (ADV_CLK) that leads the driver output (OUT) by 110ns. The advanced clock signal is used to drive the secondary-side synchronous rectifiers.The MAX5094A/B/C are available in the 8-pin SO and 8-pin µMAX® packages. The MAX5094D and MAX5095A/B/C are available in the 8-pin µMAX package. All devices operate over the automotive temperature range of -40°C to +125°C.ApplicationsComputer Systems/ServersIndustrial Power ConversionIsolated Keep-Alive CircuitsIsolated Power-Supply ModulesIsolated Telecom Power SuppliesNetworking SystemsUniversal Input AC/DC Power Supplies

The MAX5094A/B/C/D/MAX5095A/B/C BiCMOS, high-performance, current-mode PWM controllers have all the features required for wide input-voltage range isolated/nonisolated power supplies. These controllers are used for low- and high-power universal input voltage and telecom power supplies.The MAX5094/MAX5095 contain a fast comparator with only 60ns typical delay from current sense to the output for overcurrent protection. The MAX5094 has an integrated error amplifier with the output at COMP. Softstart is achieved by controlling the COMP voltage rise using external components.The oscillator frequency is adjustable from 20kHz to 1MHz with an external resistor and capacitor. The timing capacitor discharge current is trimmed allowing for programmable dead time and maximum duty cycle for a given frequency. The available saw-toothed waveform at RTCT can be used for slope compensation when needed.The MAX5095A/MAX5095B include a bidirectional synchronization circuit allowing for multiple controllers to run at the same frequency to avoid beat frequencies. Synchronization is accomplished by simply connecting the SYNC of all devices together. When synchronizing with other devices, the MAX5095A/MAX5095B with the highest frequency synchronizes the other devices. Alternatively, the MAX5095A/MAX5095B can be synchronized to an external clock with an open-drain output stage running at a higher frequency.The MAX5095C provides a clock output pulse (ADV_CLK) that leads the driver output (OUT) by 110ns. The advanced clock signal is used to drive the secondary-side synchronous rectifiers.The MAX5094A/B/C are available in the 8-pin SO and 8-pin µMAX® packages. The MAX5094D and MAX5095A/B/C are available in the 8-pin µMAX package. All devices operate over the automotive temperature range of -40°C to +125°C.ApplicationsComputer Systems/ServersIndustrial Power ConversionIsolated Keep-Alive CircuitsIsolated Power-Supply ModulesIsolated Telecom Power SuppliesNetworking SystemsUniversal Input AC/DC Power Supplies
