The MAX40006 op amp features a maximized ratio of gain bandwidth (GBW) to supply current and is ideal for battery-powered applications such as handsets, tablets, notebooks, and portable medical equipment. This CMOS op amp features an ultra-low input-bias current of 1pA, rail-to-rail input and output, low supply current of 4.5µA, and operates from a single 1.7V to 5.5V supply. For additional power conservation, the IC also features a low-power shutdown mode that reduces supply current to 0.1µA and puts the amplifier’s outputs in a high-impedance state. This device is unity-gain stable with a 300kHz GBW product.The MAX40006 is available in a space-saving, 0.73mm x 1.07mm, 6-bump wafer-level package (WLP), as well as a 6-pin SOT-23 package. The device is specified over the -40°C to +125°C automotive operating temperature range.ApplicationsElectronic ToysPortable Media PlayersPortable Medical DevicesTablet/Notebook ComputersWearable Fitness Devices

The MAX40008/MAX40009 are single micropower comparators featuring low-voltage operation and rail-to-rail inputs. Their operating supply voltage range from 1.7V to 5.5V, which makes them ideal for systems running from nominal 1.8V to 5V supplies.While only consuming 12µA of supply current, the MAX40008/MAX40009 achieve a 220ns propagation delay. These devices feature 0.5mV (typ) input offset voltage and internal hysteresis, ensuring clean output switching, even with slow-moving input signals. The output stage’s unique design limits supply-current surges while switching, virtually eliminating the supply glitches typical of many other comparators. The MAX40009 has a push-pull output stage, while the MAX40008 has an open-drain output stage that can be pulled beyond VDD to 6V (max) above GND input. The open-drain version is ideal for level translators and bipolar to single-ended converters. The MAX40008/MAX40009 are available in tiny 0.73mm x 1.1mm 6-bump wafer-level packages (WLPs), significantly reducing the required board area. An alternative 6-pin SOT23 package is also available. These devices are fully specified over the -40°C to +125°C automotive temperature range.ApplicationsIR ReceiversLevel TranslatorsMobile CommunicationsPortable/Battery-Powered SystemsThreshold Detectors/ DiscriminatorsWindow Comparators

The MAX40008/MAX40009 are single micropower comparators featuring low-voltage operation and rail-to-rail inputs. Their operating supply voltage range from 1.7V to 5.5V, which makes them ideal for systems running from nominal 1.8V to 5V supplies.While only consuming 12µA of supply current, the MAX40008/MAX40009 achieve a 220ns propagation delay. These devices feature 0.5mV (typ) input offset voltage and internal hysteresis, ensuring clean output switching, even with slow-moving input signals. The output stage’s unique design limits supply-current surges while switching, virtually eliminating the supply glitches typical of many other comparators. The MAX40009 has a push-pull output stage, while the MAX40008 has an open-drain output stage that can be pulled beyond VDD to 6V (max) above GND input. The open-drain version is ideal for level translators and bipolar to single-ended converters. The MAX40008/MAX40009 are available in tiny 0.73mm x 1.1mm 6-bump wafer-level packages (WLPs), significantly reducing the required board area. An alternative 6-pin SOT23 package is also available. These devices are fully specified over the -40°C to +125°C automotive temperature range.ApplicationsIR ReceiversLevel TranslatorsMobile CommunicationsPortable/Battery-Powered SystemsThreshold Detectors/ DiscriminatorsWindow Comparators

The MAX40010 single-channel high-side precision current-sense amplifier with an input common-mode voltagerange from 2.7V to 76V, making it ideal for communications,automotive, data centers and other systems wherehigh-voltage current monitoring is critical. The MAX40010offer accuracy specifications of less than 12µV (max)Input Offset voltage and less than 0.1% (max) gain error.By offering precision offset and gain error specifications,the MAX40010 makes it possible to sense very smallsense/shunt resistors, further improving system efficienciesand power dissipation through the sense element.The MAX40010 features 80kHz of small signal bandwidthand four unique gain options (12.5V/V, 20V/V, 50V/V, and100V/V). The device’s current sense inputs have EMIRfilters to reject RF found in communications equipment.The MAX40010 operates over the -40°C to + 125°Ctemperature range and is offered in a 6-bump, 1mm x1.5mm wafer-lever package (WLP) with 0.5mm pitch anda SOT23 U6SN+1 package.ApplicationsAutomotive SensingBase-Stations and Communication EquipmentEnergy ManagementServer Backplanes/Data CentersSolar Panel Monitoring

The MAX40010 single-channel high-side precision current-sense amplifier with an input common-mode voltagerange from 2.7V to 76V, making it ideal for communications,automotive, data centers and other systems wherehigh-voltage current monitoring is critical. The MAX40010offer accuracy specifications of less than 12µV (max)Input Offset voltage and less than 0.1% (max) gain error.By offering precision offset and gain error specifications,the MAX40010 makes it possible to sense very smallsense/shunt resistors, further improving system efficienciesand power dissipation through the sense element.The MAX40010 features 80kHz of small signal bandwidthand four unique gain options (12.5V/V, 20V/V, 50V/V, and100V/V). The device’s current sense inputs have EMIRfilters to reject RF found in communications equipment.The MAX40010 operates over the -40°C to + 125°Ctemperature range and is offered in a 6-bump, 1mm x1.5mm wafer-lever package (WLP) with 0.5mm pitch anda SOT23 U6SN+1 package.ApplicationsAutomotive SensingBase-Stations and Communication EquipmentEnergy ManagementServer Backplanes/Data CentersSolar Panel Monitoring

TheMAX40002–MAX40005 and MAX40012–MAX40015 tiny, single comparators are ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. These comparators are offered in both, a miniature 4-bump wafer-level package (WLP) with a 0.73mm x 0.73mm footprint (as small as two 0402 resistors) and a 5-pin SOT23 package.This device family operates with a supply voltage range from 1.7V to 5.5V (either VCC or external VREF), and consumes only 500nA of supply current. These devices have a wide input-voltage range of 0.1V to 5.5V, independent of the supply voltage, and maintain high impedance at the inputs even when powered down (VCC or external VREF = 0V). They also feature internal filtering to provide high RF immunity.The MAX40002–MAX40003 and MAX40012–MAX40013have open-drain outputs, while the MAX40004–MAX40005and MAX40014–MAX40015 feature push-pull outputs. TheMAX40002/MAX40004 and MAX40012–MAX40014 havenoninverting inputs, while the MAX40003/MAX40005 andMAX40013–MAX40015 have inverting inputs (see the Selector Guide for more information).These devices also come with an internal reference. The reference voltage is preset at the factory and parts are offered with the following voltage options: 0.2V, 0.5V, 0.9V or 1.222V (see Ordering Information table).These devices are fully specified over -40°C to +125°C automotive temperature range.ApplicationsElectronic ToysMobile DevicesNotebook ComputersPortable InstrumentationPortable Medical Devices

TheMAX40002–MAX40005 and MAX40012–MAX40015 tiny, single comparators are ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. These comparators are offered in both, a miniature 4-bump wafer-level package (WLP) with a 0.73mm x 0.73mm footprint (as small as two 0402 resistors) and a 5-pin SOT23 package.This device family operates with a supply voltage range from 1.7V to 5.5V (either VCC or external VREF), and consumes only 500nA of supply current. These devices have a wide input-voltage range of 0.1V to 5.5V, independent of the supply voltage, and maintain high impedance at the inputs even when powered down (VCC or external VREF = 0V). They also feature internal filtering to provide high RF immunity.The MAX40002–MAX40003 and MAX40012–MAX40013have open-drain outputs, while the MAX40004–MAX40005and MAX40014–MAX40015 feature push-pull outputs. TheMAX40002/MAX40004 and MAX40012–MAX40014 havenoninverting inputs, while the MAX40003/MAX40005 andMAX40013–MAX40015 have inverting inputs (see the Selector Guide for more information).These devices also come with an internal reference. The reference voltage is preset at the factory and parts are offered with the following voltage options: 0.2V, 0.5V, 0.9V or 1.222V (see Ordering Information table).These devices are fully specified over -40°C to +125°C automotive temperature range.ApplicationsElectronic ToysMobile DevicesNotebook ComputersPortable InstrumentationPortable Medical Devices

The MAX40075/MAX40088 are wideband, low-noise, low-input bias current operational amplifiers offering rail-to-rail outputs and single-supply operation down to 2.7V. They draw 2.2mA of quiescent supply current per amplifier when enabled and have ultra-low distortion (0.0002% THD+N), as well as low input voltage-noise density (4.2nV/) and low input current-noise density (0.5fA/). The low input bias current and low noise together with the wide bandwidth suit transimpedance amplifiers and imaging applications.For power conservation, the MAX40075/MAX40088 offer a low-power shutdown mode that reduces supply current to 0.1µA and places the amplifiers outputs into a high impedance state. These amplifiers have outputs which swing rail-to-rail and their input common-mode voltage range includes ground. The MAX40075 is unity-gain stable with a gain-bandwidth product of 10MHz. The MAX40088 is gain-of-5 stable with a gain-bandwidth product of 42MHz.ApplicationsADC BuffersAutomotive Power TrainDAC Output AmplifiersDigital ScalesLow-Noise Microphone/PreamplifiersMedical InstrumentationStrain Gauges/Sensor AmplifiersTransimpedance Amplifiers

The MAX40075/MAX40088 are wideband, low-noise, low-input bias current operational amplifiers offering rail-to-rail outputs and single-supply operation down to 2.7V. They draw 2.2mA of quiescent supply current per amplifier when enabled and have ultra-low distortion (0.0002% THD+N), as well as low input voltage-noise density (4.2nV/) and low input current-noise density (0.5fA/). The low input bias current and low noise together with the wide bandwidth suit transimpedance amplifiers and imaging applications.For power conservation, the MAX40075/MAX40088 offer a low-power shutdown mode that reduces supply current to 0.1µA and places the amplifiers outputs into a high impedance state. These amplifiers have outputs which swing rail-to-rail and their input common-mode voltage range includes ground. The MAX40075 is unity-gain stable with a gain-bandwidth product of 10MHz. The MAX40088 is gain-of-5 stable with a gain-bandwidth product of 42MHz.ApplicationsADC BuffersAutomotive Power TrainDAC Output AmplifiersDigital ScalesLow-Noise Microphone/PreamplifiersMedical InstrumentationStrain Gauges/Sensor AmplifiersTransimpedance Amplifiers

The MAX40079/MAX40087/MAX40077/MAX40089/MAX40078 are wide band, low-noise, low-input bias current operational amplifiers that offer rail-to-rail outputs and single-supply operation from 2.7V to 5.5V. These low-noise amps draw 2.2mA of quiescent supply current per amplifier. This family of amplifiers offers ultra-low distortion (0.0002% THD+N), as well as low input voltage-noise density (4.2nV/√Hz) and low input current-noise density (0.5fA/√Hz). The low input bias current of 0.3pA (typ) and low noise (4.5nV/√Hz), together with the wide bandwidth, provides excellent performance for trans-impedance (TIA) and imaging applications.These amplifiers have outputs which swing rail-to-rail and their input common-mode voltage range includes ground. The MAX40079/MAX40077/MAX40078 are single/dual/quad respectively in unity-gain stable with a bandwidth of 10MHz. The MAX40087/MAX40089 are single/dual respectively with gain ≥ 5 stable and bandwidth of 42MHz. They operate over the full -40°C to +125°C temperature range.Single channel op amps are available in 6-bump wafer-level package (WLP) and SOT23 6-pin packages. The dual channel op amps are available in 8-bump WLP and µMAX-8 packages. The quad channel option is available in 14-TSSOP package.ApplicationsADC BuffersDAC Output AmplifiersDigital ScalesLow-Noise Microphone/PreamplifiersMedical InstrumentationpH Probes and Reference ElectrodesStrain Gauges/Sensor AmplifiersTransimpedance Amplifiers

The MAX40079/MAX40087/MAX40077/MAX40089/MAX40078 are wide band, low-noise, low-input bias current operational amplifiers that offer rail-to-rail outputs and single-supply operation from 2.7V to 5.5V. These low-noise amps draw 2.2mA of quiescent supply current per amplifier. This family of amplifiers offers ultra-low distortion (0.0002% THD+N), as well as low input voltage-noise density (4.2nV/√Hz) and low input current-noise density (0.5fA/√Hz). The low input bias current of 0.3pA (typ) and low noise (4.5nV/√Hz), together with the wide bandwidth, provides excellent performance for trans-impedance (TIA) and imaging applications.These amplifiers have outputs which swing rail-to-rail and their input common-mode voltage range includes ground. The MAX40079/MAX40077/MAX40078 are single/dual/quad respectively in unity-gain stable with a bandwidth of 10MHz. The MAX40087/MAX40089 are single/dual respectively with gain ≥ 5 stable and bandwidth of 42MHz. They operate over the full -40°C to +125°C temperature range.Single channel op amps are available in 6-bump wafer-level package (WLP) and SOT23 6-pin packages. The dual channel op amps are available in 8-bump WLP and µMAX-8 packages. The quad channel option is available in 14-TSSOP package.ApplicationsADC BuffersDAC Output AmplifiersDigital ScalesLow-Noise Microphone/PreamplifiersMedical InstrumentationpH Probes and Reference ElectrodesStrain Gauges/Sensor AmplifiersTransimpedance Amplifiers

The MAX40079/MAX40087/MAX40077/MAX40089/MAX40078 are wide band, low-noise, low-input bias current operational amplifiers that offer rail-to-rail outputs and single-supply operation from 2.7V to 5.5V. These low-noise amps draw 2.2mA of quiescent supply current per amplifier. This family of amplifiers offers ultra-low distortion (0.0002% THD+N), as well as low input voltage-noise density (4.2nV/√Hz) and low input current-noise density (0.5fA/√Hz). The low input bias current of 0.3pA (typ) and low noise (4.5nV/√Hz), together with the wide bandwidth, provides excellent performance for trans-impedance (TIA) and imaging applications.These amplifiers have outputs which swing rail-to-rail and their input common-mode voltage range includes ground. The MAX40079/MAX40077/MAX40078 are single/dual/quad respectively in unity-gain stable with a bandwidth of 10MHz. The MAX40087/MAX40089 are single/dual respectively with gain ≥ 5 stable and bandwidth of 42MHz. They operate over the full -40°C to +125°C temperature range.Single channel op amps are available in 6-bump wafer-level package (WLP) and SOT23 6-pin packages. The dual channel op amps are available in 8-bump WLP and µMAX-8 packages. The quad channel option is available in 14-TSSOP package.ApplicationsADC BuffersDAC Output AmplifiersDigital ScalesLow-Noise Microphone/PreamplifiersMedical InstrumentationpH Probes and Reference ElectrodesStrain Gauges/Sensor AmplifiersTransimpedance Amplifiers

The MAX40079/MAX40087/MAX40077/MAX40089/MAX40078 are wide band, low-noise, low-input bias current operational amplifiers that offer rail-to-rail outputs and single-supply operation from 2.7V to 5.5V. These low-noise amps draw 2.2mA of quiescent supply current per amplifier. This family of amplifiers offers ultra-low distortion (0.0002% THD+N), as well as low input voltage-noise density (4.2nV/√Hz) and low input current-noise density (0.5fA/√Hz). The low input bias current of 0.3pA (typ) and low noise (4.5nV/√Hz), together with the wide bandwidth, provides excellent performance for trans-impedance (TIA) and imaging applications.These amplifiers have outputs which swing rail-to-rail and their input common-mode voltage range includes ground. The MAX40079/MAX40077/MAX40078 are single/dual/quad respectively in unity-gain stable with a bandwidth of 10MHz. The MAX40087/MAX40089 are single/dual respectively with gain ≥ 5 stable and bandwidth of 42MHz. They operate over the full -40°C to +125°C temperature range.Single channel op amps are available in 6-bump wafer-level package (WLP) and SOT23 6-pin packages. The dual channel op amps are available in 8-bump WLP and µMAX-8 packages. The quad channel option is available in 14-TSSOP package.ApplicationsADC BuffersDAC Output AmplifiersDigital ScalesLow-Noise Microphone/PreamplifiersMedical InstrumentationpH Probes and Reference ElectrodesStrain Gauges/Sensor AmplifiersTransimpedance Amplifiers

The MAX40200 is an ideal diode current-switch that drops so little voltage that it approaches an order of magnitude better than Schottky diodes.When forward-biased and enabled, the MAX40200 conducts with as little as 85mV of voltage drop while carrying currents as high as 1A. Typical voltage drop is 43mV at 500mA, with the voltage drop increasing linearly at higher currents. The MAX40200 thermally protects itself, and any downstream circuitry, from overtemperature conditions.When disabled (EN = low) the MAX40200 blocks voltages up to 6V in either direction, making it suitable for most low-voltage, portable electronic devices. The MAX40200 operates from a supply voltage of 1.5V to 5.5V.The MAX40200 is available in a tiny, 0.73mm X 0.73mm, 4-bump wafer-level package (WLP), with a 0.35mm bump pitch and only 0.5mm high and 5-pin SOT-23 package. The MAX40200 operates over the extended -40°C to +125°C temperature range.Design Solution: Cut Your Losses—With an Ideal Diode ›Design Solution: Design a Cooler, Safer Smart-Home Hub—Using an Ideal Diode ›How to Add a Diode ORing or Battery Backup Circuit Using the MAX40200 Ideal DiodeApplicationsCellular PhonesElectronic ToysNotebook and Tablet ComputersPortable Media PlayersPortable/Wearable Medical DevicesUSB-Powered Peripherals

The MAX40200 is an ideal diode current-switch that drops so little voltage that it approaches an order of magnitude better than Schottky diodes.When forward-biased and enabled, the MAX40200 conducts with as little as 85mV of voltage drop while carrying currents as high as 1A. Typical voltage drop is 43mV at 500mA, with the voltage drop increasing linearly at higher currents. The MAX40200 thermally protects itself, and any downstream circuitry, from overtemperature conditions.When disabled (EN = low) the MAX40200 blocks voltages up to 6V in either direction, making it suitable for most low-voltage, portable electronic devices. The MAX40200 operates from a supply voltage of 1.5V to 5.5V.The MAX40200 is available in a tiny, 0.73mm X 0.73mm, 4-bump wafer-level package (WLP), with a 0.35mm bump pitch and only 0.5mm high and 5-pin SOT-23 package. The MAX40200 operates over the extended -40°C to +125°C temperature range.Design Solution: Cut Your Losses—With an Ideal Diode ›Design Solution: Design a Cooler, Safer Smart-Home Hub—Using an Ideal Diode ›How to Add a Diode ORing or Battery Backup Circuit Using the MAX40200 Ideal DiodeApplicationsCellular PhonesElectronic ToysNotebook and Tablet ComputersPortable Media PlayersPortable/Wearable Medical DevicesUSB-Powered Peripherals

The MAX40201 dual-channel, high-side, current-sense amplifier has VOS of less than 12µV (max) and gain error of less than 0.1% (max). The outputs of the MAX40201 are voltage outputs capable of swinging to a few tens of millivolts of the VDD rail and ground.The MAX40201 features an input common-mode voltage range from 0V to 76V with 80kHz of small-signal bandwidth, which makes it ideal for interfacing with a SAR ADC for multichannel multiplexed data acquisition systems.The MAX40201 operates over the -40°C to +125°C temperature range. The MAX40201 is offered in 8-bump wafer-level package (WLP) and 8-pin μMAX® package.ApplicationsBase Stations and Communication EquipmentIndustrial Control and AutomationPower Management SystemsServer Backplanes

The MAX40201 dual-channel, high-side, current-sense amplifier has VOS of less than 12µV (max) and gain error of less than 0.1% (max). The outputs of the MAX40201 are voltage outputs capable of swinging to a few tens of millivolts of the VDD rail and ground.The MAX40201 features an input common-mode voltage range from 0V to 76V with 80kHz of small-signal bandwidth, which makes it ideal for interfacing with a SAR ADC for multichannel multiplexed data acquisition systems.The MAX40201 operates over the -40°C to +125°C temperature range. The MAX40201 is offered in 8-bump wafer-level package (WLP) and 8-pin μMAX® package.ApplicationsBase Stations and Communication EquipmentIndustrial Control and AutomationPower Management SystemsServer Backplanes

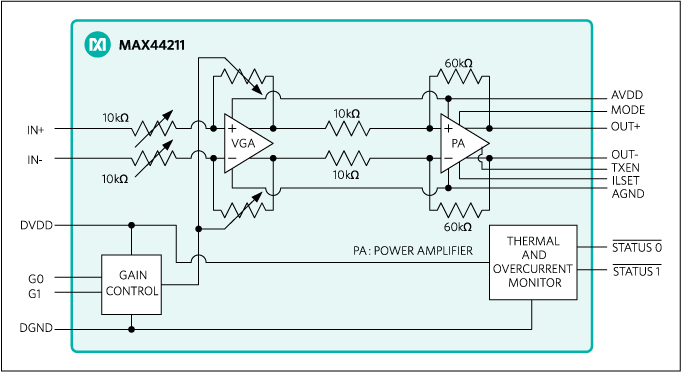

The MAX44211 is a low-distortion line driver customized for powerline communication (PLC) applications where high output current is needed to drive the isolation and coupling transformer under varying load conditions. The MAX44211 can be switched to implement all world standards, trading off improved linearity for increased quiescent current. The MAX44211 delivers a high 1.5A linear output current and provides peak-to-peak differential voltage swing of up to 36V. The MAX44211 features very low intermodulation and harmonic distortion ensuring they meet worldwide PLC standards.The MAX44211 features advanced diagnostics for temperature and output current monitoring. There are high temperature warning and over temperature shutdown functions. There is also a programmable current limit. The status of these diagnostics are indicated via two open-drain status outputs.The MAX44211 is designed to interface to powerlines that have wide ranging and variable loads and drive signals within the 9kHz to 500kHz frequency band. This device operates from a single supply and is available in a 4mm x 4mm, 20-pin TQFN package.The MAX44211 device is specified for operation from -40°C to +85°C.ApplicationsLightingPowerline CommunicationsSmart MetersSolar

The MAX44286 is a zero-drift, high-side current-sense amplifier family that offers precision, low supply current and is available in a tiny 4-bump ultra-thin WLP of 0.78mm x 0.78mm x 0.35mm footprint. This miniature size is of paramount for today’s applications in smartphones, mobile accessories, notebooks, portable medical, and all battery-operated portable devices where current monitoring with precision and space are critical. The MAX44286 has voltage output offered in four gain versions of 25V/V, 50V/V, 100V/V, and 200V/V. These four gain versions offer flexibility in the choice of the sense resistor and the very low input offset voltage helps in detecting small currents on the orders of low microamps. Low power capability also offers the possibility of minimizing power dissipation.The MAX44286 operates with a supply voltage range of 1.6V to 5.5V over the -40°C to +85°C temperature range and from 1.8V to 5.5V over the -40°C to +125°C automotive temperature range. Supply voltage for the device is shared with the RS+ pin to fit the MAX44286 in a 4-bump, ultra-thin WLP package.ApplicationsMobile AccessoriesNotebook Computers and TabletsPortable MedicalPortable/Battery-Powered SystemsPower Management SystemsSmartphones

The MAX44291/MAX44292/MAX44294 are single/dual/quad low-noise, precision operational amplifiers. The low offset and low noise specifications and high supply range make the MAX44291/MAX44292/MAX44294 ideal for sensor interfaces, loop-powered systems, and various types of medical and data acquisition instruments.The MAX44291/MAX44292/MAX44294 operate with a wide supply voltage range from a 4.5V to 36V single supply or dual ±2.25V to ±18V supplies, and consume only 1.2mA/channel (typ). The MAX44291 features a shutdown input that reduces the supply current to 1µA/channel (typ) when in shutdown mode.The rail-to-rail output swing maximizes the dynamic range when driving high-resolution ADCs even with low supply voltage. These devices achieve 10MHz of gain-bandwidth product.The MAX44291/MAX44292/MAX44294 are available in an 8-pin µMAX® (single), 8-pin SO (dual), and 14-pin SO (quad) packages and are specified over the -40°C to +125°C automotive temperature range.ApplicationsInstrumentationPortable Logic ControllersSensor InterfacesTest and Measurement Systems
