The MAX25200 is a high-performance, current-mode PWM controller with 1.5μA (typ) shutdown current for boost converters with a wide input voltage range. The 4.5V to 36V input operating voltage range makes these devices ideal in automotive applications, such as front-end preboost or general-purpose SEPIC or flyback power supplies. An internal low-dropout regulator with a 5V output voltage enables the MAX25200 to operate directly from an automotive battery input. The input operating range can be extended to as low as 1.8V after startup.The MAX25200's switching frequency operation (up to 2.2MHz) reduces output ripple, avoids AM band interference, and allows for the use of smaller external components. The switching frequency is resistor adjustable from 220kHz to 2.2MHz; Alternatively, the frequency can be synchronized to an external clock. A spread spectrum option is available to improve system EMI performance.The device features a power-OK monitor and undervoltage lockout. Protection features include cycle-by-cycle current limit and thermal shutdown. The MAX25200 operates over the -40°C to +125°C automotive temperature range.APPLICATIONSCluster SystemsE-callInfotainment

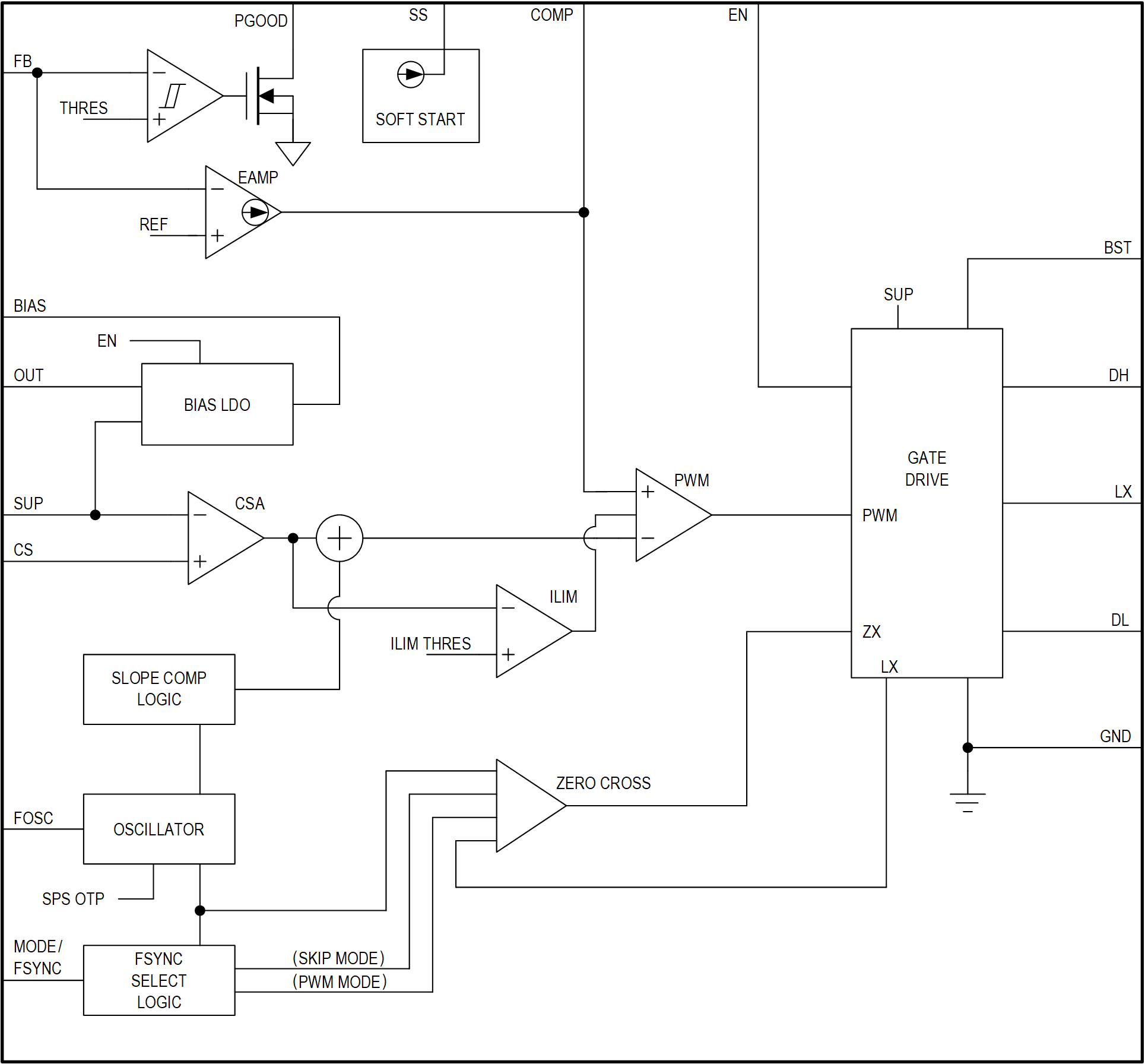

The MAX25201/MAX25202 are high-performance, current-mode PWM controllers with 1.5μA (typ) shutdown current for wide input voltage range boost converters. The 4.5V to 36V input operating voltage range makes these devices ideal in automotive applications, such as front-end preboost or general-purpose boost power supply, for the first boost stage in high-power LED lighting applications or to generate audio amplifier voltages. An internal low-dropout regulator with a 5V output voltage enables the MAX25201/MAX25202 to operate directly from an automotive battery input. The input operating range can be extended to as low as 1.8V after startup.The MAX25201/MAX25202’s switching frequency operation (up to 2.2MHz) reduces output ripple, avoids AM band interference, and allows for the use of smaller external components. The switching frequency is resistor adjustable from 220kHz to 2.2MHz. Alternatively, the frequency can be syn­chronized to an external clock. A spread- spectrum option is available to improve system EMI performance. For high-current applications the dual-phase MAX25202 is available. The MAX25202 operates at a fixed 400kHz switching frequency and can be synchronized to an external clock.The controllers feature a power-OK monitor and undervoltage lockout. Protection features include cycle-by-cycle current limit and thermal shutdown. The MAX25201/MAX25202 operate over the -40°C to +125°C automotive temperature range.ApplicationsCluster SystemsE-callInfotainment Systems

The MAX25203 automotive dual-phase synchronous boost controller enables infotainment systems to stay in regulation during cold-crank or start-stop operation all the way down to a battery input of 1.8V. It can also be used to generate backlight voltage and Class D audio amplifier voltages. This device can start with an input voltage supply from 4.5V to 42V and can operate down to 1.8V after start-up, and has a low 5µA shutdown supply current.The MAX25203 operates at up to 2.1MHz frequency to allow small external components and reduced output ripple, and to guarantee no AM band interference. The switching frequency is resistor adjustable (220kHz to 2100kHz) or it can be synchronized on-the-fly to an external clock.The MAX25203 has a spread-spectrum option for frequency modulation to minimize EMI interference. A 90° out-of-phase clock output enables synchronizing a second MAX25203 for quad-phase operation.Pass-through operation has over 98% efficiency when the supply voltage exceeds the output regulation voltage. Programmable current-limit blanking handles high peak loads without oversizing the inductor.The MAX25203 features a power-OK monitor and undervoltage lockout. Protection features include cycle-by-cycle current limit and thermal shutdown. It operates over the -40°C to +125°C automotive temperature range.ApplicationsAutomotive Audio AmplifierInfotainment Systems

The MAX25206/MAX25207/MAX25208 are automotive 2.2MHz synchronous step-down controllers with 7µA IQ. These devices operate with an input voltage supply from3.5V to 60V (MAX25206/MAX25207) and 70V (MAX25208). They can operate in dropout condition by running at 99% (typ) duty cycle. These controllers are intended for applications with mid- to high-power requirements that operate at a wide input voltage range such as during automotive cold-crank or engine stop-start conditions. The MAX25207 has an optional bypass mode which allows 100% high-side switch on until step-down function is needed during automotive transients.The MAX25206/MAX25207/MAX25208 step-down controllers operate at up to 2.2MHz frequency to allow small external components, reduced output ripple, and to guarantee no AM band interference. The switching frequency is resistor adjustable (220kHz to 2200kHz). SYNC input programmability enables three frequency modes for optimized performance: forced fixed-frequency operation (FPWM), skip mode with ultra-low quiescent current, and synchronization to an external clock. The IC also provides SYNCOUT output to enable two controllers to operate in parallel. The MAX25206/MAX25207/MAX25208 have a pin selectable spread-spectrum option for frequency modulation to minimize EMI.The MAX25206/MAX25207/MAX25208 feature a PGOOD monitor and undervoltage lockout. Protection features include cycle-by-cycle current limit and thermal shutdown. These controllers are specified for operation over the -40°C to +125°C automotive temperature range.Applications24V Truck systems, Infotainment Systems, 48V systems

The MAX25206/MAX25207/MAX25208 are automotive 2.2MHz synchronous step-down controllers with 7µA IQ. These devices operate with an input voltage supply from3.5V to 60V (MAX25206/MAX25207) and 70V (MAX25208). They can operate in dropout condition by running at 99% (typ) duty cycle. These controllers are intended for applications with mid- to high-power requirements that operate at a wide input voltage range such as during automotive cold-crank or engine stop-start conditions. The MAX25207 has an optional bypass mode which allows 100% high-side switch on until step-down function is needed during automotive transients.The MAX25206/MAX25207/MAX25208 step-down controllers operate at up to 2.2MHz frequency to allow small external components, reduced output ripple, and to guarantee no AM band interference. The switching frequency is resistor adjustable (220kHz to 2200kHz). SYNC input programmability enables three frequency modes for optimized performance: forced fixed-frequency operation (FPWM), skip mode with ultra-low quiescent current, and synchronization to an external clock. The IC also provides SYNCOUT output to enable two controllers to operate in parallel. The MAX25206/MAX25207/MAX25208 have a pin selectable spread-spectrum option for frequency modulation to minimize EMI.The MAX25206/MAX25207/MAX25208 feature a PGOOD monitor and undervoltage lockout. Protection features include cycle-by-cycle current limit and thermal shutdown. These controllers are specified for operation over the -40°C to +125°C automotive temperature range.Applications24V Truck systems, Infotainment Systems, 48V systems

The MAX25206/MAX25207/MAX25208 are automotive 2.2MHz synchronous step-down controllers with 7µA IQ. These devices operate with an input voltage supply from3.5V to 60V (MAX25206/MAX25207) and 70V (MAX25208). They can operate in dropout condition by running at 99% (typ) duty cycle. These controllers are intended for applications with mid- to high-power requirements that operate at a wide input voltage range such as during automotive cold-crank or engine stop-start conditions. The MAX25207 has an optional bypass mode which allows 100% high-side switch on until step-down function is needed during automotive transients.The MAX25206/MAX25207/MAX25208 step-down controllers operate at up to 2.2MHz frequency to allow small external components, reduced output ripple, and to guarantee no AM band interference. The switching frequency is resistor adjustable (220kHz to 2200kHz). SYNC input programmability enables three frequency modes for optimized performance: forced fixed-frequency operation (FPWM), skip mode with ultra-low quiescent current, and synchronization to an external clock. The IC also provides SYNCOUT output to enable two controllers to operate in parallel. The MAX25206/MAX25207/MAX25208 have a pin selectable spread-spectrum option for frequency modulation to minimize EMI.The MAX25206/MAX25207/MAX25208 feature a PGOOD monitor and undervoltage lockout. Protection features include cycle-by-cycle current limit and thermal shutdown. These controllers are specified for operation over the -40°C to +125°C automotive temperature range.Applications24V Truck systems, Infotainment Systems, 48V systems

The MAX25210 high-voltage linear regulator family is idealfor use in automotive and battery-operated systems. Thedevice operates from a +3.5V to +30V input voltage, deliversup to 300mA of load current, and consumes only 10µAof typical quiescent current at no load. The device consumesonly 2µA (typ) current when in shutdown. The inputis +42V transient tolerant and is designed to operate underload-dump conditions. The MAX25210 can be configuredas either fixed output voltage (+3.3V or +5V) or adjustableoutput voltage using an external resistive divider.The MAX25210 features an open-drain, active-low RESEToutput with fixed thresholds offered at 93.5% and87.5% of the output voltage. The active-low RESET output remainslow for a fixed period of 60μs after the output voltage exceedsits threshold. The active-low RESET delay can be extendedwith an external capacitor.The MAX25210 includes an enable input, short-circuit protection,and thermal shutdown. The MAX25210 operatesover the -40°C to +125°C automotive temperature range.The regulators are available in a space-saving, thermallyenhanced, 3mm x 3mm, 8-pin TDFN package.ApplicationsAlways-On Automotive ModulesAutomotive Head UnitAutomotive InfotainmentAutomotive TelematicsInstrument Cluster

The MAX25210 high-voltage linear regulator family is idealfor use in automotive and battery-operated systems. Thedevice operates from a +3.5V to +30V input voltage, deliversup to 300mA of load current, and consumes only 10µAof typical quiescent current at no load. The device consumesonly 2µA (typ) current when in shutdown. The inputis +42V transient tolerant and is designed to operate underload-dump conditions. The MAX25210 can be configuredas either fixed output voltage (+3.3V or +5V) or adjustableoutput voltage using an external resistive divider.The MAX25210 features an open-drain, active-low RESEToutput with fixed thresholds offered at 93.5% and87.5% of the output voltage. The active-low RESET output remainslow for a fixed period of 60μs after the output voltage exceedsits threshold. The active-low RESET delay can be extendedwith an external capacitor.The MAX25210 includes an enable input, short-circuit protection,and thermal shutdown. The MAX25210 operatesover the -40°C to +125°C automotive temperature range.The regulators are available in a space-saving, thermallyenhanced, 3mm x 3mm, 8-pin TDFN package.ApplicationsAlways-On Automotive ModulesAutomotive Head UnitAutomotive InfotainmentAutomotive TelematicsInstrument Cluster

The MAX25210 high-voltage linear regulator family is idealfor use in automotive and battery-operated systems. Thedevice operates from a +3.5V to +30V input voltage, deliversup to 300mA of load current, and consumes only 10µAof typical quiescent current at no load. The device consumesonly 2µA (typ) current when in shutdown. The inputis +42V transient tolerant and is designed to operate underload-dump conditions. The MAX25210 can be configuredas either fixed output voltage (+3.3V or +5V) or adjustableoutput voltage using an external resistive divider.The MAX25210 features an open-drain, active-low RESEToutput with fixed thresholds offered at 93.5% and87.5% of the output voltage. The active-low RESET output remainslow for a fixed period of 60μs after the output voltage exceedsits threshold. The active-low RESET delay can be extendedwith an external capacitor.The MAX25210 includes an enable input, short-circuit protection,and thermal shutdown. The MAX25210 operatesover the -40°C to +125°C automotive temperature range.The regulators are available in a space-saving, thermallyenhanced, 3mm x 3mm, 8-pin TDFN package.ApplicationsAlways-On Automotive ModulesAutomotive Head UnitAutomotive InfotainmentAutomotive TelematicsInstrument Cluster

The MAX25210 high-voltage linear regulator family is idealfor use in automotive and battery-operated systems. Thedevice operates from a +3.5V to +30V input voltage, deliversup to 300mA of load current, and consumes only 10µAof typical quiescent current at no load. The device consumesonly 2µA (typ) current when in shutdown. The inputis +42V transient tolerant and is designed to operate underload-dump conditions. The MAX25210 can be configuredas either fixed output voltage (+3.3V or +5V) or adjustableoutput voltage using an external resistive divider.The MAX25210 features an open-drain, active-low RESEToutput with fixed thresholds offered at 93.5% and87.5% of the output voltage. The active-low RESET output remainslow for a fixed period of 60μs after the output voltage exceedsits threshold. The active-low RESET delay can be extendedwith an external capacitor.The MAX25210 includes an enable input, short-circuit protection,and thermal shutdown. The MAX25210 operatesover the -40°C to +125°C automotive temperature range.The regulators are available in a space-saving, thermallyenhanced, 3mm x 3mm, 8-pin TDFN package.ApplicationsAlways-On Automotive ModulesAutomotive Head UnitAutomotive InfotainmentAutomotive TelematicsInstrument Cluster

The MAX25220/MAX25221/MAX25221B/MAX25221C are a 4-channel TFT-LCD power IC that provides symmetrical positive AVDD and negative NAVDD supplies as well as VGON and VGOFF gate supplies. In addition, a VCOM buffer with output voltage range above and below ground and a temperature measurement block are integrated (MAX25221/B/C).The device contains non-volatile memory so that the values of all outputs can be calibrated for the lifetime of the device (maximum five times).Programming is carried out using the built-in I2C interface, which can also be used to read back diagnostic information. A stand-alone mode is also available.The temperature sensor interface block measures the temperature optionally allowing the VCOM output voltage to be adjusted depending on the measured temperature.The MAX25220/MAX25221/MAX25221B/MAX25221C are available in a TQFN package and operates in the -40°C to +125°C temperature range.ApplicationsCentral Information DisplaysInfotainment DisplaysInstrument Clusters

The MAX25220/MAX25221/MAX25221B/MAX25221C are a 4-channel TFT-LCD power IC that provides symmetrical positive AVDD and negative NAVDD supplies as well as VGON and VGOFF gate supplies. In addition, a VCOM buffer with output voltage range above and below ground and a temperature measurement block are integrated (MAX25221/B/C).The device contains non-volatile memory so that the values of all outputs can be calibrated for the lifetime of the device (maximum five times).Programming is carried out using the built-in I2C interface, which can also be used to read back diagnostic information. A stand-alone mode is also available.The temperature sensor interface block measures the temperature optionally allowing the VCOM output voltage to be adjusted depending on the measured temperature.The MAX25220/MAX25221/MAX25221B/MAX25221C are available in a TQFN package and operates in the -40°C to +125°C temperature range.ApplicationsCentral Information DisplaysInfotainment DisplaysInstrument Clusters

The MAX25220/MAX25221/MAX25221B/MAX25221C are a 4-channel TFT-LCD power IC that provides symmetrical positive AVDD and negative NAVDD supplies as well as VGON and VGOFF gate supplies. In addition, a VCOM buffer with output voltage range above and below ground and a temperature measurement block are integrated (MAX25221/B/C).The device contains non-volatile memory so that the values of all outputs can be calibrated for the lifetime of the device (maximum five times).Programming is carried out using the built-in I2C interface, which can also be used to read back diagnostic information. A stand-alone mode is also available.The temperature sensor interface block measures the temperature optionally allowing the VCOM output voltage to be adjusted depending on the measured temperature.The MAX25220/MAX25221/MAX25221B/MAX25221C are available in a TQFN package and operates in the -40°C to +125°C temperature range.ApplicationsCentral Information DisplaysInfotainment DisplaysInstrument Clusters

The MAX25222/MAX25222C are a 4-channel TFT-LCD power ICs thatprovide symmetrical positive AVDD and negativeNAVDD supplies, as well as VGON and VGOFF gate supplies.In addition, a VCOM buffer with output voltage rangeabove and below ground and a temperature measurementblock are integrated.The devices contain non-volatile memory so that the valuesof all outputs can be calibrated for the lifetime of thedevice (maximum five times).Programming is carried out using the built-in I2C interface,which can also be used to read back diagnostic information.A stand-alone mode is available after the device hasbeen programmed.The temperature sensor interface block measures thetemperature, optionally allowing the VCOM output voltageto be adjusted depending on the measured temperature.The MAX25222/MAX25222C2 includes extensive diagnostics to aid infulfilling ASIL-B safety level.The MAX25222/MAX25222C is available in a TQFN package and operatein the -40°C to 125°C temperature range.ApplicationsCentral Information DisplaysInfotainment DisplaysInstrument Clusters

The MAX25223 is a small, automotive grade synchronous buck converter with integrated high-side and low-side switches. The device is designed to deliver up to 3.5A with input voltages from +3V to +36V while using only 5µA quiescent current at no load. The MAX25223 provides an accurate output voltage of ±2% within the normal operation input range of +6V to +18V. With 65ns minimum on-time capability, the converter is capable of large input-to-output conversion ratios. Voltage quality can be monitored by observing the PGOOD signal. MAX25223 can operate in drop-out by running at 99% duty cycle, making it ideal for automotive and industrial applications. The IC offers standard parts with fixed output voltages of 3.3V and 5V. Other fixed output voltages in the range of 3V to 5.5V are also available on request. Frequency is internally fixed at 2.1MHz, which allows for small external components, reduces output ripple, and guarantees that there is no AM interference. A 400kHz option is also offered to provide minimum switching losses and maximum efficiency. MAX25223 automatically enters skip mode at light loads with ultra-low quiescent current of 5µA at no load. It offers pin-enabled spread-spectrum frequency modulation designed to minimize EMI-radiated emissions due to the modulation frequency.The MAX25223 comes in a small 4mm x 4mm 20-pin SW-TQFN package and uses very few external components. The intelligent package layout results in an extremely low-noise solution with superior EMI performance.ApplicationsAutomotiveIndustrialHigh Voltage DC-DC Converters

The MAX25223 is a small, automotive grade synchronous buck converter with integrated high-side and low-side switches. The device is designed to deliver up to 3.5A with input voltages from +3V to +36V while using only 5µA quiescent current at no load. The MAX25223 provides an accurate output voltage of ±2% within the normal operation input range of +6V to +18V. With 65ns minimum on-time capability, the converter is capable of large input-to-output conversion ratios. Voltage quality can be monitored by observing the PGOOD signal. MAX25223 can operate in drop-out by running at 99% duty cycle, making it ideal for automotive and industrial applications. The IC offers standard parts with fixed output voltages of 3.3V and 5V. Other fixed output voltages in the range of 3V to 5.5V are also available on request. Frequency is internally fixed at 2.1MHz, which allows for small external components, reduces output ripple, and guarantees that there is no AM interference. A 400kHz option is also offered to provide minimum switching losses and maximum efficiency. MAX25223 automatically enters skip mode at light loads with ultra-low quiescent current of 5µA at no load. It offers pin-enabled spread-spectrum frequency modulation designed to minimize EMI-radiated emissions due to the modulation frequency.The MAX25223 comes in a small 4mm x 4mm 20-pin SW-TQFN package and uses very few external components. The intelligent package layout results in an extremely low-noise solution with superior EMI performance.ApplicationsAutomotiveIndustrialHigh Voltage DC-DC Converters

The MAX25231 is a small, synchronous automotive buck converter with integrated high-side and low-side switches. The MAX25231 is designed to deliver up to 1.2A, with 3.5V to 36V input voltages, while using only 3.5μA quiescent current at no load. The device provides an accurate output voltage of ±2% within the normal operation input range of 6V to 18V. With 65ns minimum on-time capability, the converter is capable of large input-to-output conversion ratios. Voltage quality can be monitored by observing the PGOOD signal. The device can operate in dropout by running at 99% duty cycle, making it ideal for automotive and industrial applications. The device offers two fixed output voltages of 5V and 3.3V. Frequency is internally fixed at 2.1MHz, which allows for small external components and reduced output ripple, and guarantees no AM interference. The device automatically enters skip mode at light loads with ultra-low quiescent current of 3.5μA at no load. The device offers pin-enabled spread-spectrum frequency modulation designed to minimize EMI-radiated emissions due to the modulation frequency.The MAX25231 is available in a small (3mm x 3mm) 12-pin TDFN package with an exposed pad, and uses very few external components.ApplicationsAlways-On, Low-Quiescent-Current SystemsAutomotiveHigh-Voltage DC-DC ConvertersIndustrial

The MAX25232 is a small, synchronous buck converter with integrated high-side and low-side switches. The device is designed to deliver up to 3A with 3.5V to 36V input voltages while using only 3.5µA quiescent current at no load.The device provides an accurate output voltage of ±2% in FPWM mode within the normal 6V to 18V operation input range. With 65ns minimum on-time capability, the converter is capable of large input-to-output conversion ratios. Voltage quality can be monitored by observing the PGOOD signal. The device can operate in dropout by running at 99% duty cycle, making it ideal for automotive and industrial applications. The device offers two fixed 5V and 3.3V output voltages. In addition, the device can be configured for 1V to 10V output voltages using an external resistor-divider. Frequency is internally fixed at 2.1MHz, which allows for small external components and reduced output ripple, and guarantees no AM interference. A 400kHz option is also offered to provide minimum switching losses and maximum efficiency. The device automatically enters skip mode at light loads with ultra-low 3.5µA quiescent current at no load. The device offers pin-enabled spread-spectrum frequency modulation designed to minimize EMI-radiated emissions due to the modulation frequency.The MAX25232 variants are available in a small (3mm x 3mm), 12-pin, side-wettable TDFN package with an exposed pad, and require very few external components.ApplicationsAutomotiveHigh-Voltage DC-DC ConvertersIndustrial

The MAX25232 is a small, synchronous buck converter with integrated high-side and low-side switches. The device is designed to deliver up to 3A with 3.5V to 36V input voltages while using only 3.5µA quiescent current at no load.The device provides an accurate output voltage of ±2% in FPWM mode within the normal 6V to 18V operation input range. With 65ns minimum on-time capability, the converter is capable of large input-to-output conversion ratios. Voltage quality can be monitored by observing the PGOOD signal. The device can operate in dropout by running at 99% duty cycle, making it ideal for automotive and industrial applications. The device offers two fixed 5V and 3.3V output voltages. In addition, the device can be configured for 1V to 10V output voltages using an external resistor-divider. Frequency is internally fixed at 2.1MHz, which allows for small external components and reduced output ripple, and guarantees no AM interference. A 400kHz option is also offered to provide minimum switching losses and maximum efficiency. The device automatically enters skip mode at light loads with ultra-low 3.5µA quiescent current at no load. The device offers pin-enabled spread-spectrum frequency modulation designed to minimize EMI-radiated emissions due to the modulation frequency.The MAX25232 variants are available in a small (3mm x 3mm), 12-pin, side-wettable TDFN package with an exposed pad, and require very few external components.ApplicationsAutomotiveHigh-Voltage DC-DC ConvertersIndustrial

The MAX25232 is a small, synchronous buck converter with integrated high-side and low-side switches. The device is designed to deliver up to 3A with 3.5V to 36V input voltages while using only 3.5µA quiescent current at no load.The device provides an accurate output voltage of ±2% in FPWM mode within the normal 6V to 18V operation input range. With 65ns minimum on-time capability, the converter is capable of large input-to-output conversion ratios. Voltage quality can be monitored by observing the PGOOD signal. The device can operate in dropout by running at 99% duty cycle, making it ideal for automotive and industrial applications. The device offers two fixed 5V and 3.3V output voltages. In addition, the device can be configured for 1V to 10V output voltages using an external resistor-divider. Frequency is internally fixed at 2.1MHz, which allows for small external components and reduced output ripple, and guarantees no AM interference. A 400kHz option is also offered to provide minimum switching losses and maximum efficiency. The device automatically enters skip mode at light loads with ultra-low 3.5µA quiescent current at no load. The device offers pin-enabled spread-spectrum frequency modulation designed to minimize EMI-radiated emissions due to the modulation frequency.The MAX25232 variants are available in a small (3mm x 3mm), 12-pin, side-wettable TDFN package with an exposed pad, and require very few external components.ApplicationsAutomotiveHigh-Voltage DC-DC ConvertersIndustrial
