PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:5µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:45.2mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:25.4mm; External Length / Height:2.5mm; Height:2.5mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:2.3mA; Wavelength Typ:930nm

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:3.3µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:93.6mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:10.2mm; External Length / Height:10.2mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:4mA; Wavelength Typ:930nm

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1.7µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:2.7mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:3.4mm; External Length / Height:1.3mm; Height:1.3mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:0.17mA; Wavelength Typ:930nm

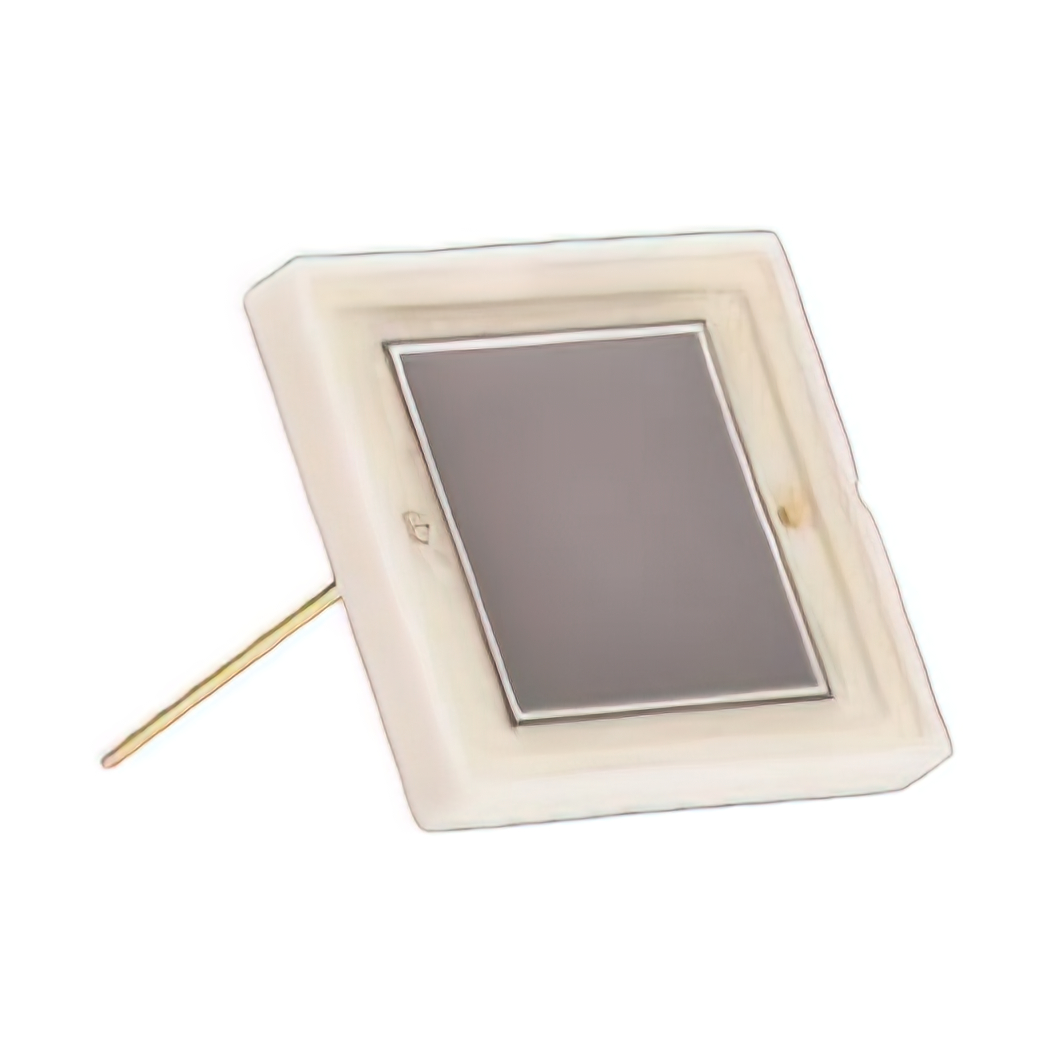

PHOTODIODE PLANAR; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:3.3µA; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:109.1mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:25.4mm; External Length / Height:5.1mm; Height:5.1mm; Lead Length:130mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +105°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:6mA; Wavelength Typ:930nm

PHOTODIODE PLANAR; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1.7µA; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Breakdown Voltage Vbr:20V; External Depth:3.4mm; External Length / Height:1.3mm; Operating Temperature Range:-40°C to +105°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Wavelength Typ:930nm

PHOTODIODE; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:100nA; Operating Temperature Min:-20°C; Operating Temperature Max:75°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:9.8mm²; Breakdown Voltage Vbr:50V; Diode Type:Photodiode; Fall Time tf:6µs; Operating Temperature Range:-20°C to +75°C; Peak Spectral Response Wavelength:930nm; Peak Wavelength:930nm; Reverse Voltage Vr Max:50V; Rise Time:4µs; Short Circuit Current:700µA; Wavelength Typ:930nm

LIGHT DEPENDENT RESISTOR; Voltage Rating:320V; Dark Resistance:1Mohm; Resistor Case Style:TO-8; Power Rating:250mW; Operating Temperature Min:-60 C; Operating Temperature Max:75 C; Packaging:Each; Product Range:-; No. of Pins:2 ;RoHS Compliant: No

Sensor Output

Photodiode 950nm 18ns 55° TO-5 Variant, 2 Leads, Lens Top Metal Can

Photodiode 2ns 55°

PHOTODIODE, PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1µA; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; MSL:-; Active Area:21.4mm²; Diode Type:Photodiode; External Depth:5.1mm; External Length / Height:5.1mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +105°C; Peak Wavelength:930nm; Sensitivity:0.55A/W; Short Circuit Current:1.2mA; Wavelength Typ:930nm

Board Mount Motion & Position Sensors 1x15 mm active area duo-lateral effect position sensor detector

CdS Cells 520nm 16 ~ 33kOhms @ 10 lux

CdS Cells 520nm 27 ~ 60kOhms @ 10 lux

Photodiode 10ns 113°

Photodiode 660nm 13ns 86°

Advanced Photonix 1x15 mm active area duo-lateral effect position sensor detector

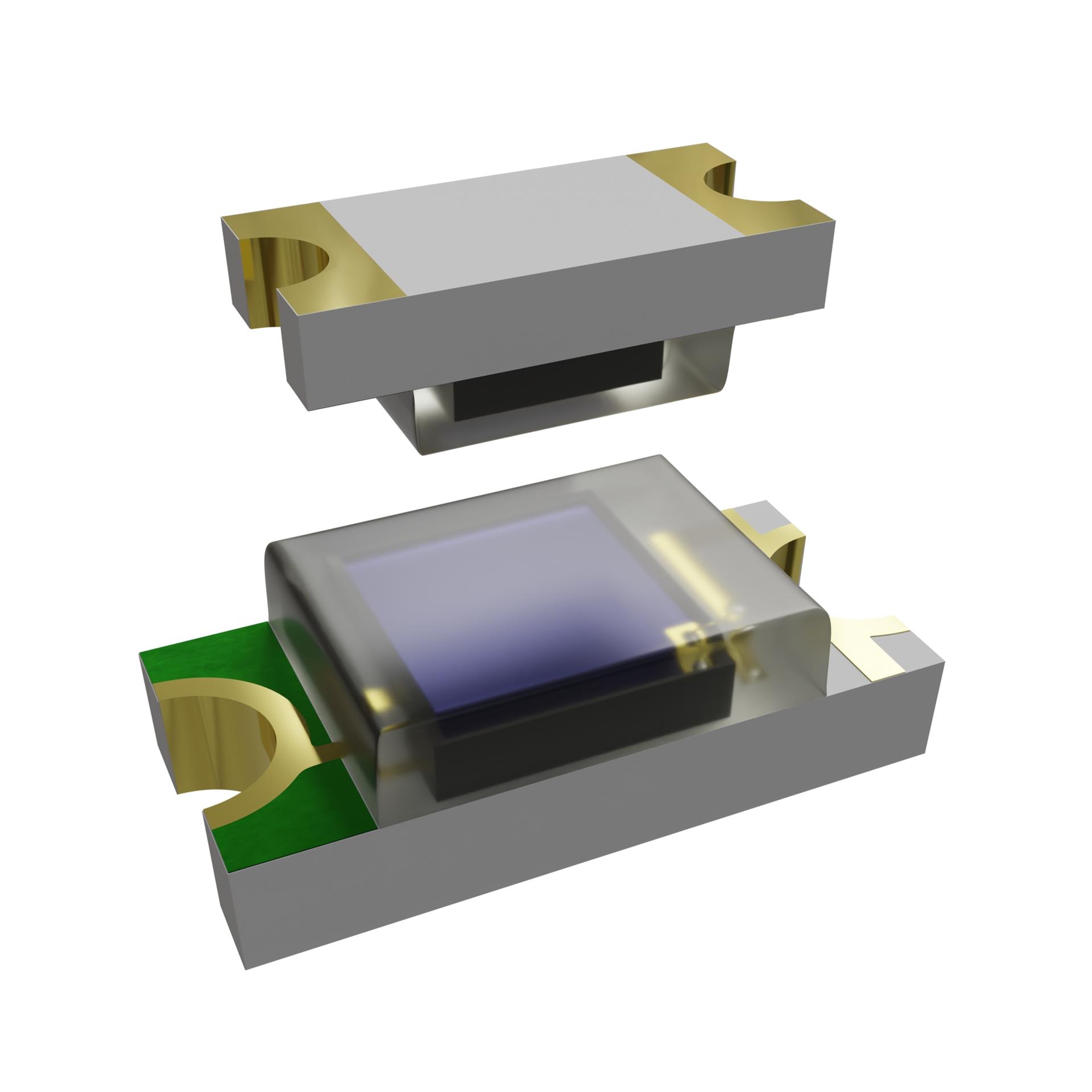

Photodiode 660nm 10ns 120° 1210 (3225 Metric)

Photodiode

Photodiode 5ns
