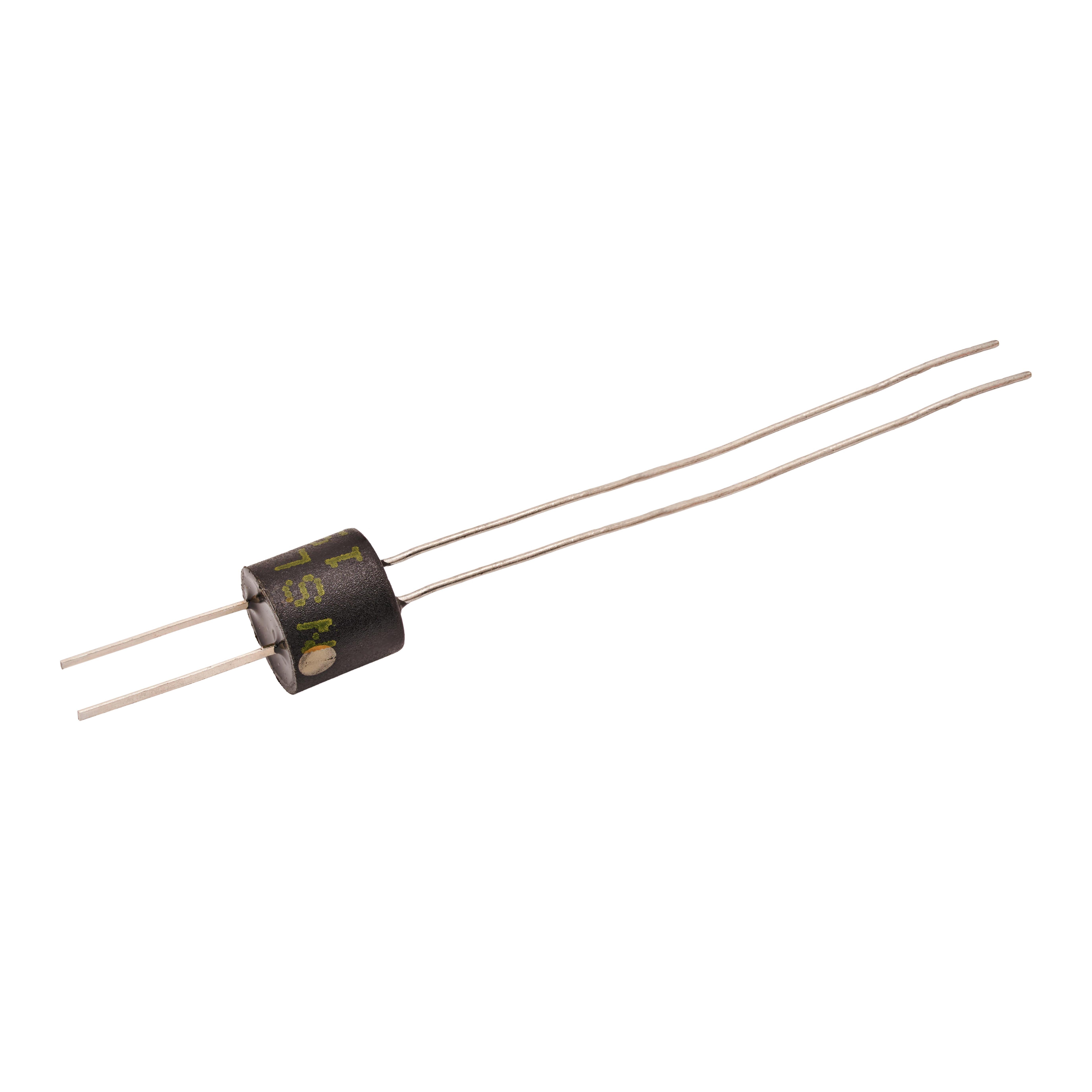

OPTOCOUPLER RESISTOR 2000V; Optocoupler Case Style:Axial; No. of Pins:4Pins; Forward Current If Max:25mA; Isolation Voltage:2kV; Packaging:Each; Product Range:-; Input Current:25mA; No. of Channels:1; Operating Temperature Max:75 C;RoHS Compliant: No

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:5µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:45.2mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:25.4mm; External Length / Height:2.5mm; Height:2.5mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:2.3mA; Wavelength Typ:930nm

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:3.3µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:93.6mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:10.2mm; External Length / Height:10.2mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:4mA; Wavelength Typ:930nm

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1.7µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:2.7mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:3.4mm; External Length / Height:1.3mm; Height:1.3mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:0.17mA; Wavelength Typ:930nm

PHOTODIODE PLANAR; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:3.3µA; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:109.1mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:25.4mm; External Length / Height:5.1mm; Height:5.1mm; Lead Length:130mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +105°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:6mA; Wavelength Typ:930nm

PHOTODIODE PLANAR; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1.7µA; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Breakdown Voltage Vbr:20V; External Depth:3.4mm; External Length / Height:1.3mm; Operating Temperature Range:-40°C to +105°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Wavelength Typ:930nm

PHOTODIODE; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:100nA; Operating Temperature Min:-20°C; Operating Temperature Max:75°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:9.8mm²; Breakdown Voltage Vbr:50V; Diode Type:Photodiode; Fall Time tf:6µs; Operating Temperature Range:-20°C to +75°C; Peak Spectral Response Wavelength:930nm; Peak Wavelength:930nm; Reverse Voltage Vr Max:50V; Rise Time:4µs; Short Circuit Current:700µA; Wavelength Typ:930nm

Red Enhanced photodiodes in Leaded Packages ; TO-46 package

Red Enhanced photodiodes in Leaded Packages ; TO-5 package

Red Enhanced photodiodes in Leaded Packages ; TO-8 package

Red Enhanced High Performance Photodiodes in Leaded Packages ; TO-46 package

Red Enhanced High Performance Photodiodes in Leaded Packages ; TO-5 package

Red Enhanced Ultra Low Capacitance Photodiodes Leaded Packages ; TO-46 package

Red Enhanced Ultra Low Capacitance Photodiodes Leaded Packages ; TO-46 package

Red Enhanced Ultra Low Capacitance Photodiodes Leaded Packages ; TO-5 package

Red Enhanced Ultra Low Capacitance Photodiodes Leaded Packages ; TO-8 package

Blue Enhanced Photodiodes in Leaded Packages ; BNC connector package

Blue Enhanced photodiodes in Leaded Packages (Photoconductive) ; Ceramic package

Blue Enhanced photodiodes in Leaded Packages (Photoconductive) ; Ceramic submount package

Blue Enhanced photodiodes in Leaded Packages (Photovoltaic) ; TO-46 package
