Cadmium Sulfoselenide (CdS) sensors : Leaded Ceramic Packages 0.433 x 0.366 Inches ; Illuminated Resistance

Cadmium Sulfoselenide (CdS) sensors : Leaded Ceramic Packages 0.263 x 0.249 Inches ; Illuminated Resistance

Cadmium Sulfoselenide (CdS) sensors : Leaded Ceramic Packages 0.200 x 0.169 Inches ; Illuminated Resistance

Cadmium Sulfoselenide (CdS) sensors : Leaded Ceramic Packages 0.165 x 0.138 Inches ; Illuminated Resistance

Cadmium Sulfoselenide (CdS) sensors : Leaded Ceramic Packages 0.165 x 0.138 Inches ; Illuminated Resistance

880 nm GaAlAs High Power LED Emitters ; TO-46 Package

Photodiode

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:1.7µA; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:45.9mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:10.2mm; External Length / Height:5.1mm; Height:5.1mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +125°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:2.1mA; Wavelength Typ:930nm

PHOTODIODE PLANAR; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity ±:60°; Dark Current:3.3µA; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:21.4mm²; Breakdown Voltage Vbr:20V; Diode Type:Photodiode; External Depth:5.1mm; External Length / Height:5.1mm; Lead Length:130mm; Open Circuit Voltage:0.4V; Operating Temperature Range:-40°C to +105°C; Peak Wavelength:930nm; Reverse Voltage Vr Max:20V; Sensitivity:0.55A/W; Short Circuit Current:1.2mA; Wavelength Typ:930nm

PHOTODIODE BG FILTERED; No. of Pins:2Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:550nm; Angle of Half Sensitivity ±:60°; Dark Current:100nA; Operating Temperature Min:-20°C; Operating Temperature Max:85°C; Packaging:Each; Product Range:-; Automotive Qualification Standard:-; MSL:-; Active Area:9.8mm²; Breakdown Voltage Vbr:50V; Diode Type:Photodiode; Fall Time tf:6µs; Operating Temperature Range:-20°C to +85°C; Peak Spectral Response Wavelength:550nm; Peak Wavelength:550nm; Reverse Voltage Vr Max:50V; Rise Time:4µs; Short Circuit Current:55µA; Wavelength Typ:550nm

PHOTODIODE PLANAR CHIP; No. of Pins:1Pins; Diode Case Style:Planar; Wavelength of Peak Sensitivity:930nm; Angle of Half Sensitivity :60 ; Dark Current:1.7 A; Operating Temperature Min:-40 C; Operating Temperature Max:125 C; MSL:- ;RoHS Compliant: Yes

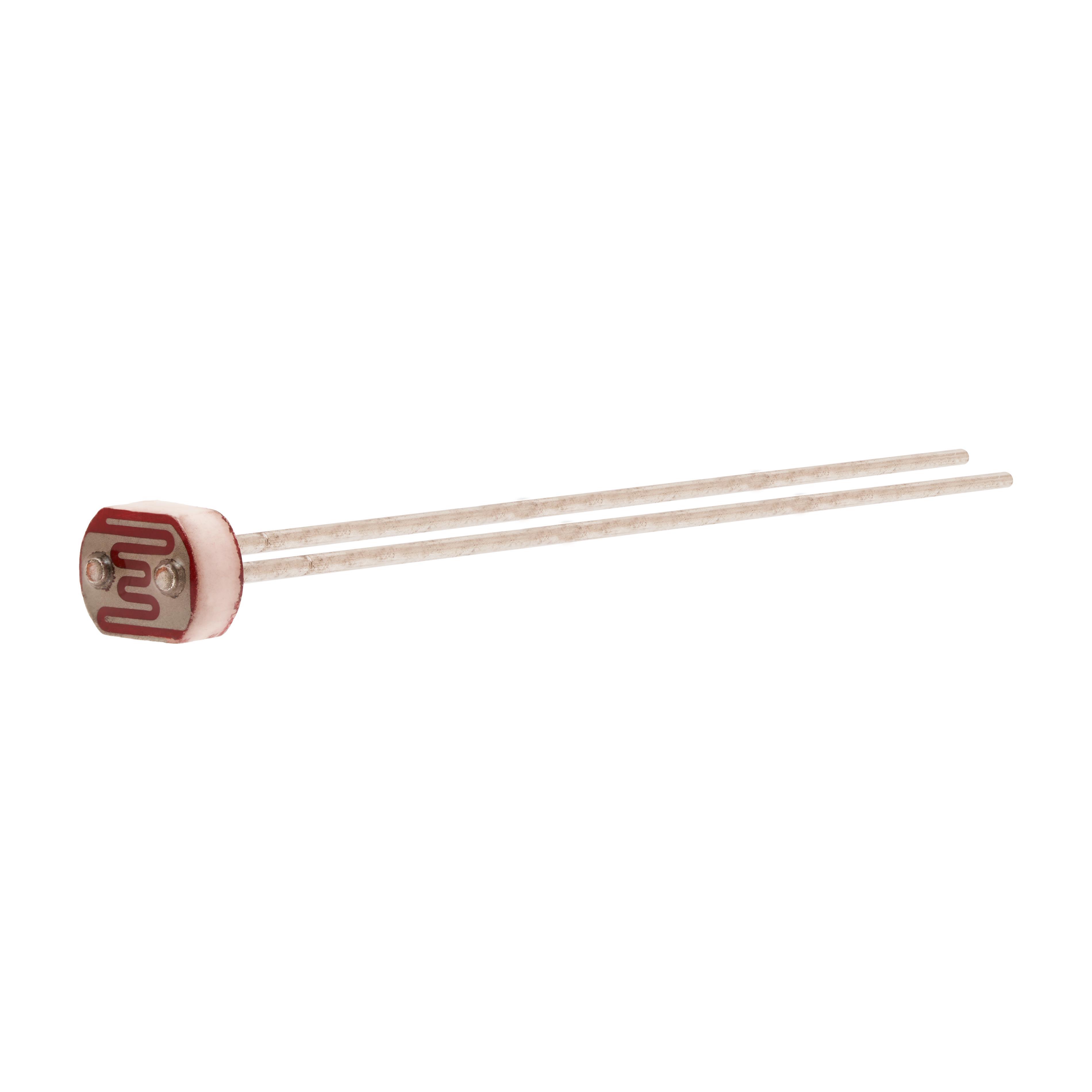

LIGHT DEPENDENT RESISTOR 1MOHM 250MW; Voltage Rating:250V; Dark Resistance:1Mohm; Resistance @ Lux:12.6kohm; Resistor Case Style:Radial Leaded; Power Rating:250mW; Operating Temperature Min:-60°C; Operating Temperature Max:75°C; Packaging:Each; Product Range:CdS Photocell; External Length / Height:7mm; No. of Pins:2Pins

CdS Cells 520nm 27 ~ 60kOhms @ 10 lux

CdS Cells 520nm 16 ~ 33kOhms @ 10 lux

Advanced Photonix 1x15 mm active area duo-lateral effect position sensor detector

Infrared (IR) Emitter 1550nm (1510nm ~ 1590nm) 0.7V 200mA TO-46-2 Lens Top Metal Can

LIGHT DEPENDENT RESISTOR, 20MOHM, 0.05W; Voltage Rating: 100V; Dark Resistance: 20Mohm; Resistance @ Lux: 5kohm; Resistor Case Style: TO-18; Power Rating: 50mW; Operating Temperature Min: -60°C; Operating Temperature Max: 75°C; Product Range: -; Body Diameter: 5.54mm; External Length / Height: 3.8mm; Lead Length: 38mm; No. of Pins: 2Pins; Operating Temperature Range: -60°C to +75°C; Peak Spectral Response Wavelength: 550nm; Resistance @ Lux A: 5kohm; Voltage Rating V DC: 100V

CdS Cells 520nm 27 ~ 60kOhms @ 10 lux

Photodiode 950nm 30ns Chip with 30 Gauge PVC Wire

Laser Diode 4.5V ~ 5.5V 35mA 14-DIP Module
