P117G-3H-C12L-DIS
In stock
Whitman Controls
From $110.73 • 31 units available from DigiKey
In stock
P117G-3H-C12L-DIS
Whitman Controls

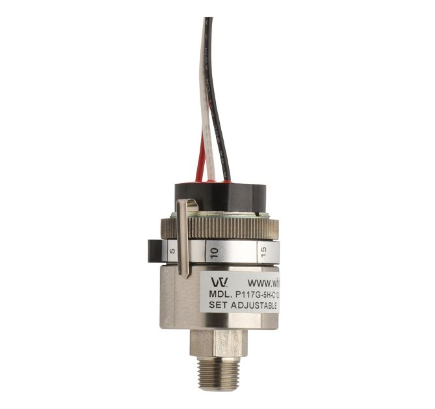

P117G Stainless Steel Body Pressure Switch
The Whitman Controls P117G Stainless Steel Miniature Pressure switches are sharp, highly versatile devices that can be used in hundreds of OEM and routine mechanical applications. It is among our most popular switches given its durability and diverse set point options. There are numerous fitting and electrical connectors available featuring TB, TS, Military and DIN Connectors.
Key Features:
- Miniature size
- Stainless steel body
- Set point options: Factory set, field adjustable, or a combination
- Extensive operating temperature range
- Wide range of electrical interfaces available
- SPDT or SPST availability
Specifications:
- Set point range: 0.80 to 500 PSIG
- Max System pressure: 150% of sensor capacity
- Temperature range: -65°F to +225°F (-54°C to +107°C)
- Amps: 5 Amps Max
- Sensor Element: Capsule
- Weight: 3.0 oz (varies slightly with electrical interface selection)
- Cycling: 3H/5H – Not to exceed 60 CPM, 10H/25H/50H – Not to exceed 20 CPM
- Wetted Parts: Capsule: 17-7 PH Seal: Loctite #271 Fitting: 303 Stainless steel Standard Thread: ⅛-27 NPT male Optional Threads: ¼-18 NPT male 7/16-20 UNF male
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 | |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey | P117G-3H-C12L-DIS | 31 | $110.73 | $110.73 | $110.73 | $110.73 | $110.73 | $110.73 |
TP150
In stock
Whitman Controls
From $83.73 • 1 unit available from DigiKey
In stock
TP150
Whitman Controls
Thermistor Temperature Sensor 10°C ~ 120°C Non-Grounded Exposed Lead Wires
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 | |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 2155-TP150NC-ND | 1 | 1 | $83.73 | $83.73 | $83.73 | $83.73 | $83.73 | $83.73 |
