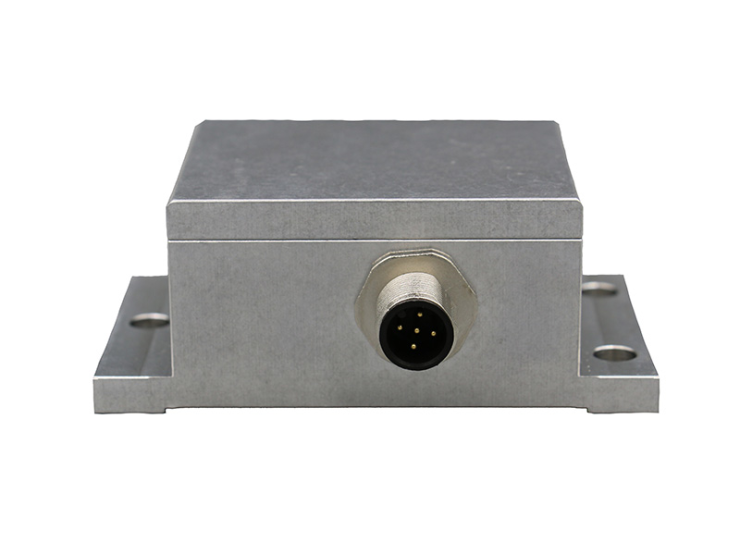

Precision inclination sensors with RS485 interface: KAS1002-4x

The inclination sensors measure +/- 15° or +/-30° with high precision and long-term stability (0.036° in 10 years) via RS485 interface. The robust metal housing (IP65...68) has an M12 connector.

Typical applications for the KAS1000 series sensors are:

• Inclination limiter (tilt sensor)
• Levelling
• Inclination
• Acceleration
• Vibration

Precision vibration sensors with current interface KAS203-xx

The vibration sensors and accelerometers measure +/- 6g to +/- 18g with high accuracy, long-term stability and repeatability (up to 0.01%), depending on the version. The 2-axis current output of 4...20mA is immune to disturbing harmonics and resonance frequencies thanks to the gas damping of the sensor element.The metal housing (IP65) can be supplied with cable or M8 connector

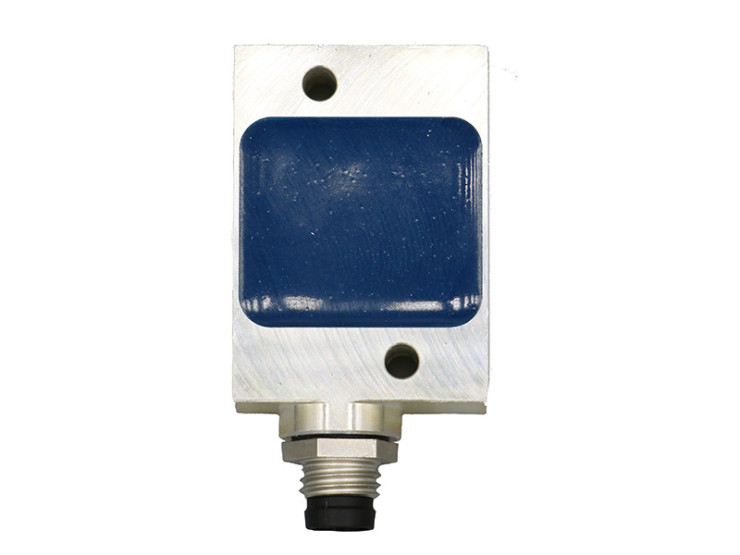

Precision inclination sensors with voltage output KAS901-4x

The inclination sensors measure +/- 15° or +/- 30° with high precision, long term stability (0.036° in 10 years) and high repeatability: 1mV = 0.00375° angle. The output is either 2 x 0.5...4.5 or °/- 4V differential. The rugged aluminum housing (IP65) is available with cable or M8 connector.

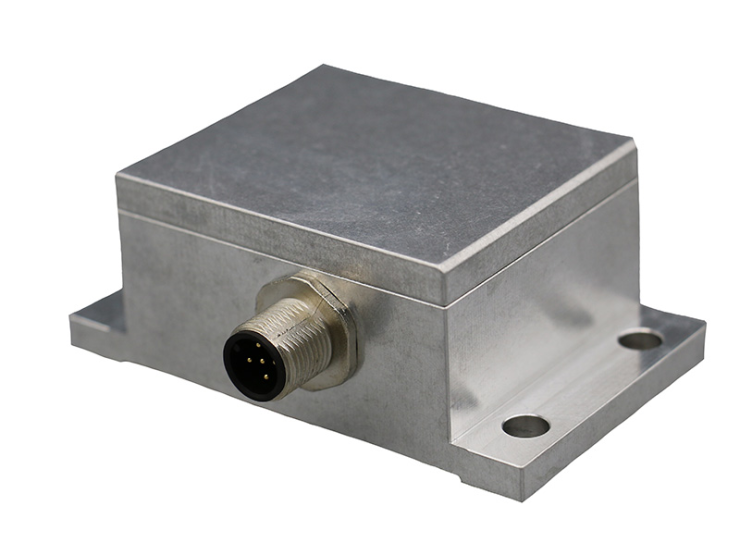

Precision Accelerometers with Current Interface KAS20x-xx

The accelerometers have a measuring range of +/- 1.7g to +/- 4g depending on the version. They measure with high accuracy, long-term stability (0.06mg in 10 years) and repeatability of up to 0.001mA = 0.2mg. The 2-axis output (X and Y) provides a 4...20mA interface and the rugged metal housing (IP65...68) is supplied with an M12 connector.

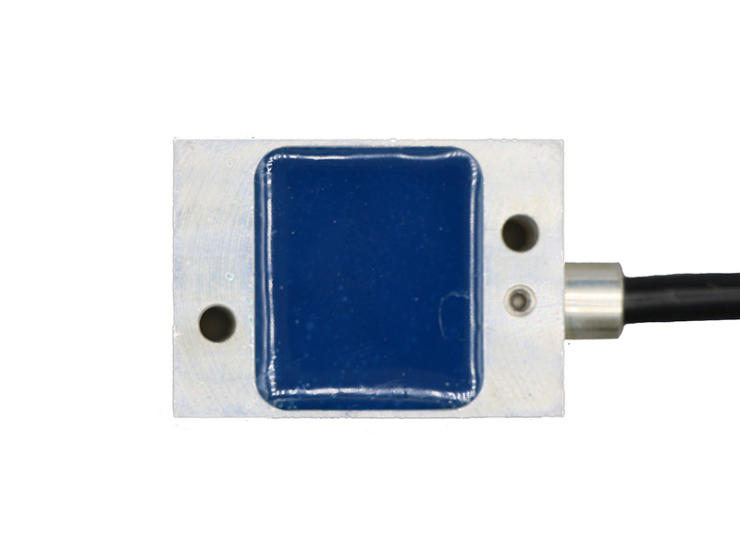

Precision vibration sensors with voltage output KAS903-xx

The vibration sensors and accelerometers measure +/- 6g to +/- 18g with high accuracy, long-term stability and repeatability (up to 0.01%), depending on the version. The 2-axis voltage output of 0.5...4.5V is immune to disturbing harmonics and resonance frequencies thanks to the gas damping of the sensor element. The metal housing (IP65) can be supplied with cable or M8 connector
