The ODROID-C2 is a 64-bit quad-core single board computer(SBC) that is one of the most cost-effective 64bit development boards available in the ARM world. It can function as a home theater set-top box, a general purpose computer for web browsing, gaming and socializing, a compact tool for college or office work, a prototyping device for hardware tinkering, a controller for home automation, a workstation for software development, and much more.

Some of the modern operating systems that run on the ODROID-C2 are Ubuntu, Android, ARCHLinux, Debian, with thousands of free open-source software packages available. The ODROID-C2 is an ARM device -- the most advanced architecture for mobile devices and embedded 64-bit computing. The ARM processor’s small size, reduced complexity and low power consumption makes it very suitable for miniaturized devices such as wearables and embedded controllers.

• Amlogic ARM Cortex-A53(ARMv8) 1.5Ghz quad core CPUs
• Mali-450 GPU (3 Pixel-processors + 2 Vertex shader processors)
• 2Gbyte DDR3 SDRAM
• Gigabit Ethernet
• HDMI 2.0 4K/60Hz display
• H.265 4K/60FPS and H.264 4K/30FPS capable VPU
• 40pin GPIOs + 7pin I2S
• eMMC5.0 HS400 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
• USB 2.0 Host x 4, USB OTG x 1 (power + data capable)
• Infrared(IR) Receiver
• Ubuntu 16.04 or Android 5.1 Lollipop based on Kernel 3.14LTS

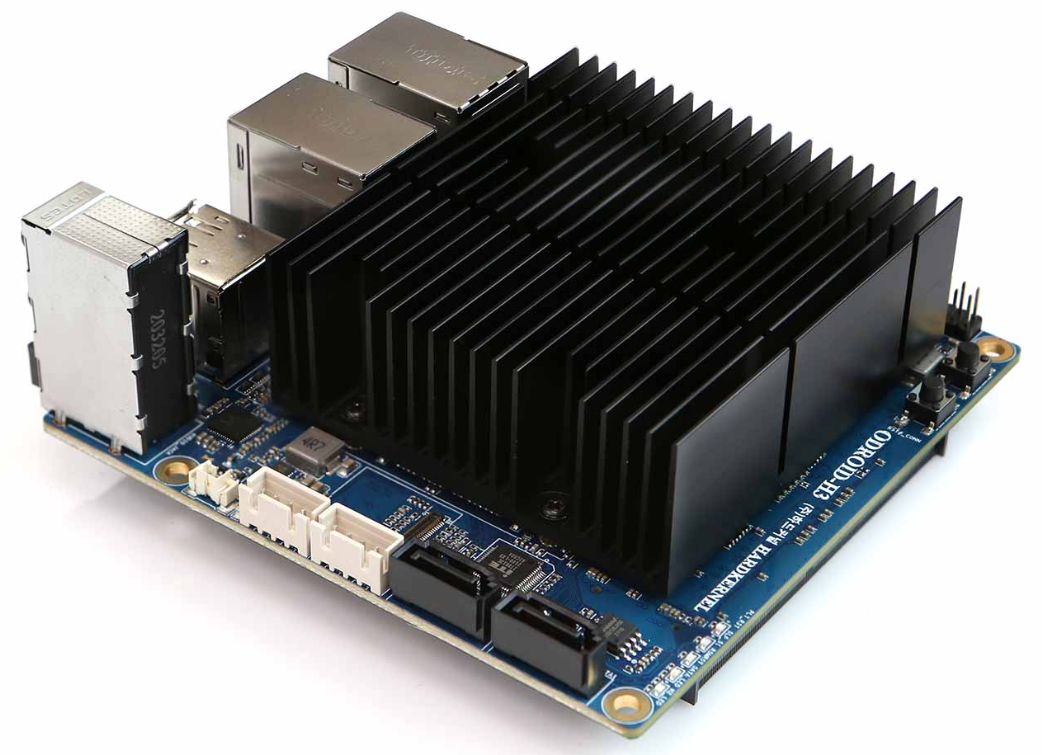

ODROID-H3+ has same form factor and similar power efficiency as their predecessor, the ODROID-H2+. But, H3+ is more powerful, offers higher performance.

With great compatibility, a brand new x86 64-bit single board computer with large memory capacity and advanced IO ports.

• Intel Quad-Core Processor Jasper Lake N6005 has a base clock of 2GHz and a boost clock of 3.3GHz with 1.5MB L2 and 4MB L3 cache by a 10 nm process.
• Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s)
• Two SO-DIMM slots, up to 32GB per slot
• PCIe 3.0 x 4 lanes for one M.2 NVMe storage
• 2 x 2.5Gbit Ethernet ports
• 2 x SATA 3.0 ports
• SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
• Intel UHD Graphics 32 EUs Turbo 900MHz
• HDMI 2.0 and DP 1.2 multiple video outputs
• A configurable Unlimited Performance mode allowing the CPU to run in sustained turbo boost mode.
• RTC / BIOS backup battery is included

Compatible with XU Series4 x buttons (GPIO)1 x button (Power On)5 x LEDs (GPIO)1 x SPI Flash 2Mbit (Upto 20Mhz SPI clocking)1 x I2C Temperature/Pressure sensor BMP1801 x I2C Ambient Light sensor BH1780GLI1 x Trimpot(variable resistor) for ADC access

ODROID-XU3 is a new generation of computing device with more powerful, more energy-efficient hardware and smaller form factor. Offering open source support, the board can run various flavours of Linux, including the latest Ubuntu 14.04 and the Android 4.4. By adopting e-MMC 5.0 and USB 3.0 interface, the ODROID-XU3 boasts fast data transfer speed, a feature that is increasingly required to support advanced processing power on ARM devices that allows users can fully experience an upgrade in computing such as faster booting, web browsing and 3D game experience.* Samsung Exynos5422 Cortex-A15 2.0Ghz quad core and Cortex-A7 quad core CPUs* Mali-T628 MP6(OpenGL ES 3.0/2.0/1.1 and OpenCL 1.1 Full profile)* 2Gbyte LPDDR3 RAM at 933MHz (14.9GB/s memory bandwidth) PoP stacked* eMMC5.0 HS400 Flash Storage* USB 3.0 Host x 1, USB 3.0 OTG x 1, USB 2.0 Host x 4* HDMI 1.4a and DisplayPort1.1 for display* Integrated power consumption monitoring tool

ODROID-XU4Q is powered by ARM big.LITTLE technology, the Heterogeneous Multi-Processing (HMP) solution.

ODROID-XU4 is a new generation of computing device with more powerful, more energy-efficient hardware and a smaller form factor. Offering open source support, the board can run various flavors of Linux, including the latest Ubuntu 16.04 and Android 4.4 KitKat, 5.0 Lollipop and 7.1 Nougat.

By implementing the eMMC 5.0, USB 3.0 and Gigabit Ethernet interfaces, the ODROID-XU4 boasts amazing data transfer speeds, a feature that is increasingly required to support advanced processing power on ARM devices.

This allows users to truly experience an upgrade in computing, especially with faster booting, web browsing, networking, and 3D games.

Features:

• Samsung Exynos5422 Cortex-A15 2Ghz and Cortex-A7 Octa core CPUs
• Mali-T628 MP6 (OpenGL ES 3.1/2.0/1.1 and OpenCL 1.2 Full profile)
• 2Gbyte LPDDR3 RAM PoP stacked
• eMMC5.0 HS400 Flash Storage
• 2 x USB 3.0 Host, 1 x USB 2.0 Host
• Gigabit Ethernet port
• HDMI 1.4a for display
• Size: 83 x 58 x 20 mm approx. (excluding cooler)
• Linux Kernel 4.14 LTS

What's included:

• ODROID-XU4 Board
• Active cooling fan / Passive cooler(XU4Q) mounted

A MicroSD card or an eMMC module is required to boot the OS. An eMMC module is recommended for faster OS booting, quicker application launching, seamless multi-tasking and efficient access to the cloud.

ODROID-W is a miniature computing module which is fully compatible with all software available for the Raspberry-Pi. The W stands for: - Wearable device development - Widely applicable Internet of Things (IoT) development - Workable DIY electronics prototypingPDF Schematic

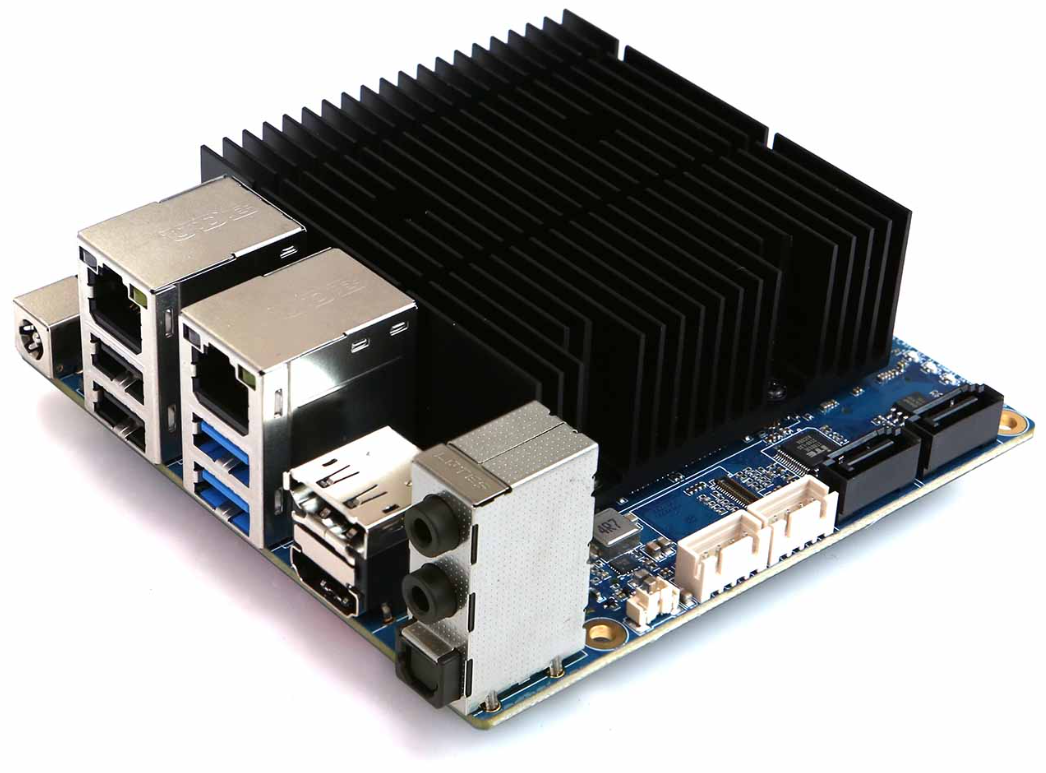

ODROID-H3 has same form factor and similar power efficiency as their predecessor, the ODROID-H2+. But, H3 is more powerful, offers higher performance.

With great compatibility, a brand new x86 64-bit single board computer with large memory capacity and advanced IO ports.

• Intel Quad-Core Processor Jasper Lake N5105 has a base clock of 2GHz and a boost clock of 2.9GHz with 1.5 MB L2 and 4 MB L3 cache by a 10 nm process.
• Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s)
• Two SO-DIMM slots, up to 32GB per slot
• PCIe 3.0 x 4 lanes for one M.2 NVMe storage
• 2 x 2.5Gbit Ethernet ports
• 2 x SATA 3.0 ports
• SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
• Intel UHD Graphics 24 EUs Turbo 800MHz(H3+:900MHz)
• HDMI 2.0 and DP 1.2 multiple video outputs
• A configurable Unlimited Performance mode allowing the CPU to run in sustained turbo boost mode.
• RTC / BIOS backup battery is included

ODROID-HC1 is a mini PC which can be an affordable solution for a network attached storage (NAS) server. This home cloud-server centralizes data and enables users to share and stream multimedia files to phones, tablets and other devices on a network. Ideal for a single user on many devices, sharing between family members, developers or a group. Tailor the ODROID-HC1 to your specific needs. Plenty of software is available with only simple configuration. Determine the storage capacity of your server with a higher HDD/SSD. Depending on your needs, the frame is made to be stackable.

The HC1 is based on the very powerful ODROID-XU4 platform and it can run Samba, FTP, NFS, SSH, NGINX, Apache, SQL, Docker, WordPress and other server software smoothly with full Linux distributions like Ubuntu, Debian, Arch and OMV. Available and ready-to-go OS distributions are on our WiKi. Any OS for XU4 is fully compatible with the HC1.

Installed with a high performance SATA port and a Gigabit Ethernet port, to build a faster network storage device. Engineered metal frame body is designed to store a 2.5 inch HDD/SSD with great heat dissipation.

Key features:

• Samsung Exynos5422 Cortex-A15 2Ghz and Cortex-A7 Octa core CPUs
• 2Gbyte LPDDR3 RAM PoP stacked
• SATA port for 2.5inch HDD/SSD storage
• Gigabit Ethernet port
• USB 2.0 Host
• UHS-1 capable micro-SD card slot for boot media
• Size : 147 x 85 x 29 mm approx.(including Aluminium cooling frame)
• Linux server OS images based on modern Kernel 4.9 LTS

The ODROID-C1+ is esteemed to be the most powerful low-cost single board computer available, as well as being an extremely versatile device. Featuring a quad-core Amlogic processor, advanced Mali GPU, and Gigabit Ethernet, it can function as a home theater set-top box, a general purpose computer for web browsing, gaming and socializing, a compact tool for college or office work, a prototyping device for hardware tinkering, a controller for home automation, a workstation for software development, and much more.

Some of the modern operating systems that run on the ODROID-C1+ are Ubuntu, Android, Fedora, ARCHLinux, Debian, and OpenELEC, with thousands of free open-source software packages available. The ODROID-C1+ is an ARM device -- the most widely used architecture for mobile devices and embedded 32-bit computing. The ARM processor's small size, reduced complexity and low power consumption makes it very suitable for miniaturized devices such as wearables and embedded controllers.

• Amlogic ARM Cortex-A5(ARMv7) 1.5Ghz quad core CPUs
• Mali-450 MP2 GPU (OpenGL ES 2.0/1.1 enabled for Linux and Android)
• 1Gbyte DDR3 SDRAM
• Gigabit Ethernet
• 40pin GPIOs + 7pin I2S
• eMMC4.5 HS200 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
• USB 2.0 Host x 4, USB OTG x 1 (power + data capable)
• Infrared(IR) Receiver
• Ubuntu or Android OS
• The C1+ is the latest revision of the original C1.

It replaced the original C1 in July 2015. Compared to the C1 it has:

• Standard Type-A HDMI connector
• An included heat sink on board
• An I2S bus to support HiFi audio add-on boards
• CEC function that doesn't require the RTC backup battery
• A power path from USB OTG port as well as DC barrel connector
• Improved SD-card compatibility

Powered by ARM big.LITTLE technology, the Heterogeneous Multi-Processing (HMP) solution, ODROID-XU4 is a new generation of computing device with more powerful, more energy-efficient hardware and a smaller form factor.

Offering open source support, the board can run various flavors of Linux, including the latest Ubuntu 16.04 and Android 4.4 KitKat, 5.0 Lollipop and 7.1 Nougat.

By implementing the eMMC 5.0, USB 3.0 and Gigabit Ethernet interfaces, the ODROID-XU4 boasts amazing data transfer speeds, a feature that is increasingly required to support advanced processing power on ARM devices.

This allows users to truly experience an upgrade in computing, especially with faster booting, web browsing, networking, and 3D games.

The XU4 is fully software compatible with XU3! However, the XU4 is more compact, more affordable and more expandable.

• Samsung Exynos5422 Cortex-A15 2Ghz and Cortex-A7 Octa core CPUs
• Mali-T628 MP6(OpenGL ES 3.1/2.0/1.1 and OpenCL 1.2 Full profile)
• 2Gbyte LPDDR3 RAM PoP stacked
• eMMC5.0 HS400 Flash Storage
• 2 x USB 3.0 Host, 1 x USB 2.0 Host
• Gigabit Ethernet port
• HDMI 1.4a for display
• Size : 83 x 58 x 20 mm approx.(excluding cooler)
• Linux Kernel 4.9 LTS

To celebrate ODROID’s 10th anniversary, we present the ODROID-GO Game Kit! It includes a special anniversary board with all the parts to put together your own game kit and see the workings behind such a device. It is not only a fun assembly project but also an educational tool to learn about all the hardware and software that goes into building such a device.

Assembly and learning why

Have fun building your own handheld game kit while learning about the internal functions of each part and its purpose. Learn how each button is attached to a PCB switch pad, what materials are used, and how to put it all together to create a button control pad to play games! Learn how to connect power, speakers and how to download and install an OS. Learn why certain pieces are made of particular materials and why you need certain connectors. Since the device is clear, all the internal components and all the lights are visible.

Play games

Once you have assembled the ODROID-GO, you can download and install games. Enjoy your gaming device (that you built)!

Coding camp

Install Arduino and learn some basic coding. We will provide online guides to code some simple, yet cool, tasks. Then, add a weather station*, learn how to check the battery life, test the speaker, add an ultrasonic distance meter* and more.

* Parts sold separately.

ODUINO ONE is a package of Arduino Uno R3 and LCD/Keypad/sensor.

ODROID-XU3 Lite is powered by ARM big.LITTLE technology, comes with a Heterogeneous Multi-Processing (HMP) solution. ODROID-XU3 Lite is the cost-down version of XU3. The Energy Monitoring and Display port features are removed. The maximum operating clock is Slightly lower.It is a new generation of computing device with more powerful, more energy-efficient hardware and smaller form factor. Offering open source support, the board can run various flavours of Linux, including the latest Ubuntu 14.04 and the Android 4.4. By adopting e-MMC 5.0 and USB 3.0 interface, the ODROID-XU3 boasts fast data transfer speed, a feature that is increasingly required to support advanced processing power on ARM devices that allows users can fully experience an upgrade in computing such as faster booting, web browsing and 3D game experience.* Samsung Exynos5422 Cortex-A15 1.8Ghz quad core and Cortex-A7 quad core CPUs * Mali-T628 MP6(OpenGL ES 3.0/2.0/1.1 and OpenCL 1.1 Full profile)* 2Gbyte LPDDR3 RAM at 933MHz (14.9GB/s memory bandwidth) PoP stacked* eMMC5.0 HS400 Flash Storage* USB 3.0 Host x 1, USB 3.0 OTG x 1, USB 2.0 Host x 4* HDMI 1.4a for displayPDF Schematic

The ODROID-C0 is a computer for those who wish to make a more flexible and portable applications. It is a minimized hardware version of the ODROID-C1+. Battery power circuit is fully integrated. Just attach a 3.7V Li+ battery and make it mobile. It is highly suitable for IoT projects, wearables, and other applications that require a lightweight device.

All the ODROID-C1/C1+ OS images are fully compatible with the ODROID-C0. Some of the modern operating systems that run on the ODROID-C0 are Ubuntu, Android, Arch Linux, Debian, and OpenELEC, with thousands of free open-source software packages available. There are also plenty of custom OS available for using the ODROID-C0 as a multimedia center, Kodi, gaming station, headless server and much more at our ODROID community.

The key features and improvements over the original ODROID-C1+:

• Amlogic ARM Cortex-A5(ARMv7) 1.5Ghz quad core CPUs
• Mali-450 MP2 GPU (OpenGL ES 2.0/1.1 enabled for Linux and Android)
• 1Gbyte DDR3 SDRAM
• eMMC4.5 HS200 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
• 40pin + 7pin GPIOs (unpopulated)
• USB 2.0 Host x 2 (unpopulated)
• Infrared (IR) Receiver (unpopulated)
• Li+ rechargeable battery charger for wearable and robots application
• Battery voltage level is accessible via ADC in the SoC.
• DC/DC step-down converters for higher power efficiency
• DC/DC step-up converter for 5Volt rails (USB host and HDMI) from a Li-Polymer battery
• DIY friendly C0 Connector Pack is available for handy prototyping

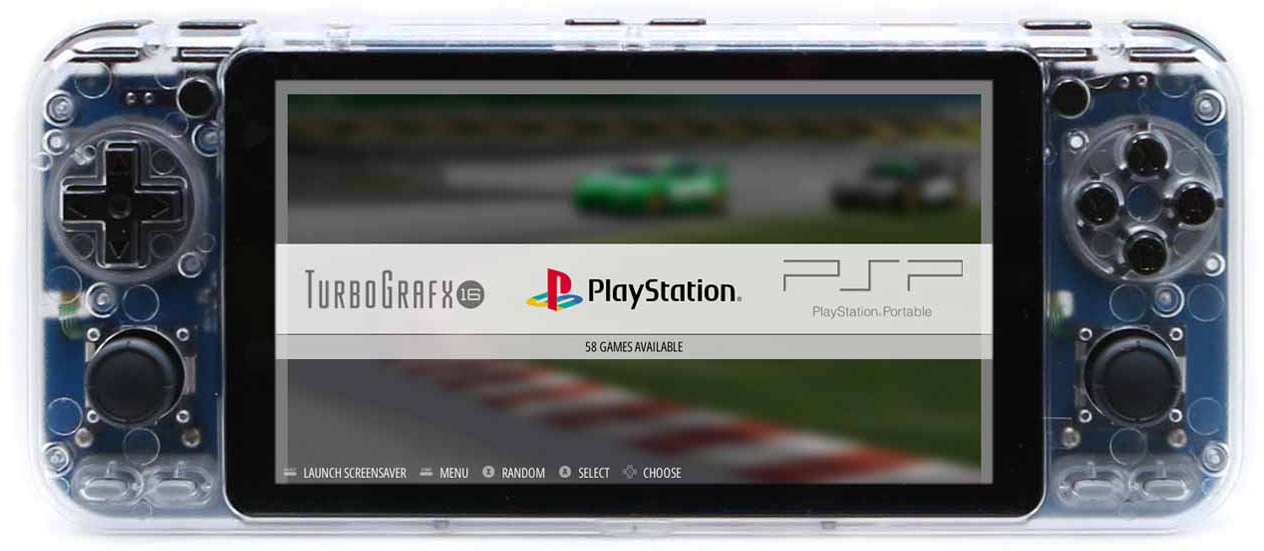

ODROID-GO ULTRA is a new gaming focused development platform. Its overall system was designed based on our powerful ODROID-N2+. OGU’s exterior and LCD size are the same as OGS, but the internal core components have been completely redesigned. The OGU PCB shape is identical to the OGS, but it has a totally different circuit design and requires a heatsink to cool down its more powerful CPU.
