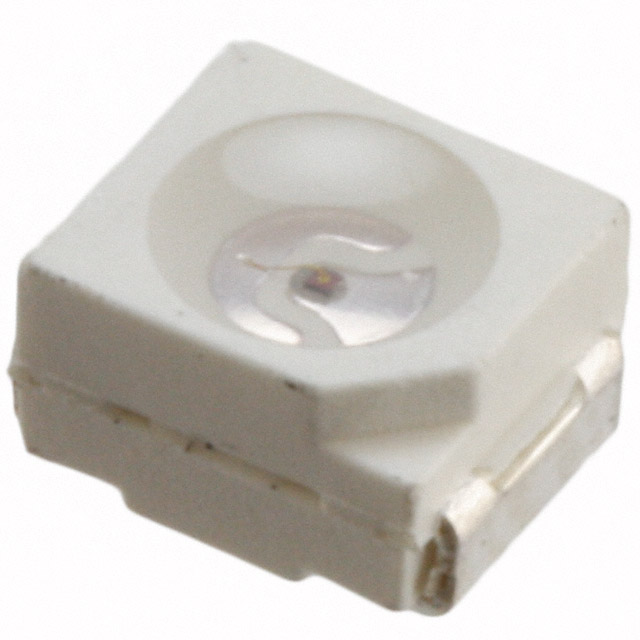

Green 572nm LED Indication - Discrete 2.1V 2-PLCC

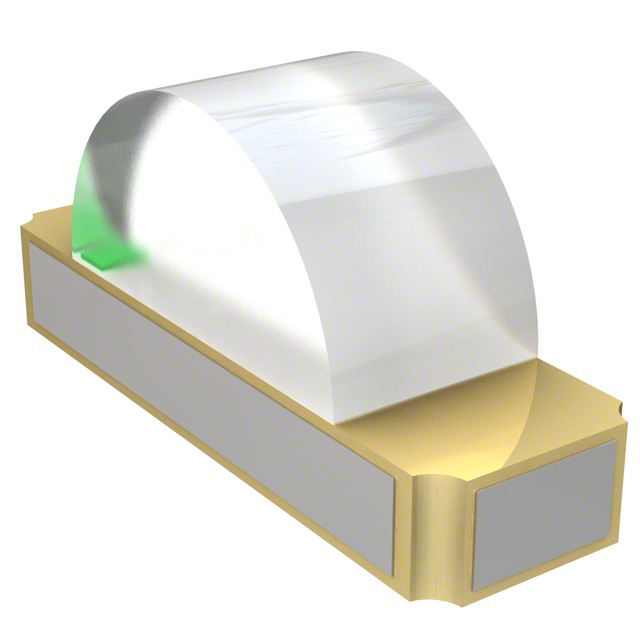

Green, Red 570nm Green, 628nm Red LED Indication - Discrete 2V Green, 2V Red 1204 (3210 Metric)

Light Pipe 3 Wide Clear Rigid Board Mount, Snap-In, Right Angle

Green, Red 565nm Green, 640nm Red LED Indication - Discrete 2V Green, 1.9V Red 1210 (3225 Metric)

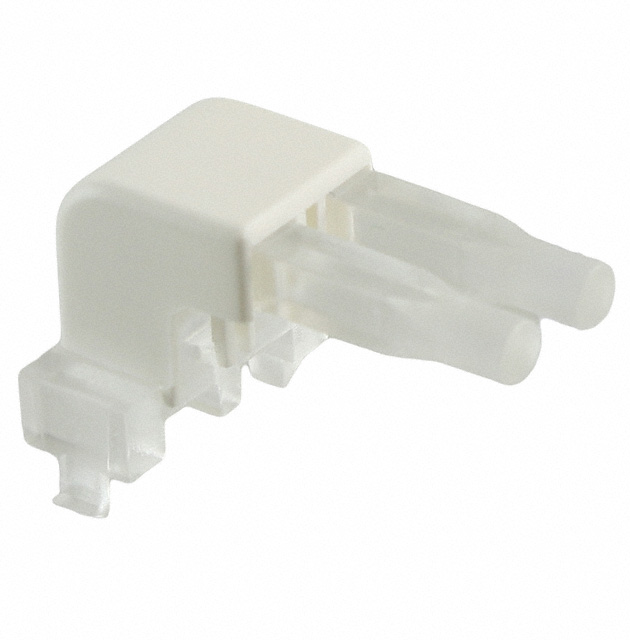

Light Pipe 2 Wide Clear Rigid Board Mount, Snap-In, Right Angle

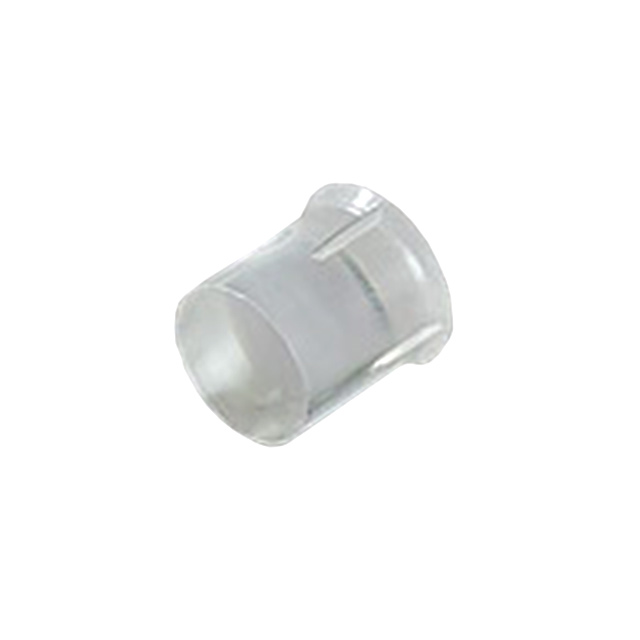

Light Pipe Single Clear Rigid Panel Mount, Press Fit, Rear

Round Spacer Unthreaded Nylon 0.200" (5.08mm) Natural

INDICATOR LED PANEL MOUNT 5MM RED/GREEN; LED Color:Green Red; Mounting Hole Dia:6.35mm; Forward Current / Color:-; Operating Voltage / Color:R 2V G 2.1V; Luminous Intensity / Color:-; IP / NEMA Rating:Not Rated; Packaging:Each ;RoHS Compliant: Yes

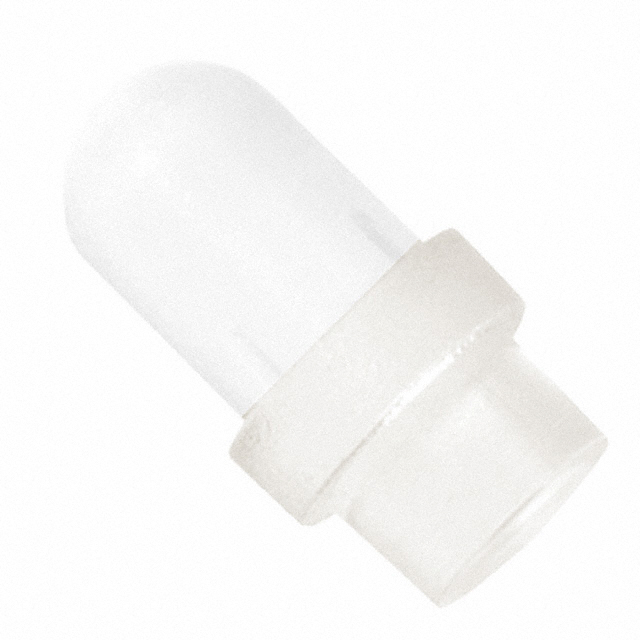

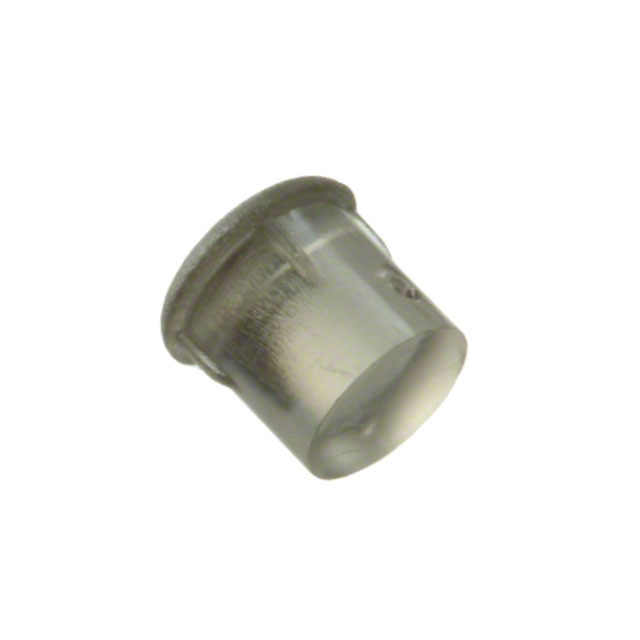

Light Pipe Single Smoke, Diffused Rigid Panel Mount, Press Fit, Front

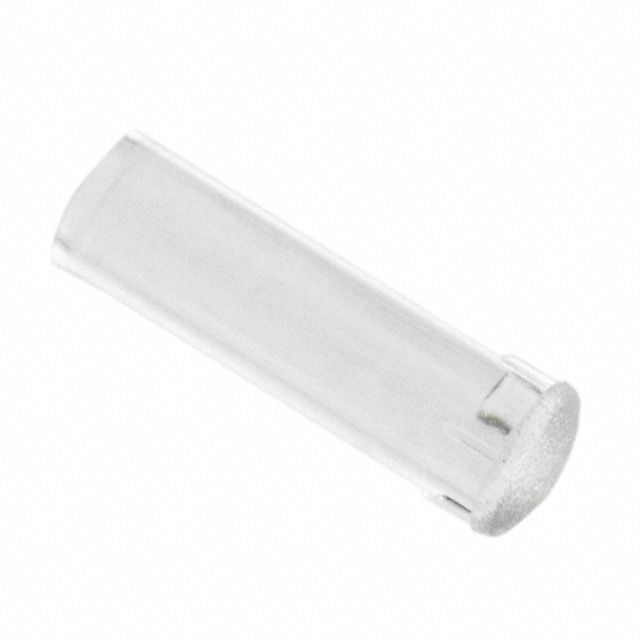

Light Pipe Single Clear Rigid Panel Mount, Press Fit, Front

PANEL MOUNT INDICATOR LED 5.943MM RED 2.1V; LED Color:Red; Mounting Hole Dia:5.943mm; Operating Voltage:2.1VDC; Forward Current If:20mA; Luminous Intensity:2mcd; IP / NEMA Rating:Not Rated; Packaging:Each; Forward Voltage:2.1V ;RoHS Compliant: Yes

Rigid Panel Mount (Rear) 3 mm Round Lens 0.350 in. Light Pipe

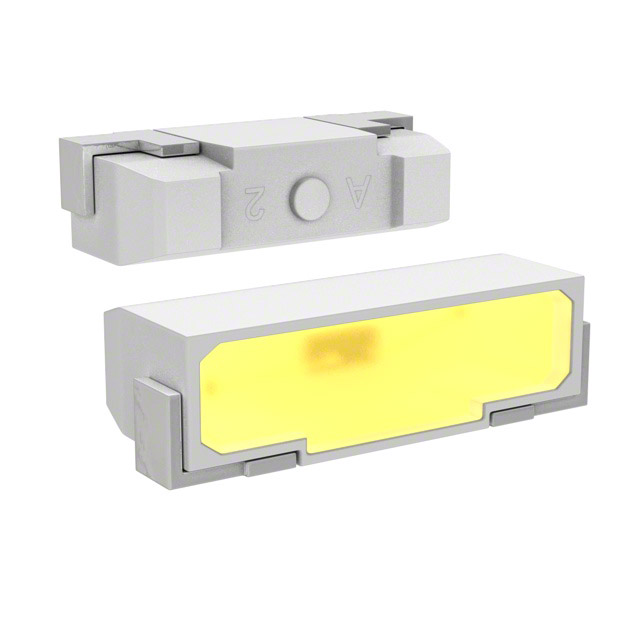

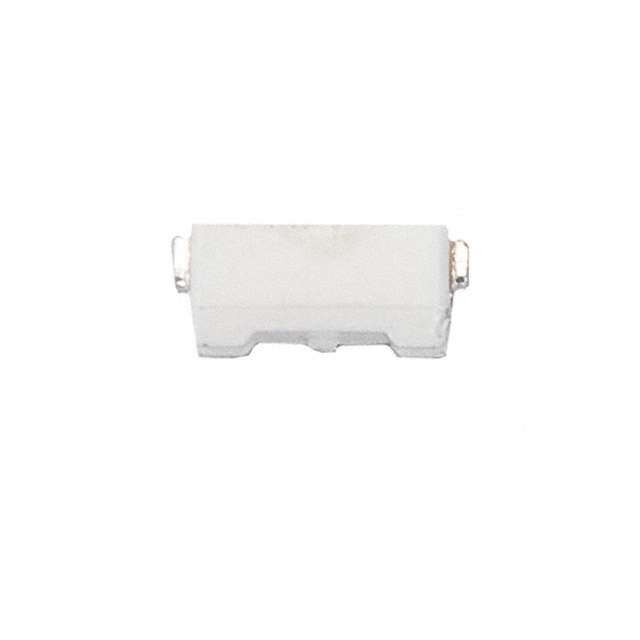

White, Cool 8000K LED Indication - Discrete 3.4V 2-SMD, J-Lead

Light Pipe Single Clear Rigid

Light Pipe Single Clear Rigid Panel Mount, Press Fit, Rear

Light Pipe Single Clear Rigid Panel Mount, Press Fit, Front

T1, T1 3/4 LED Standoff Black Nylon 0.300" (7.62mm)

Red 631nm LED Indication - Discrete 1.9V 2-PLCC

Green 529nm LED Indication - Discrete 3.1V 2-SMD, J-Lead

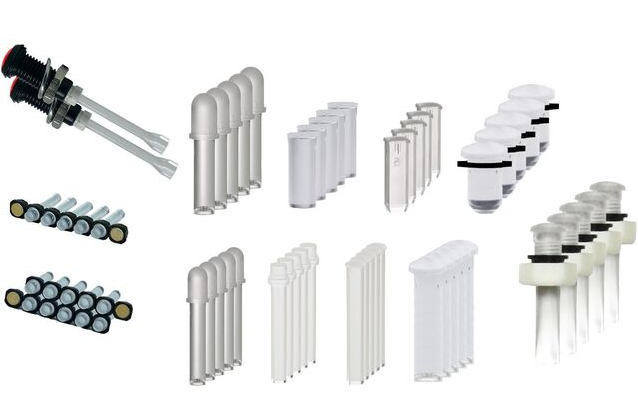

LIGHT PIPE KIT RIGID ASSORTED

The Bivar PPF-DESIGNKIT-001 provides engineers with an efficient way to explore and evaluate a broad range of press-fit panel mount light pipe options for precise LED indication. This curated collection showcases the proven optical performance and mechanical reliability of Bivar light pipes, helping design teams speed up prototyping and confidently select the right light pipe for their application. Each part in the kit is engineered to deliver consistent light transmission, clean indication, and reliable panel engagement ideal for addressing challenges in enclosure design, space constraints, and varying LED placements.

The kit includes multiple lens styles, lengths, and mounting configurations to support a wide range of design requirements. With components optimized for both aesthetic visibility and functional clarity, the PPF-DESIGNKIT-001 helps engineers understand how different light pipe geometries behave in real assemblies. Whether evaluating diffusion levels, light uniformity, or mechanical stability, this kit offers an accessible starting point for integrating surface-mount LEDs with front-panel indicators.

Bivar focuses on ease of integration, making this kit especially valuable for teams aiming to streamline development cycles while maintaining high visual quality. Designers can quickly test ideas, compare options side-by-side, and determine the best solution for consistent illumination in compact or complex device layouts.

Features:

• Includes a range of press-fit panel mount light pipes
• Supports rapid prototyping and evaluation
• Provides multiple lens shapes and diffusion options
• Demonstrates clean, consistent light transmission
• Showcases secure, reliable panel engagement
• Helps validate optical performance before production
• Ideal for SMD LED-to-panel alignment testing
• Durable materials suited for various enclosure types
• Compact components for space-limited designs

Applications:

• Industrial control panels
• IoT devices
• Consumer electronics
• Medical equipment interfaces
• Test and measurement devices
• Power supplies and chargers
• Security and access-control systems
• Communication equipment
• Home automation products
