Search results

The ADuCRF101 is a fully integrated, data acquisition solution that is designed for low power, wireless applications. It features a 12-bit analog-to-digital converter (ADC), a low power ARM Cortex™-M3 processor, a 862 MHz to 928 MHz and 431 MHz to 464 MHz RF transceiver, and Flash®/EE memory. The ADuCRF101 is packaged in a 9 mm × 9 mm LFCSP.The data acquisition section consists of a 12-bit SAR ADC. The six inputs can be configured in single-ended or differential mode. When configured in single-ended mode, they can be used for ratiometric measurements on sensors that are powered, when required, from the internal low dropout regulator (LDO). An internal battery monitor channel and an on-chip temperature sensor are also available.This wireless data acquisition system is designed to operate in battery-powered applications where low power is critical. The device can be configured in normal operating mode or different low power modes under direct program control. In flexi mode, any peripheral can wake up the device and operate it. In hibernate mode, the internal wake-up timer remains active. In shutdown mode, only an external interrupt can wake up the device.The ADuCRF101 integrates a low power ARM Cortex-M3 processor. It is a 32-bit RISC machine, offering up to 1.25 DMIPS peak performance. The ARM Cortex-M3 processor also has a flexible 14-channel direct memory access (DMA) controller that supports communication peripherals, serial peripheral interface (SPI), UART, and I2C. Also provided on chip are 128 kB of nonvolatile Flash/EE memory and 16 kB of SRAM.A 16 MHz on-chip oscillator generates the system clock. This clock can be internally divided for the processor to operate at a lower frequency, thus saving power. A low power, internal 32 kHz oscillator is available and can be used to clock the four timers, as follows: two general-purpose timers, a wake-up timer, and a system watchdog timer.A range of communication peripherals can be configured, as required, in a specific application. These peripherals include UART, I2C, SPI, GPIO ports, PWM, and RF transceivers.The RF transceiver communicates in the 862 MHz to 928 MHz and 431 MHz to 464 MHz frequency bands using multiple configurations.On-chip factory firmware supports in-circuit serial download via the UART, and nonintrusive emulation and program download are also supported via the serial wire interface. These features are incorporated into a low cost development system supporting this precision analog microcontroller family.The ADuCRF101 operates from 2.2 V to 3.6 V and is specified over an industrial temperature range of −40°C to +85°C. It is available in a 64-lead LFCSP packageApplications Battery powered wireless sensor Medical telemetry systems Industrial and home automation Asset tracking Security systems (access systems) Health and fitness applications

Fault Protection and Detection, 10 RON, 4-Channel Multiplexer Features: Overvoltage protection up to −55 V and +55 V Power-off protection up to −55 V and +55 V Overvoltage detection on source pins Interrupt flags indicate fault status Low on resistance: 10 Ω (typical) On-resistance flatness of 0.5 Ω (maximum) 4 kV human body model (HBM) ESD rating Latch-up immune under any circumstance Known state without digital inputs present VSS to VDD analog signal range ±5 V to ±22 V dual supply operation 8 V to 44 V single-supply operation Fully specified at ±15 V, ±20 V, 12 V, and 36 V

EVALUATION BOARD, HBT VECTOR MODULATOR;

4T2R Direct RF Transmitter and Observation Receiver Features: Flexible reconfigurable radio common platform design Transmit/receive channel bandwidth up to 1.2 GHz/2.4 GHz (4T2R) RFDAC/RFADC RF frequency range up to 7.5 GHz On-chip PLL with multichip synchronization External RFCLK input option Versatile digital features Configurable digital up/down conversion (DDC and DUC) 8 fine complex DUCs and 4 coarse complex DUCs 8 fine complex DDCs and 4 coarse complex DDCs, 2 independent 48-bit NCO per DUC/DDC Programmable 192-tap PFIR filter for receive equalization Supports 4 different profile settings loaded via GPIO Receive AGC support Fast detect with low latency for fast AGC control Signal monitor for slow AGC control Dedicated AGC support pins Transmit DPD support Programmable delay and gain per transmit data path Coarse DDC delay adjust for DPD observation path Auxiliary features Power amplifier downstream protection circuitry On-chip temperature monitoring unit Programmable GPIO pins supporting different user configurations ADC clock driver with selectable divide ratios TDD power savings option and sharing ADCs SERDES JESD204B/JESD204C interface, 16 lanes up to 24.75 Gbps 8 lanes per each DAC and ADC JESD204B compatible with maximum 15.5 Gbps lane rate JESD204C compatible with maximum 24.75 Gbps lane rate Supports real or complex digital data (8-bit, 12-bit, 16-bit, or 24-bit) 15 mm × 15 mm, 324-ball BGA with 0.8 mm pitch

VLTG-FDBK G= 2 CLAMP AMP

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5V 12A 4.5V - 28V Input

The AD5424 / AD5433 / AD5445 are CMOS 8-, 10-, and 12-bitcurrent output digital-to-analog converters (DACs), respectively.These devices operate from a 2.5 V to 5.5 V power supply,making them suitable for battery-powered applications andmany other applications. These DACs utilize data readback,allowing the user to read the contents of the DAC register viathe DB pins. On power-up, the internal register and latches arefilled with 0s and the DAC outputs are at zero scale.As a result of manufacturing with a CMOS submicron process,they offer excellent 4-quadrant multiplication characteristics,with large signal multiplying bandwidths of up to 10 MHz.The applied external reference input voltage (VREF) determines thefull-scale output current. An integrated feedback resistor (RFB)provides temperature tracking and full-scale voltage outputwhen combined with an external I-to-V precision amplifier.While these devices are upgrades of the AD5424 / AD5433 / AD5445 in multiplying bandwidth performance, they have alatched interface and cannot be used in transparent mode.The AD5424 is available in a small, 20-lead LFCSP and a small,16-lead TSSOP, while the AD5433 and AD5445 DACs are availablein a small, 20-lead LFCSP and a small, 20-lead TSSOP.The EVAL-AD5445SDZ evaluation board is available forevaluating DAC performance. For more information, see theUG-333 evaluation board user guide.APPLICATIONS Portable battery-powered applications Waveform generators Analog processing Instrumentation applications Programmable amplifiers and attenuators Digitally controlled calibration Programmable filters and oscillators Composite video Ultrasound Gain, offset, and voltage trimming

Low Noise Micro PMU, 3 A Buck Regulator with 3 A LDO Features: Low noise, dc power supply system High efficiency buck for first stage conversion High PSRR, low noise LDO regulator to remove switching ripple Adaptive LDO regulator headroom control option for optimal efficiency and PSRR across full load range Precision enable inputs for both the buck regulator and LDO 3 A, low noise, buck regulator Wide input voltage range: 4.2 V to 15 V Programmable output voltage range: 0.6 V to 5.0 V 0.3 MHz to 2.5 MHz internal oscillator 0.3 MHz to 2.5 MHz SYNC frequency range 3 A, low noise, NFET LDO regulator (active filter) Wide input voltage range: 0.65 V to 5 V Programmable output voltage range: 0.6 V to 3.3 V Differential point of load remote sensing 3 μV rms output noise (independent of output voltage) PSRR > 50 dB (to 100 kHz) with 400 mV headroom at 3 A Ultrafast transient response Power-good output −40°C to +125°C operating junction temperature range 32-lead, 5 mm × 5 mm, LFCSP

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5V 8A 2.7V - 5.5V Input

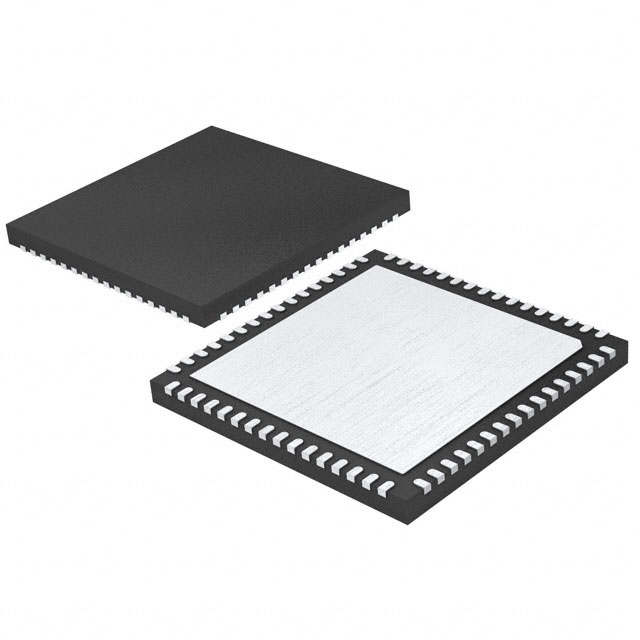

14 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-QFN (9x9)

Development Boards & Kits - ARM Arduino based Wireless Development Board

Designed for space-critical applications, the ADR5040 / ADR5041 / ADR5043 / ADR5044 / ADR5045 are high precisionshunt voltage references, housed in ultrasmall SC70 and SOT-23 packages. These voltage references are multipurpose, easy-to-usereferences that can be used in a vast array of applications. They feature low temperature drift, an initial accuracy of better than0.1%, and fast settling time.Available in output voltages of 2.048 V, 2.5 V, 3.0 V, 4.096 V, and 5.0 V, the advanced design of the ADR5040 / ADR5041 / ADR5043 / ADR5044 / ADR5045 eliminates the need for compensation by an external capacitor, yet the references are stable with any capacitiveload. The minimum operating current increases from 50 µA to a maximum of 15 mA. This low operating current and ease of usemake these references ideally suited for handheld, battery-powered applications. This family of references has been characterizedover the extended temperature range of −40°C to +125°C. The ADR5041W and the ADR5044W are qualified for automotiveapplications and are available in a 3-lead SOT-23 package.Applications Portable, battery-powered equipment Automotives Power supplies Data acquisition systems Instrumentation and process control Energy management

The ADuM3100 is a digital isolator based on the Analog Devices, Inc. iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives, such as optocoupler devices.Configured as a pin-compatible replacement for existing high speed optocouplers, the ADuM3100 supports data rates as high as 25 Mbps and 100 Mbps.The ADuM3100 operates with a voltage supply ranging from 3.0 V to 5.5 V, boasts a propagation delay of <18 ns and an edge asymmetry of <2 ns, and is compatible with temperatures up to 105°C. It operates at very low power, less than 2.0 mA of quiescent current (sum of both sides), and a dynamic current of less than 160 μA per Mbps of data rate. Unlike other optocoupler alternatives, the ADuM3100 provides dc correctness with a patented refresh feature that continuously updates the output signal.The ADuM3100 is offered in two grades. The ADuM3100AR and ADuM3100BR can operate up to a maximum temperature of 105°C and support data rates up to 25 Mbps and 100 Mbps, respectively.In comparison to the ADuM1100 digital isolator, the ADuM3100 contains various circuit and layout changes to provide increased capability relative to system-level IEC 61000-4-× testing (ESD/burst/surge). The precise capability in these tests for either the ADuM1100 or ADuM3100 is strongly determined by the design and layout of the user’s board or module. For more information, see Application Note AN-793, ESD/Latch-Up Considerations with iCoupler® Isolation Products.APPLICATIONS Digital fieldbus isolation Opto-isolator replacement Computer-peripheral interface Microprocessor system interface General instrumentation and data acquisition

100mA Wireless Li-Ion Charger with Low Battery Disconnect Features: Complete Wireless Power Receiver, Li-Ion Charger and PowerPath™ Controller Wireless Input Power Control and Rectification Wideband Wireless Power Frequency: DC to >10MHz Pin-Selectable Charge Current: 10mA/25mA/50mA/100mA Pin-Selectable Charge Voltage: 4.0V/4.1V/4.2V/4.35V Pin-Selectable Low Battery Disconnect: 2.7V/3.2V Zero Battery Drain Current in Disconnect/Ship Mode Pin-Selectable Low Battery Pre-Charge Current Enable NTC Input for Temperature Qualified Charging Safety Charge Termination Timer Tiny Total Solution Size with Few Externals Small Thermally Enhanced 12-lead 2mm × 2mm LQFN Package

The ADM8316 / ADM8318 / ADM8319 / ADM8320 / ADM8321 /ADM8322 are supervisory circuits that monitor power supplyvoltage levels and code execution integrity in microprocessor-basedsystems. As well as providing power-on reset signals, an on-chipwatchdog timer can reset the microprocessor if it fails to strobewithin a preset timeout period. A reset signal can also be assertedby an external push-button switch through a manual reset input.The six devices feature different combinations of watchdoginput, manual reset input, and output stage configuration.Each device is available in a choice of 27 reset threshold optionsranging from 2.5 V to 5 V in 100 mV increments. There are alsofour reset timeout options of 1 ms, 20 ms, 140 ms, and 1120 ms(minimum) and four watchdog timeout options of 6.3 ms, 102 ms,1.6 sec, and 25.6 sec (typical). Not all device options are availableas standard models. See the Ordering Guide for details.The ADM8316 / ADM8318 / ADM8319 / ADM8320 / ADM8321 /ADM8322 are available in 5-lead SOT-23 packages and typicallyconsume only 10 µA, making them suitable for use in lowpower, portable applications.Applications Automotive infotainment Microprocessor systems Computers Controllers Intelligent instruments Portable equipment

Single, 12-Bit nanoDAC with 5 ppm/C On-Chip Reference in SOT-23 Features: 12-Bit DAC; 12-Bit Accuracy Guaranteed On-chip, 1.25 V/2.5 V, 5 ppm/°C reference Tiny 8-lead SOT-23/MSOP packages Power-down to 480 nA @ 5 V, 200 nA @ 3 V 3 V/5 V single power supply Guaranteed 16-bit monotonic by design Power-on reset to zero/midscale 3 power-down functions Serial interface with Schmitt-triggered inputs Rail-to-rail operation SYNC interrupt facility

The ADSP-BF522C Blackfin Processor combines high performance, power efficiency and system integration to enable highly optimized designs without compromises. With built-in peripheral selectivity the BF522C provides the greatest flexibility for today’s most demanding convergent signal processing applications. For battery powered applications that either enhance the multimedia experience or deliver a full Mobile TV implementation, the ADSP-BF522C represents the ideal solution to release design innovation.IP protection has become a necessary part of today’s embedded computing applications. The ADSP-BF522C provides a security scheme which balances flexibility and upgradeability with performance through the inclusion of a firmware-based solution including OTP (One Time Programmable) memory to enable users to implement private keys for secure access to program code.For space constrained audio applications the ADSP-BF522C supports an embedded low power stereo audio CODEC.

The ADP1740/ADP1741 are CMOS, low dropout linear regulators that operate from 1.6 V to 3.6 V and provide up to 2 A of output current. These low VIN / VOUT LDOs are ideal for regulation of nanometer FPGA geometries operating from 2.5V down to 1.8V I/O rails, and powering core voltages down to 0.75V. Using an advanced, proprietary architecture, the ADP1740/ADP1741 provide high power supply rejection ratio (PSRR) and low noise, and achieve excellent line and load transient response with only a small 4.7 μF ceramic output capacitor.The ADP1740 is available in seven fixed output voltage options. The ADP1741 is an adjustable version that allows output voltages ranging from 0.75 V to 3.3 V via an external divider. The ADP1740/ADP1741 allow an external soft start capacitor to be connected to program the startup. A digital power-good output allows power system monitors to check the health of the output voltage. The ADP1740/ADP1741 are available in a 16-lead, 4 mm × 4 mm LFCSP, making them not only very compact solutions, but also providing excellent thermal performance for applications that require up to 2 A of output current in a small, low profile footprint..APPLICATIONS Server computers Memory components Telecommunications equipment Network equipment DSP/FPGA/microprocessor supplies Instrumentation equipment/data acquisition systems

The ADG658 and ADG659 are low voltage, CMOS analogmultiplexers comprised of eight single channels and fourdifferential channels, respectively. The ADG658 switches one ofeight inputs (S1–S8) to a common output, D, as determined bythe 3-bit binary address lines A0, A1, and A2. The ADG659switches one of four differential inputs to a common differentialoutput, as determined by the 2-bit binary address lines A0 andA1. An EN input on both devices enables or disables the device.When disabled, all channels are switched off.These devices are designed on an enhanced process that provideslower power dissipation yet gives high switching speeds. Thesedevices can operate equally well as either multiplexers or demultiplexersand have an input range that extends to the supplies. Allchannels exhibit break-before-make switching action, preventingmomentary shorting when switching channels. All digital inputshave 0.8 V to 2.4 V logic thresholds, ensuring TTL/CMOS logiccompatibility when using single +5 V or dual ±5 V supplies. The ADG658 and ADG659 are available in 16-lead TSSOP/QSOP packages and 16-lead 4 mm × 4 mm LFCSP packages.Product Highlights Single- and dual-supply operation. The ADG658 and ADG659 offer high performance and are fully specified and guaranteed with ±5 V, +5 V, and +3 V supply rails. Automotive temperature range −40°C to +125°C. Low power consumption, typically <0.1 μW. 16-lead 4 mm × 4 mm LFCSP packages, 16-lead TSSOP package and 16-lead QSOP package.Applications Automotive applications Automatic test equipment Data acquisition systems Battery-powered systems Communication systems Audio and video signal routing Relay replacement Sample-and-hold systems Industrial control systems

24-Bit, 8-/16-Channel, 250 kSPS, Sigma-Delta ADC with True Rail-to-Rail Buffers Features: Fast and flexible output rate: 5 SPS to 250 kSPS Performance specifications 17.2 noise free bits at 250 kSPS 20.2 noise free bits at 2.5 kSPS 24 noise free bits at 20 SPS INL: ±1 ppm of FSR 85 dB filter rejection of 50 Hz and 60 Hz with 50 ms settling 85 dB filter rejection of 50 Hz and 60 Hz with 50 ms settling User configurable input channels 8 fully differential channels or 16 single-ended channels Crosspoint multiplexer Channel scan data rate of 50 kSPS/channel (20 ìs settling) On-chip 2.5 V reference (±2 ppm/°C drift) True rail-to-rail analog and reference input buffers Internal or external clock Power supply: AVDD1 − AVSS = 5 V, AVDD2 = IOVDD = 2 V to 5 V (nominal) Split supply with AVDD1/AVSS at ±2.5 V ADC current: 8.4 mA Temperature range: −40°C to +105°C 3- or 4-wire serial digital interface (Schmitt trigger on SCLK) Serial port interface (SPI), QSPI, MICROWIRE, and DSP compatible
