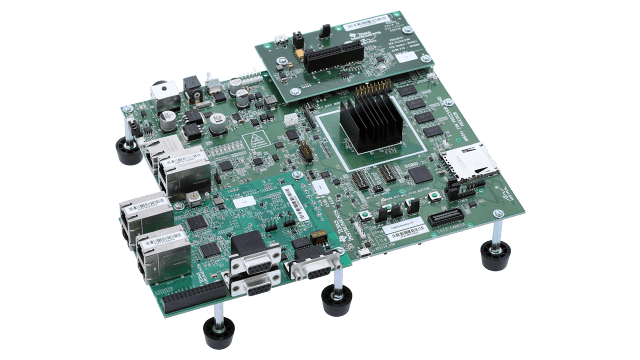

AM65x Industrial Development Kit (IDK)

Texas Instruments

Description

The AM65x Industrial Development Kit (IDK) is a development platform for evaluating the industrial communication and control capabilities of Sitara AM65x processors for applications in factory automation, drives, robotics, grid infrastructure, and more. AM65x processors include three PRU-ICSS (Programmable Real-time Unit for Industrial Communications) sub-systems which can be used for gigabit industrial Ethernet protocols such as Profinet, EtherCAT, Ethernet/IP, and others.

Features:

  • Up to 6 industrial gigabit Ethernet ports and 1 standard gigabit Ethernet port that can be used concurrently
  • 4GB DDR4 with ECC
  • Profibus connection and industrial I/O header
  • On-board 16GB eMMC
  • On-board 512Mb OSPI Flash
  • 2-lane PCIe Gen3.1, USB 2.0 and CSI-2 interfaces

What's included:

  • Assembled IDK
  • SD card
  • USB cable
  • Ethernet cable
  • Documentation

Not included:

  • Power supply (not included)


Type: Development Kits

Part number: TMDX654IDKEVM

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Texas Instruments TMDX654IDKEVM 20 $819.01 Buy
Texas Instruments TMDX654IDKEVM 20 $819.01 Buy

Technical Documents

Parts

Part Number Name Companion Part
X6580ACD X6580ACD Buy Datasheet
INA226 INA226 Buy Datasheet
TCA9555 TCA9555 Buy Datasheet
TM4C1294NCPDTT3 TM4C1294NCPDTT3 Buy Datasheet
TMP100 TMP100 Buy Datasheet
TPIC2810 TPIC2810 Buy Datasheet
TPS3711DDCT TPS3711DDCT Buy Datasheet
TPS62087 TPS62087 Buy Datasheet
TPS62095RGTT TPS62095RGTT Buy Datasheet
TPS62363 TPS62363 Buy Datasheet
TPS62480RNCT TPS62480RNCT Buy Datasheet
