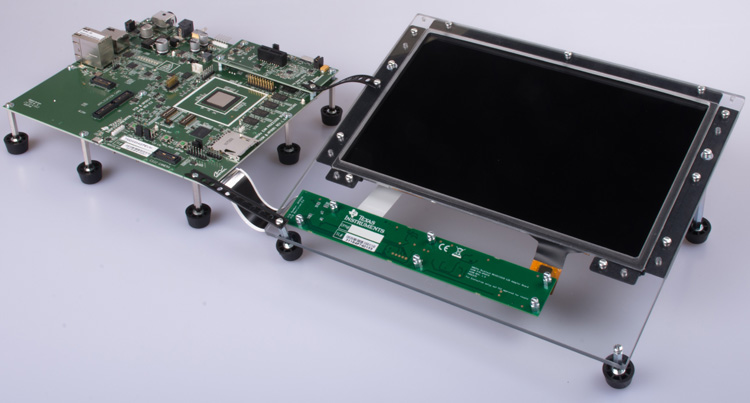

AM65x evaluation module (EVM)

Texas Instruments

Description

The AM65x Evaluation Module provides a platform to quickly start evaluation of Sitara Arm Cortex-A53 AM65x Processors (AM6548, AM6546, AM6528, AM6527, AM6526) and accelerate development for HMI, networking, patient monitoring, and other industrial applications. It is a development platform based on the quad core Cortex-A53, dual Cortex-R5F processor that is integrated with ample connectivity such as PCIe, USB 3.0/2.0, Gigabit Ethernet, and more.

Features:

  • 3 gigabit Ethernet ports
  • 4GB DDR4 with ECC
  • On-board 16GB eMMC
  • On-board 512Mb OSPI Flash
  • 1-lane PCIe Gen3.1, USB 3.1, USB 2.0 and CSI-2 interfaces

What's included:

  • Assembled EVM
  • SD card
  • USB cable
  • Ethernet cable
  • Documentation

Not included:

  • Power supply


Type: Development Kits

Part number: TMDX654GPEVM

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Texas Instruments TMDX654GPEVM 126 $699.00 Buy
Texas Instruments TMDX654GPEVM 126 $699.00 Buy
Mouser Electronics N/A 0 Buy
AVNET Asia Pacific TMDX654GPEVM Buy
AVNET Express TMDX654GPEVM Buy

Technical Documents

Parts

Part Number Name Companion Part
X6580ACD X6580ACD Buy Datasheet
INA226AIDGST INA226AIDGST Buy Datasheet
TCA9555PWR TCA9555PWR Buy Datasheet
TM4C1294NCPDTT3 TM4C1294NCPDTT3 Buy Datasheet
TMP100NA/3K TMP100NA/3K Buy Datasheet
TPIC2810D TPIC2810D Buy Datasheet
TPS3711DDCT TPS3711DDCT Buy Datasheet
TPS62087RLTR TPS62087RLTR Buy Datasheet
TPS62095RGTT TPS62095RGTT Buy Datasheet
TPS62363YZHR TPS62363YZHR Buy Datasheet
TPS62480RNCT TPS62480RNCT Buy Datasheet
