IWR6843 intelligent mmWave sensor standard antenna plug-in module

Texas Instruments

Description

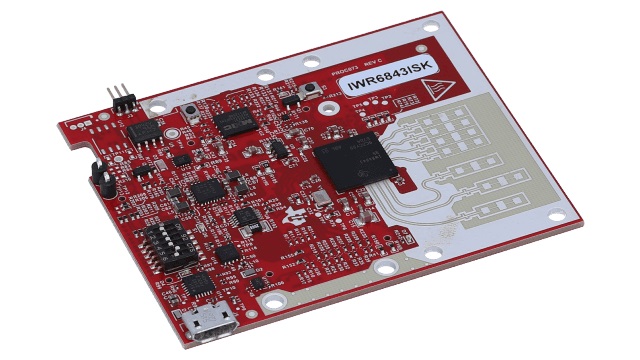

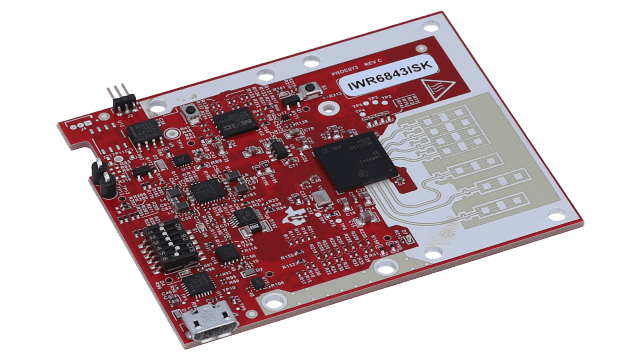

IWR6843ISK is an easy-to-use mmWave sensor evaluation kit with a long-range antenna enabling direct connectivity to the mmWave sensor card carrier (MMWAVEICBOOST). The board enables access to point-cloud data through a USB interface, and raw analog-to-digital converter (ADC) data through a 60-pin high-speed connector. This kit is supported by standard mmWave tools and software, including mmWave Studio (MMWAVE-STUDIO) and the mmWave software development kit (MMWAVE-SDK). IWR6843ISK paired with MMWAVEICBOOST can interface with the MCU LaunchPad development kit ecosystem.

A 5-V 2.5-A supply brick with a 2.1-mm barrel plug (center positive) is not included. TI recommends purchasing an external power supply that complies with applicable regional safety standards.

Features:

  • 60- to 64-GHz mmWave sensor
  • 4 receive (RX) 3 transmit (TX) antenna with 108° azimuth field of view (FoV) and 44° elevation FoV
  • Direct interface with MMWAVEICBOOST
  • Supports 60-pin high-speed interface for host-controlling interface
  • Onboard capability for power-consumption monitoring

What's included:

  • IWR6843ISK
  • Warranty card (disclaimer sheet)
  • Quick Start Guide


Type: Evaluation Modules & Boards

Part number: IWR6843ISK

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
DigiKey 296-IWR6843ISK-ODS-ND 0 $210.00 Buy
Texas Instruments IWR6843ISK 40 $175.00 Buy
Mouser Electronics 595-IWR6843ISK 85 $231.60 Buy
Verical Marketplace IWR6843ISK 136 $161.99 Buy
AVNET Express IWR6843ISK $159.30 Buy
Arrow North American Components IWR6843ISK 0 $210.00 Buy
