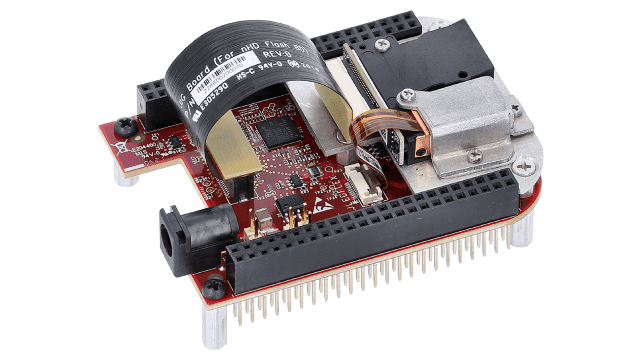

DLP LightCrafter Display 2000 Evaluation Module

Texas Instruments


DLP LightCrafter Display 2000 is an easy-to-use, plug-and-play evaluation platform for a wide array of ultra-mobile and ultra-portable display applications in consumer, wearables, industrial, medical, and Internet of Things (IoT) markets. The evaluation module (EVM) features the DLP2000 chipset comprised of the DLP2000 .2 nHD DMD, DLPC2607 display controller and DLPA1000 PMIC/LED driver. This EVM comes equipped with a production ready optical engine and processor interface supporting 8/16/24-bit RGB parallel video interface in a small-form factor.


  • Most affordable way for developers to evaluate high-performing DLP display technology
  • Plug and play DLP nHD optical engine that supports up to 30 lumens
  • I2C and 8/16/24-bit parallel RGB video interfaces to support virtually any low cost host processor
  • Compact form factor
  • BeagleBone Black compatibility out of the box

What's included:

  • Included: EVM (Assembled with mechanicals and Young Optics optical engine)
  • Not Included: External 5V, 3A power supply

Type: Evaluation Modules & Boards

Part number: DLPDLCR2000EVM

More details from Texas Instruments


Distributor SKU Stock Cost
Digi-Key 296-47119-ND 0 $118.80 Buy
Texas Instruments DLPDLCR2000EVM 3 $99.00 Buy
Texas Instruments DLPDLCR2000EVM 3 $99.00 Buy
Mouser Electronics 595-DLPDLCR2000EVM 239 $131.67 Buy
Arrow North American Components DLPDLCR2000EVM 0 $117.03 Buy
Verical Marketplace DLPDLCR2000EVM 156 $118.80 Buy
AVNET Asia Pacific DLPDLCR2000EVM Buy
Farnell DLPDLCR2000EVM 2 * $114.83 Buy
AVNET Express DLPDLCR2000EVM $116.82 Buy
element14 APAC DLPDLCR2000EVM 2 * $128.39 Buy
Newark DLPDLCR2000EVM 2 $122.57 Buy

Technical Documents


Part Number Name Companion Part
DLPC2607ZVB DLPC2607ZVB Buy Datasheet
DLPA1000YFFR DLPA1000YFFR Buy Datasheet
