Measuring only 70mm by 55mm, the MYS-6ULX-IOT is a high-performance low-cost SBC designed for IoT applications. It is based on NXP i.MX 6ULL processor family which features the most efficient ARM Cortex-A7 core and can operate at speeds up to 528 MHz. The i.MX 6ULL is supported by discrete component power circuitry. It is a cost down version of i.MX 6UltraLite with fewer security features and lower maximum CPU frequency, but adding ePD support. The MYS-6ULX-IOT Single Board Computer has two 2.0mm pitch 2x20-pin headers on board to allow extension of the controller signals and ports to the base board through headers and connectors, thus exposing more features of the i.MX 6ULL ARM Cortex-A7 Processor, so it can also be used as an SoM for your next embedded design. It is ready to run Linux 4.1.15 with Debian distribution or Yocto project with ported QT. MYIR has also provided an interesting demo to enable customers to experience Amazon Alexa Voice Service. MYIR is using the 14 x 14mm, 0.8 mm ball pitch, 289 MAPBGA package i.MX6ULL application processor on the MYS-6ULX-IOT board which provides multiple compatible options of Y0, Y1 and Y2 sub families. The MCIMX6Y2DVM05AA is the default part delivered with the board and MYIR offers optional configurations for mass customization. The MYS-6ULX-IOT is one of the two variants of the MYS-6ULX Single Board Computer. Compared with the other variant MYS-6ULX-IND, the MYS-6ULX-IOT is oriented for IOT applications and using i.MX 6ULL series processors while the MYS-6ULX-IND is targeting Industry 4.0 applications and based on i.MX 6UL series processors. They share the same hardware circuit design and fully compatible in software but also have their own characteristics. Below table list the features of the two MYS-6ULX boards to help customers make choices according to your requirements. In addition, MYIR will offer optional LCD modules, camera modules, GPS module, GPRS module and expansion base board to add functionality to the boards, which would be a complete embedded system. Features: Highly-integrated Single Board Computer for IoT Applications 528MHz NXP i.MX 6ULL ARM Cortex-A7 Processor 256MB DDR3, 256MB Nand Flash Ethernet, WiFi, LCD, USB Host, OTG, TF Card, Buttons, LED, IO... Optional 4.3 or 7 inch LCD/TSP Support Linux 4.1.15 with Debian distribution or by Yocto Project with Ported QT

Measuring only 70mm by 55mm, the MYS-6ULX-IND is a high-performance low-cost SBC designed for Industry 4.0 applications. It is based on the high performance, ultra-efficient NXP i.MX 6UltraLite (i.MX6UL) processor family featuring an advanced implementation of a single ARM Cortex-A7 core and can operate at speeds up to 696 MHz. The MYS-6ULX-IND Single Board Computer has two 2.0mm pitch 2x20-pin headers on board to allow extension of the controller signals and ports to the base board through headers and connectors, thus exposing more features of the i.MX 6UL ARM Cortex-A7 Processor, so it can also be used as a System-on-Module (SoM) for your next embedded design. It is ready to run Linux 4.1.15 with Debian distribution or Yocto project with ported QT. The board is ideal for industrial control and communication applications and can support -40 to +85 Celsius extended working temperature. MYIR is using the 14 x 14mm, 0.8 mm ball pitch, 289 MAPBGA package i.MX6UL application processor on the MYS-6ULX-IND board which provides multiple compatible options of G0, G1, G2 and G3 sub families. The MCIMX6G2CVM05AA is the default part delivered with the board and MYIR offers optional configurations for mass customization. The MYS-6ULX-IND is one of the two variants of the MYS-6ULX Single Board Computer. Compared with the other variant MYS-6ULX-IOT, the MYS-6ULX-IND is targeting industry 4.0 (Industrie 4.0) applications and based on i.MX 6UL series processors while the MYS-6ULX-IOT is oriented for IOT applications and using i.MX 6ULL series processors. They share the same hardware circuit design and fully compatible in software but also have their own characteristics. Below table list the features of the two MYS-6ULX boards to help customers make choices according to your requirements. In addition, MYIR will offer optional LCD modules, camera modules, GPS module, GPRS module and expansion base board to add functionality to the boards, which would be a complete embedded system. Features: Highly-integrated Single Board Computer for Industry 4.0 Applications 528MHz NXP i.MX 6UL ARM Cortex-A7 Processor 256MB DDR3, 256MB Nand Flash Ethernet, LCD, USB Host, OTG, TF Card, Buttons, LED, IO... Optional 4.3 or 7 inch LCD/TSP Supports -40 to +85 Celsius Extended Temperature Operation Support Linux 4.1.15 with Debian distribution or by Yocto Project with Ported QT

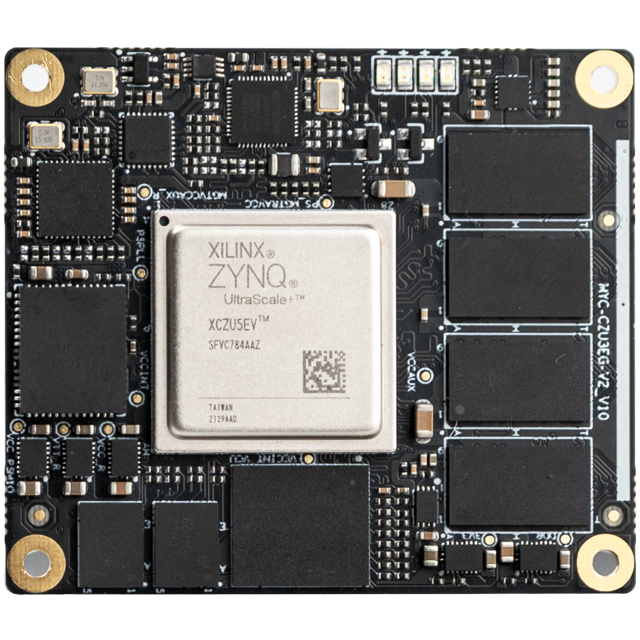

MYC-CZU4EV Embedded Module ARM® Cortex®-A53 Xilinx Zynq UltraScale+ XCZU3EG-1SFVC784E / XCZU4EV-1SFVC784I/ XCZU5EV-2SFVC784I 1.5GHz 4GB 4GB

MYC-CZU4EV Embedded Module ARM® Cortex®-A53 Xilinx Zynq UltraScale+ XCZU3EG-1SFVC784E / XCZU4EV-1SFVC784I/ XCZU5EV-2SFVC784I 1.5GHz 4GB 4GB

Evaluation Board

AM3354, MYC-C335X-GW MYD-C335X-GW Development Board series ARM® Cortex®-A8 MPU Embedded Evaluation Board

series Embedded Module ARM® Cortex®-A9 Zynq-7000 (Z-7010) 667MHz 512MB 4GB

SBC ARM Atmel ARM926EJ-S 256MB NAND Flash

The Rico Board is an excellent high-performance Single Board Computer (SBC) using the newest TI’s AM437x Sitara ARM Cortex-A9 based solution. This new generation solution has an increase in performance, as well as extensive reuse from the ARM Cortex-A8 offerings. It features up to 1GHz of processing power, 3D graphics acceleration for rich graphical user interfaces, PRU-ICSS for industrial protocols, improved Vector Floating Point (VFP) unit and other peripherals and interfaces support like Quad-SPI, dual parallel cameras, two independent eight-channel ADCs, etc. The AM437x processor family has four different pin-to-pin compatible AM437x device variations: the Sitara AM4376, AM4377, AM4378 and AM4379. They only have differences in options whether they have offered 3D graphics accelerator and their PRU can support for the EtherCAT slave protocol. Users can make selections according to their requirements. The Rico board is equipped with 512MB DDR3, 4GB eMMC Flash, 16MB QSPI Flash and 32KB EEPROM on board. Additionally, it has rich peripherals including a Debug serial port, USB 2.0 Host and Device ports, a Gigabit Ethernet port, TF card slot, HDMI port, dual camera interfaces, LCD interface, etc. Two 2.54mm pitch 40-pin expansion connectors allow the availability of more I/Os for peripheral signals like two SPI, two I2C, two CAN, four UARTs, one MMC and eight-channel ADC. The Rico Board is capable of running Linux operating system and provided with Linux 3.12.10 SDK of which the kernel and many drivers are in source code. MYIR also offer a complete Rico Board development kit that includes a Rico Board, necessary cable accessories, an optional 7-inch LCD Module (including capacitive touch screen), optional 3G, WiFi, Camera and GPRS modules, and detailed documents to enable rapid development when customers getting the board out-of-the-box. The Rico Board can be used for the evaluation module (EVM) for the AM437x processor family; it can also be used directly for your embedded products. Typical applications are industrial automation, Programmable Logic Controllers (PLCs), bar code scanners, portable data terminals, test and measurement, patient monitoring and human machine interface (HMI). The Rico Board has been selected as the Host Controller Board for TI' TIDA-00750 People Counting Demand Controlled Ventilation 3D Time-of-Flight (ToF) Reference Design due to its affordable cost, ready-to-use interfaces and Debian supporting. Rico Board top-view Rico Board bottom-view

 The MYS-SAM9X5 Sinle Board Computer (SBC) family is designed based on Atmel AT91SAM9X5 series ARM9 processors: AT91SAM9X35, SAM9X25, SAM9G35, SAM9G25 and SAM9G15 which is able to work at up to 400MHZ. It is capable of running Linux and Android operating systems and also provided with complete sample codes bundle for the peripherals using Keil's MDK-ARM to enhance debugging capabilities for non-OS development. The 4.3- and 7-inch LCD panels are add-on options for SAM9G15, SAM9G35 and SAM9X35. It can work in harsh environment supporting -40 to +85°C extended temperature operation. The board has 128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash and 64KB EEPROM as well as a set of peripherals including USB Host, OTG, Ethernet, LCD, CAN, TF card slot and etc. The board comes along with necessary cable accessories, detailed documents and full developed software package to make a reference as an solid evaluation kit to help users extensively evaluate, customize, develop hardware and software applications. MYIR offers 4.3 or 7 inch LCD including touch screen as option for MYS-SAM9G15, MYS-SAM9G35 and MYS-SAM9X35 platforms. The MYS-SAM9X5 SBC board series are smart in size with compact interfaces layout, which help user embed it into their products as controller board directly, improve system quality, save project time and cost. They can be broadly used in many fields such asconsumer appliances, printers, video process, industrial control, display system, security device, electric power control system, PDA device and web terminals.

The MYS-S5PV210 SBC board is a high-performance single board computer based on SAMSUNG S5PV210 application processor which is powered by 1GHz ARM Cortex-A8 core with built-in the programmable PowerVR SGX540 core. It has 512MB DDR2 SDRAM and 256MB Nand Flash on board. It carries out peripheral interfaces supporting HDMI, USB Host/OTG, Ethernet, LCD and touch screen, Micro SD card, two Camera interfaces, Audio, etc. It features 1080p HDMI video output which can implement large size monitor and TV display. The board supports running Andriod 4.0.3 and is delivered with full periphery driver source code to help users make quick software applications and evaluation for SAMSUNG S5PV210 processor. The MYS-S5PV210 Single Board Computer provides detailed schematic documents, user manual, datasheet and fully developed software package, these features make the board a solid reference to help users extensively evaluation, customization, develop hardware and software applications. The MYS-S5PV210 board is compact in size which is ideal for user to embed it into your next design as a controller board. The MYS-S5PV210 SBC board has been broadly used in many fields covering consumer appliances, printers, video process , display system, tablet, PDA device and web terminals. Features: Processor: SAMSUNG S5PV210 Application Processor Up to 1-GHz ARM Cortex-A8 Core with NEON, also supports 800-MHz operation 32KB I-Cache; 32KB D-Cache; 512KB L2 Cache Onchip 64KB ROM and 96KB SRAM Built-in the programmable PowerVR SGX540 core 2D/3D Graphics Acceleration Multi Format Codec provides encoding and decoding of MPEG-4/H.263/H.264 up to 1080p@30fps and decoding of MPEG-2/VC1 video up to 1080p@30 fps Memory and storage: 512MB DDR2 SDRAM, 256 Nand Flash Micro SD card slot (support at most 32GB) Periphery interfaces: 1 x HDIM interface 1 x USB Host , 1 x USB OTG 1 x RS232 serial port (debug) 2 x Camera interfaces 10/100M Ethernet interface (RJ45) AC97 Audio input/output RTC 2 x User buttons, 2 x User LEDs JTAG debug interface, 20-pin, 2.54mm Expansion Interfaces carry out: 2 x SPI, 2 x IIC, 3 x PWM, 4 x UART, 6 x ADC, 1 x SDIO and GPIOs (some pins are reused) TFT LCD interface Touch screen interface Board features: Board size: 105mm x 85mm PCB layer: 8-layer design Voltage supply: 5V/2A Working temperature: 0-70°C

The Z-turn Lite is an ultra-cost-effective lite version of MYIR’s Z-turn board. It is built around 667MHz Xilinx Zynq-7007S SoC which is among the new Zynq Z-7000S family with a Single-core ARM Cortex-A9 processor and integrated Artix-7 Field Programmable Gate Array (FPGA) logic. The Zynq-7010 Dual-core ARM Cortex-A9 MPCore processor can also be compatible to be used on this board. It is a minimal and compact system of Xilinx Z-7007S or Z-7010 SoC and provides numerous pending configuration of PL resources. It is an excellent reference design and evaluation board for development based on Xilinx Zynq-7000 series SoCs. The Z-turn Lite takes full features of the Zynq Z-7007S or Z-7010 all programmable SoC. It is equipped with 512MB DDR3, 4GB eMMC Flash, 16MB QSPI Flash and a set of peripherals including Micro USB OTG, 10/100/1000Mbps Ethernet, TF, JTAG, Debug UART, etc. Additionally, there is one 120 position connector socket on the rear of the board to bring out as many as IO signals for user extensions. The Z-turn Lite is capable of running Linux operating system and provided with Linux 3.15.0 SDK, the kernel and many drivers are in source code. The Z-turn Lite Kit is delivered with complete accessories including one micro USB cable, one Ethernet cable, one 4GB TF card, one USB-to-UART cable, one 5V power adapter and product disk which enables you to start the development quickly when getting the board out-of-the-box. Features: 667MHz Xilinx XC7Z007S or XC7Z010 ARM Cortex-A9 Processor with Xilinx 7-series FPGA logic 512MB DDR3 SDRAM (2 x 256MB, 32-bit) 4GB eMMC Flash, 16MB QSPI Flash USB2.0 OTG, 10/100/1000M Ethernet, TF, Debug UART, JTAG… One 120 Position Connector Socket for Expansion interface Ready-to-Run Linux Single Board Computer

TheZ-turn Boardis a low-cost and high-performance Single Board Computer (SBC) built around theXilinx Zynq-7010(XC7Z010-1CLG400C) orZynq-7020(XC7Z020-1CLG400C)All Programmable System-on-Chip (SoC) which is among theXilinx Zynq-7000family, featuring integrated dual-coreARM Cortex-A9processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic.
