High Precision Industrial Foot Controllers

SP12S-3176-10K

POTENTIOMETER 10K OHM 1W; Track Resistance:10kohm; No. of Turns:10Turns; Track Taper:Linear; Power Rating:1W; Resistance Tolerance:± 3%; Product Range:-; Potentiometer Mounting:Bushing; Shaft Diameter:3.18mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:20.57mm; SVHC:No SVHC (07-Jul-2017); Linearity +:0.25%; Linearity -:0.25%; Operating Temperature Max:105°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +105°C; Resistor Element Material:Wirewound; Rotation Electrical Angle:3600°; Rotation Mechanical Angle:3600°; Rotational Life Cycles:1000000; Temperature Coefficient:± 20ppm/°C; Termination Type:Solder; Voltage Rating:450V

POTENTIOMETER 5K OHM 3W; Track Resistance:5kohm; No. of Turns:10Turns; Track Taper:Linear; Power Rating:2W; Resistance Tolerance:± 10%; Product Range:MH22 Series; Potentiometer Mounting:Bushing; Shaft Diameter:6.35mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:20.83mm; SVHC:No SVHC (07-Jul-2017); Linearity +:0.25%; Linearity -:0.25%; Operating Temperature Max:105°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +105°C; Resistor Element Material:Wirewound; Rotation Electrical Angle:3600°; Rotation Mechanical Angle:3600°; Temperature Coefficient:± 100ppm/°C; Termination Type:Solder

ROTARY POTENTIOMETER 1KOHM 10% 2W; Track Resistance:1kohm; No. of Turns:1Turns; Track Taper:Linear; Power Rating:2W; Resistance Tolerance:± 10%; Product Range:RV4 Series; Potentiometer Mounting:Panel; Shaft Diameter:6.325mm RoHS Compliant: Yes

TURNS COUNTING DIAL; No. of Turns: 10Turns; Shaft Diameter: 6.35mm; Dial Composition: Aluminium; Product Range: -; Accessory Type: Turns Counting Dial; Applications: 1/4" Diameter Shaft Potentiometers; Body 83H7284

Linear Motion Control; Power Rating:200mW; Product Range:LCP12 Series; Linearity %:1.5%; Resistance:1kohm RoHS Compliant: Yes

WIREWOUNDPRECISION SINGLE TURN POTENTIOMETER

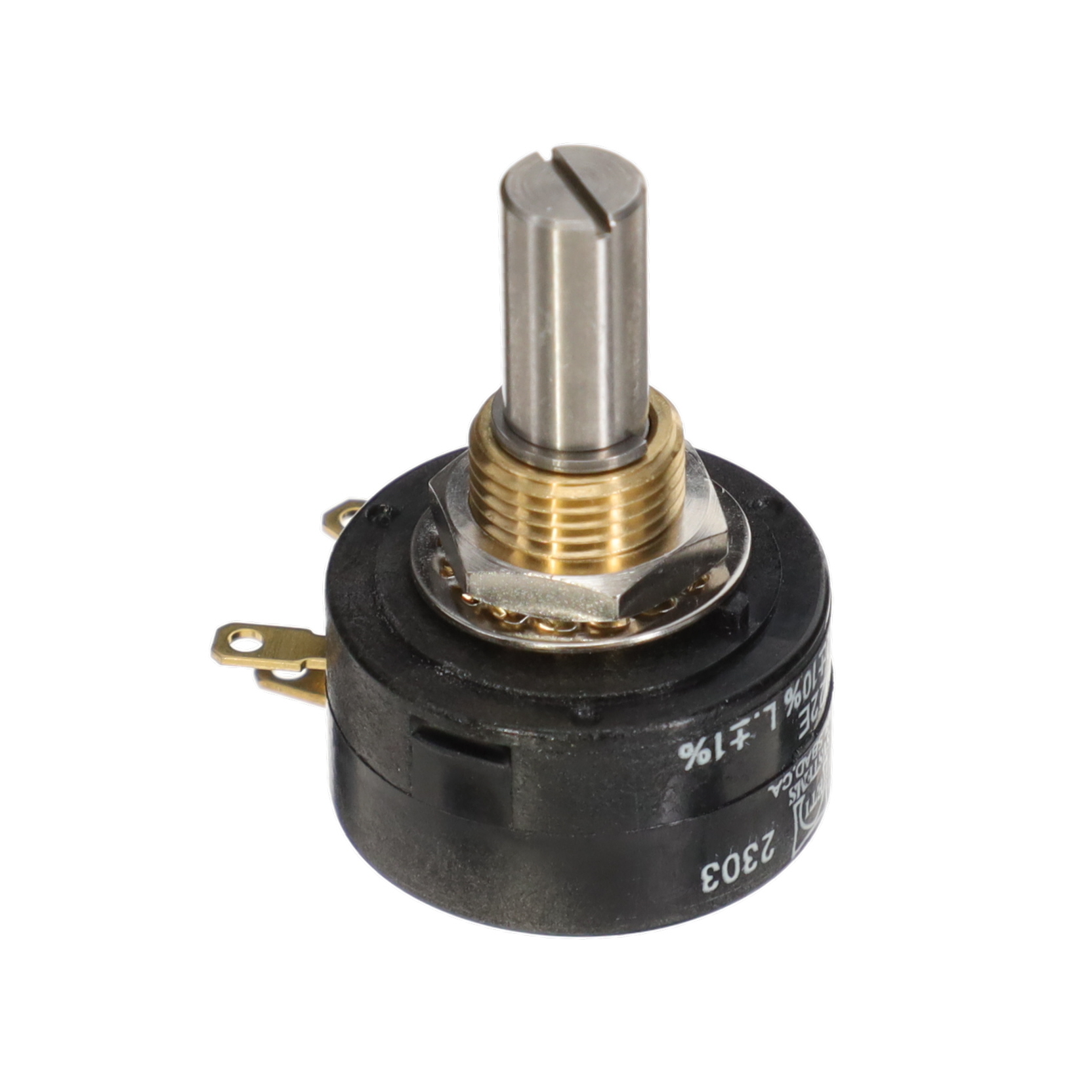

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Lug

Potentiometer |Eti Systems DC22-5-5K
