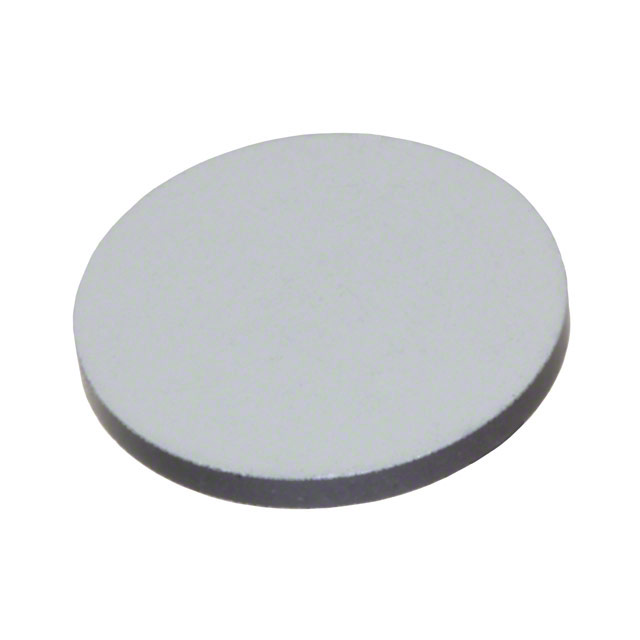

VARISTOR 4032 13.0J 175VAC; Voltage Rating V AC:175V; Voltage Rating V DC:225V; Product Range:-; Clamping Voltage Vc Max:455V; Varistor Case Style:4032; Varistor Type:Metal Oxide Varistor (MOV); Peak Surge Current @ 8/20µs:1.2kA; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Peak Energy (10/1000uS):13J; Automotive Qualification Standard:-; SVHC:No SVHC (15-Jun-2015); Capacitance:150pF; Clamping Voltage @ 8/20µs Max:455V; MSL:MSL 2A - 4 weeks; Operating Temperature Range:-40°C to +85°C; Packaging:Cut Tape; Peak Pulse Current IPP @ 8/20µs:1200A; Suppressor Type:Varistor; Surge Current:1.2kA; Transient Energy:13J; Varistor Voltage:270V; Varistor Voltage @ 1mA:243V; Varistor Voltage @ 1mA Max:297V; Varistor Voltage Tolerance +:10%; Varistor Voltage Tolerance -:10%

CAP ALU ELEC AEC-Q200 820UF 63V RAD; Capacitance:820µF; Voltage Rating:50V; Product Range:B41858 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:12.5mm; Packaging:Each; Lead Spacing:5mm; Height:40mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:5000 hours @ 105°C; ESR:0.034ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 1000UF RAD; Capacitance:1000µF; Voltage Rating:35V; Product Range:B41858 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:12.5mm; Packaging:Each; Lead Spacing:5mm; Height:25mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:5000 hours @ 105°C; ESR:0.041ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 100UF RAD; Capacitance:100µF; Voltage Rating:100V; Product Range:B41858 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:12.5mm; Packaging:Each; Lead Spacing:5mm; Height:20mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:5000 hours @ 105°C; ESR:0.305ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 220UF RAD; Capacitance:220µF; Voltage Rating:100V; Product Range:B41858 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:16mm; Packaging:Each; Lead Spacing:7.5mm; Height:25mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:5000 hours @ 105°C; ESR:0.099ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 680UF RAD; Capacitance:680µF; Voltage Rating:100V; Product Range:B41858 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:18mm; Packaging:Each; Lead Spacing:7.5mm; Height:40mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:5000 hours @ 105°C; ESR:0.044ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 3300UF RAD; Capacitance:3300 F; Voltage Rating:35V; Product Range:B41858 Series; Capacitance Tolerance: 20%; Capacitor Terminals:Radial Leaded; Diameter:18mm; Packaging:Each; Lead Spacing:7.5mm; ;RoHS Compliant: Yes

CAP ALU ELEC AEC-Q200 3300UF RAD; Capacitance:3300µF; Voltage Rating:25V; Product Range:B41888 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:16mm; Packaging:Each; Lead Spacing:7.5mm; Height:31.5mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:10000 hours @ 105°C; ESR:0.019ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 4700UF RAD; Capacitance:4700µF; Voltage Rating:25V; Product Range:B41888 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:18mm; Packaging:Each; Lead Spacing:7.5mm; Height:35mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:10000 hours @ 105°C; ESR:0.015ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 2200UF RAD; Capacitance:2200µF; Voltage Rating:50V; Product Range:B41888 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:18mm; Packaging:Each; Lead Spacing:7.5mm; Height:35mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:10000 hours @ 105°C; ESR:0.022ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 2200UF RAD; Capacitance:2200µF; Voltage Rating:35V; Product Range:B41888 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:18mm; Packaging:Each; Lead Spacing:7.5mm; Height:25mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:10000 hours @ 105°C; ESR:0.023ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 680UF 63V RAD; Capacitance:680µF; Voltage Rating:63V; Product Range:B41888 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:18mm; Packaging:Each; Lead Spacing:7.5mm; Height:20mm; Operating Temperature Min:-55°C; Operating Temperature Max:105°C; Lifetime @ Temperature:10000 hours @ 105°C; ESR:0.096ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC AEC-Q200 680UF 25V RAD; Capacitance:680µF; Voltage Rating:25V; Product Range:B41896 Series; Capacitance Tolerance:± 20%; Capacitor Terminals:Radial Leaded; Diameter:10mm; Packaging:Each; Lead Spacing:5mm; Height:20mm; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Lifetime @ Temperature:3500 hours @ 125°C; ESR:0.074ohm; Automotive Qualification Standard:AEC-Q200; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC 470UF 400V SNAP-IN; Capacitance:470µF; Voltage Rating:400V; Product Range:B43509 Series; Lifetime @ Temperature:3000 hours @ 105°C; Capacitance Tolerance:± 20%; Capacitor Terminals:Quick Connect Snap-In; Diameter:30mm; Lead Spacing:10mm; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Height:55mm; ESR:0.055ohm; Automotive Qualification Standard:-; SVHC:No SVHC (12-Jan-2017)

500V 470uF Snap-in

CAP ALU ELEC 390UF 550V SNAP-IN; Capacitance:390µF; Voltage Rating:550V; Product Range:B43541 Series; Lifetime @ Temperature:8000 hours @ 85°C; Capacitance Tolerance:± 20%; Capacitor Terminals:Quick Connect Snap-In; Diameter:35mm; Lead Spacing:10mm; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Height:55mm; ESR:0.08ohm; Automotive Qualification Standard:-; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC 2200UF 250V SNAP-IN; Capacitance:2200µF; Voltage Rating:250V; Product Range:B43544 Series; Lifetime @ Temperature:3000 hours @ 105°C; Capacitance Tolerance:± 20%; Capacitor Terminals:Quick Connect Snap-In; Diameter:35mm; Lead Spacing:10mm; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Height:55mm; ESR:0.014ohm; Automotive Qualification Standard:-; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC 470UF 450V SNAP-IN; Capacitance:470µF; Voltage Rating:450V; Product Range:B43544 Series; Lifetime @ Temperature:3000 hours @ 105°C; Capacitance Tolerance:± 20%; Capacitor Terminals:Quick Connect Snap-In; Diameter:35mm; Lead Spacing:10mm; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Height:45mm; ESR:0.055ohm; Automotive Qualification Standard:-; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC 330UF 400V SNAP-IN; Capacitance:330µF; Voltage Rating:400V; Product Range:B43547 Series; Lifetime @ Temperature:8000 hours @ 105°C; Capacitance Tolerance:± 20%; Capacitor Terminals:Quick Connect Snap-In; Diameter:35mm; Lead Spacing:10mm; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Height:35mm; ESR:0.05ohm; Automotive Qualification Standard:-; SVHC:No SVHC (12-Jan-2017)

CAP ALU ELEC 2200UF 200V SNAP-IN; Capacitance:2200µF; Voltage Rating:200V; Product Range:B43630 Series; Lifetime @ Temperature:2000 hours @ 85°C; Capacitance Tolerance:± 20%; Capacitor Terminals:Quick Connect Snap-In; Diameter:30mm; Lead Spacing:10mm; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Height:50mm; ESR:0.028ohm; Automotive Qualification Standard:-; SVHC:No SVHC (12-Jan-2017)
