DC Solid State Relay Output: 15A/60VDC

DC Solid State Relay Output: 15A/200VDC

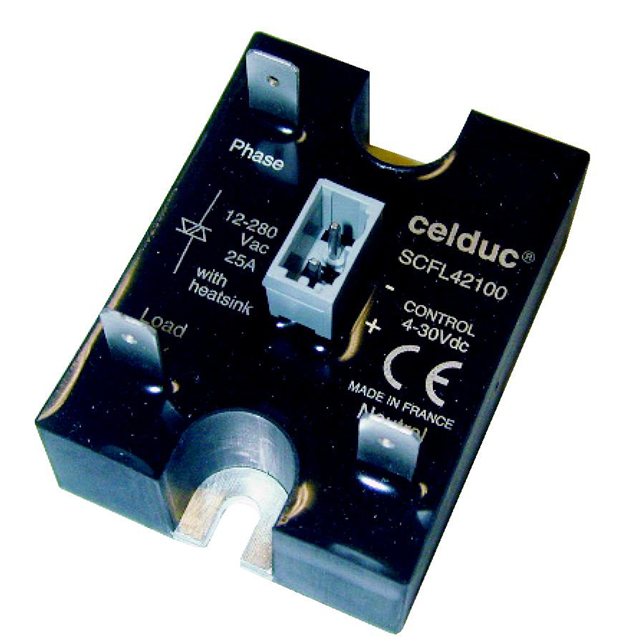

Low Noise SSR Output: 25A/12-280VAC

Very Small Power Solid State Relay Output: 20A/230VAC

AC Semiconductor Contactor pitch 22,5mm with Diagnostic compact size and DIN rail mounting Output: 70-280VAC 32A(*)

Normally Closed Solid State Relay for Printed Circuit Board

SSR 4A 275VAC; Contact Configuration:-; Load Current:4A; Operating Voltage Max:275Vrms; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:Zero Crossing; Operating Voltage Min:12Vrms; Control Voltage Min:4VDC; Control Voltage Max:30VDC; Product Range:-; SVHC:No SVHC (07-Jul-2017); Control Voltage DC Max:30VDC; Control Voltage DC Min:4VDC; Control Voltage Range:4V DC to 30V DC; Control Voltage Type:DC; External Depth:10.2mm; External Length / Height:43.2mm; External Width:25.4mm; Height:43.2mm; I2t:50s; Input Voltage:4V DC to 30V DC; Insulation Resistance:1kohm; Isolation Voltage:4kV; Load Current Min:5mA; Load Current RMS Max:4A; Load Voltage Range:12V AC to 275V AC; Operating Current DC:3mA; Operating Frequency:440Hz; Operating Temperature Max:80°C; Operating Temperature Min:-40°C; Operating Voltage Range:12Vrms to 275Vrms; RMS Load Current Min:5mA; RMS Load Voltage Max:275VAC; RMS Load Voltage Min:12VAC; Turn Off Time:10ms; Turn On Time:10ms

SSR 4-30V 4A; Contact Configuration:-; Load Current:4A; Operating Voltage Max:460V; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:Zero Crossing; Operating Voltage Min:12V; Control Voltage Min:4VDC; Control Voltage Max:30VDC; Product Range:-; SVHC:No SVHC (07-Jul-2017); Control Voltage DC Max:30VDC; Control Voltage DC Min:4VDC; Control Voltage Range:4V DC to 30V DC

AC Solid State Relay for PCB mounting Output: 12-460VAC

SSR 8-32VDC IN 400VAC OUT 10A; Contact Configuration:-; Load Current:10A; Operating Voltage Max:600Vrms; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:Zero Crossing; Operating Voltage Min:24Vrms; Control Voltage Min:8VDC; Control Voltage Max:32VDC; Product Range:-; SVHC:No SVHC (07-Jul-2017); Control Voltage DC Max:32VDC; Control Voltage DC Min:8VDC; Control Voltage Range:8V DC to 32V DC; Operating Voltage Range:24Vrms to 600Vrms

Solid State Relay for printed circuit board Output: 16A*/ 230VAC

AC Solid State Relay for PCB mounting Output: 12-280VAC

SSR 4A 32VDC; Contact Configuration:-; Load Current:4A; Operating Voltage Max:-; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:-; Operating Voltage Min:-; Control Voltage Min:18VDC; Control Voltage Max:32VDC; Product Range:-; SVHC:No SVHC (07-Jul-2017); Control Voltage DC Max:32VDC; Control Voltage DC Min:18VDC; Control Voltage Range:18V DC to 32V DC; Control Voltage Type:DC; External Depth:5mm; External Length / Height:28mm; External Width:15mm; Input Voltage:18V DC to 32V DC; Insulation Resistance:3kohm; Isolation Voltage:2.5kV; Load Current Min:1mA; Load Current RMS Max:4A; Load Voltage Range:0V DC to 32V DC; Operating Frequency:100Hz; Operating Temperature Max:80°C; Operating Temperature Min:-20°C; RMS Load Current Min:1mA; RMS Load Voltage Max:32VDC; RMS Load Voltage Min:0VDC; Resistance:3000ohm; Surge Current:45A

DC SLIM Solid State Relay Output: 48VDC 2,5A

Phase angle controller Output: 100-280VAC 50A

Phase angle controller Output: 100-280VAC 50A

RELAY SOLID STATE PA 50A/230V; On State Current Max:-; Supply Voltage Min:-; Supply Voltage Max:-; Isolation Voltage:4000V; Supply Frequency:60Hz; Operating Temperature Min:-40°C; Operating Temperature Max:100°C; Product Range:-; SVHC:No SVHC (07-Jul-2017); Control Current Max:20mA; Control Current Min:4mA; Control Voltage DC Min:10V; Control Voltage Type:DC; Input Voltage Max:265V; Input Voltage Min:90V; Load Current:50A; Load Current Min:35mA; Load Current RMS Max:50A; Operating Frequency Max:70Hz; Operating Frequency Min:40Hz; Operating Temperature Range:-40°C to +100°C; Operating Voltage Range:90Vrms to 280Vrms; Output Type:Thyristor; Output Voltage Max:265V; Output Voltage Min:90V; Peak Load Voltage +:600V; RMS Load Current Min:5mA; RMS Load Voltage Max:900V; RMS Load Voltage Min:600V; Surge Current:720A

Phase angle controller Output: 200-480VAC 50A

Phase angle controller Output: 200-480VAC 50A

Phase angle controller Output: 200-480VAC 75A
