Displaying 1 - 20 of 211

Parts from Arduino


Part Number : ABX00012

The MKR ZERO brings you the power of a Zero in the smaller format established by the MKR form factor. The MKR ZERO board acts as a great educational tool for learning about 32-bit application development. It has an on-board SD connector with dedicated SPI interfaces (SPI1) that allows you to play with MUSIC files with no extra hardware! The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex M0+ core. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it by a LiPo battery. The battery voltage can also be monitored since a connection between the battery and the analog converter of the board exists. Features: Small form factor Number crunching capability Low power consumption Integrated battery management USB host Integrated SD management Programmable SPI, I2C and UART Warning: Unlike most Arduino & Genuino boards, the MKRZero runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.


Part Number : ABX00014

MKR FOX 1200 is a powerful board that combines the functionality of the Zero and SigFox connectivity. It is the ideal solution for makers wanting to design IoT projects with minimal previous experience in networking having a low power device. You’ll get 2-year free subscription to Sigfox network with the board (for up to 140 messages per day), as well as free access to Spot’it geolocation service that allows you to track the board without GPS or any extra hardware. Arduino MKR FOX 1200 has been designed to offer a practical and cost effective solution for makers seeking to add SigFox connectivity to their projects with minimal previous experience in networking. It is based on the Atmel SAMD21 and a ATA8520 SigFox module. The design includes the ability to power the board using two 1.5V AA or AAA batteries or external 5V. Switching from one source to the other is done automatically. A good 32 bit computational power similar to the Zero board, the usual rich set of I/O interfaces, low power SigFox communication and the ease of use of the Arduino Software (IDE) for code development and programming. All these features make this board the preferred choice for the emerging IoT battery-powered projects in a compact form factor. The USB port can be used to supply power (5V) to the board. The Arduino MKR FOX 1200 is able to run with or without the batteries connected and has limited power consumption.


Part Number : A000126

Arduino Industrial 101 is an Evaluation board for Arduino 101 LGA module. The ATmega32u4 microcontroller is integrated in the baseboard. The module supports a Linux distribution based on OpenWRT named LininoOS. The board has built-in WiFi (IEEE 802.11b/g/n operations up to 150Mbps 1x1 2.4 GHz), 3 GPIOs (of which 2 can be used as PWM Outputs), 4 Analog Inputs, 1 USB, 1 Ethernet signal on pin headers and a built-in DC/DC converter. Check out the assembling guide and simply connect your board to a computer with a micro USB cable to get started.


Part Number : X000048

MCU 8BIT ATMEGA 20MHZ DIP-28; Controller Family/Series:ATmega; CPU Speed:20MHz; Program Memory Size:32KB; RAM Memory Size:2KB; No. of Pins:28Pins; MCU Case Style:DIP; No. of I/O's:23I/O's; Embedded Interface Type:I2C SPI USART; Supply Voltage Min:1.8V; Supply Voltage Max:5.5V; Packaging:Each; Product Range:8-bit ATmega Microcontrollers; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (07-Jul-2017); Accessory Type:Pre-Programmed IC; EEPROM Memory Size:1KB; Features:ATmega328 MCU IC with Arduino UNO Bootloader Pre-programed; For Use With:Arduino UNO Based Circuits; MPU Core Size:8bit; No. of PWM Channels:6; No. of Timers:3; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +85°C; Oscillator Type:External Internal; Peripherals:ADC PWM RTC Timer; Program Memory Size:32KB; Supply Voltage Range:1.8V to 5.5V


Part Number : ABX00019

The new standard Narrow Band IoT, with the easy to use Arduino ecosystem. Fully compatible with Narrow Band IoT NB classes and LTE CAT M1 networks. Add Narrow Band communication to your project with the MKR NB 1500. It's the perfect choice for devices in remote locations without an Internet connection, or in situations in which power isn't available (e.g., field monitoring systems). This board is designed for global use, providing Cat M1/NB1 deployed bands 2, 3, 4, 5, 8, 12, 13, 20, 28 (Vodafone, AT&T, T-Mobile USA, Telstra, Verizon).


Part Number : A000056

ENET SHIELD ARDUINO BOARD; Silicon Manufacturer:Atmel; Silicon Family Name:AT91SAM3xxx; Core Architecture:ARM; Core Sub-Architecture:Cortex-M3; Silicon Core Number:AT91SAM3X8E; Kit Contents:Arduino Due Board; Product Range:-; SVHC:No SVHC (12-Jan-2017); Features:Wiznet W5100 ethernet chip; For Use With:Arduino Uno; Module Interface:Ethernet


Part Number : GKX00006

Whether you’re looking to build your first Internet of Things project or simply make an existing device smarter, the MKR1000 Bundle provides everything you need to get started. The MKR IoT Bundle walks you through the basics of using the Arduino MKR1000 for IoT applications. You'll learn through building 5 creative experiments thanks to the step by step online tutorials available on the Arduino Project Hub platform. The MKR IoT bundle includes a selection of the most common and useful electronic components to build 5 IoT experiments.The kit is based around the MKR1000 — a powerful board that combines the functionality of the Zero and the Wi-Fi Shield — and enables Makers to add connectivity to their designs with minimal prior networking experience. Each bundle includes: 1 Arduino MKR1000 board, with header soldered 1 micro USB cable 1 400-point breadboard 70 solid-core jumper wires 1 9V battery snap 1 stranded jumper wire 6 phototransistors 3 potentiometers (10 kilohm) 10 pushbuttons 1 temperature sensor (TMP36) 1 tilt sensor 1 alphanumeric LCD (16 x 2 characters) 1 bright white 34 LEDs (1 bright white, 1 RGB, 8 red, 8 green, 8 yellow, 3 blue) 1 small DC motor (6/9V) 1 small servo motor 1 piezo capsule (PKM17EPP-4001-B0) 1 H-bridge motor driver (L293D) 1 octocouplers (4NE5) 2 MOSFET transistors (IRF520) 5 capacitors (100uF) 5 diodes (1N4007) 3 transparent gels (R,G,B) 1 male pin strip (40 x 1) 20 resistors (220 ohm) 5 resistors (560 ohm) 5 resistors (1 kilohm) 5 resistors (4.7 kilohm) 20 resistors (10 kilohm) 5 resistors (1 megohm) 5 resistors (10 megohm) Please note, don't connect 9V to the board, as it will be damaged. You can use the 9V Battery strip to supply an external component.


Part Number : ABX00021

Add this board to a device and you'll be able to connect it to a WiFi network, using its secure ECC608 crypto chip accelerator. The Arduino Uno WiFi is functionally the same as the Arduino Uno Rev3, but with the addition of WiFi and some other enhancements. It incorporates a brand new 8-bit microprocessor from Microchip and has an onboard IMU (Inertial Measurement Unit). The Wi-Fi Module is a self-contained SoC with integrated TCP/IP protocol stack that can provide access to a Wi-Fi network, or act as an access point. The Arduino Uno WiFi has 14 digital input/output pins—5 can be used as PWM outputs with Pin 11 that is not PWM as on the UNO Rev3 —6 analog inputs, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable or power it with an AC adapter or battery to get started.


Part Number : B000003

BOOK SOFTWARE OPEN 2ND EDITION; Author:T. Olsson D. Gaetano J. Odhner S. Wiklund; Product Range:-; Date of Issue:2011; Publisher:BlushingBoy Publishing


Part Number : A000075

BOARD ETHERNET SHIELD W/ POE REV3; Kit Application Type:Communication & Networking; Application Sub Type:Ethernet; Silicon Manufacturer:Arduino; Silicon Core Number:W5100; Product Range:-; Kit Contents:Development Board W5100 Ethernet Module; Features:TCP/IP Embedded Ethernet Controller Optional POE


Part Number : A000133

WiFi/802.11 Development Tools Arduino Uno WiFi


Part Number : A000082

PROTOTYPE SHIELD FOR ARDUINO BOARD; Silicon Manufacturer:-; Core Architecture:-; Core Sub-Architecture:-; Silicon Core Number:-; Silicon Family Name:-; For Use With:Arduino Board; Kit Contents:Unpopulated Board only; Product Range:-; Accessory Type:Prototype Shield; Features:Arduino 1.0 pinout 14 pin SMD footprint 20 pin Trough Hole footprint


Part Number : K030007

STARTER KIT SEVERAL CREATIVE PROJECT; Silicon Manufacturer:Atmel; Silicon Core Number:ATmega328P; Kit Application Type:Building Several Creative Projects; Application Sub Type:-; Kit Contents:Projects Book Arduino/Genuino Uno Cable Breadboard Jumper Wires Battery Snap POT LCD LED RES; Product Range:-; SVHC:No SVHC (07-Jul-2017)


Part Number : ASX00005

Interface Development Tools MKR CAN Shield


Part Number : A000005

The Arduino Nano is a compact board similar to the UNO. The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.     Features: Microcontroller: ATmega328 Architecture: AVR Operating Voltage: 5 V Flash Memory: 32 KB of which 2 KB used by bootloader SRAM:2 KB Clock Speed: 16 MHz Analog IN Pins: 8 EEPROM: 1 KB DC Current per I/O Pins: 40 mA (I/O Pins) Input Voltage: 7-12 V Digital I/O Pins: 22 (6 of which are PWM) PWM Output: 6 Power Consumption: 19 mA PCB Size: 18 x 45 mm Weight: 7 g


Part Number : ABX00023

Want to add a WiFi interface to your devices? Get the MKR WIFI 1010. It connects easily to other Arduino products and is configurable using Arduino software — and you don’t need to be a network expert. The MKR WIFI 1010 is a significant improvement on the MKR 1000 WIFI. It's equipped with an ESP32 module made by U-BLOX. This board aims to speed up and simplify the prototyping of WiFi based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption. The board is composed of three main blocks: SAMD21 Cortex-M0+ 32bit Low Power ARM MCU; U-BLOX NINA-W10 Series Low Power 2.4GHz IEEE 802.11 b/g/n Wi-Fi; and ECC508 Crypto Authentication. The MKR WIFI 1010 includes 32-bit computational power, the usual rich set of I/O interfaces, and low power Wi-Fi with a Cryptochip for secure communication using SHA-256 encryption. Plus, it offers ease of use Arduino Software (IDE) for code development and programming. All of these features make this board the preferred choice for the emerging IoT battery-powered projects in a compact form. Its USB port can be used to supply power (5V) to the board. It has a Li-Po charging circuit that allows the Arduino MKR WIFI 1010 to run on battery power or an external 5 volt source, charging the Li-Po battery while running on external power. Switching from one source to the other is done automatically. Warning: Unlike most Arduino boards, the MKR WIFI 1010 runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. While output to 5V digital devices is possible, bidirectional communication with 5V devices needs proper level shifting.


Part Number : K000005

ARDUINO UNO ENET SCUOLA LAB KIT; Silicon Manufacturer:Atmel; Silicon Core Number:ATmega328; Kit Application Type:Sensing - Touch Proximity; Application Sub Type:Touch Sensor; Core Architecture:AVR; Core Sub-Architecture:megaAVR; Silicon Family Name:ATmega; Kit Contents:10 Sensor Shield V.2 10 Arduino Uno Boards Ethernet Shields 10 Proto PCBs; Product Range:-; Features:Complete pack of TinkerKit Modules and Arduino accessories to kickstart your school's Lab


Part Number : TSX00002

PROTO LARGE SHIELD MKR BOARD; Accessory Type:Proto Large Shield; For Use With:Arduino MKR Boards; Product Range:MKR Shields; SVHC:No SVHC (07-Jul-2017)

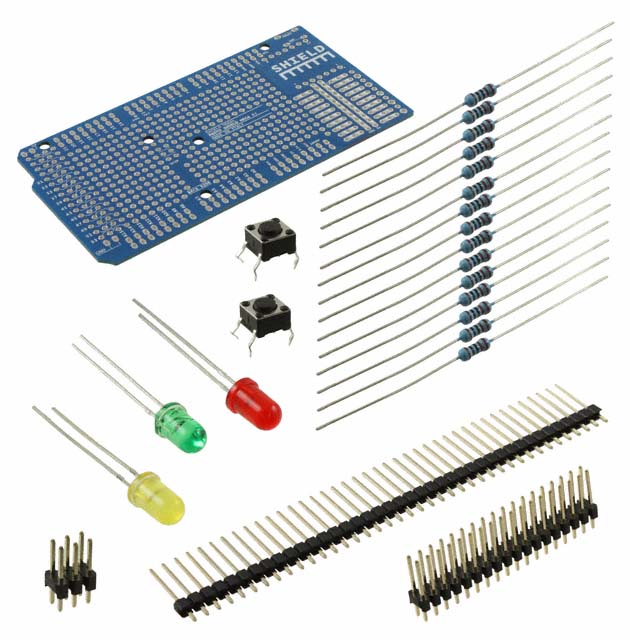

Part Number : A000081

PROTOTYPE KIT ARDUINO MEGA REV 3; Silicon Manufacturer:-; Core Architecture:-; Core Sub-Architecture:-; Silicon Core Number:-; Silicon Family Name:-; For Use With:Arduino MEGA Development Boards; Kit Contents:MEGA Proto KIT Pinhead Connector Pushbutton LED 10kohm 1kohm & 220ohm Resistors; Product Range:-; Features:Arduino Prototyping Shield Makes it Easy to Design Custom Circuits


Part Number : A000052

U4 ARDUINO LEONARDO BOARD; Silicon Manufacturer:Atmel; Silicon Family Name:ATmega; Core Architecture:AVR; Core Sub-Architecture:megaAVR; Silicon Core Number:ATmega32; Kit Contents:Evaluation Board for ATMEGA32U4 MCU; Product Range:-; Features:ATMEGA32U4 MCU USB AC to DC Adapter or Battery Powered; No. of Bits:8bit

Displaying 1 - 20 of 211
