The MAX44298 is a low-side current, voltage, and power monitoring circuit that provides an analog output current proportional to the measured current, voltage, and the internally calculated instantaneous power.Instantaneous power is calculated internally by multiplying the load current and a fraction of the load voltage set by an external resistive divider. All three outputs are scaled to a full-scale current of either 100µA or 50µA. This full-scale current option is set with a simple pin-strap, ISET. An additional output current of either 100µA or 50µA is available at the reference (REF) output; this current can be used to create a reference voltage for the ADC that is being used to measure the power, voltage, and current signals.By providing the ADC with both the measured signals and the input reference voltage, the ADC can make a ratio- metric measurement, allowing improved accuracy. The use of currents, rather than voltage, to convey the mea- sured signals to the ADC eliminates any errors caused by voltage drops across the parasitic resistance of PCB, which can be significant for high-current systems. To allow full-system calibration, the CAL bump provides a way to calibrate gain and offset for the ADC.The MAX44298 measures load current by using a precision, auto-zeroed current-sense amplifier (CSA), which due to its ultra-low offset voltage allows precise measurement of full-scale voltages of 5mV, 10mV, and 20mV. The load voltage is measured via a user-selectable resistive network, dividing the input voltage down to a full scale of 1.00V.The wide supply voltage range of 3V to 5.5V allows the simple sharing of supplies with either the ADC or a micro-controller. The MAX44298 can be powered down and the outputs will then go high impedance. The device is available in a 2.4mm x 2.4mm, 16-bump WLP package and is specified for the 0°C to +85°C temperature range.ApplicationsPower Monitoring and Management Data Center and TelecomRenewable Energy SystemSmart Battery Packs and Chargers

The MAX5717 and MAX5719 are serial-input, unbuffered 16 and 20-bit voltage-output unipolar digital-to-analog converters (DACs) with integrated feedback resistors that allow bipolar operation when used with an external operational amplifier. These DACs provide low glitch energy, low noise, tight bipolar resistor matching, and high accuracy. The DACs feature 1LSB INL (max, MAX5717A)over the temperature range of -40°C to +105°C. Integrated precision setting resistors make the DACs easy to use. The MAX5717 and MAX5719 feature a 50MHz, 3-wire SPI™, QSPI™, MICROWIRE™, and DSP-compatible serial interface.On power-up, the output resets to zero-scale, providing additional safety for applications which drive valves or other transducers that need to be off on power-up. The DAC output settles in 750ns and has a low offset and gain drift of ±0.1 ppm/°C of FSR. The MAX5717 is functionally similar to the MAX542, but with significantly faster settling time. The MAX5719 provides a similar speed improvement as well as an increase in resolution to 20 bits.ApplicationsAutomatic Test EquipmentAutomatic TuningCommunication SystemsData-Acquisition SystemsGain and Offset AdjustmentPortable InstrumentationProcess Control and Servo LoopsProgrammable Voltage and Current SourcesTest and Measurement Equipment

The MAX6069 ultra-low-power shunt references are ideal for space-critical and low-power applications. They are offered in a 4-bump wafer-level package (WLP), and the minimum operating current is guaranteed to be less than 1µA. These references feature low temperaturecoefficients of less than 20ppm/°C and initial accuracy of better than 0.2%.Available with +1.25V, +2.048V, +2.5V, and 3V outputvoltages, these references can be used as lower-power, higher-precision upgrades to the ICL8069, LM385, LT1004, and LM4040 in much smaller packages. Two grades are available: A and B. The A grade features a temperature coefficient of 25ppm/°C over the extended temperature range of -40°C to +85°C, with an initial accuracy of 0.2%. Grade B features a temperature coefficient of 50ppm/°C over the extended temperature range of -40°C to +85°C, with an initial accuracy of 0.5%. Their tiny wafer-level packages make these references ideal for equipment with very small form factors.Applications4mA–20mA Loop-Powered SensorsA/D and D/A ConvertersPortable MetersPortable SensorsPrecision Regulators

The MAX6072 is a dual-output precision series voltage reference. The product features two outputs, +VREF and +VREF/2. The device exhibits a very low 1/f noise of 2ppm (peak-to-peak). Each output can source and sink 10mA and has an independent sense line. This product has a temperature drift of 6ppm/°C (max) over the ambient temperature range of -40°C to +125°C and an initial accuracy of 0.04%. Three pairs of output voltages are available: 5V/2.5V, 4.096V/2.048V, and 2.5V/1.25V. The product operates with an input voltage range of 2.8V to 5.5V and has sufficient headroom for the highest voltage. It consumes a mere 150µA (typ) of quiescent supply current per reference. The dual voltage outputs make this device ideal for precision ADC applications where the input signal needs to be referred to VREF/2.The MAX6072 is available in a 10-pin μMAX® package and is specified for operation over the extended −40°C to +125°C industrial temperature range.ApplicationsADC/DAC References and Common-ModeSet-PointHigh-Accuracy Industrial and Process ControlPortable MedicalTest and Measurement/ATE

The MAX6072 is a dual-output precision series voltage reference. The product features two outputs, +VREF and +VREF/2. The device exhibits a very low 1/f noise of 2ppm (peak-to-peak). Each output can source and sink 10mA and has an independent sense line. This product has a temperature drift of 6ppm/°C (max) over the ambient temperature range of -40°C to +125°C and an initial accuracy of 0.04%. Three pairs of output voltages are available: 5V/2.5V, 4.096V/2.048V, and 2.5V/1.25V. The product operates with an input voltage range of 2.8V to 5.5V and has sufficient headroom for the highest voltage. It consumes a mere 150µA (typ) of quiescent supply current per reference. The dual voltage outputs make this device ideal for precision ADC applications where the input signal needs to be referred to VREF/2.The MAX6072 is available in a 10-pin μMAX® package and is specified for operation over the extended −40°C to +125°C industrial temperature range.ApplicationsADC/DAC References and Common-ModeSet-PointHigh-Accuracy Industrial and Process ControlPortable MedicalTest and Measurement/ATE

The MAX6072 is a dual-output precision series voltage reference. The product features two outputs, +VREF and +VREF/2. The device exhibits a very low 1/f noise of 2ppm (peak-to-peak). Each output can source and sink 10mA and has an independent sense line. This product has a temperature drift of 6ppm/°C (max) over the ambient temperature range of -40°C to +125°C and an initial accuracy of 0.04%. Three pairs of output voltages are available: 5V/2.5V, 4.096V/2.048V, and 2.5V/1.25V. The product operates with an input voltage range of 2.8V to 5.5V and has sufficient headroom for the highest voltage. It consumes a mere 150µA (typ) of quiescent supply current per reference. The dual voltage outputs make this device ideal for precision ADC applications where the input signal needs to be referred to VREF/2.The MAX6072 is available in a 10-pin μMAX® package and is specified for operation over the extended −40°C to +125°C industrial temperature range.ApplicationsADC/DAC References and Common-ModeSet-PointHigh-Accuracy Industrial and Process ControlPortable MedicalTest and Measurement/ATE

The MAX6072 is a dual-output precision series voltage reference. The product features two outputs, +VREF and +VREF/2. The device exhibits a very low 1/f noise of 2ppm (peak-to-peak). Each output can source and sink 10mA and has an independent sense line. This product has a temperature drift of 6ppm/°C (max) over the ambient temperature range of -40°C to +125°C and an initial accuracy of 0.04%. Three pairs of output voltages are available: 5V/2.5V, 4.096V/2.048V, and 2.5V/1.25V. The product operates with an input voltage range of 2.8V to 5.5V and has sufficient headroom for the highest voltage. It consumes a mere 150µA (typ) of quiescent supply current per reference. The dual voltage outputs make this device ideal for precision ADC applications where the input signal needs to be referred to VREF/2.The MAX6072 is available in a 10-pin μMAX® package and is specified for operation over the extended −40°C to +125°C industrial temperature range.ApplicationsADC/DAC References and Common-ModeSet-PointHigh-Accuracy Industrial and Process ControlPortable MedicalTest and Measurement/ATE

DeepCover® embedded security solutions cloak sensitivedata under multiple layers of advanced physical securityto provide the most secure key storage possible.The DeepCover Secure Authenticator (MAX66240) is atransponder IC that combines an ISO/IEC 15693 and ISO18000-3 Mode 1-compatible RF front-end, a FIPS 180-based SHA-256 engine, and 4096 bits of user EEPROM in a single chip. A bidirectional security model enforcestwo-way authentication between a host system and theMAX66240. Each device has its own guaranteed unique64-bit ROM ID that is factory programmed into the chip.This ROM ID is used as a fundamental input parameterfor cryptographic operations and serves as an electronicserial number within the application.ApplicationsAccess ControlAsset TrackingMedical Sensor Authentication and CalibrationPrinter Cartridge Configuration and MonitoringSystem Intellectual Property Protection

DeepCover® embedded security solutions cloak sensitivedata under multiple layers of advanced physical securityto provide the most secure key storage possible.The DeepCover Secure Authenticator (MAX66240) is atransponder IC that combines an ISO/IEC 15693 and ISO18000-3 Mode 1-compatible RF front-end, a FIPS 180-based SHA-256 engine, and 4096 bits of user EEPROM in a single chip. A bidirectional security model enforcestwo-way authentication between a host system and theMAX66240. Each device has its own guaranteed unique64-bit ROM ID that is factory programmed into the chip.This ROM ID is used as a fundamental input parameterfor cryptographic operations and serves as an electronicserial number within the application.ApplicationsAccess ControlAsset TrackingMedical Sensor Authentication and CalibrationPrinter Cartridge Configuration and MonitoringSystem Intellectual Property Protection

The MAX77596 is a small, synchronous buck converterwith integrated switches. The device is designed todeliver up to 300mA with input voltages from 3.5V to24V, while using only 1.1μA quiescent current at no load(fixed-output version). Voltage quality can be monitoredby observing the active-low RESET signal. The device can operatenear dropout by running at 98% duty cycle, making it idealfor battery-powered applications.The device offers fixed 3.3V and 5V output versions, as well asan adjustable version. The adjustable version allows theuser to program the output voltage between 1V and 10Vby using a resistor-divider. Frequency is fixed at 1.7MHz,which allows for small external components and reducedoutput ripple. The device offers both forced-PWM andskip modes of operation, with ultra-low quiescent currentof 1.1μA in skip mode.The MAX77596 is available in a small (2mm x 2.5mm)10-pin TDFN package and operates across the -40°C to+85°C temperature range.ApplicationsPoint-of-Load ApplicationsPortable Devices Powered from 2s, 3s, or 4s Li+ BatteriesUSB Type-C Devices

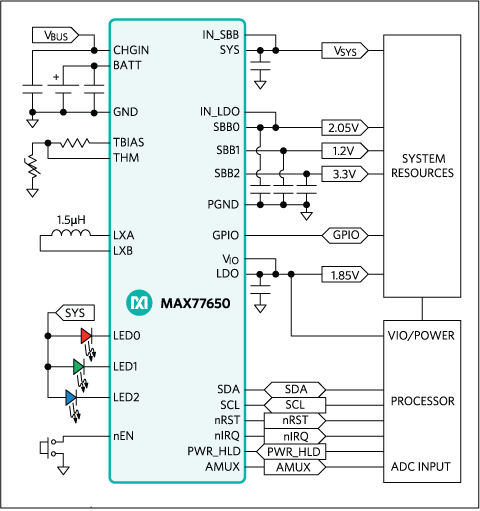

The MAX77650/MAX77651 provide highly-integrated battery charging and power supply solutions for low-power wearable applications where size and efficiency are critical. Both devices feature a SIMO buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications. A highly configurable linear charger supports a wide range of Li+ battery capacities and includes battery temperature monitoring for additional safety (JEITA).The devices include other features such as current sinks for driving LED indicators and an analog multiplexer that switches several internal voltage and current signals to an external node for monitoring with an external ADC. A bidirectional I2C interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality when the devices are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market. Design Solution: Can You Hear Me Now? Extend the Life of Your Hearable Device › Design Solution: Hearables Get Longer Life with SIMO ›ApplicationsBluetooth Headphones/HearablesFitness, Health, and Activity MonitorsInternet of Things (IoT)Portable Devices

The MAX77650/MAX77651 provide highly-integrated battery charging and power supply solutions for low-power wearable applications where size and efficiency are critical. Both devices feature a SIMO buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications. A highly configurable linear charger supports a wide range of Li+ battery capacities and includes battery temperature monitoring for additional safety (JEITA).The devices include other features such as current sinks for driving LED indicators and an analog multiplexer that switches several internal voltage and current signals to an external node for monitoring with an external ADC. A bidirectional I2C interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality when the devices are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market. Design Solution: Can You Hear Me Now? Extend the Life of Your Hearable Device › Design Solution: Hearables Get Longer Life with SIMO ›ApplicationsBluetooth Headphones/HearablesFitness, Health, and Activity MonitorsInternet of Things (IoT)Portable Devices

The MAX77650/MAX77651 provide highly-integrated battery charging and power supply solutions for low-power wearable applications where size and efficiency are critical. Both devices feature a SIMO buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications. A highly configurable linear charger supports a wide range of Li+ battery capacities and includes battery temperature monitoring for additional safety (JEITA).The devices include other features such as current sinks for driving LED indicators and an analog multiplexer that switches several internal voltage and current signals to an external node for monitoring with an external ADC. A bidirectional I2C interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality when the devices are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market. Design Solution: Can You Hear Me Now? Extend the Life of Your Hearable Device › Design Solution: Hearables Get Longer Life with SIMO ›ApplicationsBluetooth Headphones/HearablesFitness, Health, and Activity MonitorsInternet of Things (IoT)Portable Devices

The MAX77650/MAX77651 provide highly-integrated battery charging and power supply solutions for low-power wearable applications where size and efficiency are critical. Both devices feature a SIMO buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications. A highly configurable linear charger supports a wide range of Li+ battery capacities and includes battery temperature monitoring for additional safety (JEITA).The devices include other features such as current sinks for driving LED indicators and an analog multiplexer that switches several internal voltage and current signals to an external node for monitoring with an external ADC. A bidirectional I2C interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality when the devices are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market. Design Solution: Can You Hear Me Now? Extend the Life of Your Hearable Device › Design Solution: Hearables Get Longer Life with SIMO ›ApplicationsBluetooth Headphones/HearablesFitness, Health, and Activity MonitorsInternet of Things (IoT)Portable Devices

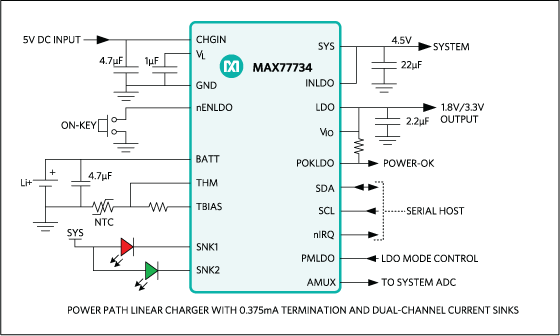

The MAX77734 is a tiny PMIC for applications where size and simplicity are critical. The IC integrates a linear-mode Li+ battery charger, low-dropout linear regulator (LDO), analog multiplexer, and dual-channel current sink driver.The charger is designed for small-battery systems that require accurate termination as low as 0.375mA. The circuit can instantly regulate the system voltage when an input source is connected even if the battery is depleted.The 150mA LDO's output is programmable between 0.8V and 3.975V with I²C. The analog MUX enables an external ADC to perform conversions on battery V&I signals for power monitoring. The current sinks are capable of sinking 12.8mA each and can be programmed for LEDs to blink in custom patterns.The MAX77734 is available in a 20-bump, 0.4mm pitch wafer-level package (WLP). For a similar product with additional regulators, see the MAX77650.Design Solution: Can You Hear Me Now? Extend the Life of Your Hearable Device ›ApplicationsAction Cameras, Wearable/Body CamerasFitness Bands and other Bluetooth WearablesHearables: Headsets, Headphones, EarbudsLow-Power Internet of Things (IoT) Gadgets

The MAX77734 is a tiny PMIC for applications where size and simplicity are critical. The IC integrates a linear-mode Li+ battery charger, low-dropout linear regulator (LDO), analog multiplexer, and dual-channel current sink driver.The charger is designed for small-battery systems that require accurate termination as low as 0.375mA. The circuit can instantly regulate the system voltage when an input source is connected even if the battery is depleted.The 150mA LDO's output is programmable between 0.8V and 3.975V with I²C. The analog MUX enables an external ADC to perform conversions on battery V&I signals for power monitoring. The current sinks are capable of sinking 12.8mA each and can be programmed for LEDs to blink in custom patterns.The MAX77734 is available in a 20-bump, 0.4mm pitch wafer-level package (WLP). For a similar product with additional regulators, see the MAX77650.Design Solution: Can You Hear Me Now? Extend the Life of Your Hearable Device ›ApplicationsAction Cameras, Wearable/Body CamerasFitness Bands and other Bluetooth WearablesHearables: Headsets, Headphones, EarbudsLow-Power Internet of Things (IoT) Gadgets

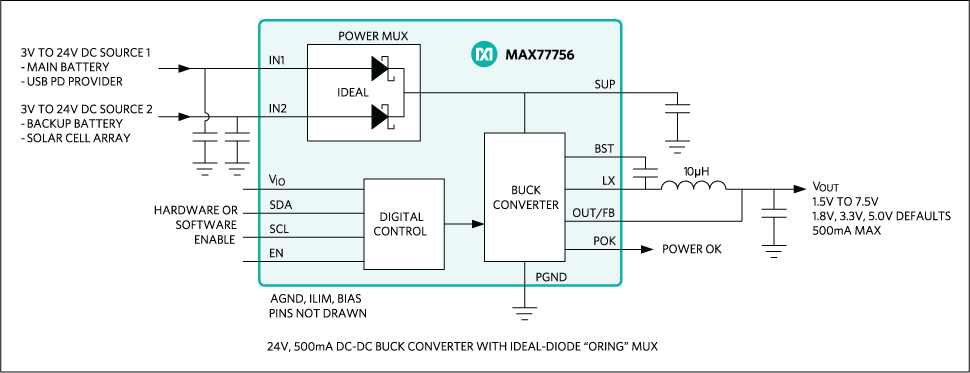

The MAX77756 is a synchronous 500mA step-down DC-DC converter with integrated dual-input power multiplexer (MUX). The converter operates on an input supply as low as 3.0V and as high as 24V. Default output voltage is factory-programmed to either 1.8V, 3.3V, or 5.0V. Output voltage is further adjustable through external resistors or an I2C serial interface. The dual-input power MUX selects the higher voltage from two different input sources to power the step-down converter. Control circuitry ensures that only one channel of the MUX is on at a time to prevent cross-conduction between input sources. For single-input applications, the MUX can be bypassed and the step-down converter can be powered directly from the SUP pin. The MAX77756 is available in a small 2.33mm × 1.42mm (0.7mm max height), 15-bump wafer-level package (WLP). For a similar buck converter without a power MUX, refer to the MAX77596.Design Solution: Pack More Power in Your Cool, Small Smart-Home Hub ›ApplicationsBattery-Powered Systems, Backup Battery, Uninterruptible RailsHome Automation, Low IQ Smart HubsNotebook and Tablet ComputersUSB Type-C Power Delivery Accessories and Devices

The MAX77756 is a synchronous 500mA step-down DC-DC converter with integrated dual-input power multiplexer (MUX). The converter operates on an input supply as low as 3.0V and as high as 24V. Default output voltage is factory-programmed to either 1.8V, 3.3V, or 5.0V. Output voltage is further adjustable through external resistors or an I2C serial interface. The dual-input power MUX selects the higher voltage from two different input sources to power the step-down converter. Control circuitry ensures that only one channel of the MUX is on at a time to prevent cross-conduction between input sources. For single-input applications, the MUX can be bypassed and the step-down converter can be powered directly from the SUP pin. The MAX77756 is available in a small 2.33mm × 1.42mm (0.7mm max height), 15-bump wafer-level package (WLP). For a similar buck converter without a power MUX, refer to the MAX77596.Design Solution: Pack More Power in Your Cool, Small Smart-Home Hub ›ApplicationsBattery-Powered Systems, Backup Battery, Uninterruptible RailsHome Automation, Low IQ Smart HubsNotebook and Tablet ComputersUSB Type-C Power Delivery Accessories and Devices

The MAX77756 is a synchronous 500mA step-down DC-DC converter with integrated dual-input power multiplexer (MUX). The converter operates on an input supply as low as 3.0V and as high as 24V. Default output voltage is factory-programmed to either 1.8V, 3.3V, or 5.0V. Output voltage is further adjustable through external resistors or an I2C serial interface. The dual-input power MUX selects the higher voltage from two different input sources to power the step-down converter. Control circuitry ensures that only one channel of the MUX is on at a time to prevent cross-conduction between input sources. For single-input applications, the MUX can be bypassed and the step-down converter can be powered directly from the SUP pin. The MAX77756 is available in a small 2.33mm × 1.42mm (0.7mm max height), 15-bump wafer-level package (WLP). For a similar buck converter without a power MUX, refer to the MAX77596.Design Solution: Pack More Power in Your Cool, Small Smart-Home Hub ›ApplicationsBattery-Powered Systems, Backup Battery, Uninterruptible RailsHome Automation, Low IQ Smart HubsNotebook and Tablet ComputersUSB Type-C Power Delivery Accessories and Devices

The MAX77801 is a high-efficiency, step-up/step-down(buck-boost) converter targeted for single-cell, Li-ionbattery-powered applications. The device maintains aregulated output voltage from 2.6V to 4.18V across aninput voltage range of 2.3V to 5.5V. The device supportsup to 2A of output current in boost mode and up to 3A inbuck mode.The device seamlessly transitions between buck andboost modes. A unique control algorithm allows high-efficiencyand outstanding load and line-transient response.Dedicated enable and power-OK pins allow simple hardwarecontrol. An I2C serial interface is optionally used fordynamic voltage scaling, system power optimization, andfault read-back.The MAX77801 is available in a 20-bump, 1.83mm x2.13mm wafer-level package (WLP) and also 20-pin,4mm x 4mm TQFN.ApplicationsAR/VR HeadsetsHandheld Scanners, Mobile Payment Terminals, Security CamerasSingle-Cell, Li-Ion Battery-Powered Devices
