AD9958/PCBZ
Analog Devices Inc.The AD9958 consists of two DDS cores that provide independentfrequency, phase, and amplitude control on each channel.This flexibility can be used to correct imbalances betweensignals due to analog processing, such as filtering, amplification,or PCB layout related mismatches. Because both channels sharea common system clock, they are inherently synchronized.Synchronization of multiple devices is supported.The AD9958 can perform up to a 16-level modulation offrequency, phase, or amplitude (FSK, PSK, ASK). Modulation isperformed by applying data to the profile pins. In addition, theAD9958 also supports linear sweep of frequency, phase, oramplitude for applications such as radar and instrumentation.The AD9958 serial I/O port offers multiple configurations toprovide significant flexibility. The serial I/O port offers an SPIcompatiblemode of operation that is virtually identical to theSPI operation found in earlier Analog Devices, Inc., DDSproducts. Flexibility is provided by four data pins (SDIO_0 /SDIO_1 / SDIO_2 / SDIO_3) that allow four programmablemodes of serial I/O operation.The AD9958 uses advanced DDS technology that provides lowpower dissipation with high performance. The device incorporatestwo integrated, high speed 10-bit DACs with excellent widebandand narrow-band SFDR. Each channel has a dedicated 32-bitfrequency tuning word, 14 bits of phase offset, and a 10-bitoutput scale multiplier.The DAC outputs are supply referenced and must be terminatedinto AVDD by a resistor or an AVDD center-tappedtransformer. Each DAC has its own programmable reference toenable different full-scale currents for each channel.The DDS acts as a high resolution frequency divider with theREFCLK as the input and the DAC providing the output. TheREFCLK input source is common to both channels and can bedriven directly or used in combination with an integratedREFCLK multiplier (PLL) up to a maximum of 500 MSPS. ThePLL multiplication factor is programmable from 4 to 20, ininteger steps. The REFCLK input also features an oscillatorcircuit to support an external crystal as the REFCLK source.The crystal must be between 20 MHz and 30 MHz. The crystalcan be used in combination with the REFCLK multiplier.The AD9958 comes in a space-saving 56-lead LFCSP package.The DDS core (AVDD and DVDD pins) is powered by a 1.8 Vsupply. The digital I/O interface (SPI) operates at 3.3 V andrequires the pin labeled DVDD_I/O (Pin 49) be connectedto 3.3 V.The AD9958 operates over the industrial temperature range of?40?C to +85?C.Applications Agile local oscillators Phased array radars/sonars Instrumentation Synchronized clocking RF source for AOTF Single-side band suppressed carriers Quadrature communications
EVAL-ADCM
Analog Devices Inc.The ADcmXL3021 is a complete vibration sensing system that combines high performance vibration sensing (using micro-electromechanical systems (MEMS) accelerometers) with a variety of signal processing functions to simplify the development of smart sensor nodes in condition-based monitoring (CBM) systems. The typical ultralow noise density (26 ?g/?Hz) in the MEMS accelerometers supports excellent resolution. The wide bandwidth (dc to 10 kHz within 3 dB flatness) enables tracking of key vibration signatures on many machine platforms.The signal processing includes high speed data sampling (220 kSPS), 4096 time sample record lengths, filtering, windowing, fast Fourier transform (FFT), user configurable spectral or time statistic alarms, and error flags. The serial peripheral interface (SPI) provides access to a register structure that contains the vibration data and a wide range of user configurable functions.The ADcmXL3021 is available in a 23.7 mm ? 27.0 mm ? 12.4 mm aluminum package with four mounting flanges to support installation with standard machine screws. This package provides consistent mechanical coupling to the core sensors over a broad frequency range. The electrical interface is through a 14-pin connector on a 36 mm flexible cable, which enables a wide range of location and orientation options for system mating connectors.The ADcmXL3021 requires only a single, 3.3 V power supply and supports an operating temperature range of ?40?C to +105?C.Applications Vibration analysis CBM systems Machine health Instrumentation and diagnostics Safety shutoff sensing
Telecom -48V OR-ing Diode replacement product TPS2350 Eval Module
Texas InstrumentsTelecom -48V OR-ing Diode replacement product TPS2350 Eval Module
Single Cell Impedance Track? Battery Fuel Gauge With Integrated LDO Evaluation Module | Gas Gauge
Texas InstrumentsSingle Cell Impedance Track? Battery Fuel Gauge With Integrated LDO Evaluation Module | Gas Gauge

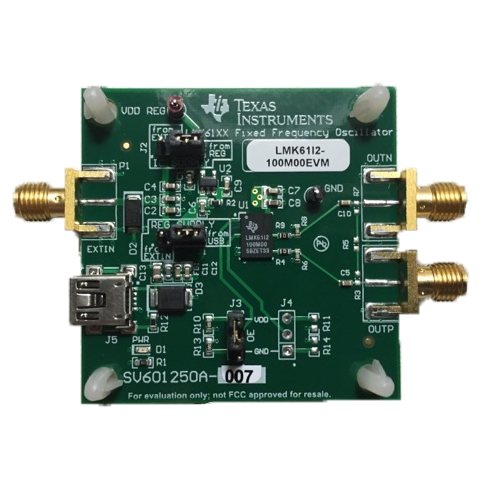

LMK61I2-100M00 Ultra-Low-Jitter Fixed Frequency Oscillator EVM
Texas InstrumentsLMK61I2-100M00 Ultra-Low-Jitter Fixed Frequency Oscillator EVM
DC3219A
Analog Devices Inc.The LT8625S synchronous step-down regulator features third-generation Silent Switcher technology which is uniquely designed to combine an ultralow noise reference with Silent Switcher architecture in order to achieve both high efficiency and excellent wideband noise performance.The innovative ultralow noise architecture provides exceptional low frequency (0.1Hz?100kHz) output noise performance in a switching regulator, independent of output voltage. Silent Switcher architecture minimizes EMI emissions while delivering high efficiency at high switching frequencies.?The LT8625S is ideal for high current, noise sensitive applications which benefit from the high efficiency of a synchronous switching regulator.APPLICATIONS RF Power Suppliers: PLLs, VCOs, Mixers, LNAs, PAs High Speed/High Precision ADCs/DACs Low Noise Instrumentation
100-pin Target Development Board and MSP-FET Programmer Bundle for MSP430F5x MCUs
Texas Instruments100-pin Target Development Board and MSP-FET Programmer Bundle for MSP430F5x MCUs
STEVAL-MKI233KA
STMicroelectronicsAcceleration Sensor Development Tools IS330IS evaluation kit with embedded ISPU for usage with NanoEdge.AI Studio
FDC2114 with Two Capacitive Sensors Evaluation Module
Texas InstrumentsFDC2114 with Two Capacitive Sensors Evaluation Module
ADPA7002-EVALZ
Analog Devices Inc.The ADPA7002CHIP is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), distributed power amplifier that operates from 20 GHz to 44 GHz. The amplifier provides 15 dB of small signal gain, 28 dBm output power at 1 dB gain compression (P1dB), and a typical output third-order intercept (IP3) of 40 dBm. The amplifier requires 600 mA from a 5 V supply on VDD2A, VDD2B, and VDD1. The ADPA7002CHIP also features inputs/outputs (I/Os) that are internally matched to 50 ?, and facilitates integration into multichip modules (MCMs). All data is taken with the on substrate chip connected via two wire bonds that are 0.025 mm (1 mil) wide and 0.31 mm (12 mils) long.Applications Military and space Test instrumentation

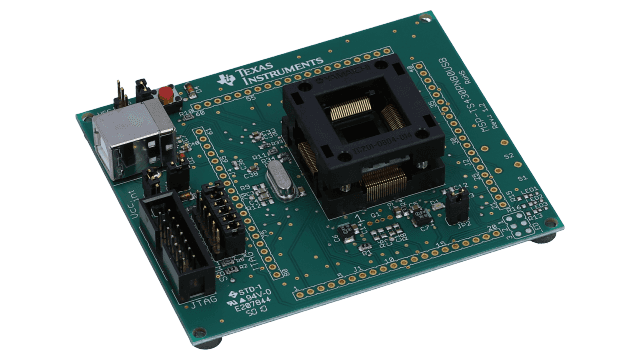

MSP-TS430PN80USB - 80-pin Target Development Board for MSP430F5x MCUs
Texas InstrumentsMSP-TS430PN80USB - 80-pin Target Development Board for MSP430F5x MCUs
