LM3402MA (Mini SOIC) - 0.5A Constant Current Buck Regulator for HB LEDs (LM3402EVAL Board)
Texas InstrumentsLM3402MA (Mini SOIC) - 0.5A Constant Current Buck Regulator for HB LEDs (LM3402EVAL Board)
TPS563219 17V Input, 3A Synchronous Step-Down Regulator in SOT-23 Evaluation Module
Texas InstrumentsTPS563219 17V Input, 3A Synchronous Step-Down Regulator in SOT-23 Evaluation Module
Programmable Output Voltage Ultra-Low Power Buck Converter Evaluation Module
Texas InstrumentsProgrammable Output Voltage Ultra-Low Power Buck Converter Evaluation Module

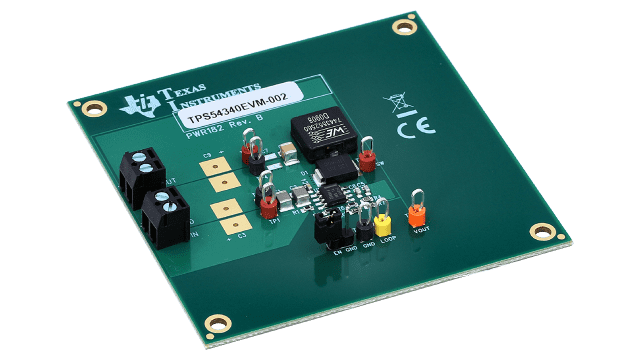

TPS54340 Step-Down Converter Evaluation Module
Texas InstrumentsTPS54340 Step-Down Converter Evaluation Module
Battery Charge Solution for Single-Cell Li-Ion Battery-Powered Systems Evaluation Module
Texas InstrumentsBattery Charge Solution for Single-Cell Li-Ion Battery-Powered Systems Evaluation Module
LM5017 Isolated Bias Supply Evaluation Board
Texas InstrumentsLM5017 Isolated Bias Supply Evaluation Board
DLPC6401-based DLP Display EVM
Texas InstrumentsThis evaluation module (EVM) contains TI's 0.45WXGA chipset (DLP4500 and DLPC6401) designed for data and video display applications. The EVM offers a compelling combination of resolution, brightness, and programmability.
The EVM is available through a third party partner, eProtech.
Included with the Evaluation Module:
DLP 0.45 WXGA chipset (DLP4500 and DLPC6401)
RGB LED light engine
DMD controller board
LED Driver circuit to control RGB LEDs
Features:
RGB LED light engine with 200L light output
Onboard LED Driver with 0-6A LED Driver
Simultaneous RGB LED operation
Image or video display up to WXGA resolution (1280x800)
Image or video display input over HDMI up to WXGA resolution
HDMI interfaces
What's included:
1 box
1 DLPC6401 based evaluation board
1 optical engine
1 HDMI cable
TPS7A1601 low-dropout (LDO) linear regulator evaluation module
Texas InstrumentsTPS7A1601 low-dropout (LDO) linear regulator evaluation module
ADA4960-1ACP-EBZ
Analog Devices Inc.The ADA4960-1 is a high performance, differential amplifier optimized for RF and IF applications. It achieves better than 63 dB IMD3 performance for frequencies up to and beyond 1 GHz, making it an ideal driver for 8-bit to 10-bit giga-sample analog-to-digital converters (ADCs).The buffered inputs of the ADA4960-1 isolate the gain-setting resistor (RG) from the signal inputs, maintaining a constant 10 k? input resistance, easing matching and input drive requirements. The ADA4960-1 has a nominal 150 ? differential output impedance.The ADA4960-1 is optimized for wideband, low distortion performance for frequencies up to and beyond 1 GHz. These attributes, together with its adjustable gain capability, make this device the amplifier of choice for general-purpose IF and broadband applications where low distortion, noise, and power are critical.The device is optimized for the best combination of slew rate, bandwidth, and broadband distortion. These attributes allow it to drive a wide variety of ADCs. It is ideally suited for driving mixers, pin diode attenuators, SAW filters, and multi-element discrete devices.The user accessible gain adjust and bandwidth extension features allow configuration of the ADA4960-1 for line driver and channel equalization applications.The quiescent current of the ADA4960-1 is typically 60 mA. When disabled, it consumes less than 3 mA, offering excellent input-to-output isolation.Fabricated on an Analog Devices, Inc., high speed SiGe process, the ADA4960-1 is available in a compact 3 mm ? 3 mm, 16-lead LFCSP. It operates over the temperature range of ?40?C to +85?C.Applications Differential ADC drivers for giga-sample ADCs GBPS line drivers with pre-emphasis High speed data acquisition Electronic surveillance countermeasures Pulse capture and conditioning Oscilloscopes Satellite communications Single-ended-to-differential converters RF/IF gain blocks
ADAR1000EVAL1Z
Analog Devices Inc.The ADAR1000 is a 4-channel, X and Ku frequency band, beamforming core chip for phased arrays. This device operates in half-duplex between receive and transmit modes. In receive mode, input signals pass through four receive channels and are combined and output at the common RF_IO pin. In transmit mode, the RF_IO input signal is split and passes through the four transmit channels. In both modes, the ADAR1000 provides a ?31 dB gain adjustment range and a full 360? phase adjustment range in each radio frequency (RF) channel, with 6-bit resolution (less than ?0.5 dB and 2.8?, respectively).A simple 4-wire serial port interface (SPI) controls all of the on-chip registers. In addition, two address pins allow SPI control of up to four devices on the same serial lines. Dedicated transmit and receive load pins also provide synchronization of all ADAR1000 chips in the same array, and a single pin controls fast switching between the transmit and receive modes. The ADAR1000 is fabricated in a silicon-germanium, bipolar CMOS (BiCMOS) process. The device is available in a compact, 88-terminal, 7 mm ? 7 mm, LGA package and is specified from ?40?C to +85?C.APPLICATIONS Phased array radar Satellite communications systems
ADAR2001-EVALZ
Analog Devices Inc.The ADAR2001 is a transmitter IC optimized for millimeter wave body scanning applications. Accepting a single-ended continuous wave (CW) input signal between 2.5 GHz and 10 GHz, the ADAR2001 provides gain, 4? frequency multiplication, harmonic filtering, 1:4 signal splitting, and four independently controllable power amplifiers (PAs) with differential outputs designed to directly drive dipole antennas with differential inputs.All device functions and configuration options can be accessed by a 3-wire or 4-wire Analog Devices, Inc., serial peripheral interface (SPI).Two state machines are also integrated into the ADAR2001, which facilitate easy configuration, control, and fast switching of the frequency multiplier, filter, and transmitter sections. These sequencers are programmed through the SPI and are then operated by pulsed inputs (reset and advance).The output power and chip temperature can be monitored by four on-chip detectors and a temperature sensor whose outputs are multiplexed to an 8-bit ADC. The ADAR2001 requires only a single 2.5 V supply with power consumption of 450 mW with one channel turned on.The ADAR2001 is available in a compact, 40-terminal, 6 mm ? 6 mm LGA package and is specified from ?40?C to +85?C.APPLICATIONS Millimeter Wave Imaging Security Medical Industrial Wideband local oscillator (LO) multiplier/distributor
ADCLK846/PCBZ
Analog Devices Inc.The ADCLK846 is a 1.2 GHz/250 MHz, LVDS/CMOS, fanout buffer optimized for low jitter and low power operation. Possible configurations range from 6 LVDS to 12 CMOS outputs, including combinations of LVDS and CMOS outputs. Two control lines are used to determine whether fixed blocks of outputs are LVDS or CMOS outputs.The clock input accepts various types of single-ended and differential logic levels including LVPECL, LVDS, HSTL, CML, and CMOS.Table 8 provides interface options for each type of connection. The SLEEP pin enables a sleep mode to power down the device.This device is available in a 24-pin LFCSP package. It is specified for operation over the standard industrial temperature range of ?40?C to +85?C.APPLICATIONS Low jitter clock distribution Clock and data signal restoration Level translation Wireless communications Wired communications Medical and industrial imaging ATE and high performance instrumentation
