Data Acquisition ADCs/DACs - Specialised 12Ch 7Simul Sampling Ana Motor Cntrl

The IWR6843 is an integrated single chip mmWave sensor based on FMCW radar technology capable of operation in the 60-GHz to 64-GHz band. It is built with TI’s low power 45-nm RFCMOS process and enables unprecedented levels of integration in an extremely small form factor. The IWR6843 is an ideal solution for low power, self-monitored, ultra-accurate radar systems in the industrial space. Features: FMCW Transceiver Integrated PLL, Transmitter, Receiver, Baseband, and A2D 60- to 64-GHz Coverage With 4-GHz Continuous Bandwidth Four Receive Channels Three Transmit Channels Ultra-Accurate Chirp Engine Based on Fractional-N PLL TX Power: 10 dBm RX Noise Figure: 14 dB Phase Noise at 1 MHz: –92 dBc/Hz Built-in Calibration and Self-Test ARM® Cortex®-R4F-Based Radio Control System Built-in Firmware (ROM) Self-calibrating System Across Frequency and Temperature C674x DSP for Advanced Signal Processing Hardware Accelerator for FFT, Filtering, and CFAR Processing ARM R4F Microcontroller for Object Detection, and Interface Control Supports Autonomous Mode (Loading User Application from QSPI Flash Memory) Internal Memory with ECC 1.75 MB, Divided into MSS Program RAM (512 KB), MSS Data RAM (192 KB), DSP L1 RAM (64KB) and L2 RAM (256 KB), and L3 Radar Data Cube Ram (768 KB) Technical Reference Manual Includes Allowed Size Modifications Other Interfaces Available to User Application Up to 6 ADC Channels (Low Sample Rate Monitoring) Up to 2 SPI Ports Up to 2 UARTs 1 CAN-FD Interface I2C GPIOs 2 Lane LVDS Interface for Raw ADC Data and Debug Instrumentation SIL-2 Targeted Power Management Built-in LDO Network for Enhanced PSRR I/Os Support Dual Voltage 3.3 V/1.8 V Clock Source 40.0 MHz Crystal with Internal Oscillator Supports External Oscillator at 40 MHz Supports Externally Driven Clock (Square/Sine) at 40 MHz Easy Hardware Design 0.65-mm Pitch, 161-Pin 10.4 mm × 10.4 mm Flip Chip BGA Package for Easy Assembly and Low-Cost PCB Design Small Solution Size Operating Conditions: Junction Temperature Range of –40ºC to 105ºC

High Speed Operational Amplifiers Wideband Current Feedback

Current & Power Monitors & Regulators Hi-Side Msrmt Bi-Dir Current/Pwr Mon

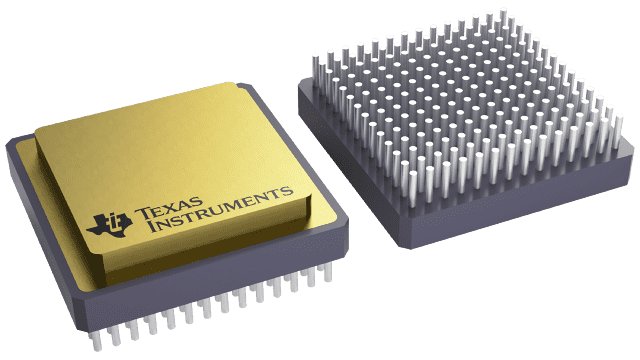

Space grade, 12-bit, dual 3.2-GSPS or single 6.4-GSPS, RF-sampling analog-to-digital converter (ADC) 196-CLGA 25 to 25

Analog to Digital Converters - ADC 12-Bit 200 kSPS Serial Out

Board Mount Temperature Sensors 0.5C Dig Out Temp Sensor

Temperature Sensor Development Tools TMP117 Digital Temperature Sensor Evaluation Board

Switching Voltage Regulators 5.5 to 36V 2A Step Down Swift Conv

16-channel 14-bit high-voltage output DAC with integrated internal reference 40-VQFN -40 to 125

10A H-Bridge Motor Driver with Integrated Current Sensing and Current Sense Output 24-HTSSOP -40 to 125

2A Stepper Motor Driver With Integrated Current Sense and Adaptive Decay Mode 28-WQFN -40 to 125

25-Gbps enhanced multi-rate 2-channel retimer 36-NFBGA -40 to 85

Ultra-low power four-channel digital isolator 16-SSOP -40 to 125

Ultra-low power four-channel digital isolator 16-SSOP -40 to 125

Automotive, high speed, robust EMC six-channel digital isolator 16-SOIC -40 to 125

Automotive, High Speed, Robust EMC Six-Channel Digital Isolators 16-SOIC -40 to 125

Automotive, High Speed, Robust EMC Six-Channel Digital Isolators 16-SOIC -40 to 125

Quad, 10MHz, CMOS, zero-drift, zero-crossover, true RRIO precision operational amplifier ; 14-SOIC -40 to 125

Automotive 300-mA, low-IQ, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125
