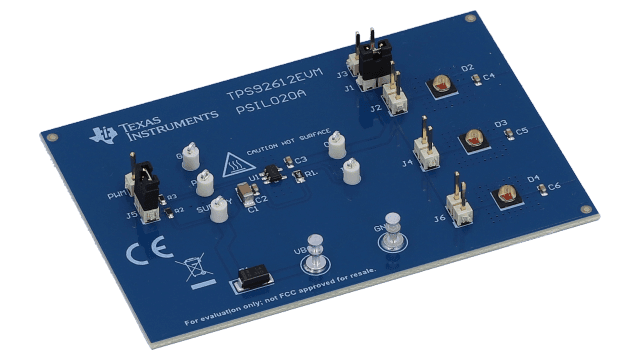

TPS92612-Q1 Single-Channel LED Driver Evaluation Module

Texas Instruments


The TPS92612-Q1 evaluation module (EVM) helps designers evaluate the operation and performance of TPS92612-Q1, a single-channel linear LED driver for automotive lighting applications. It is a simple and elegant solution to deliver constant current for a single LED string with full LED protection.


  • Constant output current set by high-side reference resistor
  • LED short and open detection with auto-recovery
  • Open-fault detection mask during dropout mode

Type: Evaluation Modules & Boards

Part number: TPS92612EVM

More details from Texas Instruments


Distributor SKU Stock Cost
Digi-Key 296-52600-ND 2 $178.80 Buy
Texas Instruments TPS92612EVM 6 $149.00 Buy
Texas Instruments TPS92612EVM 6 $149.00 Buy
Mouser Electronics 595-TPS92612EVM 1 $195.23 Buy
Verical Marketplace TPS92612EVM 9 $171.18 Buy
AVNET Express TPS92612EVM $175.82 Buy
Arrow North American Components TPS92612EVM 9 $171.18 Buy

Technical Documents


Part Number Name Companion Part
TPS92612QDBVRQ1 TPS92612QDBVRQ1 Buy Datasheet
