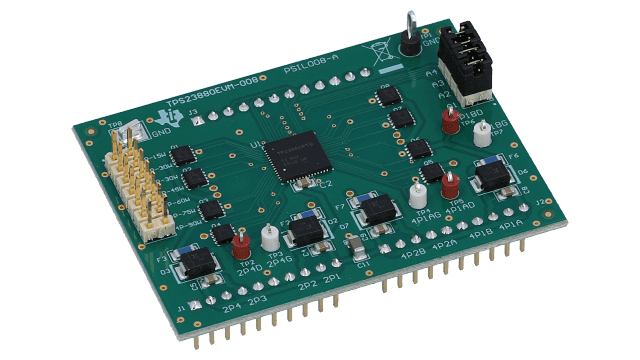

TPS23880 EVM Daughter Card for IEEE 802.3bt-Ready PoE PSE Applications

Texas Instruments

Description

The TPS23880EVM daughter card features the octal channel, TPS23880, IEEE 802.3bt ready PoE PSE controller. When paired with the IEEE802.3bt ready PSE motherboard BOOST-PSEMTHR-007 (sold separately), user's can evaluate the TPS23800 device.

The full PoE Evaluation ecosystem includes the following (optional companion tools also listed):

  • TPS23880 Evaluation System
    • BOOST-PSEMTHR-007: Mother board for IEEE802.3bt ready PoE PSE applications (sold separately)
    • TPS23880EVM-008: TPS23880 Daughter Card for IEEE802.3bt ReadyPoE PSE Application
    • USB2ANY Interface Adaptor (MUST HAVE COMPANION): Used with TPS23880EVM GUI for I2C Interaction with TPS23880EVM (BOOST-PSEMTHR-007 & TPS23880EVM-008)
    • MSP-EP430FR5969 (OPTIONAL COMPANION): MSP430 LaunchPad Development Kit used with Code Composer Studio for TPS23880EVM-008 firmware development
  • TPS2373 Evaluation Module for IEEE802.3bt PoE PD Applications
  • TPS2372-4EVM Evaluation Module for IEEE802.3bt PoE PD Applications
  • TPS2372-3 IEEE802.3bt Type 3 PoE PD Evaluation Module for Lighting
  • TPS23880 Power over Ethernet MSP430 Reference Code

Features:

  • Eight IEEE802.3bt ready channel PoE PSE controller
  • Pin programmable I2C addresses
  • Low cost 2-layer PCB
  • Flexible operation modes: Auto, Semi-Auto and Manual


Type: Daughter Cards

Part number: TPS23880EVM-008

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-50688-ND 1 $206.64 Buy
Texas Instruments TPS23880EVM-008 72 $199.00 Buy
Texas Instruments TPS23880EVM-008 72 $199.00 Buy
Mouser Electronics 595-TPS23880EVM-008 12 $228.63 Buy
AVNET Express TPS23880EVM-008 $205.99 Buy
Arrow North American Components TPS23880EVM-008 0 $206.03 Buy
Verical Marketplace TPS23880EVM-008 72 $221.70 Buy
