TMP117 Digital Temperature Sensor Evaluation Board

Texas Instruments

Description

Improving on the TMP116 family of high-accuracy temperature sensors, the TMP117 provides up to ±0.1°C accuracy over the entire range of human body temperature (30°C to 42°C) and ±0.2°C accuracy over its whole operating range of -55°C to 150°C, making it the world’s leading ultra-high-precision temperature sensor. Designed as a pin-to-pin compatible replacement for the TMP116, the TMP117 provides 16-bits of temperature data with each reading, translating to a temperature resolution of 7.8125 m°C. The ultra-high accuracy of the TMP117 around human body temperatures makes it suitable for ASTME1112 and ISO-80601 compliant medical applications.

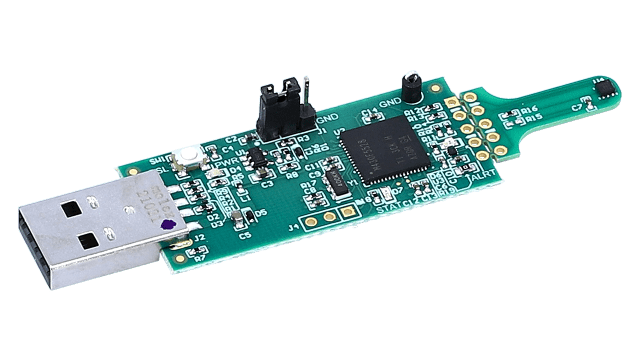

The Texas Instruments TMP117EVM (Evaluation Module) provides the user a simple way to get started with the TMP117. The evaluation module and GUI are designed to provide the user with a quick setup to evaluate the TMP117 and gain familiarity with the device down to the bit-by-bit register level. The EVM also features a perforated break-out portion, which allows the user to separate the TMP117 and still utilize the MSP430 and GUI to interact with and configure the device.

Features:

  • Provides GUI for simple and fast setup
  • Perforated PCB allows sensor to be placed in user’s system
  • Provides best temperature accuracy measurement with 0.0078125°C resolution (16-bit)
  • Example of PCB layout for fast thermal response time
  • GUI runs online or through a desktop installation
  • Supports many platforms (web, windows, linux, osx)

What's included:

  • USB Cable


Type: Evaluation Modules & Boards

Part number: TMP117EVM

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-50683-ND 42 $70.80 Buy
Texas Instruments TMP117EVM 86 $59.00 Buy
Texas Instruments TMP117EVM 86 $59.00 Buy
Mouser Electronics 595-TMP117EVM 240 $77.30 Buy
AVNET Express TMP117EVM $69.62 Buy
Arrow North American Components TMP117EVM 50 $62.00 Buy
Verical Marketplace TMP117EVM 1 $65.79 Buy
