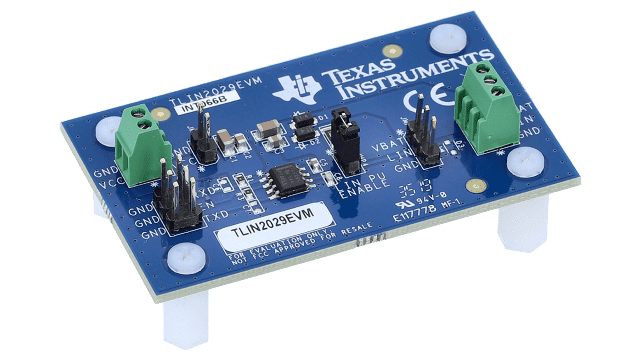

Fault Protected Local Interconnect Network (LIN) Transceiver With Dominant State Timeout EVM

Texas Instruments

Description

This EVM will help designers evaluate device performance, support fast development, and analyze automotive local interconnect network (LIN) systems using TLIN2029 LIN physical layer transceiver devices.

Features:

  • Easy access to all pins of the LIN transceiver
  • Master node pull-up resistance can be enabled via a series jumper
  • Pads provided for common protection/filtering components


Type: Evaluation Modules & Boards

Part number: TLIN2029EVM

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-48046-ND 9 $50.88 Buy
Texas Instruments TLIN2029EVM 54 $49.00 Buy
Texas Instruments TLIN2029EVM 54 $49.00 Buy
Mouser Electronics 595-TLIN2029EVM 48 $56.00 Buy
Arrow North American Components TLIN2029EVM 0 $53.72 Buy
AVNET Express TLIN2029EVM $50.73 Buy
Verical Marketplace TLIN2029EVM 232 $50.73 Buy

Technical Documents

Parts

Part Number Name Companion Part
TLIN1022DRQ1 TLIN1022DRQ1 Buy Datasheet
TLIN1024RGYTQ1 TLIN1024RGYTQ1 Buy Datasheet
TLIN1029DQ1 TLIN1029DQ1 Buy Datasheet
TLIN2022DRQ1 TLIN2022DRQ1 Buy Datasheet
TLIN2024RGYTQ1 TLIN2024RGYTQ1 Datasheet
TLIN2029DQ1 TLIN2029DQ1 Buy Datasheet
