3.5-V to 36-V input, 1-V to 20-V output, 6-A power module evaluation board

Texas Instruments

Description

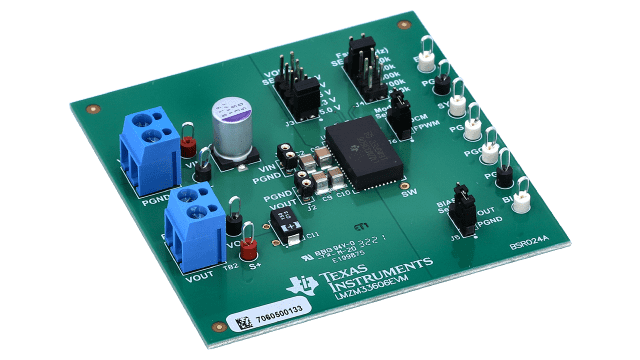

The LMZM33606 evaluation board is configured to evaluate the operation of the LMZM33606 power module for current up to 6 A. The input voltage range is 3.5 V to 36 V. The output voltage range is 1 V to 20 V. The evaluation board makes it easy to evaluate the LMZM33606 operation.

Features:

  • 3.5-V to 36-V Input Voltage Range
  • Up to 6 A of Output Current
  • 1-V to 20-V Output Voltage Range
  • 10 mm x 16 mm QFN package


Type: Evaluation Modules & Boards

Part number: LMZM33606EVM

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-50766-ND 7 $50.88 Buy
Texas Instruments LMZM33606EVM 131 $49.00 Buy
Texas Instruments LMZM33606EVM 131 $49.00 Buy
Mouser Electronics 595-LMZM33606EVM 48 $56.00 Buy
Arrow North American Components LMZM33606EVM 0 $50.73 Buy
AVNET Express LMZM33606EVM $50.73 Buy
Verical Marketplace LMZM33606EVM 10 $57.30 Buy

Technical Documents

Parts

Part Number Name Companion Part
LMZM33606RLXR LMZM33606RLXR Buy Datasheet
