ISO1042DW High Speed, High Performance, Robust EMC Isolated CAN Evaluation Module

Texas Instruments

Description

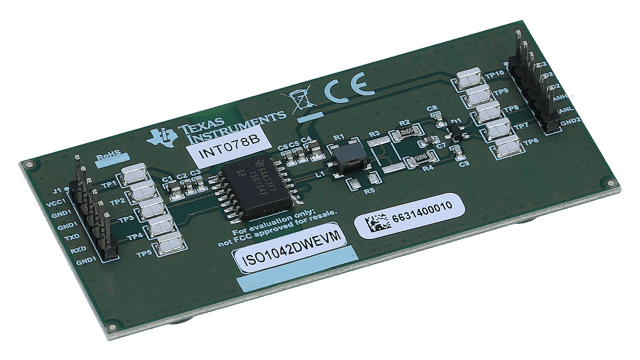

ISO1042DWEVM is an evaluation module used to evaluate the high performance, reinforced isolated CAN ISO1042 in a 16-pin wide body SOIC package (package code DW).

The EVM features enough test points and jumper options to evaluate the device with minimal external components.



Features:

  • High speed, robust EMC isolated CAN
  • Wide supply & level translation range: 2.25 to 5.5 V
  • High signaling rate: CAN FD up to 5 Mbps
  • Isolation barrier life > 25 years
  • Standard footprint available for choke and TVS on board


Type: Evaluation Modules & Boards

Part number: ISO1042DWEVM

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-48235-ND 10 $58.80 Buy
Texas Instruments ISO1042DWEVM 41 $49.00 Buy
Texas Instruments ISO1042DWEVM 41 $49.00 Buy
Mouser Electronics 595-ISO1042DWEVM 4 $65.69 Buy
Verical Marketplace ISO1042DWEVM 6 $56.29 Buy
AVNET Express ISO1042DWEVM $57.82 Buy
Arrow North American Components ISO1042DWEVM 6 $56.29 Buy

Technical Documents

Parts

Part Number Name Companion Part
XISO1042DWVR XISO1042DWVR Buy Datasheet
ISO1042DWV ISO1042DWV Buy Datasheet
ISO1042DW ISO1042DW Buy Datasheet
ISO1042BDWVR ISO1042BDWVR Buy Datasheet
ISO1042BDWV ISO1042BDWV Buy Datasheet
ISO1042BDWR ISO1042BDWR Buy Datasheet
ISO1042BDW ISO1042BDW Buy Datasheet
ISO1042DWVR ISO1042DWVR Buy Datasheet
ISO1042DWR ISO1042DWR Buy Datasheet
