MSP430FR6047 Ultrasonic Sensing Evaluation Module

Texas Instruments

Description

The EVM430-FR6047 evaluation kit is a development platform to evaluate the performance of the MSP430FR6047 MCUs for ultrasonic sensing applications (e.g. smart water meters). The MSP430FR6047 MCU is an ultra-low-power device with an integrated ultrasonic sensing analog front end (USS) for high precision and accurate ultrasonic measurements. The device also includes the low-energy accelerator (LEA) for optimized signal processing that helps in optimizing power for a longer battery lifetime. The EVM provides a flexible solution to enable engineers to quickly evaluate and develop with the MSP430FR6047 MCU with a variety of transducers ranging from 50KHz to 2.5MHz. The EVM has the capability to display the measurement parameters with on-board LCD and connectors for RF communication modules.

Features:

  • USB powered and provision for external power
  • Connector available to interface with different transducer types
  • BoosterPack plug-in module headers available to interface with external boards (I2C, SPI, UART, GPIO) and RF communication modules
  • On-board segmented LCD
  • On-board eZ-FET emulation circuit to enable programming and debug

What's Included:

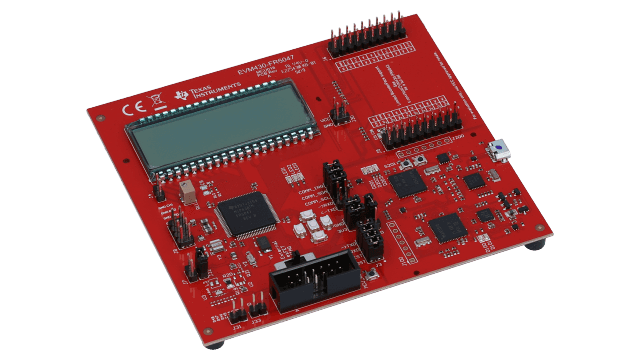

  • EVM430-FR6047 evaluation board
  • Transducer not included


Type: Evaluation Modules & Boards

Part number: EVM430-FR6047

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-49383-ND 10 $258.56 Buy
Texas Instruments EVM430-FR6047 130 $249.00 Buy
Texas Instruments EVM430-FR6047 130 $249.00 Buy
Mouser Electronics 595-EVM430-FR6047 69 $284.57 Buy
AVNET Europe EVM430-FR6047 Buy
AVNET Express EVM430-FR6047 $257.69 Buy

Technical Documents

Parts

Part Number Name Companion Part
MSP430FR6047IPZ MSP430FR6047IPZ Buy Datasheet
MSP430FR6047IPZR MSP430FR6047IPZR Buy Datasheet
MSP430FR60471IPZ MSP430FR60471IPZ Buy Datasheet
MSP430FR60471IPZR MSP430FR60471IPZR Buy Datasheet
MSP430F5528IZQE MSP430F5528IZQE Buy Datasheet
MSP430FR6045IPZ MSP430FR6045IPZ Buy Datasheet
MSP430G2452IPW20R MSP430G2452IPW20R Buy Datasheet
TPD2E001DZDR TPD2E001DZDR Buy Datasheet
TS5A21366DCUR TS5A21366DCUR Buy Datasheet
TUSB2046BVFG4 TUSB2046BVFG4 Buy Datasheet
TUSB2046IBVFR TUSB2046IBVFR Buy Datasheet
