DRV10987 12V/24V Three-Phase, Sensorless BLDC Motor Driver Evaluation Module

Texas Instruments

Description

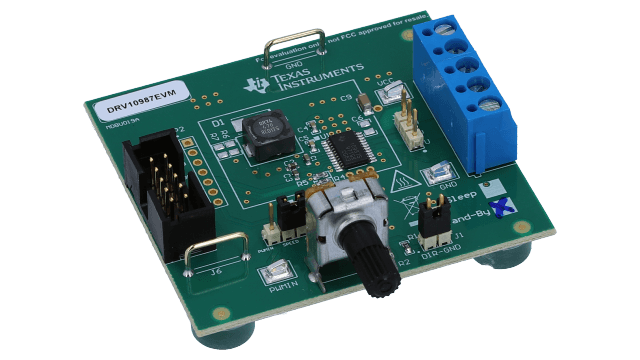

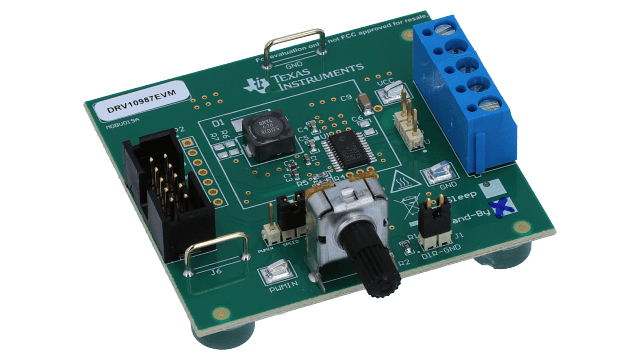

The DRV10987EVM evaluation module (EVM) serves as a user-friendly evaluation kit to demonstrate TI's fully integrated brushless motor driver, DRV10987. The EVM is a high-performance, power-efficient and cost-effective platform that speeds development for quicker time to market. The DRV10987EVM supports sensoreless Brushless DC motors for a wide range of industrial applications, and it is suitable for 12V and 24V motors. It is also able to support the over voltage condition up to 45V.

Features:

  • Power Supply Voltage Range: 6.2V to 28.0V
  • I2C Interface: Access Registers for Command and Feedback
  • No External Sense Resistor or LDO Required

What's Included:

  • DRV10987 Evaluation Board
  • USB2ANY Kit


Type: Evaluation Modules & Boards

Part number: DRV10987EVM

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-47997-ND 10 $118.80 Buy
Texas Instruments DRV10987EVM 55 $99.00 Buy
Texas Instruments DRV10987EVM 55 $99.00 Buy
Mouser Electronics 595-DRV10987EVM 6 $129.72 Buy
Newark DRV10987EVM $102.50 Buy
Arrow North American Components DRV10987EVM 0 $118.80 Buy
element14 APAC DRV10987EVM * $145.96 Buy
Farnell DRV10987EVM * $106.87 Buy
AVNET Express DRV10987EVM $116.82 Buy
Verical Marketplace DRV10987EVM 2 $141.43 Buy

Technical Documents

Parts

Part Number Name Companion Part
DRV10987SPWPR DRV10987SPWPR Buy Datasheet
DRV10987DPWPR DRV10987DPWPR Buy Datasheet
PDRV10987SPWPR PDRV10987SPWPR Buy Datasheet
