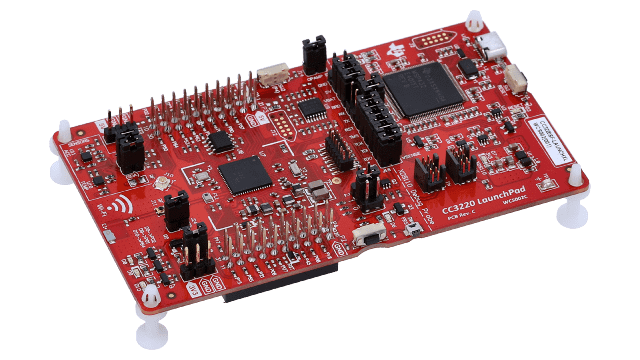

SimpleLink Wi-Fi CC3220SF Wireless Microcontroller LaunchPad Development Kit

Texas Instruments

Description

The SimpleLink Wi-Fi CC3220SF LaunchPad development kit (CC3220SF-LAUNCHXL) highlights CC3220SF, a single-chip wireless microcontroller (MCU) with 1MB Flash, 256KB of RAM and enhanced security features. The CC3220SF-LAUNCHXL features on-board emulation and sensors for a full out-of-the-box experience. This board can be directly connected to a PC for use with development tools such as the Code Composer Studio Cloud integrated development environment (IDE).

The CC3220SF device brings IoT networking security to a new level, empowering developers to easily connect any application to the cloud, with multiple communication protocols.

Features:

  • Supports various IDE: CCS, IAR Embedded Workbench for ARM Cortex-M4
  • Standalone development platform featuring sensors, LEDs and push-buttons
  • On-board chip antenna with option for U.FL-based testing
  • 2x20-pin stackable connectors (BoosterPack headers) to connect to TI LaunchPads and other BoosterPacks
  • Back-channel universal asynchronous receiver/transmitter (UART) through USB to PC
  • XDS110-based JTAG emulation with serial port for flash programming

What's Included:

  • USB cable
  • Quick Start Guide


Type: Evaluation Modules & Boards

Part number: CC3220SF-LAUNCHXL

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-45438-1-ND 0 $13.17 Buy
Digi-Key 296-45388-ND 114 $51.91 Buy
Digi-Key 296-45439-1-ND 2195 $12.79 Buy
TI store XCC3220MODSF12MOBR 54 $20.97 Buy
TI store CC3220SF-LAUNCHXL 4386 $49.99 Buy
TI store CC3220SF12ARGKT 1595 $11.05 Buy
AVNET Express CC3220SF-LAUNCHXL $51.69 Buy
Newark CC3220SF-LAUNCHXL 122 $51.76 Buy
TME CC3220SF-LAUNCHXL 6 $70.00 Buy
element14 APAC CC3220SF-LAUNCHXL 91 * $75.53 Buy
Farnell CC3220SF-LAUNCHXL 121 * $52.29 Buy
Mouser Electronics 595-CC3220SF12ARGKR 1118 $12.49 Buy
Mouser Electronics 595-CC3220SFLAUNCHXL 139 $58.61 Buy
Mouser Electronics 595-CC3220SF12ARGKT 336 $12.85 Buy

Technical Documents

Parts

Part Number Name Companion Part
CC3220SF12ARGKR CC3220SF12ARGKR Buy Datasheet
CC3220SF12ARGKT CC3220SF12ARGKT Buy Datasheet
XCC3220MODSF12MOBR XCC3220MODSF12MOBR Buy Datasheet
