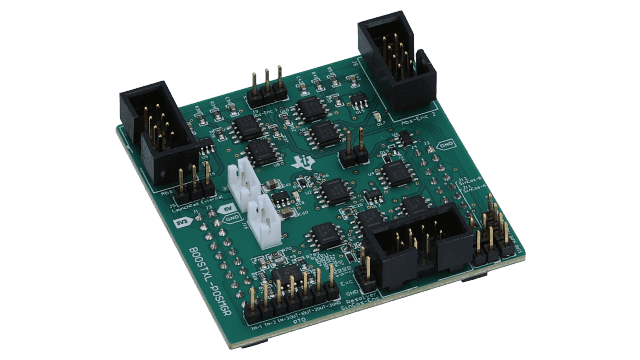

C2000 DesignDRIVE Position Manager BoosterPack™

Texas Instruments

Description

The PositionManager BoosterPack is a flexible low voltage platform intended for evaluating interfaces to absolute encoders and analog sensors like resolvers and SinCos transducers.  When combined with the DesignDRIVE Position Manager software solutions this low-cost evaluation module becomes a powerful tool for interfacing many popular position encoder types such as EnDat, BiSS and T-format with C2000 devices.  C2000 Position Manager technology integrates interfaces to the most popular digital and analog position sensors onto C2000 MCUs, thus eliminating the need for external FPGAs for these functions.

Hardware Features:

  • 2x channels of RS-485 line interface supporting up to 100m distances
  • 1x SinCos analog interface
  • 2x 20-pin headers/connectors to LaunchPad
  • Capable of supporting 2x absolute encoders simultaneously
  • Works with CLB-enabled C2000 MCUs

Software Features:

  • Free download of Position Manager solutions in C2000 controlSUITE package
    • Simple application programming interface
    • Absolute encoder support for EnDat 2.2, 2.1, BiSS-C and T-format
    • Analog sensor support for resolvers and SinCos transducers

Recommended LaunchPad:

  • LAUNCHXL-F28379D C2000 Delfino MCUs F28379D LaunchPad Development Kit
  • TI BoosterPack Checker for an interactive list of compatible BoosterPacks


Type: Evaluation Modules & Boards

Part number: BOOSTXL-POSMGR

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-50807-ND 12 $58.80 Buy
Texas Instruments BOOSTXL-POSMGR 226 $49.00 Buy
Mouser Electronics 595-BOOSTXL-POSMGR 20 $65.69 Buy
AVNET Europe BOOSTXL-POSMGR * $85.72 Buy
AVNET Express BOOSTXL-POSMGR $57.82 Buy
Verical Marketplace BOOSTXL-POSMGR 1 $59.23 Buy
Arrow North American Components BOOSTXL-POSMGR 0 $58.80 Buy

Technical Documents

Parts

Part Number Name Companion Part
OPA2209 OPA2209 Buy Datasheet
OPA2365 OPA2365 Buy Datasheet
REF2033AIDDCT REF2033AIDDCT Buy Datasheet
SN65HVD78 SN65HVD78 Buy Datasheet
TLV3201 TLV3201 Buy Datasheet
TLV7021DCKT TLV7021DCKT Buy Datasheet
TMS320F28379DZWTS TMS320F28379DZWTS Buy Datasheet
TMS320F28379SPZPS TMS320F28379SPZPS Buy Datasheet
TPS22918TDBVTQ1 TPS22918TDBVTQ1 Buy Datasheet
F280041CPZQ F280041CPZQ Buy Datasheet
F280049CPZS F280049CPZS Buy Datasheet
