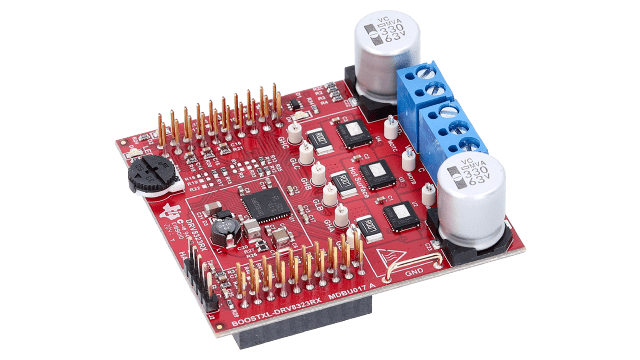

DRV8323RS Three-Phase Smart Gate Driver Evaluation Module

Texas Instruments


The BOOSTXL-DRV8323RS is a 15A, 3-phase brushless DC drive stage based on the DRV8323RH gate driver and CSD88399Q5DC dual-package MOSFETs.  The module has individual DC bus and phase voltage sense as well as individual low-side current shunt amplifiers, making this evaluation module ideal for sensorless BLDC algorithms.  The module supplies MCU 3.3V power with an integrated 0.6A step down buck regulator.  The drive stage is fully protected with short circuit, thermal, shoot-through, and under voltage protection and easily configurable via the devices SPI registers.


  • 6V to 54V Operation
  • 15A Continuous / 20A Peak H-bridge Output Current
  • Integrated 600mA Buck Regulator
  • Three Integrated Current Shunt Amplifiers
  • Sensored or Sensorless BLDC Firmware Available

Type: Evaluation Modules & Boards

Part number: BOOSTXL-DRV8323RS

More details from Texas Instruments


Distributor SKU Stock Cost
Digi-Key 296-47067-ND 30 $86.90 Buy
TI store BOOSTXL-DRV8323RS 477 $79.00 Buy
element14 APAC BOOSTXL-DRV8323RS * $114.09 Buy
Farnell BOOSTXL-DRV8323RS * $106.40 Buy
Newark BOOSTXL-DRV8323RS $102.50 Buy
Mouser Electronics 595-BOOSTXLDRV8323RS 32 $105.06 Buy
AVNET Express BOOSTXL-DRV8323RS $102.39 Buy

Technical Documents


Part Number Name Companion Part
DRV8323RHRGZR DRV8323RHRGZR Buy Datasheet
DRV8323RHRGZT DRV8323RHRGZT Buy Datasheet
DRV8323RSRGZR DRV8323RSRGZR Buy Datasheet
DRV8323RSRGZT DRV8323RSRGZT Buy Datasheet
DRV8323HRTAR DRV8323HRTAR Buy Datasheet
DRV8323HRTAT DRV8323HRTAT Buy Datasheet
DRV8323SRTAR DRV8323SRTAR Buy Datasheet
DRV8323SRTAT DRV8323SRTAT Buy Datasheet
DRV8320RHRHAR DRV8320RHRHAR Buy Datasheet
DRV8320RHRHAT DRV8320RHRHAT Buy Datasheet
DRV8320RSRHAR DRV8320RSRHAR Buy Datasheet
DRV8320RSRHAT DRV8320RSRHAT Buy Datasheet
