ADS7056 Ultra-Low-Power Ultra-Small-Size 14-Bit 2.5MSPS SAR ADC Performance Demonstration Kit (PDK)

Texas Instruments

Description

The ADS7056 evaluation module (EVM) performance demonstration kit (PDK) is a platform for evaluating the performance of the ADS7056 successive approximation register (SAR) analog-to-digital converter (ADC), which is a single-ended input, 14-bit, 2.5-MSPS device. The ADS7056EVM-PDK includes the ADS7056 EVM board and the precision host interface (PHI) controller board that enables the accompanying computer software to communicate with the ADC over USB for data capture and analysis.

Features:

  • Hardware and software required for diagnostic testing, as well as accurate performance evaluation of ADS7056 SAR ADC
  • USB powered; no external power supply required
  • PHI controller provides convenient communication interface to ADS7056 ADC over a USB 2.0 (or higher) for power delivery, as well as digital input and output
  • Easy-to-use evaluation software for Microsoft Windows 7, 64-bit operating systems
  • Software suite includes graphical tools for:
    • Data capture
    • Histogram analysis
    • Spectral analysis
    • Linearity analysis
    • Suite also has provision for exporting data to a text file for post processing

What's included:

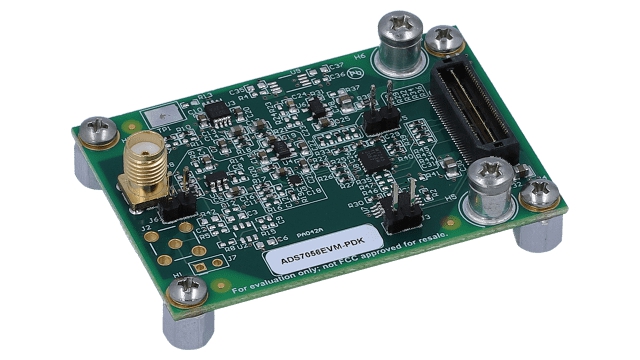

  • ADS7056 EVM board
  • PHI EVM controller
  • USB cable


Type: Evaluation Modules & Boards

Part number: ADS7056EVM-PDK

More details from Texas Instruments

Inventory

Distributor SKU Stock Cost
Digi-Key 296-47062-ND 1 $238.80 Buy
Texas Instruments ADS7056EVM-PDK 6 $199.00 Buy
Texas Instruments ADS7056EVM-PDK 6 $199.00 Buy
Mouser Electronics 595-ADS7056EVM-PDK 2 $266.77 Buy
Arrow North American Components ADS7056EVM-PDK 0 $229.62 Buy
Verical Marketplace ADS7056EVM-PDK 59 $284.29 Buy
Newark ADS7056EVM-PDK $204.89 Buy
AVNET Express ADS7056EVM-PDK $234.82 Buy

Technical Documents

Parts

Part Number Name Companion Part
ADS7056IRUGR ADS7056IRUGR Buy Datasheet
LM7705 LM7705 Buy Datasheet
OPA836 OPA836 Buy Datasheet
REF1933AIDDCT REF1933AIDDCT Buy Datasheet
SN74AVC4T245DE4 SN74AVC4T245DE4 Buy
