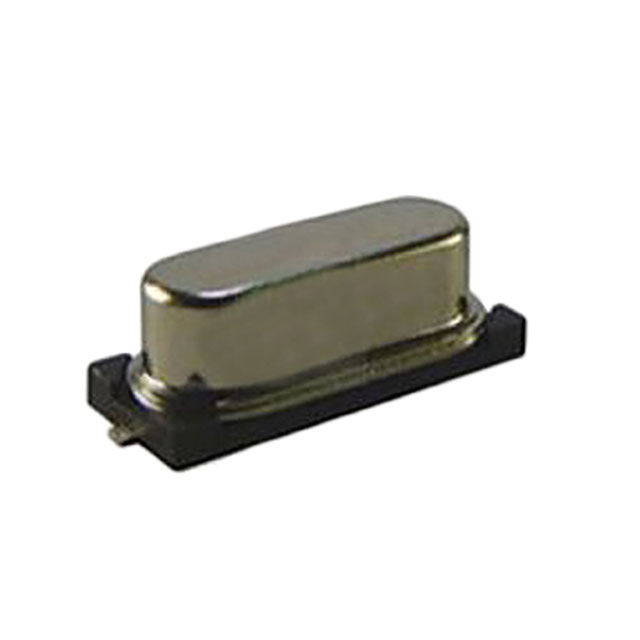

AS-5.000-18-EXT-SMD-TR
Part Number : AS-5.000-18-EXT-SMD-TR
RaltronAS-SMD Series 5 MHz ?30 ppm 18pF -40?C TO +85?C SMT Microprocessor Crystal
CO2520-24.576-33-50-X
Part Number : CO2520-24.576-33-50-X
RaltronOSC 24.576MHZ 2.5MM X 2MM CMOS; Frequency Nom:24.576MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD 2.5mm x 2mm; Supply Voltage Nom:3.3V; Product Range:CO2520 Series; Operating Temperature Min:-40 C; Operating ;RoHS Compliant: Yes
CO2016-25.000-3.3-50
Part Number : CO2016-25.000-3.3-50
RaltronOSC 25MHZ 2MM X 1.6MM CMOS; Frequency Nom:25MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD 2mm x 1.6mm; Supply Voltage Nom:3.3V; Product Range:CO2016 Series; Operating Temperature Min:-10 C; Operating Temperature ;RoHS Compliant: Yes
AS-25.000-18
Part Number : AS-25.000-18
RaltronCRYSTAL 25MHZ 18PF HC-49S; Frequency Nom:25MHz; Crystal Case:Through Hole 11.35mm x 5mm; Frequency Stability + / -:50ppm; Load Capacitance:18pF; Frequency Tolerance + / -:30ppm; Product Range:AS Series; Operating Temperature ;RoHS Compliant: Yes
H10S-10.000-18-F-3030-EXT
Part Number : H10S-10.000-18-F-3030-EXT
RaltronCRYSTAL 10MHZ 18PF 6MM X 3.5MM; Frequency Nom:10MHz; Crystal Case:SMD 6mm x 3.5mm; Frequency Stability + / -:30ppm; Load Capacitance:18pF; Frequency Tolerance + / -:30ppm; Product Range:H10S Series; Operating Temperature ;RoHS Compliant: Yes
H10S-25.000-18-F-3030-EXT
Part Number : H10S-25.000-18-F-3030-EXT
RaltronCRYSTAL 25MHZ 18PF 6MM X 3.5MM; Frequency Nom:25MHz; Crystal Case:SMD 6mm x 3.5mm; Frequency Stability + / -:30ppm; Load Capacitance:18pF; Frequency Tolerance + / -:30ppm; Product Range:H10S Series; Operating Temperature ;RoHS Compliant: Yes
H13-14.31818-18-F-3030-EXT
Part Number : H13-14.31818-18-F-3030-EXT
RaltronCRYSTAL 14.31818MHZ 18PF 7MM X 5MM; Frequency Nom:14.31818MHz; Crystal Case:SMD 7mm x 5mm; Frequency Stability + / -:30ppm; Load Capacitance:18pF; Frequency Tolerance + / -:30ppm; Product Range:H13 Series; Operating Temperature ;RoHS Compliant: Yes
RH100-14.7456-18-3030-EXT
Part Number : RH100-14.7456-18-3030-EXT
RaltronCRYSTAL 14.7456MHZ 18PF 3.2MM X 2.5MM; Frequency Nom:14.7456MHz; Crystal Case:SMD 3.2mm x 2.5mm; Frequency Stability + / -:30ppm; Load Capacitance:18pF; Frequency Tolerance + / -:30ppm; Product Range:RH100 Series; Operating ;RoHS Compliant: Yes
RH100-20.000-18-F-3030-EXT
Part Number : RH100-20.000-18-F-3030-EXT
RaltronCRYSTAL 20MHZ 18PF 3.2MM X 2.5MM; Frequency Nom:20MHz; Crystal Case:SMD 3.2mm x 2.5mm; Frequency Stability + / -:30ppm; Load Capacitance:18pF; Frequency Tolerance + / -:30ppm; Product Range:RH100 Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; SVHC:No SVHC (17-Dec-2015); MSL:MSL 1 - Unlimited
R2520-26.000-10-F-3030-EXT
Part Number : R2520-26.000-10-F-3030-EXT
RaltronCRYSTAL 26MHZ 10PF 2.5MM X 2MM; Frequency Nom:26MHz; Crystal Case:SMD 2.5mm x 2mm; Frequency Stability + / -:30ppm; Load Capacitance:10pF; Frequency Tolerance + / -:30ppm; Product Range:R2520 Series; Operating Temperature ;RoHS Compliant: Yes
R2520-27.000-10-F-3030-EXT
Part Number : R2520-27.000-10-F-3030-EXT
RaltronCRYSTAL 27MHZ 10PF 2.5MM X 2MM; Frequency Nom:27MHz; Crystal Case:SMD 2.5mm x 2mm; Frequency Stability + / -:30ppm; Load Capacitance:10pF; Frequency Tolerance + / -:30ppm; Product Range:R2520 Series; Operating Temperature ;RoHS Compliant: Yes
R2016-24.000-10-EXT
Part Number : R2016-24.000-10-EXT
RaltronCRYSTAL 24MHZ 10PF 2MM X 1.6MM; Frequency Nom:24MHz; Crystal Case:SMD 2mm x 1.6mm; Frequency Stability + / -:50ppm; Load Capacitance:10pF; Frequency Tolerance + / -:50ppm; Product Range:R2016 Series; Operating Temperature ;RoHS Compliant: Yes
R1612-27.000-8-F-3030-EXT
Part Number : R1612-27.000-8-F-3030-EXT
RaltronCRYSTAL 27MHZ 8PF 1.6MM X 1.2MM; Frequency Nom:27MHz; Crystal Case:SMD 1.6mm x 1.2mm; Frequency Stability + / -:30ppm; Load Capacitance:8pF; Frequency Tolerance + / -:30ppm; Product Range:R1612 Series; Operating Temperature ;RoHS Compliant: Yes
R1612-32.000-8-F-3030-EXT
Part Number : R1612-32.000-8-F-3030-EXT
RaltronCRYSTAL 32MHZ 8PF 1.6MM X 1.2MM; Frequency Nom:32MHz; Crystal Case:SMD 1.6mm x 1.2mm; Frequency Stability + / -:30ppm; Load Capacitance:8pF; Frequency Tolerance + / -:30ppm; Product Range:R1612 Series; Operating Temperature ;RoHS Compliant: Yes
CO4305-8.000-EXT
Part Number : CO4305-8.000-EXT
RaltronOSC 8MHZ 7MM X 5MM CMOS; Frequency Nom:8MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD 7mm x 5mm; Supply Voltage Nom:3.3V; Product Range:CO43 Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Oscillator Output Compatibility:CMOS; SVHC:No SVHC (17-Dec-2015); MSL:MSL 1 - Unlimited
CO4305-24.000-EXT
Part Number : CO4305-24.000-EXT
RaltronOSC 24MHZ 7MM X 5MM CMOS; Frequency Nom:24MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD 7mm x 5mm; Supply Voltage Nom:3.3V; Product Range:CO43 Series; Operating Temperature Min:-40 C; Operating Temperature Max:85 C; ;RoHS Compliant: Yes
CO4305-32.000-EXT
Part Number : CO4305-32.000-EXT
RaltronOSC 32MHZ 7MM X 5MM CMOS; Frequency Nom:32MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD 7mm x 5mm; Supply Voltage Nom:3.3V; Product Range:CO43 Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Oscillator Output Compatibility:CMOS; SVHC:No SVHC (17-Dec-2015); MSL:MSL 1 - Unlimited
COM2305-25.000-EXT
Part Number : COM2305-25.000-EXT
RaltronOSC 25MHZ 5MM X 3.2MM CMOS; Frequency Nom:25MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD 5mm x 3.2mm; Supply Voltage Nom:3.3V; Product Range:COM2 Series; Operating Temperature Min:-40 C; Operating Temperature ;RoHS Compliant: Yes
COM1305-12.000-EXT
Part Number : COM1305-12.000-EXT
RaltronOSC 12MHZ 3.2MM X 2.5MM HCMOS; Frequency Nom:12MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD 3.2mm x 2.5mm; Supply Voltage Nom:3.3V; Product Range:COM1 Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Oscillator Output Compatibility:HCMOS; SVHC:No SVHC (17-Dec-2015); MSL:MSL 1 - Unlimited
AS-5.000-18
Part Number : AS-5.000-18
RaltronCRYSTAL 5MHZ 18PF HC-49S; Frequency Nom:5MHz; Crystal Case:Through Hole 10.3mm x 5mm; Frequency Stability + / -:50ppm; Load Capacitance:18pF; Frequency Tolerance + / -:30ppm; Product Range:AS Series; Crystal Type:Microprocessor ;RoHS Compliant: Yes
