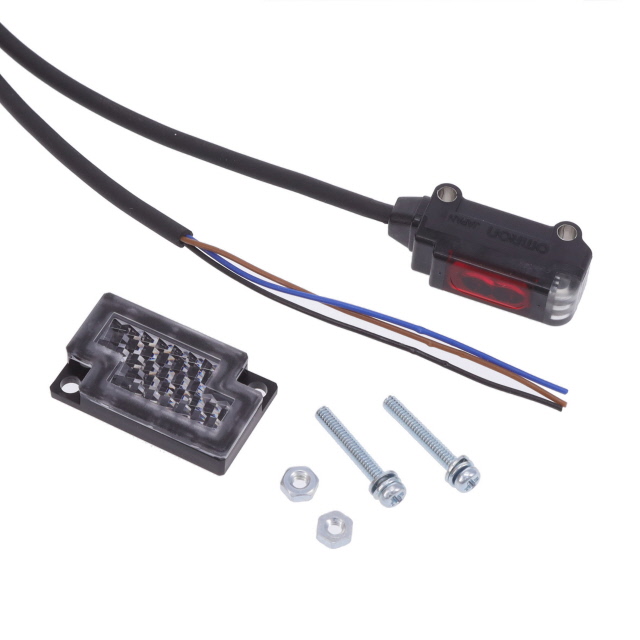

PHOTOSWITCH, MINIATURE; SVHC: No SVHC (19-Dec-2011); Connector Type: 2m Cable; External Depth: 11.2mm; External Length / Height: 20.6mm; External Width: 7mm; IP / NEMA Rating: IP67; Operating Temperature Max: 55°C; Operating Temperature Min: -25°C; Output Current Max: 50mA; Output Type: NPN; Response Time: 1ms; Sensing Distance Max: 200mm; Sensing Distance Min: 10mm; Supply Voltage DC Max: 24V; Supply Voltage DC Min: 12V

SLIM I/O SSR, 5-24VDC, 3A, SOCKET; Contact Configuration: SPST-NO; Load Current: 3A; Operating Voltage Max: 24VDC; Relay Mounting: Socket; Relay Terminals: Quick Connect; Switching Mode: Non Zero Crossing; Operating Voltage Min: 5VDC; Control Voltage Min: -; Control Voltage Max: 24VDC; Product Range: G2RV-SR Series; SVHC: No SVHC (20-Jun-2016)

POWER RELAY, 4PDT, 5A, 250VAC, SOCKET; Contact Configuration: 4PDT; Coil Voltage: 24VDC; Contact Current: 5A; Product Range: MY Series; Relay Mounting: Socket; Coil Type: -; Contact Voltage VAC: 250V; Relay Terminals: Quick Connect, Solder; Contact Voltage VDC: 125V; Contact Material: Silver Alloy; Coil Resistance: 636ohm; SVHC: No SVHC (20-Jun-2016); Approvals & Standards: CE, CSA, UL; Relay Type: Power - General Purpose

INVERTER DRIVE, 15KW, 400VAC, 31A; Supply Voltage Min: 380VAC; Supply Voltage Max: 480VAC; No. of Phases: Three Phase; Power Rating: 15kW; Output Voltage Max: 480V; Product Range: -; Approval Bodies: CE, cUL, TUV, UL; External Depth: 163mm; External Length / Height: 290mm; For Use With: IM&PM Motor Control; Frequency Range: 57Hz to 63Hz; Output Frequency Max: 400Hz; Output Frequency Min: 0.1Hz

INVERTER DRIVE, 0.25KW, 400VAC; Supply Voltage Min: 380VAC; Supply Voltage Max: 480VAC; No. of Phases: Three Phase; Power Rating: 250W; Output Voltage Max: 480V; Product Range: -; Approval Bodies: CE, cUL, TUV, UL; External Depth: 81mm; External Length / Height: 128mm; For Use With: IM&PM Motor Control; Frequency Range: 57Hz to 63Hz; IP / NEMA Rating: IP20; Output Frequency Max: 400Hz; Output Frequency Min: 0.1Hz

INVERTER DRIVE, 2.2KW, 400VAC, 5.5A; Supply Voltage Min: 380VAC; Supply Voltage Max: 480VAC; No. of Phases: Three Phase; Power Rating: 2.2kW; Output Voltage Max: 480V; Product Range: -; Approval Bodies: CE, cUL, TUV, UL; External Depth: 154mm; External Length / Height: 128mm; For Use With: IM&PM Motor Control; Frequency Range: 57Hz to 63Hz; IP / NEMA Rating: IP20; Output Frequency Max: 400Hz; Output Frequency Min: 0.1Hz

INVERTER DRIVE, 3KW, 400VAC, 7.2A; No. of Phases: Three; Power Rating: 3kW; Output Voltage Max: 480V; Frequency Range: 57Hz to 63Hz; SVHC: No SVHC (19-Dec-2011); Approval Bodies: CE / cUL / TUV / UL; External Depth: 154mm; External Length / Height: 128mm; For Use With: IM&PM Motor Control; IP / NEMA Rating: IP20; Mounting Type: DIN Rail; Output Frequency Max: 400Hz; Output Frequency Min: 0.1Hz; Supply Voltage Max: 480VAC; Supply Voltage Min: 380VAC

INVERTER DRIVE, 4KW, 400VAC, 9.2A; Supply Voltage Min: 380VAC; Supply Voltage Max: 480VAC; No. of Phases: Three Phase; Power Rating: 4kW; Output Voltage Max: 480V; Product Range: -; Approval Bodies: CE, cUL, TUV, UL; External D

INVERTER DRIVE, 0.1KW, 200VAC, 0.8A; Supply Voltage Range: 200V AC to 240V AC; No. of Phases: Single; Power Rating: 100W; Output Voltage Max: 240V; Frequency Range: 57Hz to 63Hz; SVHC: No SVHC (19-Dec-2011); Approval Bodies: CE / cUL / TUV / UL; External Depth: 76mm; External Length / Height: 128mm; For Use With: IM&PM Motor Control; IP / NEMA Rating: IP20; Mounting Type: DIN Rail; Output Frequency Max: 400Hz; Output Frequency Min: 0.1Hz; Supply Voltage Max: 240V; Supply Voltage Min: 200V

INVERTER DRIVE, 1.1KW, 200VAC, 5A; Supply Voltage Min: 200VAC; Supply Voltage Max: 240VAC; No. of Phases: Single Phase; Power Rating: 1.1kW; Output Voltage Max: 240V; Product Range: -; Approval Bodies: CE, cUL, TUV, UL; External Depth: 137.5mm; External Length / Height: 128mm; For Use With: IM&PM Motor Control; Frequency Range: 57Hz to 63Hz; IP / NEMA Rating: IP20; Output Frequency Max: 400Hz; Output Frequency Min: 0.1Hz; Supply Voltage Range: 200V AC to 240V AC

RELAY, 4PCO 220VAC; SVHC: No SVHC (19-Dec-2011)

PROXIMITY SENSOR, M30, PREWIRED, PNP; Sensing Range Max: 15mm; Thread Size - Metric: M30; Sensor Output: PNP; Supply Voltage DC Min: 10V; Supply Voltage DC Max: 32V; Product Range: E2A Series; Frequency Response Max: 250Hz; Sensing Range: 0mm to 15mm; Sensor Input: Inductive; Supply Voltage Range DC: 10V to 32V

RELAY, DPCO 12VAC; Coil Voltage VAC Nom: 12V; Coil Resistance: 46ohm; External Width: 21.5mm; External Depth: 36mm; SVHC: No SVHC (19-Dec-2011); AC Coil Power: 1.2VA; Coil Operating Lower Percent Limit: 80%; Coil Operating Upper Percent Limit: 110%; Contact Configuration: DPCO; Contact Current AC Max: 10A; Contact Current DC Max: 10A; Contact Material: Silver; Contact Voltage AC Max: 250V; Contact Voltage DC Max: 30V; DC Coil Power: 0.9W; External Length / Height: 28mm; Operating Temperature Max: 70°C; Operating Temperature Min: -55°C; Operating Time: 20ms; Release Time: 20ms; Switch Current Max: 5A; Switching Current Max: 5A

RELAY, 3PDT, 250VAC, 30VDC, 10A; Contact Configuration: 3PDT; Coil Voltage: 24VDC; Contact Current: 10A; Product Range: MK-S Series; Relay Mounting: Socket; Coil Type: Non Latching; Contact Voltage VAC: 250VAC; Relay Terminals: Quick Connect; Contact Voltage VDC: 30VDC; Contact Material: Silver Tin Indium; Coil Resistance: 430ohm; Coil Current: 55.8mA; Coil Operating Lower Percent Limit: 80%; Coil Operating Upper Percent Limit: 110%; Coil Voltage VDC Nom: 24V; Contact Current AC Max: 10A; Contact Current DC Max: 10A; Contact Current Max: 10A; Contact Voltage AC Max: 250V; Contact Voltage AC Nom: 250V; Contact Voltage DC Max: 250V; Contact Voltage DC Nom: 30V; Dielectric Strength VDC: 2500V; External Depth: 34.5mm; External Height: 52.5mm; External Length / Height: 52.5mm; External Width: 34.5mm; Nom Operating Power: 1.4W; Operating Temperature Max: 60°C; Operating Temperature Min: -40°C; Relay Type: Power

RELAY SOCKET; Socket Mounting: DIN Rail; Socket Terminals: Screw; No. of Pins: 8Pins; Current Rating: 5A; Voltage Rating: -; Product Range: -; SVHC: No SVHC (17-Dec-2015); Accessory Type: Socket; For Use With: G2R-2-S Relays

ANALOGUE INPUT PLC CONTROLLERS;

ANALOGUE INPUT PLC CONTROLLERS;

ANALOGUE INPUT PLC CONTROLLERS;

ANALOGUE INPUT PLC CONTROLLERS;

ANALOGUE OUTPUT PLC CONTROLLERS;
