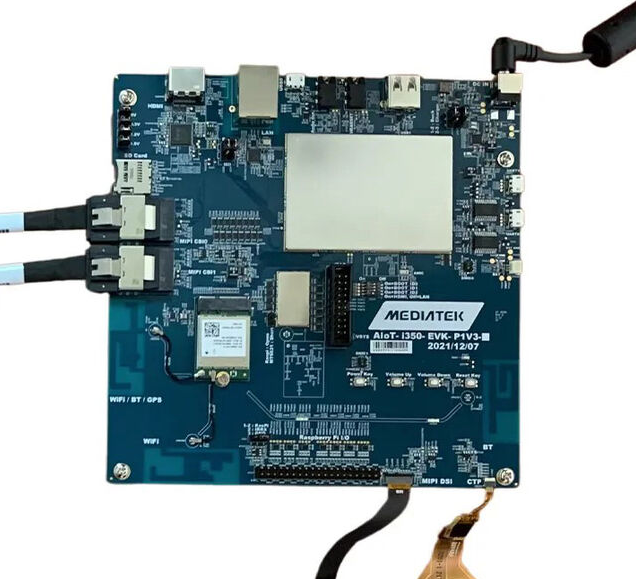

GENIO 350 DEVELOPMENT KIT MediaTek Genio 350 SoCs are highly integrated application processors MediaTek Genio 350 (MT8365 IoT application processor) architecture is a highly integrated mobile computing platform incorporating application processing, APU, DSP, and connectivity subsystems to enable smart mobile applications. This high-performance, low-power platform features advanced implementation of a quad-core Arm® Cortex®-A53 operating at up to 2.0 GHz and a powerful multi-standard video accelerator. For optimal performance, the device features NAND Flash memory, LPDDR3, DDR3/L, LPDDR4/X, and DDR4. It also supports booting from eMMC to minimize the overall BOM cost. In addition, an extensive set of interfaces is included to connect to cameras, touchscreen displays, and MMC/SD cards. The quad-core Arm Cortex-A53 MPCore™, equipped with an Arm Neon™ engine, offers the necessary processing power to support the latest OpenOS and demanding applications such as web browsing, email, GPS navigation, and games. The 2D/3D graphics accelerator can enhance and visualize this content on a high-resolution touchscreen display. The device features an advanced audio subsystem and a multi-standard video accelerator with many decoders and encoders such as HEVC and H.264 to provide advanced multimedia applications and services such as streaming audio and video. The device implements a hardware mechanism to support advanced and sophisticated radio coexistence algorithms. The enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on AI-embedded devices. The small footprint with low power consumption greatly reduces the PCB layout resource. Features: 4x Arm Cortex-A53, 2.0 GHz Integrated Mali-G52 GPU Support FHD @ 60 fps dual display and HEVC codec Embedded VP6 DSP and HiFi 4 DSP for Edge AI applications Support 13 MP @ 30 fps camera with internal ISP and multiple cameras Support USBx2: 2.0 OTG Support Android, Yocto, and Ubuntu OS Power efficient 14 nm SoC: Suitable for portable applications

The MediaTek LinkIt™ Development Platform for RTOS provides leading features for the creation of a wide variety of Wearables and IoT devices. These include connected appliances, smart home devices, smart gadgets, IoT bridges, wearables, smartwatches and smart wristbands. Supporting MediaTek MT2523D/G and MediaTek MT7687F SoCs, LinkIt Development Platform for RTOS offers the convenience of a single toolset and common APIs implemented over a popular RTOS. With this you can achieve economies across a full range of consumer IoT devices. Features: ARM Cortex-M4 with floating point architecture Comprehensive peripheral interface support, with a common Hardware Abstraction Layer API FreeRTOS with additional middleware components supporting: Wi-Fi and network features such as TCP/IP, SSL/TLS, HTTP (client and server), SNTP, DHCP daemon, MQTT, XML and JSON Bluetooth and Bluetooth Low Energy GNSS Firmware Over-the-Air (FOTA) Battery management Example application projects for various chipsets and HDKs SDK supporting development with Keil μVision, IAR Embedded Workbench and GCC. Also providing flashing and pinmux tools Development boards with power consumption measurement and debug socket Hardware reference designs OEM MT7687F modules for device manufacture Within the platform you'll find: MediaTek LinkIt™ SDK v4 containing the tools, middleware, drivers, documentation and example projects you need to create device firmware. LinkIt 2523 HDK by SAC and LinkIt 7687 HDK by SAC offering development boards for prototyping and a MediaTek MT7687 module that can be incorporated into production devices. Comprehensive documentation and training covering your first steps, with get started guides, through to detailed API references supported by tutorials and example code. Technical support from the Labs Technical Consultants and fellow community member in software and hardware orientated forums. Business support to connect you with partner companies with the skills and supply chain capabilities to help get your devices to market.
