CABLE, HI FLEX, 7CORE, 0.75MM, 50M; Cable Shielding:Unscreened; No. of Cores:7Core; Wire Gauge:19AWG; Conductor Area CSA:0.75mm; Reel Length (Imperial):164ft; Reel Length (Metric):50m; Jacket Colour:Grey; No. of Max Strands x Strand Size:42 x 0.15mm; Conductor Material:Copper; Jacket Material:PU; External Diameter:9.1mm; Voltage Rating:500V; Product Range:7 Core Series; SVHC:No SVHC (15-Jan-2019); Cable Type:Unshielded; Conductor Make-up:42 / 0.15mm; Operating Temperature Max:80C; Operating Temperature Min:-40C; Outer Diameter:9.1mm; Secondary Insulation Colour:Grey; Secondary Insulation Material:Polyurethene

DATA CABLE, 3PAIR, 0.25MM, 50M; Cable Shielding:Screened; No. of Pairs:3 Pair; Wire Gauge:24AWG; Conductor Area CSA:0.25mm; Reel Length (Imperial):164ft; Reel Length (Metric):50m; Jacket Colour:Grey; No. of Max Strands x Strand Size:32 x 0.1mm; Voltage Rating:250V; Jacket Material:PUR; Conductor Material:Copper; External Diameter:7.7mm; Product Range:Unitronic® FD CP (TP) Plus Series; SVHC:No SVHC (15-Jan-2019); Cable Type:Braided Shield; Conductor Make-up:32 / 0.1mm; Inductance:0.65H/m; Nominal Capacitance:60nF/km; Operating Temperature Max:70C; Operating Temperature Min:-40C; Outer Diameter:7.7mm; Secondary Insulation Colour:Grey; Secondary Insulation Material:Polyurethane; Wire Size:24AWG

DATA CABLE, FLEX, 2PAIR, 0.5MM, 50M; Cable Shielding:Screened; No. of Pairs:2 Pair; Wire Gauge:20AWG; Conductor Area CSA:0.5mm; Reel Length (Imperial):164ft; Reel Length (Metric):50m; Jacket Colour:Grey; No. of Max Strands x Strand Size:28 x 0.16mm; Voltage Rating:250V; Jacket Material:PUR; Conductor Material:Copper; External Diameter:9.3mm; Product Range:Unitronic® FD CP (TP) Plus Series; SVHC:No SVHC (15-Jan-2019); Cable Type:Braided Shield; Conductor Make-up:28 / 0.15mm; Inductance:0.65H/m; Nominal Capacitance:60nF/km; Operating Temperature Max:70C; Operating Temperature Min:-40C; Outer Diameter:9.3mm; Secondary Insulation Colour:Grey; Secondary Insulation Material:Polyurethane; Wire Size:20AWG

WIRE, SILICONE, ORANGE, 0.75MM, 100M; Jacket Material:Silicone; Jacket Colour:Orange; Wire Gauge:19AWG; Conductor Area CSA:0.75mm; Reel Length (Imperial):328ft; Reel Length (Metric):100m; No. of Max Strands x Strand Size:24 x 0.2mm; Voltage Rating:300V; Conductor Material:Tinned Copper; External Diameter:2.4mm; Approval Specification:-; Product Range:Olflex Heat 180 SiF Series; SVHC:No SVHC (15-Jan-2019); Conductor Make-up:24 / 0.2mm; Current Rating:12A; Operating Temperature Max:180C; Operating Temperature Min:-50C; Outer Diameter:2.4mm; Voltage Rating VAC:300V

WIRE, SILICONE, ORANGE, 1MM, 100M; Jacket Material:Silicone; Jacket Colour:Orange; Wire Gauge:18AWG; Conductor Area CSA:1mm; Reel Length (Imperial):328ft; Reel Length (Metric):100m; No. of Max Strands x Strand Size:32 x 0.2mm; Voltage Rating:300V; Conductor Material:Tinned Copper; External Diameter:2.5mm; Approval Specification:-; Product Range:Olflex Heat 180 SiF Series; SVHC:No SVHC (15-Jan-2019); Conductor Make-up:32 / 0.2mm; Current Rating:15A; Operating Temperature Max:180C; Operating Temperature Min:-50C; Outer Diameter:2.5mm; Voltage Rating VAC:300V

CABLE, SILICONE, 7CORE, 0.75MM, 50M; Cable Shielding:Unscreened; No. of Cores:7Core; Wire Gauge:19AWG; Conductor Area CSA:0.75mm; Reel Length (Imperial):164ft; Reel Length (Metric):50m; Jacket Colour:Red; No. of Max Strands x Strand Size:24 x 0.2mm; Conductor Material:Copper; Jacket Material:Silicone Rubber; External Diameter:9.2mm; Voltage Rating:500V; Product Range:00460 Olflex Heat 180 SiHF Series; SVHC:No SVHC (15-Jan-2019); Cable Type:Unshielded; Conductor Make-up:24 / 0.2mm; Current Rating:12A; Operating Temperature Max:180C; Operating Temperature Min:-50C; Outer Diameter:9.2mm; Outside Diameter Max:9.2mm; Secondary Insulation Material:Silicone

CABLE, SILICONE, 7CORE, 1MM, 50M; Cable Shielding:Unscreened; No. of Cores:7Core; Wire Gauge:18AWG; Conductor Area CSA:1mm; Reel Length (Imperial):164ft; Reel Length (Metric):50m; Jacket Colour:Red; No. of Max Strands x Strand Size:32 x 0.2mm; Conductor Material:Copper; Jacket Material:Silicone Rubber; External Diameter:9.5mm; Voltage Rating:500V; Product Range:00460 Series; SVHC:No SVHC (15-Jan-2019); Cable Type:Unshielded; Conductor Make-up:32 / 0.2mm; Current Rating:15A; Operating Temperature Max:180C; Operating Temperature Min:-50C; Outer Diameter:9.5mm; Outside Diameter Max:9.5mm; Secondary Insulation Material:Silicone

CABLE, SILICONE, 7CORE, 1.5MM, 50M; Cable Shielding:Unscreened; No. of Cores:7Core; Wire Gauge:16AWG; Conductor Area CSA:1.5mm; Reel Length (Imperial):164ft; Reel Length (Metric):50m; Jacket Colour:Red; No. of Max Strands x Strand Size:30 x 0.25mm; Conductor Material:Copper; Jacket Material:Silicone Rubber; External Diameter:10.4mm; Voltage Rating:500V; Product Range:00460 Series; SVHC:No SVHC (15-Jan-2019); Cable Type:Unshielded; Conductor Make-up:30 / 0.25mm; Current Rating:18A; Operating Temperature Max:180C; Operating Temperature Min:-50C; Outer Diameter:10.4mm; Outside Diameter Max:10.4mm; Secondary Insulation Material:Silicone

281009

POWER CABLE, 3 COND, 8AWG, UNSHIELDED U/UTP, 100FT, NEOPRENE, POWER IX SERIES

H05V-K 0.75 YELLOW UL/CSA/HAR

Male Module without Contacts Black 4+Ground Position Crimp

Female Module without Contacts Black 4+Ground Position Crimp

Contact Crimp Socket 16 AWG Silver

Male Insert Gray 8 Position Crimp

Contact Crimp Pin 22-26 AWG Silver

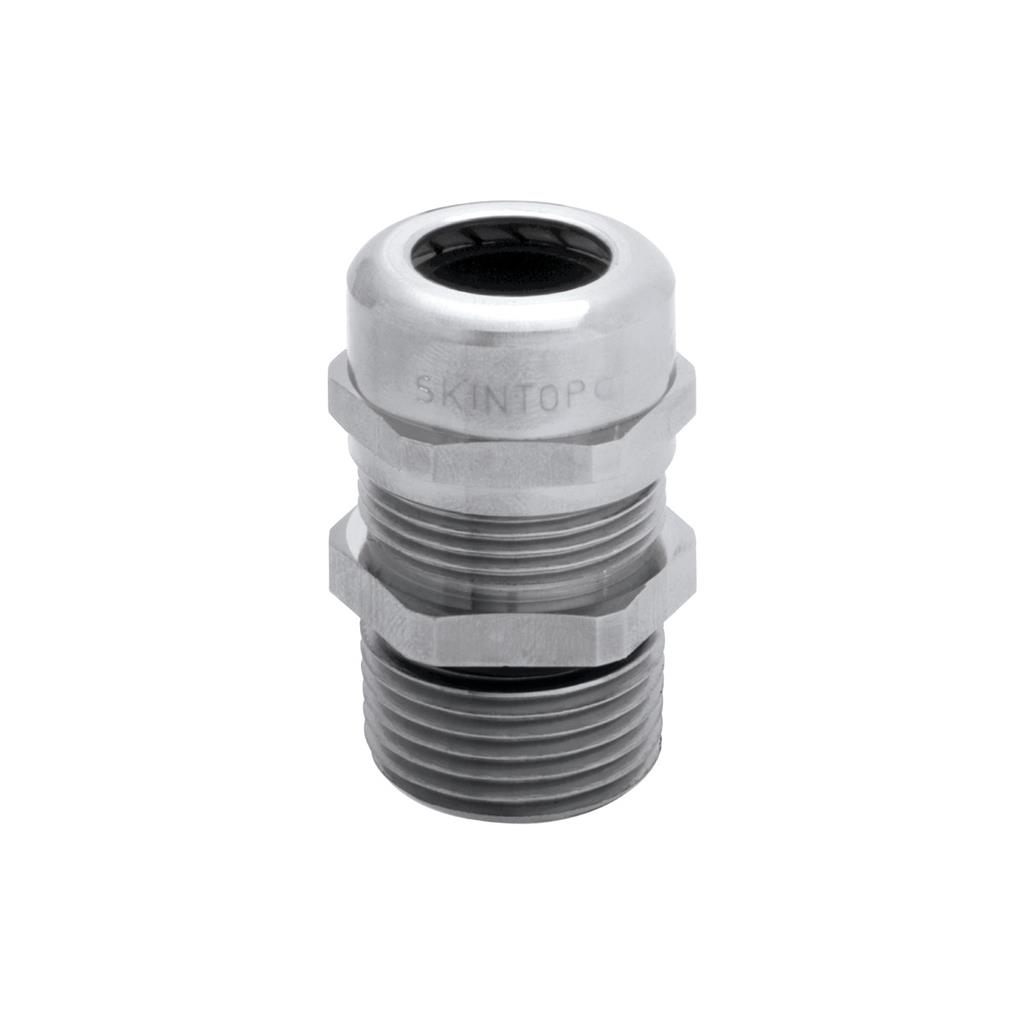

SKINTOP MS-M-XL 25x1,5

SKINDICHT SR-M 25x1,5/21/15

LAPP ÖLFLEX 150 - 0015003

Lapp Skintop ST-M M16 Cable Gland, Polyamide, IP68, IP69, Maximum Cable Diameter: 10mm, Minimum Cable Diameter: 4.5mm, Colour: Grey, Minimum Operating Temperature: -40°C, Maximum Operating Temperature: +100°C, MPN: 53111410
