Crystals 3.579545MHz 13.4 x 4.9 x 4.3mm

Standard Clock Oscillators 24.0MHz 7.0 x 5.0 x 1.4mm

CRYSTAL OSCILLATOR SMD 16MHZ; Frequency Nom:16MHz; Crystal Case:CFPS-39; Frequency Stability + / -:50ppm; Load Capacitance:15pF; Frequency Tolerance + / -:-; Product Range:CFPS-39 Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; SVHC:No SVHC (15-Jan-2018); Accuracy:± 50ppm; Duty Cycle Lower Limit:45%; Duty Cycle Upper Limit:55%; Fall Time tf:6ns; Frequency:16MHz; Frequency Stability:± 50ppm; No. of Pins:4Pins; Operating Temperature Range:-40°C to +85°C; Oscillator Case:SMD 3.2mm x 2.5mm; Oscillator Output Compatibility:CMOS; Output Frequency:16MHz; Rise Time:6ns; Supply Current Max:20mA; Supply Voltage Nom:3.3V; Temperature Stability + @:50; Temperature Stabilty:± 50ppm; Type:SPXO

CRYSTAL OSCILLATOR SMD 32MHZ; Frequency Nom:32MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD 7mm x 5mm; Supply Voltage Nom:2.5V; Product Range:-; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Oscillator Output Compatibility:CMOS; SVHC:No SVHC (15-Jan-2018); Accuracy:± 50ppm; Crystal Case:CFPS-32; Duty Cycle Lower Limit:45%; Duty Cycle Upper Limit:55%; Fall Time tf:5ns; Frequency:32MHz; Frequency Stability:± 50ppm; Load Capacitance:15pF; No. of Pins:4Pins; Operating Temperature Range:-40°C to +85°C; Output Frequency:32MHz; Resonator Case:SMD; Rise Time:5ns; Supply Current Max:18mA; Temperature Stability + @:50; Temperature Stabilty:± 50ppm; Type:SPXO

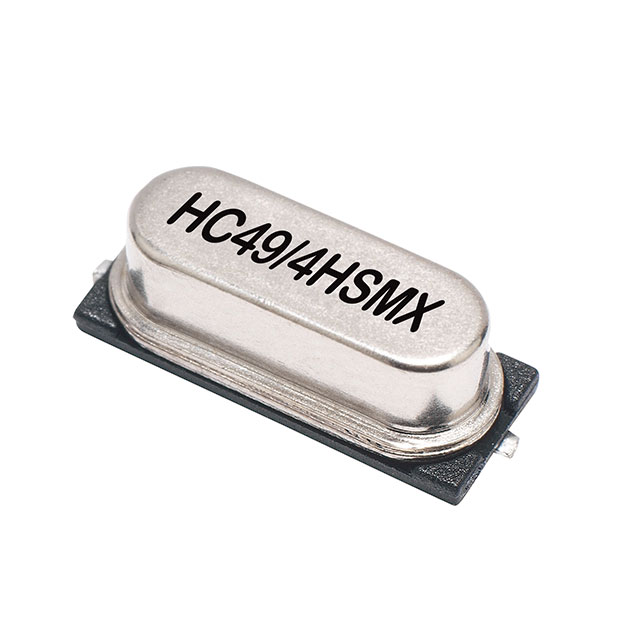

CRYSTAL HC49/4HSMX 40MHZ; Frequency Nom:40MHz; Crystal Case:SMD 11.4mm x 4.9mm; Frequency Stability + / -:50ppm; Load Capacitance:-; Frequency Tolerance + / -:30ppm; Product Range:HC-49/4HSMX Series; Operating Temperature Min:-20°C; Operating Temperature Max:70°C; SVHC:No SVHC (15-Jan-2018); Accuracy:± 100ppm; Crystal Mounting Type:SMD; Frequency:40MHz; Frequency Accuracy + @:50ppm; Frequency Accuracy - @:10ppm; Frequency Stability:± 50ppm; No. of Pins:2Pins; Operating Temperature Range:-10°C to +60°C; Output Frequency:40MHz; Temperature Stability + @:50ppm; Temperature Stability - @:10 ppm; Temperature Stabilty:± 100ppm

CRYSTAL OSCILLATOR 30MHZ; Frequency Nom:30MHz; Frequency Stability + / -:100ppm; Oscillator Case:Through Hole 21mm x 13.08mm; Supply Voltage Nom:5V; Product Range:-; Operating Temperature Min:0°C; Operating Temperature Max:70°C; Oscillator Output Compatibility:HCMOS / LSTTL; SVHC:No SVHC (12-Jan-2017); Accuracy:± 100ppm; Crystal Case:DIP; Duty Cycle (%):55%; Duty Cycle Lower Limit:45%; Duty Cycle Upper Limit:55%; Fall Time tf:10ns; Frequency:30MHz; Frequency Accuracy + @:100ppm; Frequency Accuracy - @:100ppm; Frequency Stability:± 100ppm; Load Capacitance:50pF; No. of Pins:4Pins; Operating Temperature Range:0°C to +70°C; Output Drive Level:Universal; Output Frequency:30MHz; Resonator Case:Radial Leaded; Rise Time:10ns; Supply Current Max:30mA; Supply Voltage Max:5.25V; Supply Voltage Min:4.75V; Temperature Stability + @:100ppm; Temperature Stability - @:100ppm; Temperature Stabilty:± 100ppm; Type:SPXO

OSCILLATOR 12MHZ 7MM X 5MM HCMOS; Frequency Nom:12MHz; Frequency Stability + / -:20ppm; Oscillator Case:SMD 7mm x 5mm; Supply Voltage Nom:3.3V; Product Range:CFPS-73 Series; Operating Temperature Min:-20°C; Operating Temperature Max:70°C; Oscillator Output Compatibility:HCMOS; SVHC:No SVHC (07-Jul-2017)

OSCILLATOR 27MHZ 3.2MM X 2.5MM CMOS; Frequency Nom:27MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD 3.2mm x 2.5mm; Supply Voltage Nom:1.2V; Product Range:IQXO-691 Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Oscillator Output Compatibility:CMOS; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 13.56MHZ 18PF 5.2MM X 3.4MM; Frequency Nom:13.56MHz; Crystal Case:SMD 5.2mm x 3.4mm; Frequency Stability + / -:50ppm; Load Capacitance:18pF; Frequency Tolerance + / -:20ppm; Product Range:CFPX-225 Series; Operating Temperature Min:-20°C; Operating Temperature Max:70°C; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 13MHZ 18PF 5MM X 3.2MM; Frequency Nom:13MHz; Crystal Case:SMD 5mm x 3.2mm; Frequency Stability + / -:50ppm; Load Capacitance:18pF; Frequency Tolerance + / -:20ppm; Product Range:CFPX-104 Series; Operating Temperature Min:-20°C; Operating Temperature Max:70°C; SVHC:No SVHC (07-Jul-2017)

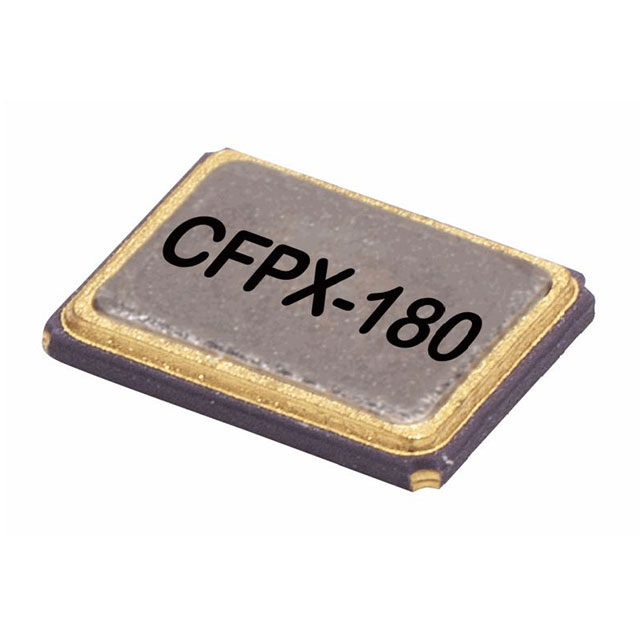

CRYSTAL 48MHZ 18PF 3.4MM X 2.7MM; Frequency Nom:48MHz; Crystal Case:SMD 3.4mm x 2.7mm; Frequency Stability + / -:30ppm; Load Capacitance:18pF; Frequency Tolerance + / -:20ppm; Product Range:CFPX-180 Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 12MHZ 10PF 3.4MM X 2.7MM; Frequency Nom:12MHz; Crystal Case:SMD 3.4mm x 2.7mm; Frequency Stability + / -:30ppm; Load Capacitance:10pF; Frequency Tolerance + / -:30ppm; Product Range:CFPX-180 Series; Operating Temperature Min:-20°C; Operating Temperature Max:70°C; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 16MHZ 18PF 5.2MM X 3.4MM; Frequency Nom:16MHz; Crystal Case:SMD 5.2mm x 3.4mm; Frequency Stability + / -:50ppm; Load Capacitance:18pF; Frequency Tolerance + / -:20ppm; Product Range:CFPX-225 Series; Operating Temperature Min:-20°C; Operating Temperature Max:70°C; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 3.6864MHZ 18PF 11.4MM X 4.9MM; Frequency Nom:3.6864MHz; Crystal Case:SMD 11.4mm x 4.9mm; Frequency Stability + / -:30ppm; Load Capacitance:18pF; Frequency Tolerance + / -:30ppm; Product Range:HC49/3HSMX Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 24MHZ 18PF 5MM X 3.2MM; Frequency Nom:24MHz; Crystal Case:SMD 5mm x 3.2mm; Frequency Stability + / -:50ppm; Load Capacitance:18pF; Frequency Tolerance + / -:20ppm; Product Range:CFPX-104 Series; Operating Temperature Min:-20°C; Operating Temperature Max:70°C; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 10MHZ 10PF 5MM X 3.2MM; Frequency Nom:10MHz; Crystal Case:SMD 5mm x 3.2mm; Frequency Stability + / -:10ppm; Load Capacitance:10pF; Frequency Tolerance + / -:10ppm; Product Range:CFPX-104 Series; Operating Temperature Min:-10°C; Operating Temperature Max:60°C; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 27MHZ 18PF 6MM X 3.5MM; Frequency Nom:27MHz; Crystal Case:SMD 6mm x 3.5mm; Frequency Stability + / -:20ppm; Load Capacitance:18pF; Frequency Tolerance + / -:20ppm; Product Range:CFPX-228-B Series; Operating Temperature Min:-20°C; Operating Temperature Max:70°C; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 20MHZ 10PF 2MM X 1.6MM; Frequency Nom:20MHz; Crystal Case:SMD 2mm x 1.6mm; Frequency Stability + / -:20ppm; Load Capacitance:10pF; Frequency Tolerance + / -:20ppm; Product Range:IQXC-42 Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; SVHC:No SVHC (07-Jul-2017)

CRYSTAL 27MHZ 18PF 5MM X 3.2MM; Frequency Nom:27MHz; Crystal Case:SMD 5mm x 3.2mm; Frequency Stability + / -:30ppm; Load Capacitance:18pF; Frequency Tolerance + / -:20ppm; Product Range:CFPX-225 Series; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; SVHC:No SVHC (07-Jul-2017)

100.0MHz / T & R
