Single phase Power Solid State Relay Output: 24-690VAC 50A

Single phase Power Solid State Relay Output: 24-690VAC 95A

SSR 35A 24-600VAC; Contact Configuration:-; Load Current:35A; Operating Voltage Max:510Vrms; Relay Mounting:Panel; Relay Terminals:Screw; Switching Mode:Zero Crossing; Operating Voltage Min:24Vrms; Control Voltage Min:3.5VDC; Control Voltage Max:32VDC; Product Range:-; SVHC:No SVHC (07-Jul-2017); Control Voltage AC Max:600VAC; Control Voltage AC Min:24VAC; Control Voltage DC Max:32VDC; Control Voltage DC Min:3.5VDC; Control Voltage Range:3.5V DC to 32V DC; Control Voltage Type:DC; Isolation Voltage:4kV; Load Current Min:5mA; Load Current RMS Max:35A; Operating Voltage Range:24Vrms to 510Vrms; Output Type:Thyristor; Output Voltage Max:600V; Output Voltage Min:24V; Peak Load Voltage +:1200V; RMS Load Current Min:5mA; Surge Current:500A

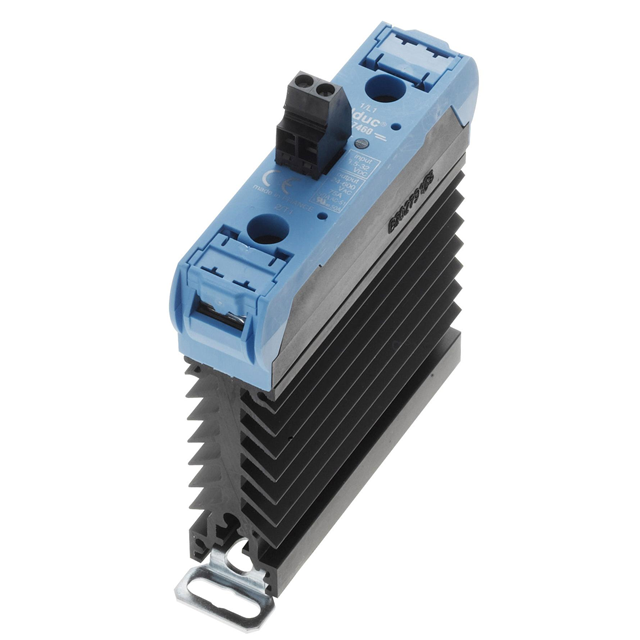

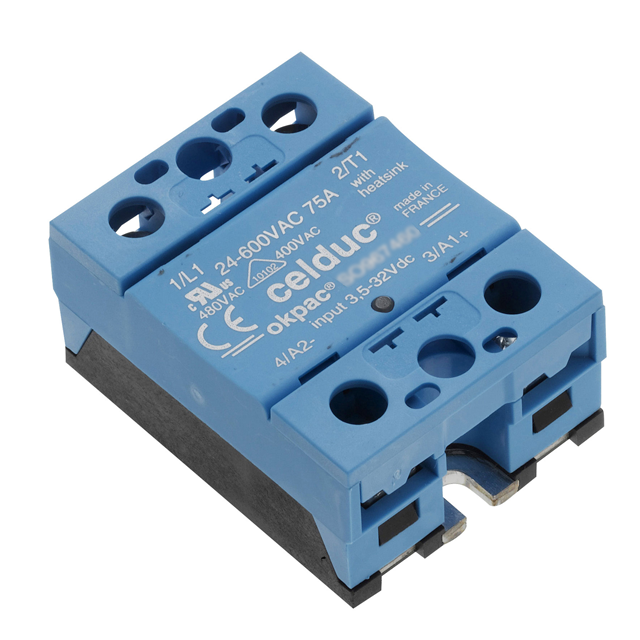

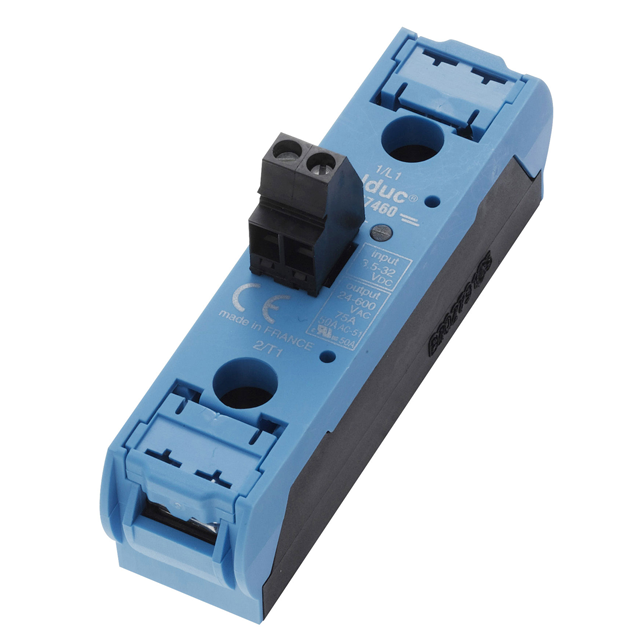

Single phase Power Solid State Relay Output: 24-600VAC 75A

Single phase Power Solid State Relay Output: 12-280VAC 25A

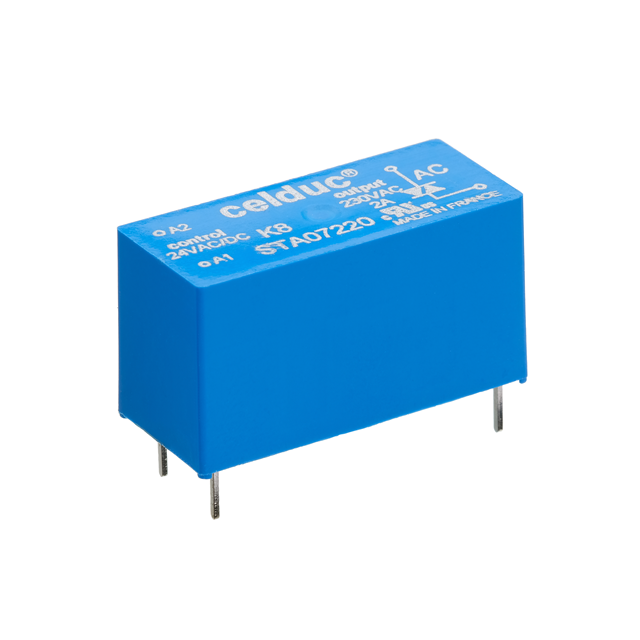

AC Solid State Relay Output: 230V/4A AC

SSR; Contact Configuration:-; Load Current:5A; Operating Voltage Max:30V; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:-; Operating Voltage Min:0V; Control Voltage Min:12VDC; Control Voltage Max:30VDC; Product Range:-; SVHC:No SVHC (07-Jul-2017); Control Voltage DC Max:30VDC; Control Voltage DC Min:12VDC; Control Voltage Range:12V DC to 30V DC; Control Voltage Type:DC; External Depth:12.7mm; External Length / Height:29mm; External Width:25.4mm; Input Voltage:12V DC to 30V DC; Insulation Resistance:2.1kohm; Isolation Voltage:2.5kV; Load Current Min:1mA; Load Current RMS Max:5A; Load Voltage Range:0V DC to 30V DC; Operating Frequency:100Hz; Operating Temperature Max:100°C; Operating Temperature Min:-40°C; RMS Load Current Min:1mA; RMS Load Voltage Max:30VDC; RMS Load Voltage Min:0VAC; Resistance:2100ohm; Turn Off Time:600µs; Turn On Time:50µs

AC Solid State Relay Output: 230V/2A AC

SSR; Contact Configuration:-; Load Current:2.5A; Operating Voltage Max:30V; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:-; Operating Voltage Min:0V; Control Voltage Min:12VDC; Control Voltage Max:30VDC; Product Range:-; SVHC:No SVHC (07-Jul-2017); Control Voltage DC Max:30VDC; Control Voltage DC Min:12VDC; Control Voltage Range:12V DC to 30V DC; Control Voltage Type:DC; External Depth:12.7mm; External Length / Height:29mm; External Width:15.7mm; Input Voltage:12V DC to 30V DC; Insulation Resistance:2.1kohm; Isolation Voltage:2.5kV; Load Current Min:1mA; Load Current RMS Max:2.5A; Load Voltage Range:0V DC to 30V DC; Operating Frequency:100Hz; Operating Temperature Max:100°C; Operating Temperature Min:-40°C; RMS Load Current Min:1mA; RMS Load Voltage Max:30VDC; RMS Load Voltage Min:0VDC; Resistance:3000ohm; Turn Off Time:600ms; Turn On Time:50µs

Single phase Power Solid State Relay Output: 12-275VAC 25A

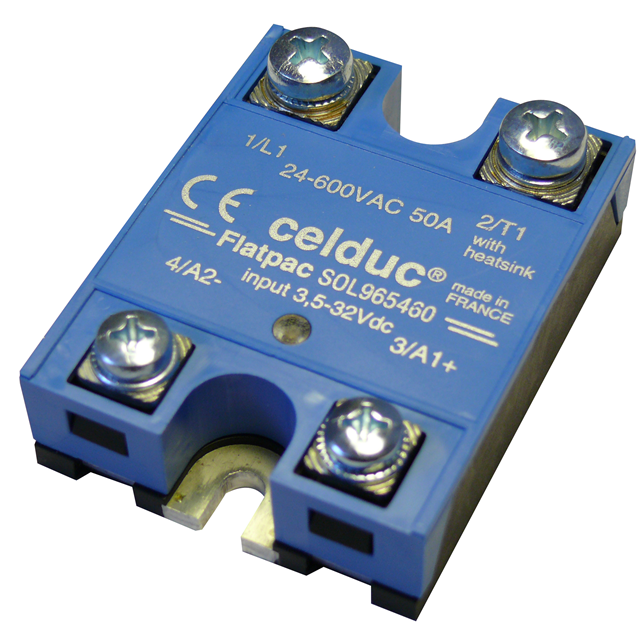

Single phase Power Solid State Relay Output: 24-600VAC 50A

SSR 32A; Contact Configuration:-; Load Current:32A; Operating Voltage Max:510VAC; Relay Mounting:DIN Rail; Relay Terminals:Screw; Switching Mode:Zero Crossing; Operating Voltage Min:24VAC; Control Voltage Min:3.5VDC; Control Voltage Max:32VDC; Product Range:-; SVHC:No SVHC (07-Jul-2017); Control Voltage DC Max:32VDC; Control Voltage DC Min:3.5VDC; Control Voltage Range:3.5V DC to 32V DC; Control Voltage Type:DC; External Depth:91mm; External Length / Height:70mm; External Width:22.5mm; Load Current RMS Max:32A; Operating Temperature Max:80°C; Operating Temperature Min:-40°C; Operating Voltage Range:24V AC to 510V AC; Peak Surge Current:580A; RMS Load Current Min:0.05A; RMS Load Voltage Max:510V; RMS Load Voltage Min:24V; Surge Current:550A

Single phase Power Solid contactor Output: 12-280VAC 25A (*)

Single phase Power Solid contactor Output: 24-600VAC 30A (*)

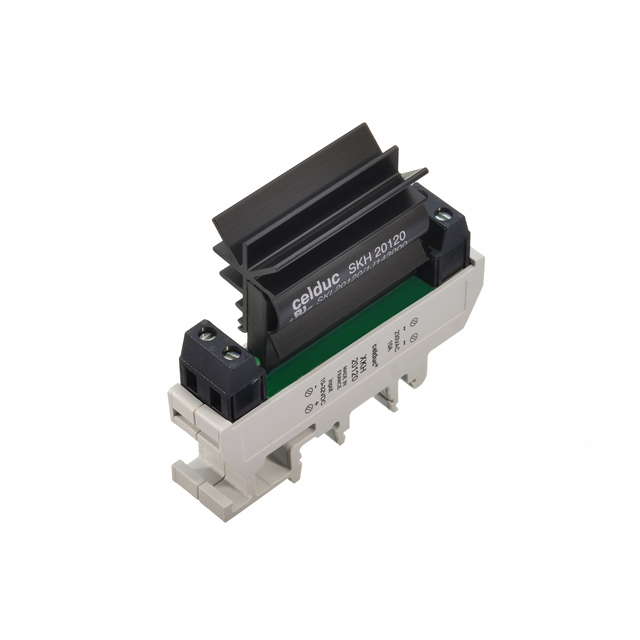

Solid State Relay for DIN rail fixation Output: 10A/ 230VAC

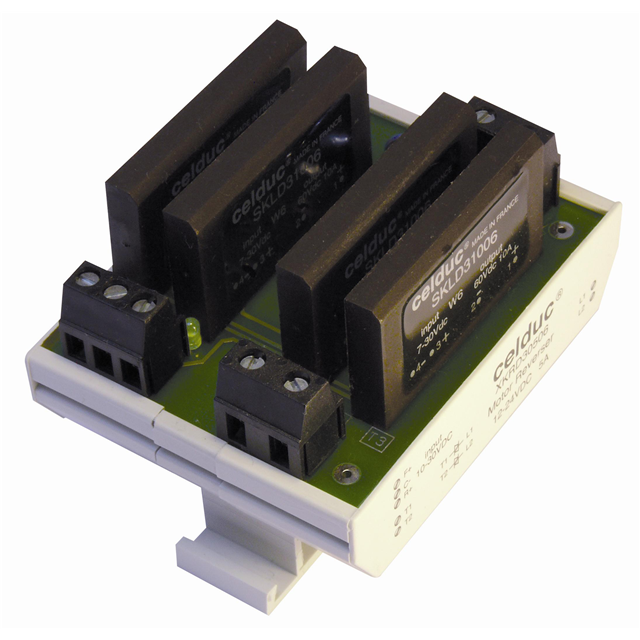

Solid State Relay for DIN rail fixation Output: 5A/ 60VDC

COVER FOR SC8; Relay Dust Cover Type:Protective; For Use With:SC8; Product Range:-; SVHC:No SVHC (17-Dec-2015); Accessory Type:Cover; Colour:Black

DIN rail Adaptor

Low thermal resistance

Support Interfaces E/S DIN rail adaptor for I/Omodules
