GAP PAD VO-U/S .200" 4"X4" SHEET; Thermal Conductivity:1W/m.K; Conductive Material:-; Thickness:5.08mm; Thermal Impedance:-; Dielectric Strength:-; External Length:-; External Width:100mm; Product Range:-; SVHC:No SVHC (17-Dec-2015); Breakdown Voltage Vbr:6kV; Colour:Mauve/Pink; Dielectric Constant:5.5; External Depth:5mm; Flammability Rating:UL94V-0; Length:100mm; Material:Gap Pad VOUS; Operating Temperature Max:200°C; Operating Temperature Min:-60°C; Operating Temperature Range:-60°C to +200°C; Overall Width:100mm; Resistivity:10ohm/sq; Rockwell Hardness:75; Specific Gravity:1.6; Type:Thermal Pad; Volume Resistivity:10ohm-m

GAP PAD 3000S30 .040" 4"X4" SHEET; Insulator Body Material:Gap Pad 3000 S30; Thermal Conductivity:3W/m.K; Breakdown Voltage Vbr:2.5kV; Thickness:1.016mm; Volume Resistivity:85000Mohm-m; Thermal Impedance:0.66°C/W; Dielectric Strength:-; Product Range:-; SVHC:No SVHC (17-Dec-2015); Colour:Light Blue; Dielectric Constant:6.0; External Depth:1mm; External Width:100mm; Flammability Rating:UL94V-0; Length:100mm; Material:Gap Pad 3000 S30; Operating Temperature Max:200°C; Operating Temperature Min:-60°C; Operating Temperature Range:-60°C to +200°C; Overall Width:100mm; Resistivity:8.5ohm/sq; Rockwell Hardness:30; Specific Gravity:3.2; Type:Thermal Pad

SIL-PAD 900S .009" TO-220 PK10; Insulator Body Material:-; Thermal Conductivity:1.6W/m.K; Breakdown Voltage Vbr:5.5VAC; Thickness:0.229mm; Volume Resistivity:10000Mohm-m; Thermal Impedance:-; Dielectric Strength:-; Product Range:-; SVHC:No SVHC (17-Dec-2015); Colour:Mauve; Dielectric Constant:6; External Depth:0.2mm; Operating Temperature Max:180°C; Operating Temperature Min:-60°C; Operating Temperature Range:-60°C to +180°C; Pack Quantity:10; Packages Cooled:TO-218 TO-220 TO-247; Resistivity:10ohm/sq; Tensile Strength N/m²:9N/mm²; Thermal Conductivity (Cal/cm³/K):1.6W/m.K; Type:Thermal Pad

SIL-PAD 900S .009" TO-3P PK10; Insulator Body Material:Fibreglass Silicone Rubber; Thermal Conductivity:1.6W/m.K; Breakdown Voltage Vbr:5.5VAC; Thickness:228.6µm; Volume Resistivity:10ohm-m; Thermal Impedance:0.95°C/W; Dielectric Strength:-; Product Range:-; SVHC:No SVHC (17-Dec-2015); External Depth:0.2mm; Operating Temperature Max:180°C; Operating Temperature Min:-60°C; Operating Temperature Range:-60°C to +180°C; Packages Cooled:TO-218 TO-220 TO-247; Type:Thermal Pad

GAP PAD VO .160" 4"X4" SHEET; Thermal Conductivity:0.8W/m.K; Conductive Material:-; Thickness:4.1mm; Thermal Impedance:-; Dielectric Strength:-; External Length:-; External Width:100mm; Product Range:-; SVHC:No SVHC (17-Dec-2015); Breakdown Voltage Vbr:6kV; Dielectric Constant:5.5; Electrical Property Ins / Con:Insulative; External Depth:4mm; External Length / Height:100mm; Insulator Body Material:Gap Pad VO; Length:100mm; Material:Gap Pad VO; Operating Temperature Max:200°C; Operating Temperature Min:-60°C; Operating Temperature Range:-60°C to +200°C; Overall Width:100mm; Thermal Conductivity (Cal/cm³/K):0.8Cal/cm³/K; Type:Thermal Pad; Volume Resistivity:100000Mohm-m

THERMAL PAD TO-220; Insulator Body Material:PI (Polyimide) Film; Thermal Conductivity:1.3W/m.K; Breakdown Voltage Vbr:6kV; Thickness:0.152mm; Volume Resistivity:10ohm-m; Thermal Impedance:0.86 C/W; Dielectric Strength:- ;RoHS Compliant: Yes

Thermal Substrates - MCPCB 1 X 17 SQ. STRIP SAMSUNG SUNNIX

IN STOCK SHIP TODAY

SIL-PAD K-6 .006" TO-3P; Insulator Body Material:Silicone Elastomer; Thermal Conductivity:1.1W/m.K; Breakdown Voltage Vbr:6kV; Thickness:0.152mm; Volume Resistivity:10ohm-m; Thermal Impedance:0.82°C/W; Dielectric Strength:-; Product Range:-; SVHC:No SVHC (17-Dec-2015); Electrical Property Ins / Con:Insulative; External Depth:0.15mm; Isolation Voltage:6kV; Material:Kapton MT Film; Operating Temperature Max:180°C; Operating Temperature Min:-60°C; Thermal Resistance:0.3°C/W; Type:Thermal Pad

SIL-PAD 2000 .015" TO-220; Insulator Body Material:Fibreglass Silicone Elastomer; Thermal Conductivity:3.5W/m.K; Breakdown Voltage Vbr:4kV; Thickness:0.38mm; Volume Resistivity:10ohm-m; Thermal Impedance:0.57°C/W; Dielectric Strength:-; Product Range:-; SVHC:No SVHC (17-Dec-2015); Electrical Property Ins / Con:Insulative; External Depth:0.38mm; Isolation Voltage:4kV; Material:Boron nitride loaded silicon Elastomer; Operating Temperature Max:200°C; Operating Temperature Min:-60°C; Packages Cooled:TO-220; Thermal Resistance:0.2°C/W; Type:Thermal Pad

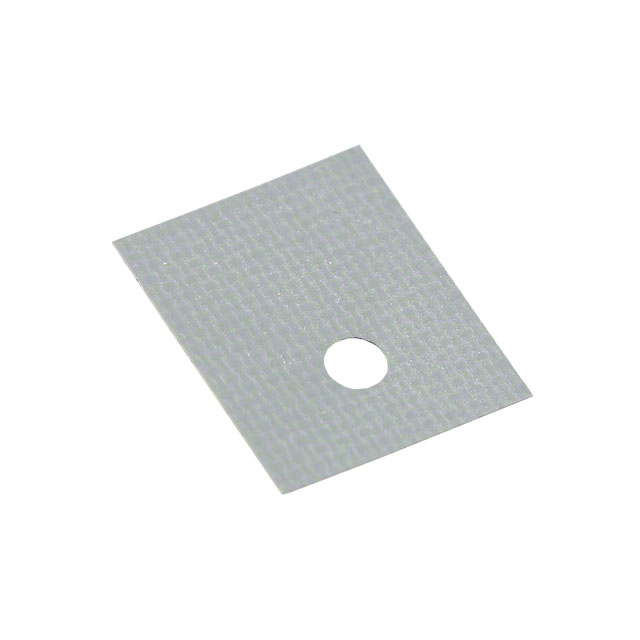

SIL-PAD 400 .007" TO-220 ; Thickness:0.178mm; Conductive Material:-; SVHC:No SVHC (17-Dec-2015); Thermal Conductivity:0.9W/m.K; Thermal Impedance:-; Volume Resistivity:1ohm-m; External Length:-; External Width:-; Product Range:-; Breakdown Voltage Vbr:3.5kV; Electrical Property Ins / Con:Insulative; Isolation Voltage:3.5kV; Material:Silicone Rubber / Fibreglass; Operating Temperature Max:180°C; Operating Temperature Min:-60°C; Operating Temperature Range:-60°C to +180°C; Packages Cooled:TO-220; Thermal Resistance:0.45°C/W; Type:Thermal Pad

GAP PAD NON-SOFT 0.06" 100X100MM SHEET; Thermal Conductivity:1.5W/m.K; Thickness:0.06"; Thermal Impedance:1.62 C/W; Dielectric Strength:-; Product Range:-; Breakdown Voltage Vbr:6kV; Length:100mm; Operating Temperature Max:200 C ;RoHS Compliant: Yes

Thermal Interface Products Foil-Format Grease Replacement for Maximum Heat Transfer, 12" x 12" Sheet, 0.006" Thickness, Adhesive - One Side, Sil-Pad TSP Q2500 Series / Also Known as Bergquist Q-Pad II Series

Thermal Interface Products Foil-Format Grease Replacement for Maximum Heat Transfer, 12" x 12" Sheet, 0.006" Thickness, Sil-Pad TSP Q2500 Series / Also Known as Bergquist Q-Pad II Series

Thermal Interface Products Foil-Format Grease Replacement for Maximum Heat Transfer, 12" x 12" Sheet, 0.006" Thickness, Adhesive - One Side, Sil-Pad TSP Q2500 Series / Also Known as Bergquist Q-Pad II Series, IDH 2165808

Thermal Interface Products Foil-Format Grease Replacement for Maximum Heat Transfer, 12" x 12" Sheet, 0.006" Thickness, Sil-Pad TSP Q2500 Series / Also Known as Bergquist Q-Pad II Series, IDH 2191868

Thermal Pad Green 25.40mm x 19.05mm Rectangular

Thermal Interface Products Thermally Conductive, Reinforced, Soft S-Class Gap Filling Material, 8" x 16" Sheet, 0.010" Thickness, Gap Pad TGP 3000 Series / Also Known as Bergquist Gap Pad 3000S30 Series, IDH 2166348

Thermal Pad Gray 406.40mm x 203.20mm Rectangular Tacky - Both Sides

Thermal Interface Products Foil-Format Grease Replacement for Maximum Heat Transfer, 12" x 12" Sheet, 0.006" Thickness, Sil-Pad TSP Q2500 Series / Also Known as Bergquist Q-Pad II Series
